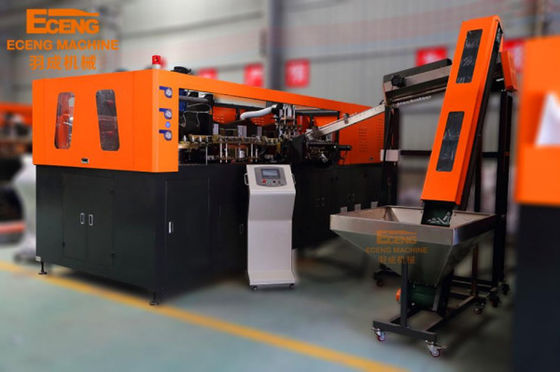

43kw Water Bottle Blowing Machine

43kw Water Bottle Blowing Machine

43kw Water Bottle Blowing Machine
43kw Water Bottle Blowing Machine
43kw Water Bottle Blowing Machine
Product Details:
Place of Origin: Jiangsu, China
Brand Name: eceng
Certification: CE
Model Number: Q6000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $18,000.00 - $27,000.00/Sets
Packaging Details: make plastic bottle blow job machine is packed with wooden pallet or as customers' request.
Delivery Time: 35days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 Set/Sets per Month make plastic bottle blow job machine
Contact Now
Detailed Product Description
Plastic Processed: PET Condition: New
Blow Moulding Type: Stretch Blow Moulding Voltage: According To Customer's Request
Weight: 3500kg Heating Method: Infrared Tube Cycle Heating
Valve Brand: FESTO Blowing Cylinder: FESTO
PLC Brand: MITSUBISHI Switch Brand: OMRON
Product: Make Plastic Bottle Blow Job Machine Max Bottle Volume: 2L
Cavity: 4 Port: Shanghai/Ningbo
High Light:

43kw Water Bottle Blowing Machine

,

2L plastic bottle manufacturing equipment

,

4 cavity plastic bottle manufacturing equipment



43kw Water Bottle Blowing Machine 0



Technical parameter



item

Q6000



Bottle type specification



cavity

4

theory output (PCS/HR)

5000-6000

Max. volume (L)

2L

Bottle mouth maximum overall diameter (mm)

28-38mm

Bottle biggest diameter

100mm

Bottle maximum height

330mm



Power specifications



Light tube quantity

32pcs

Light tube power

1.25kw

Maximum heating power

40kw

All electric machine installation

43kw

Actual consumption

21.5kw



Air pressure specification



Work pressure

7-9kg/cm2

Low-pressure gas consumption

1600Ltr/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

3000 Ltr/min



Frozen water specification



Work pressure

5-6 kg/cm2

Temperature range

10°C

Consumption

8000kcal/hr

Frozen water flow

88Ltr/min

Machine specification



Size of the machine

4.5x1.6x1.9 (m)

Weight of the machine

3.5ton



Machine Parts

Components Brand,Origin
PLC controller XINJIE CHINA
Touch screen XINJIE CHINA
Cylinder SMC, Japan SMC
Filter TPC, Korea TPC
Magnet valve TPC, Korea TPC
Photoelectric switch OMRON,Japan
Contactor Schneider,France
Proximity switch SICK ,German SICK
Sensor OMRON,Japan
Switch power MEANWELL,Taiwan
Main Servo motor XINJIE CHINA
Feeding Servo Motor XINJIE CHINA



After sales service

1) Free charge for mould design

2) Free charge to provide spare parts for one year

3) Engineers available to install and test machine overseas

4) 1 year warranty and lifetime maintenance

43kw Water Bottle Blowing Machine 3

Features

A. Stable performance with advanced PLC.

B. Conveying preforms automatically with conveyor.

C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.

D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.

E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.

F.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.

G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.

H. Strong clamping force with high pressure and double crank Contacts to lock the mold.

I. Two ways of operating: automatic and manual.

J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.

K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.

L. Contamination is avoided for the bottle body.

M. Ideal effect of the chilling with the chilling system.

N. Easy installation and starting

O. Low rejection rate: less than 0.3percent.






Mould

43kw Water Bottle Blowing Machine 5

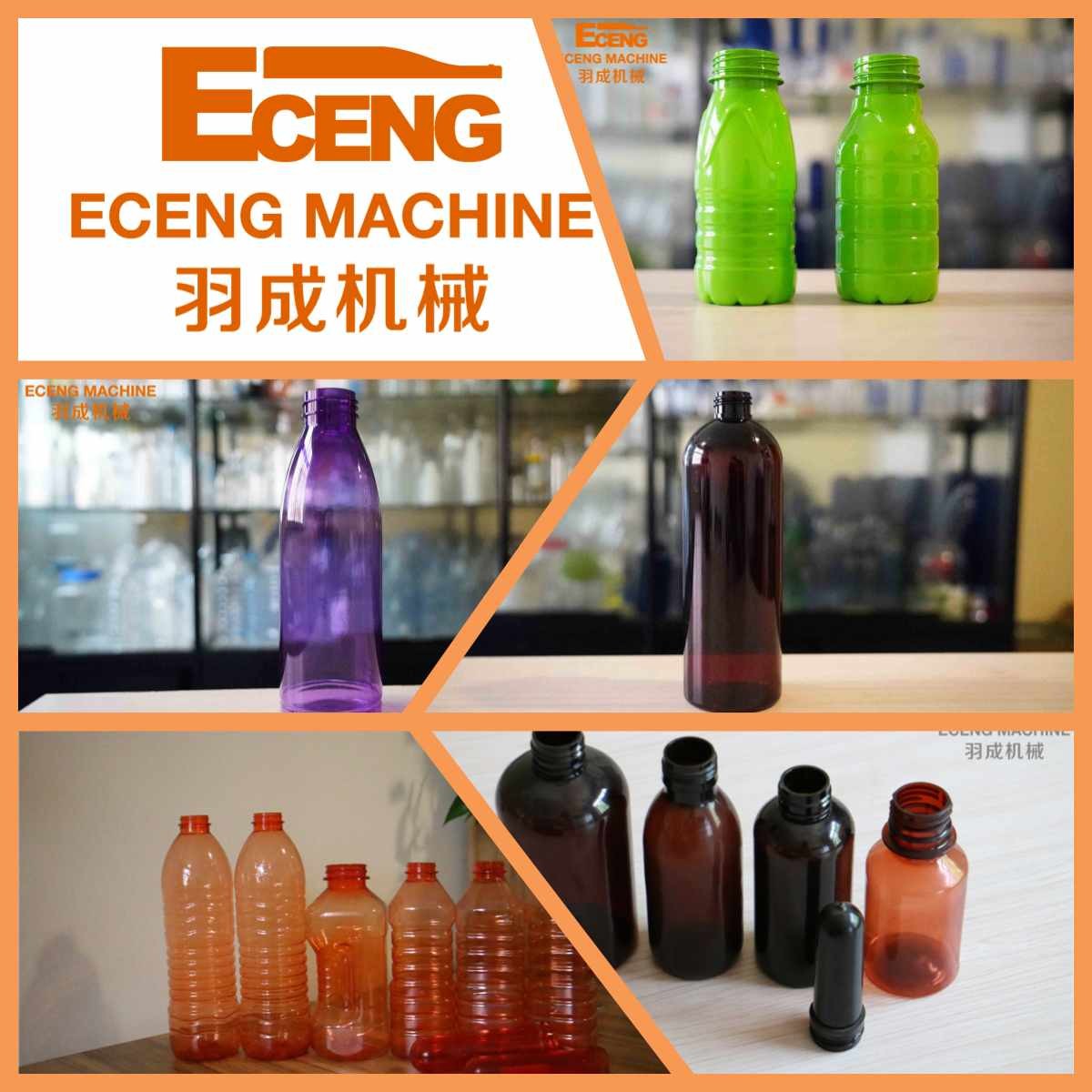

Products

43kw Water Bottle Blowing Machine 7




Packaging & Shipping

43kw Water Bottle Blowing Machine 10



Company Information

43kw Water Bottle Blowing Machine 12



Certifications

43kw Water Bottle Blowing Machine 14



Customers

43kw Water Bottle Blowing Machine 16



FAQ

43kw Water Bottle Blowing Machine 18
