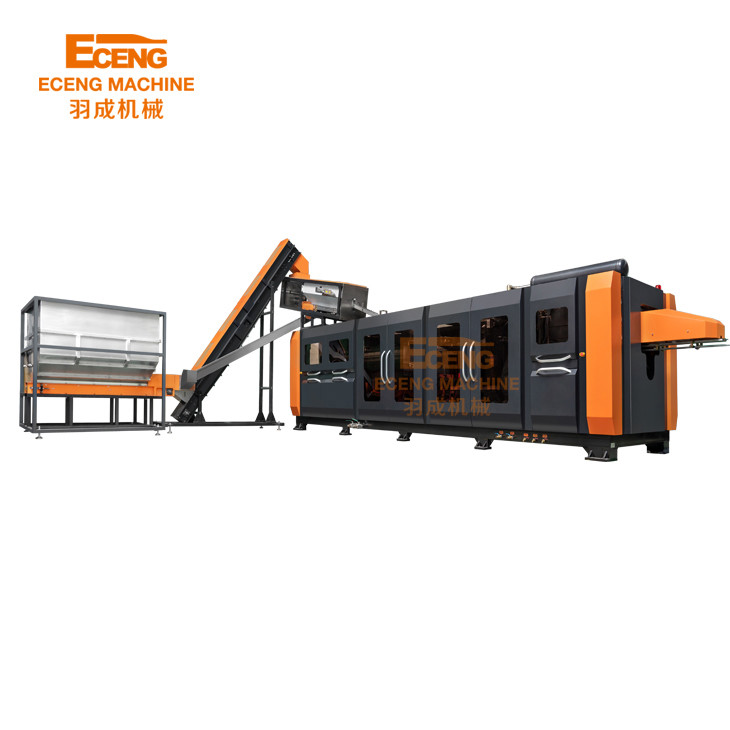

750ml Automatic Blow Molding Machine SMC Plastic PET Bottle Making

750ml Automatic Blow Molding Machine SMC Plastic PET Bottle Making

  • 750ml Automatic Blow Molding Machine  SMC Plastic PET Bottle Making
  • 750ml Automatic Blow Molding Machine  SMC Plastic PET Bottle Making
  • 750ml Automatic Blow Molding Machine  SMC Plastic PET Bottle Making
  • 750ml Automatic Blow Molding Machine  SMC Plastic PET Bottle Making
  • 750ml Automatic Blow Molding Machine  SMC Plastic PET Bottle Making
  • 750ml Automatic Blow Molding Machine  SMC Plastic PET Bottle Making
  • 750ml Automatic Blow Molding Machine  SMC Plastic PET Bottle Making
750ml Automatic Blow Molding Machine  SMC Plastic PET Bottle Making
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO
Model Number: K12
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $25,000.00 - $40,000.00/Sets
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Contact Now
Detailed Product Description
Plastic Processed: PET Max.Bottle Height(mm): 180 Mm
Neck Diameter(mm): 30 Mm Max.Bottle Diameter(mm): 75 Mm
Bottle Volume(ml): 750 Ml Condition: New
Application: Bottle Blow Moulding Type: Stretch Blow Moulding
Year: 2021 Voltage: 380V,50HZ
Dimension(L*W*H): 7.57*1.6*1.9m Hollow Part Volume: 750ml
High Pressure Valve Brand: SMC Rotary Cylinder Brand: SMC
PLC Brand: DELTA Power (kW): 56
Weight (KG): 11600 KG Automation: Automatic
Warranty: 1 Year Key Selling Points: Automatic
Applicable Industries: Manufacturing Plant Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Color: Black And White Output: 10000
Size Of The Machine: 7.57*1.6*1.9 Weight: 11.6tons
Power(W): 56KW Port: Shanghai
High Light:

750ml plastic pet bottle making machine

,

SMC plastic pet bottle making machine

,

750ml Automatic Blow Molding Machine

plastic pet bottle making machine price

We provide many kinds of stretch blow molding machines. Our products have advantages not only in price but in quality.

 k series linear bottle blowing machines are used in the production of PET water bottles, carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.

750ml Automatic Blow Molding Machine  SMC Plastic PET Bottle Making 0



Main Features

1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.

2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.

3. servo transmission system, high positioning accuracy, fast speed, good stability and reliability.

4. suitable for flexible production of small quantity and various bottle shape,wide range of applications,meet customer needs.

5. increase energy using efficiency,increase productivity per unit of time.

6. manual and automatic methods of operation, human-machine interface control, simple operation.

7. servo transmission system, high positioning accuracy, fast speed stability and good reliability.

8. safety self-locking device in each mechanical action,when a certain process fails, the program will automatically switch to a safe state.

9. heat and noise are significantly reduced compared with YCQ series.

10. less than 0.2% scrap rate for finished bottle .

Product Parameters

                               Model                                                                 K12

Bottle type specification



Cavity

12

Max.volume

0.75L

Bottle mouth maximum overall diameter

28-30mm

Bottle biggest diameter

75mm

Bottle maximum height

180mm

Capacity specification



Theory output

24000BPH

Bottle type volume

200ML

Bottle type weight

12g

Bottle type

Round

Power specification

Light tube quantity

32pcs

Light tube power

1.75KW

Maximum heating power

56KW

All electric machine installation

71KW

Actual consumption

30%--60%

Air pressure specification



Work pressure

5-6kg/cm2

Blow bottle pressure

25-45kg/cm2

Higher -pressure gas consumption

8000Ltr/min

Air pressure specification



Work pressure

5-6 kg/cm2

Temperature range

10℃

Consumption

24000kcal/hr

Forzen water flow

220L/min

Machine specification

Machine size

7.57x1.6x1.9

Machine weight

11.6ton



750ml Automatic Blow Molding Machine  SMC Plastic PET Bottle Making 2750ml Automatic Blow Molding Machine  SMC Plastic PET Bottle Making 4750ml Automatic Blow Molding Machine  SMC Plastic PET Bottle Making 6750ml Automatic Blow Molding Machine  SMC Plastic PET Bottle Making 8750ml Automatic Blow Molding Machine  SMC Plastic PET Bottle Making 10750ml Automatic Blow Molding Machine  SMC Plastic PET Bottle Making 12

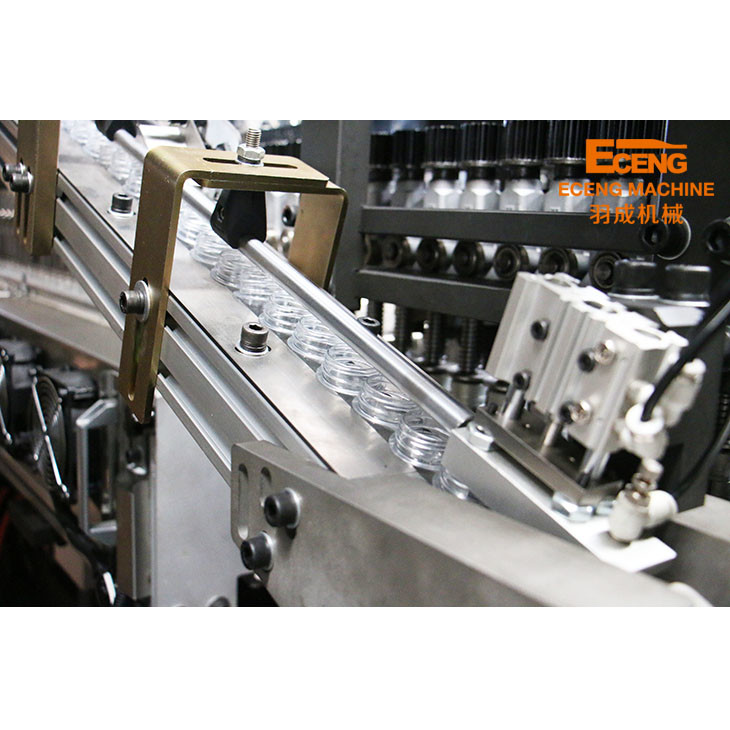

1,Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.

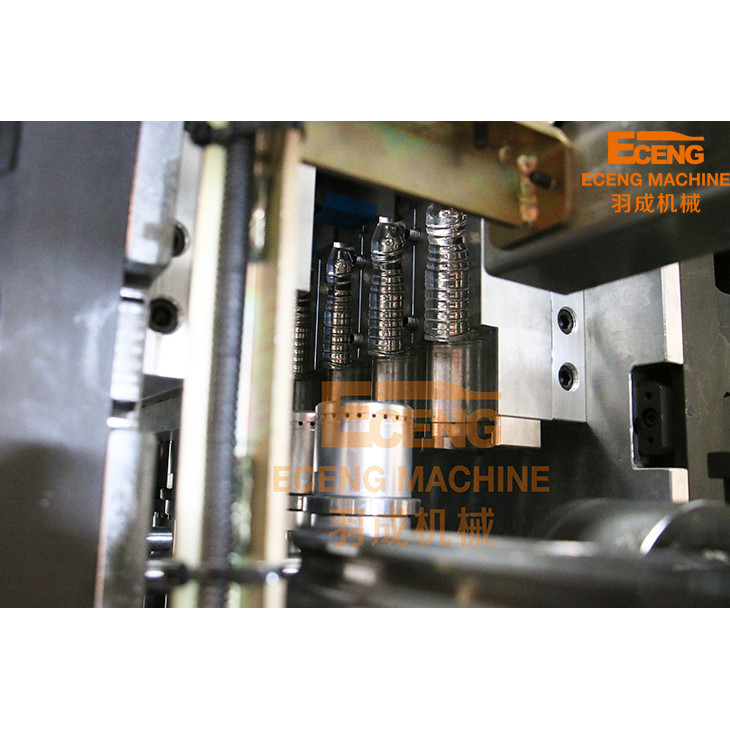

2,New clamping system,upgraded on the basis of the original ones,increase mould clamping speed and output,greatly reduce mold clamping noise.



3,Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

4,k series bottle blowing machine adopts advanced microcomputer PLC control system, stable performance; servo transmission system, high positioning accuracy, fast speed, stable and reliable.

      Want to know more message , contact us with out hesitate ! Send us now !
