6 Cavity Fully Automatic Blow Moulding Machine Stretch Blow Moulding 3750kg

6 Cavity Fully Automatic Blow Moulding Machine Stretch Blow Moulding 3750kg

  • 6 Cavity Fully Automatic Blow Moulding Machine Stretch Blow Moulding 3750kg
  • 6 Cavity Fully Automatic Blow Moulding Machine Stretch Blow Moulding 3750kg
  • 6 Cavity Fully Automatic Blow Moulding Machine Stretch Blow Moulding 3750kg
  • 6 Cavity Fully Automatic Blow Moulding Machine Stretch Blow Moulding 3750kg
  • 6 Cavity Fully Automatic Blow Moulding Machine Stretch Blow Moulding 3750kg
  • 6 Cavity Fully Automatic Blow Moulding Machine Stretch Blow Moulding 3750kg
6 Cavity Fully Automatic Blow Moulding Machine Stretch Blow Moulding 3750kg
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $10,000.00 - $35,000.00/Sets
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Contact Now
Detailed Product Description
Condition: New Blow Moulding Type: Stretch Blow Moulding
Voltage: 380V,50HZ Warranty: One Year For Free
Key Selling Points: Automatic Showroom Location: Peru, Saudi Arabia, Spain, Turkey, Russia, Italy, Thailand, Mexico, Pakistan, Brazil, United Kingdom, Indonesia, Germany, Egypt, Philippines, South Korea, Algeria, Chile, Nigeria, Romania, Australia, Ukraine, Kyrgyzstan, Malaysia, Kazakhstan, Tajikistan, B
Applicable Industries: Food & Beverage Factory Warranty Of Core Components: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas Output: 9000
High Light:

6 cavity fully automatic blow moulding machine

,

6 cavity blowing machine 3750kg

,

stretch blow moulding machine 3750kg



fully auto plastic bottle blow moulding machine good price

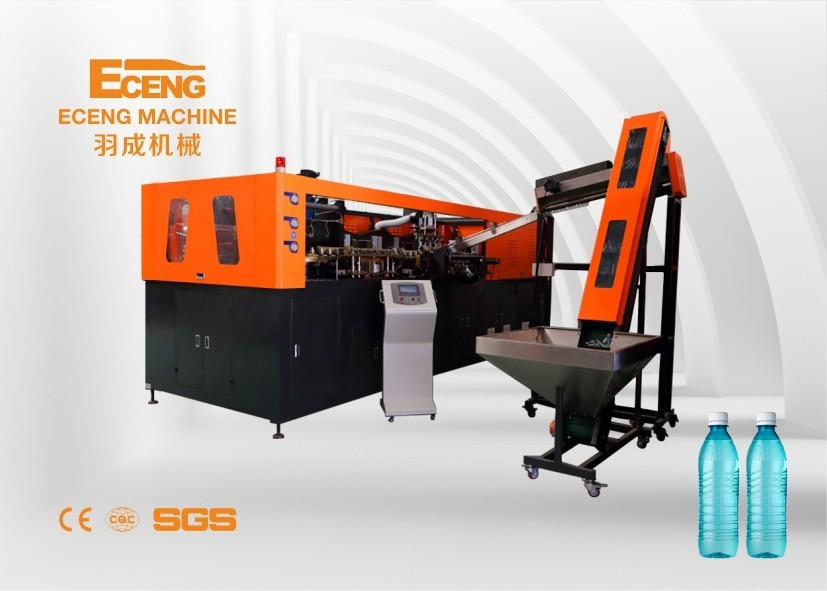

Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1200 bottles per hour (750 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
6 Cavity Fully Automatic Blow Moulding Machine Stretch Blow Moulding 3750kg 0
Q series linear bottle blowing machine features:

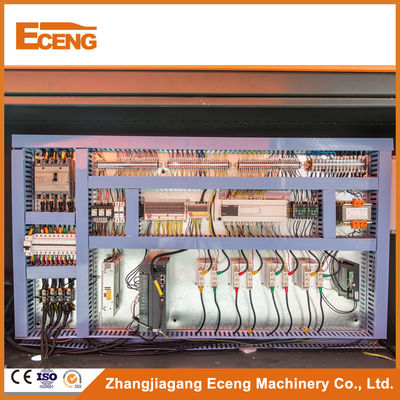

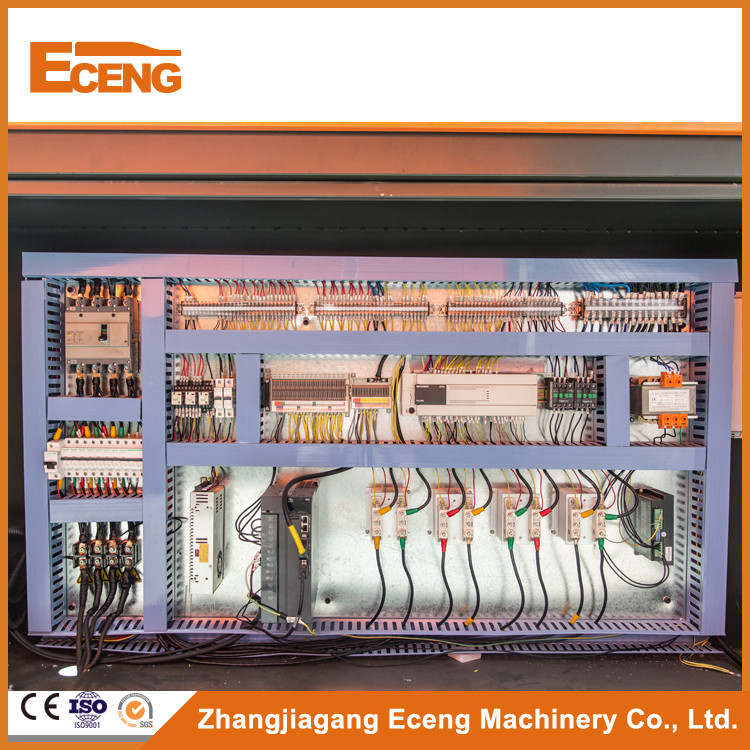

1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .
6 Cavity Fully Automatic Blow Moulding Machine Stretch Blow Moulding 3750kg 2

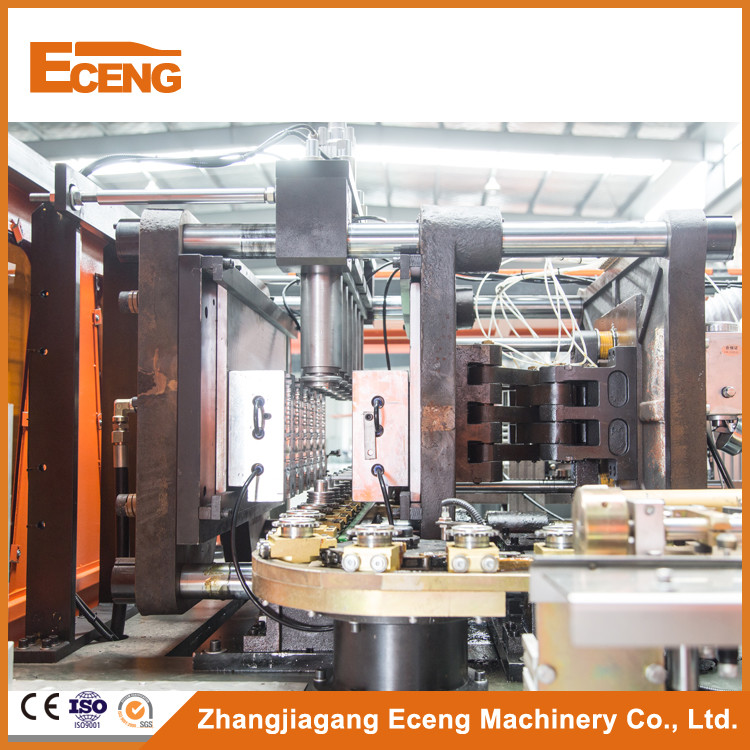

Servo transmission system
High positioning accuracy, fast speed and stability, good reliability. Gas circuit design will divide action and blowing into three parts to meet the needs of different pressure for blowing bottles and movement; Adopt high pressure and double crank arm link locking, strong clamping force.
6 Cavity Fully Automatic Blow Moulding Machine Stretch Blow Moulding 3750kg 4
6 Cavity Fully Automatic Blow Moulding Machine Stretch Blow Moulding 3750kg 6

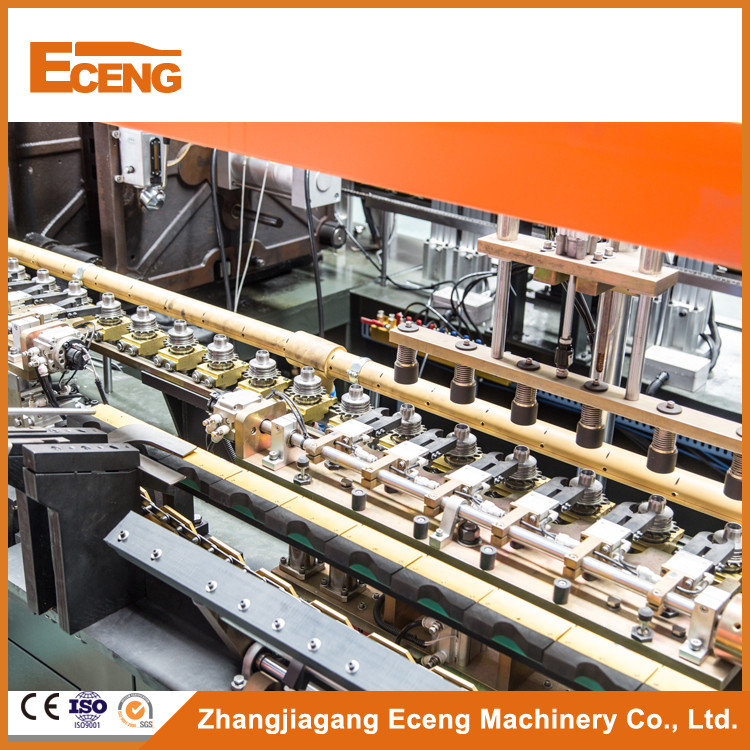

Adopt infrared lamp heating
Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable;Heating lamp, reflector width and height can be adjusted to suit preform heating of different structure, with automatic temperature-removal device to ensure the constant temperature of oven.

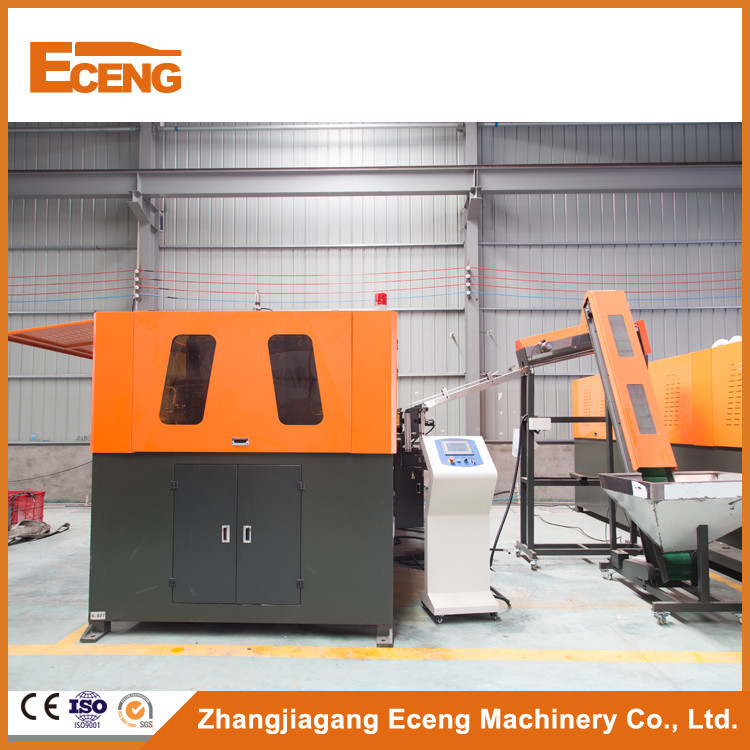

Auto-loader
Auto-loader improves working efficiency, accurate transportation, reliable and durable, raw materials are completely free of moisture, pollution, foreign matter, and loss during feeding process. Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.
6 Cavity Fully Automatic Blow Moulding Machine Stretch Blow Moulding 3750kg 8
6 Cavity Fully Automatic Blow Moulding Machine Stretch Blow Moulding 3750kg 10
Intelligent Human-Machine Interface
1. Human-machine interface control, easy operate and monitor.
2. Live production information supervise, auto record production data everyday
3. Failure warning and troubleshooting.
specification
Item

Q9000




Bottle type specification
Cavity
6

Theory output
9000

Max.volume
2L

Bottle mouth maximum overall diameter
28-38mm

Bottle biggest diameter
105mm

Bottle maximum height
330mm



Power specification
Light tube quantity
72pcs

Light tube power
1.5KW

Maximum heating power
108KW

All electric machine installation
110KW

Actual consumption
40%--70%


Air pressure specification
Work pressure
7-9kg/cm2

Low-pressure gas consumption
1600L/min

Blow bottle pressure
25-35kg/cm2

Higher -pressure gas consumption
8000Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
8000kcal/hr

Frozen water flow
138L/min

Machine specification
Machine size
6.5x2.0x1.9

Machine weight
5.5ton
6 Cavity Fully Automatic Blow Moulding Machine Stretch Blow Moulding 3750kg 12
Company Introduction
6 Cavity Fully Automatic Blow Moulding Machine Stretch Blow Moulding 3750kg 14
ECENG MACHINE
1 / A standardized workshop with a total area of 20,000 square meters.
2/Founded in 2007,has 13 years of experience in blow molding machines.
3 / Located in Zhangjiagang, only 120km from Shanghai.
4/ The equipment will be tested and run for 24 hours before leaving the factory to ensure the smooth operation of the water pipeline and the stability of the pneumatic, electrical and mechanical.
5/The spare parts inventory is sufficient to ensure timely delivery and supply of spare parts.

ECENG Machine Sales Manager Team and Engineer Team.
1 / Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
2 / The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
Exhibition
6 Cavity Fully Automatic Blow Moulding Machine Stretch Blow Moulding 3750kg 16
Packing&Shipping
6 Cavity Fully Automatic Blow Moulding Machine Stretch Blow Moulding 3750kg 18
After Sales Service
1.Installation, debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.the sample service
1 We can send you the video of the running machine.
2' You are welcome to come to visit our factory,and see the machine running.
4. We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5. well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .12 Months guarantee and life-long technical support.
7. Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions.

Recommend Products
6 Cavity Fully Automatic Blow Moulding Machine Stretch Blow Moulding 3750kg 21
FAQ
1.Your company is a trading company or a direct factory?
We are a direct factory located in Zhangjiagang City. Very close to Shanghai and Wuxi (airport and train provided). If you arrive in Shanghai or Wuxi, we can pick you up to visit our factory.
2.If we buy your machine, what is your guarantee or guarantee of quality?
We provide you with high-quality machines with 1-year warranty and lifetime technical support.
3.How to ensure the safety of your funds and deliver on time?
1/Through Alibaba's letter guarantee service, it will ensure on-time delivery and the quality of the equipment to be purchased.
2/Through the letter of credit, you can easily lock the delivery time.
3/After visiting the factory, you can ensure the authenticity of our bank account.
4.Check how ECENG MACHINE ensures quality!
1/In order to ensure the accuracy of each part, we are equipped with various professional processing equipment, and we have accumulated professional processing methods in the past few years.
2/Each component before assembly needs to be strictly controlled by inspectors.
3/After all equipment is completed, we will connect all machines and run the entire production line for at least 12 hours to ensure the stable operation of the customer’s factory.
