2 Cavity 5 Ltr Blow Moulding Machine Plastic Bottle Making 2000bph

2 Cavity 5 Ltr Blow Moulding Machine Plastic Bottle Making 2000bph

  • 2 Cavity 5 Ltr Blow Moulding Machine Plastic Bottle Making 2000bph
  • 2 Cavity 5 Ltr Blow Moulding Machine Plastic Bottle Making 2000bph
  • 2 Cavity 5 Ltr Blow Moulding Machine Plastic Bottle Making 2000bph
  • 2 Cavity 5 Ltr Blow Moulding Machine Plastic Bottle Making 2000bph
  • 2 Cavity 5 Ltr Blow Moulding Machine Plastic Bottle Making 2000bph
  • 2 Cavity 5 Ltr Blow Moulding Machine Plastic Bottle Making 2000bph
  • 2 Cavity 5 Ltr Blow Moulding Machine Plastic Bottle Making 2000bph
2 Cavity 5 Ltr Blow Moulding Machine Plastic Bottle Making 2000bph
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: iso ce
Model Number: YCQ-5L-2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $35,000.00/Sets 1-1 Sets
Packaging Details: packed with wooden case or as customers' request.
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Plastic Processed: PET Condition: New
Blow Moulding Type: Stretch Blow Moulding Voltage: 380V,50HZ
Hollow Part Volume: 5l Showroom Location: Indonesia, Egypt, Nigeria, Ukraine
Applicable Industries: Food & Beverage Factory Output: 1500-2000bph
Key Word: 3l 5l 10l Pet Cooking Oil Blowing Machine
High Light:

2 Cavity 5 ltr blow moulding machine

,

5 ltr blow moulding machine 2000bph

,

plastic bottle making machine 2000bph

2 Cavity 5 Liter Machines To Make Plastic Bottles making machines
Product Description

2 Cavity 5 Ltr Blow Moulding Machine Plastic Bottle Making 2000bph 0

 2 Cavity 5 Ltr Blow Moulding Machine Plastic Bottle Making 2000bph 2

2 Cavity 5 Ltr Blow Moulding Machine Plastic Bottle Making 2000bph 4

YCQ series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 6 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

Feature:

A. Advanced PLC control system, stable and excellent performance.

B. Conveyor belt automatically feeds preforms.

C.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously inthe  infrared pre-heater.

D. High adaptability,preform absorbs heat by adjusting the distance between lamp and reflector.With automatic constant temperature device,temperature is kept within a certain range.

E. Safety locks are provided during each mechanical action to protect operator's safety.

F. Use cylinder instead of hydraulic cylinder, low pollution, low noise.

G. Use different air pressure for blowing and machine operation,energy saving and environmental protection.

H. Equipped with high pressure and double-crank linkage clamping, providing high clamping force.

I. Two ways of operating: automatic and manual.

J. Safe, reliable, unique valve position design makes blowing process easier to control.

K. Low-cost, high-efficiency, easy-to-operate, easy-to-maintain, advanced automatic process flow.

L. Avoid bottle contamination.

M. Protection of low temperature cooling system.

N. Easy to install and start.

O. Low scrap rate.

2 Cavity 5 Ltr Blow Moulding Machine Plastic Bottle Making 2000bph 6



Item

YCQ-5L-2

Bottle type specification

Cavity

2

Theory output

1500-2000

Max.volume

5L

Bottle mouth maximum overall diameter

80mm

Bottle biggest diameter

100mm

Bottle maximum height

330mm

Power specifications

Light tube quantity

32pcs

Maximum heating power

24KW

All electric machine installation

27KW

Actual consumption

8.1KW

Air pressure specification

Work pressure

7-9kg/cm2

Low-pressure gas consumption

1000L/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

1500Ltr/min

Forzen water specification

Work pressure

5-6 kg/cm2

Temperature range

10°C

Consumption

5000kcal/hr

Forzen water flow

30L/min

Machine specification

Size of the machine

4.7*1.6*1.9

Weight of the machine

3ton

2 Cavity 5 Ltr Blow Moulding Machine Plastic Bottle Making 2000bph 8



Fully automatic,low investment,high efficiency,easy operation, simple maintenance and safety.

 2 Cavity 5 Ltr Blow Moulding Machine Plastic Bottle Making 2000bph 10

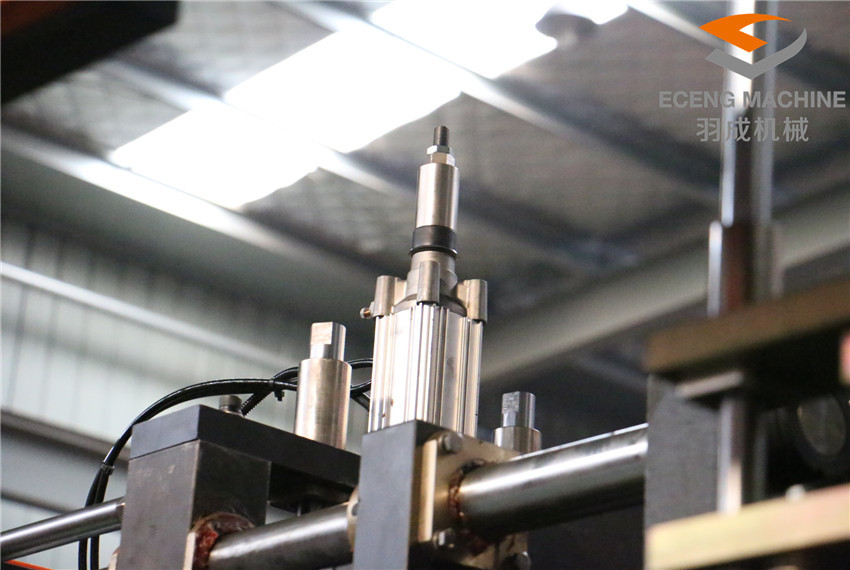

Servo transmission system,high positioning accuracy, fast speed and stability, good reliability.Gas circuit design will divide action and blowing into three parts to meet the needs of different pressure for blowing bottles and movement;Adopt high pressure and double crank arm link locking,strong clamping force.

 2 Cavity 5 Ltr Blow Moulding Machine Plastic Bottle Making 2000bph 12

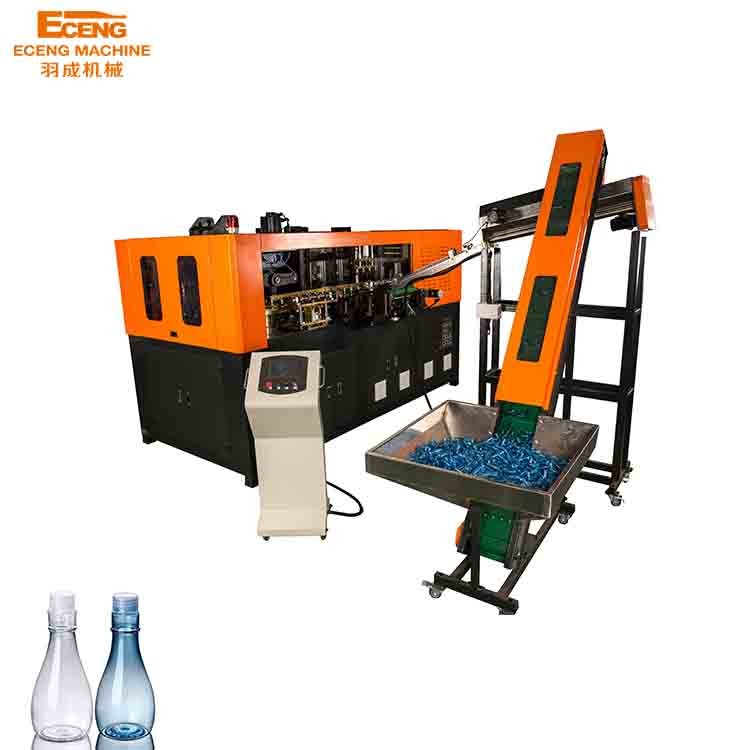

Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.

2 Cavity 5 Ltr Blow Moulding Machine Plastic Bottle Making 2000bph 14

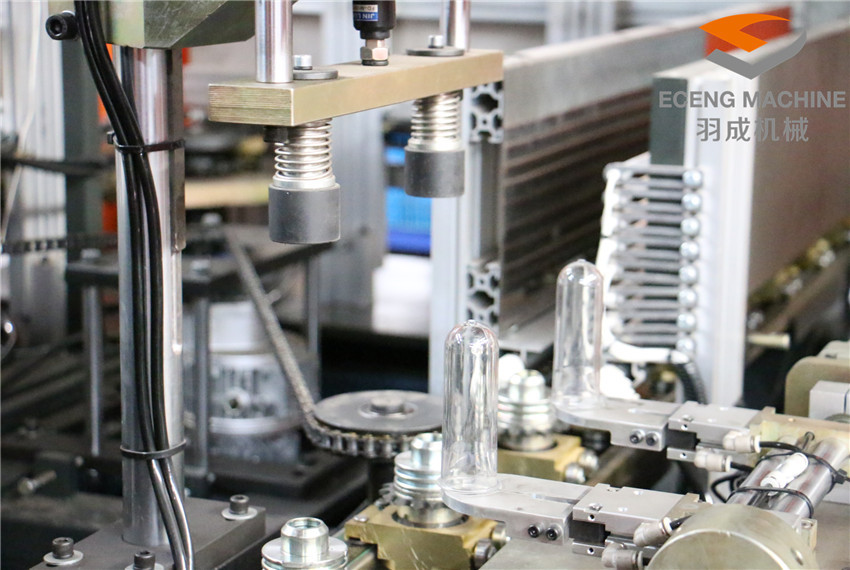

Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

 2 Cavity 5 Ltr Blow Moulding Machine Plastic Bottle Making 2000bph 16

YCQ linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.

 2 Cavity 5 Ltr Blow Moulding Machine Plastic Bottle Making 2000bph 18

2 Cavity 5 Ltr Blow Moulding Machine Plastic Bottle Making 2000bph 20



2 Cavity 5 Ltr Blow Moulding Machine Plastic Bottle Making 2000bph 222 Cavity 5 Ltr Blow Moulding Machine Plastic Bottle Making 2000bph 24

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
