Blow your bottle, Shape your dream
 |
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE ISO SGS |
| Model Number: | YCQ-2L-6 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $10,000.00 - $35,000.00/Sets |
| Packaging Details: | standard export wooden case or according to your requirements |
| Supply Ability: | 500 Set/Sets per Year |
| Plastic Processed: | PET | Condition: | New |
|---|---|---|---|
| Application: | Bottle | Blow Moulding Type: | Stretch Blow Moulding |
| Voltage: | 380V,50HZ | Dimension(L*W*H): | 5.4*1.6*1.7m |
| Warranty: | One Year For Free | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Light: | ahura pet stretch blow molding machine,pet stretch blow molding machine 7200bph,pet bottle manufacturing machine 7200bph |
||
fully auto ahura blow moulding machine low consumption made in China
Model: YCQ-2L-6
| What is technical parameter of our ahura blow moulding machine? |
|
item |
YCQ-2L-6 |
|
|
Bottle type specification
|
cavity |
6 |
|
theory output (PCS/HR) |
5000-6000 |
|
|
Max. volume (L) |
2L |
|
|
Bottle mouth maximum overall diameter (mm) |
28-38mm |
|
|
Bottle biggest diameter |
100mm |
|
|
Bottle maximum height |
330mm |
|
|
Power specifications
|
Light tube quantity |
32pcs |
|
Light tube power |
1.25kw |
|
|
Maximum heating power |
40kw |
|
|
All electric machine installation |
43kw |
|
|
Air pressure specification
|
Work pressure |
7-9kg/cm2 |
|
Low-pressure gas consumption |
1600Ltr/min |
|
|
Blow bottle pressure |
25-35kg/cm2 |
|
|
Higher -pressure gas consumption |
4000 Ltr/min |
|
|
Frozen water specification
|
Work pressure |
5-6 kg/cm2 |
|
Temperature range |
10°C |
|
|
Consumption |
8000kcal/hr |
|
|
Frozen water flow |
88Ltr/min |
|
|
Machine specification
|
Size of the machine |
6.5x1.5x1.9 (m) |
|
Weight of the machine |
4ton |
| What is the feature for our ahura blow moulding machine? |
A. Stable performance with advanced PLC.
B. Conveying preforms automatically with conveyor.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
F.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
H. Strong clamping force with high pressure and double crank links to lock the mold.
I. Two ways of operating: automatic and manual.
J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
L. Contamination is avoided for the bottle body.
M. Ideal effect of the chilling with the chilling system.
N. Easy installation and starting
O. Low rejection rate: less than 0.3percent.
| What is the parts of our ahura blow moulding machine? |
| machine parts name | Brand | Original place |
| Pneumatic components | PARKER AND FESTO | USA AND GERMANY |
| turning cylinder | FESTO | Germany |
| high pressure air blowing valve | FESTO | Germany |
| low pressure work valve | PARKER | USA |
| PLC controller | MITSUBISHI | JAPAN |
| full computer screen | WINWIEW506L | TAIWAN |
| high pressure muffler | HENGLI | CHINA |
| Photoelectric switch | OMRON | JAPAN |
| Switching power | OMRON AND ZHENGTAI | JAPAN and CHINA |
| circuit breaker | ZHENTAI | CHINA |
| Air switch | OMRON | JAPAN |
| relay | OMRON | JAPAN |
| finger cylinder | JINGQI | TAIWAN |

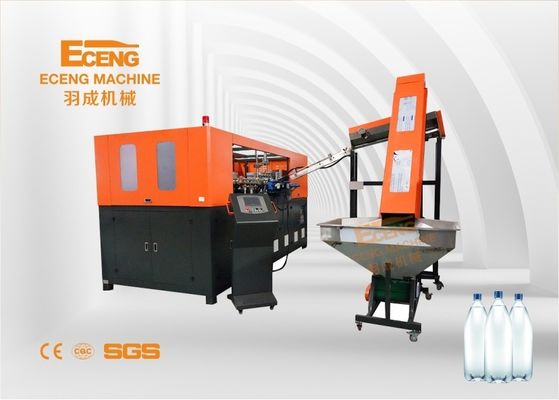

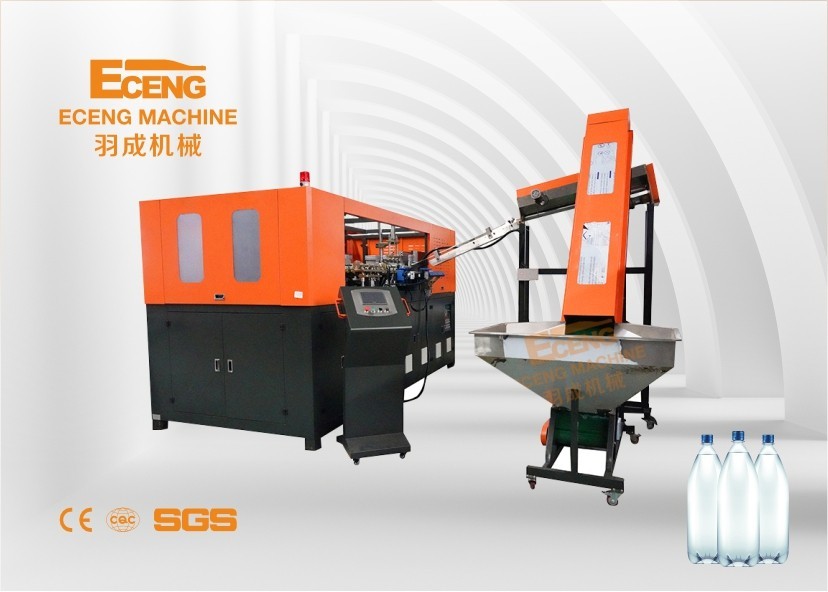

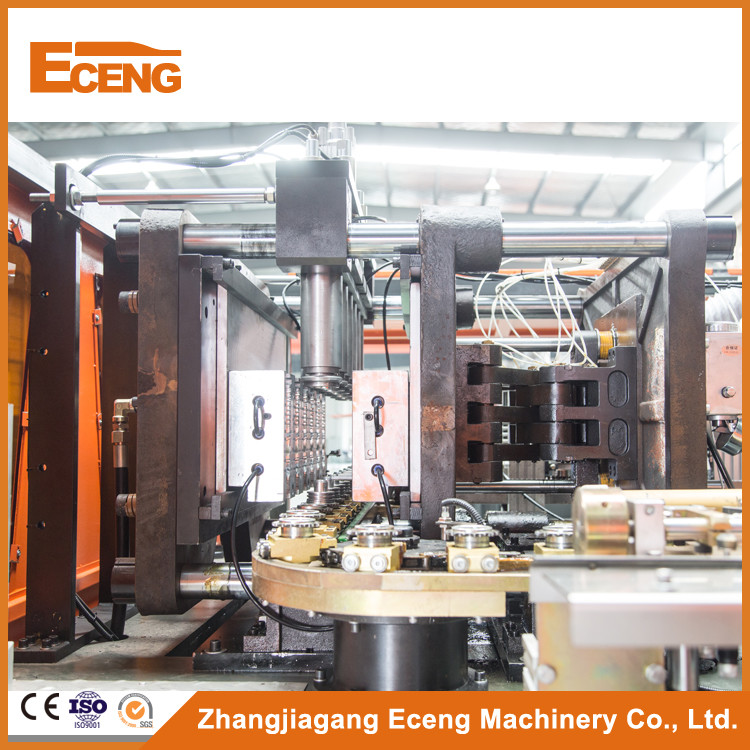

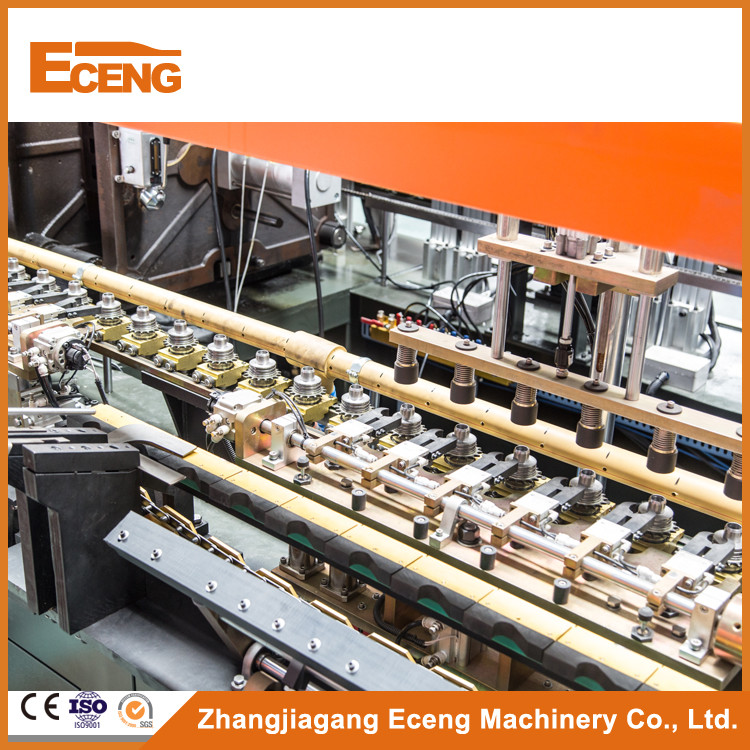

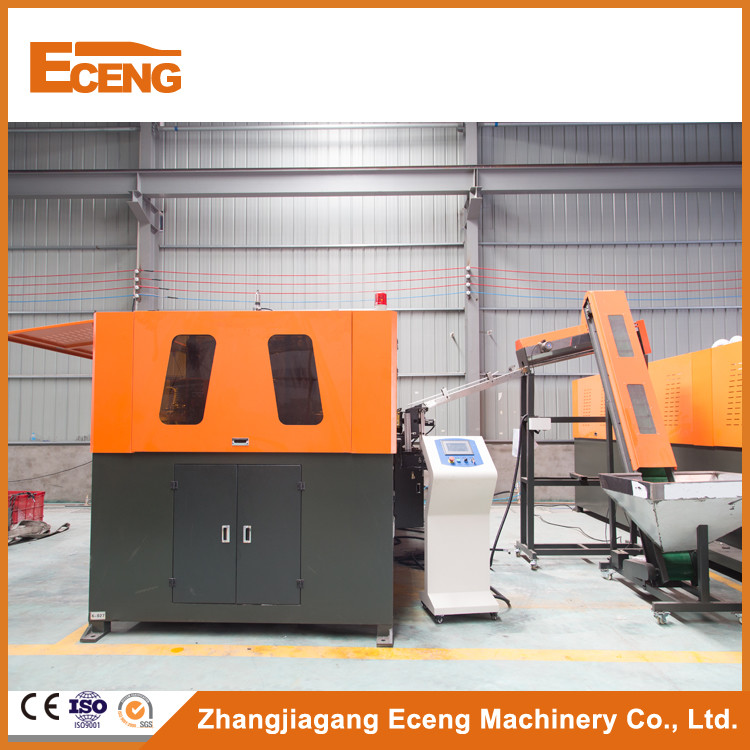

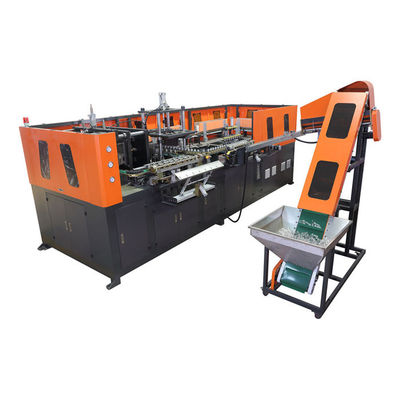

Poduct photos
