SGS 4 Cavities Plastic PET Bottle Making Machine 380V/50HZ

SGS 4 Cavities Plastic PET Bottle Making Machine 380V/50HZ

  • SGS 4 Cavities Plastic PET Bottle Making Machine 380V/50HZ
  • SGS 4 Cavities Plastic PET Bottle Making Machine 380V/50HZ
  • SGS 4 Cavities Plastic PET Bottle Making Machine 380V/50HZ
  • SGS 4 Cavities Plastic PET Bottle Making Machine 380V/50HZ
  • SGS 4 Cavities Plastic PET Bottle Making Machine 380V/50HZ
SGS 4 Cavities Plastic PET Bottle Making Machine 380V/50HZ
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO SGS
Model Number: Q6000
Payment & Shipping Terms:
Price: $10,000.00 - $60,000.00/Sets
Packaging Details: Wooden package
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Plastic Processed: PET Condition: New
Application: Bottle, Plastic PET Bottle Blow Moulding Type: Stretch Blow Moulding
Voltage: 380V/50HZ, 3phase 380V/220V/415V 50HZ Dimension(L*W*H): 4.5*1.8*1.9(m)
Warranty: One Year Weight: 3.5Ton
After-sales Service Provided: Engineers Available To Service Machinery Overseas Power: 51KW
Automatic: Yes Color: Orange
PLC: Mitsubishi Cylinder: SMC
High Pressure Valve: FESTO Low Pressure Valve: SMC
Location: Zhangjiagang City Material: PET
Air Switch: Schneider Port: Shanghai
High Light:

SGS plastic pet bottle making machine

,

plastic pet bottle making machine 380V/50HZ

,

4 cavities bottle maker machine 380V/50HZ

4 cavities automatic plastic pet bottle blowing making machine plant





     What is the details of automatic plastic pet bottle blowing making machine plant?


Poduct photos

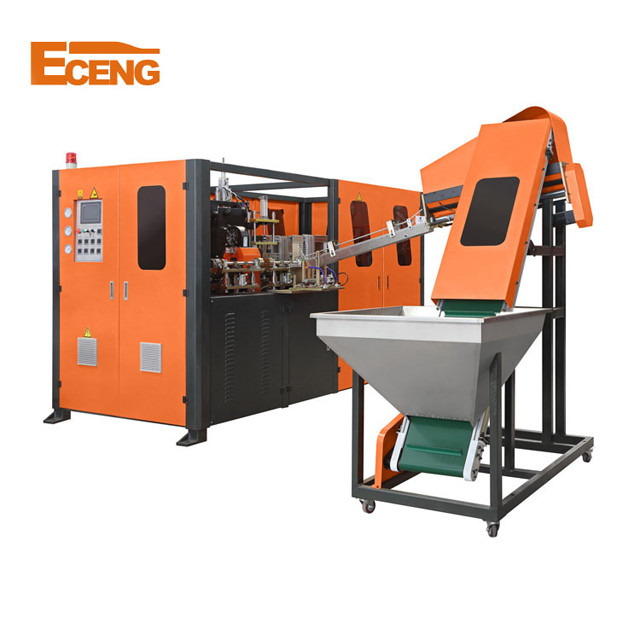

SGS 4 Cavities Plastic PET Bottle Making Machine 380V/50HZ 1

SGS 4 Cavities Plastic PET Bottle Making Machine 380V/50HZ 3



     What is technical parameter of our automatic plastic pet bottle blowing making machine plant?





Bottle type specification



cavity

4

theory output (PCS/HR)

4000-5000

Max. volume (L)

2L

Bottle mouth maximum overall diameter (mm)

28-38mm

Bottle biggest diameter

100mm

Bottle maximum height

330mm



Power specifications



Light tube quantity

32pcs

Light tube power

1.25kw

Maximum heating power

40kw

All electric machine installation

43kw

Actual consumption

21.5kw



Air pressure specification



Work pressure

7-9kg/cm2

Low-pressure gas consumption

1600Ltr/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

3000 Ltr/min



Frozen water specification



Work pressure

5-6 kg/cm2

Temperature range

10°C

Consumption

8000kcal/hr

Frozen water flow

88Ltr/min

Machine specification



Size of the machine

4.5x1.6x1.9 (m)

Weight of the machine

3.5ton



     What is the feature for our automatic plastic pet bottle blowing making machine plant?



A. Stable performance with advanced PLC.

B. Conveying preforms automatically with conveyor.

C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.

D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.

E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.



     What is the parts of our automatic plastic pet bottle blowing making machine plant?



Name

Brand

Original

Blowing cylinder

FESTO

Germany

Mould closing and opening  cylinder

FESTO

Germany

valve

FESTO

Germany

PLC

MITSUBISHI

Japan

HMI SCRENN

WINVIEW 506L

Taiwan

Switch

OMRON

Japan



SGS 4 Cavities Plastic PET Bottle Making Machine 380V/50HZ 5

 1. Small performs distance heating system

Heater distance in the heating oven is reduced to 38mm, compared with the conventional heating oven it saves more than 30% electricity consumption.



2.Modularized design conception

Adopting modularized design concept, to make it convenient and cost-saving for the maintenance and changing spare parts.

  SGS 4 Cavities Plastic PET Bottle Making Machine 380V/50HZ 7
  SGS 4 Cavities Plastic PET Bottle Making Machine 380V/50HZ 9

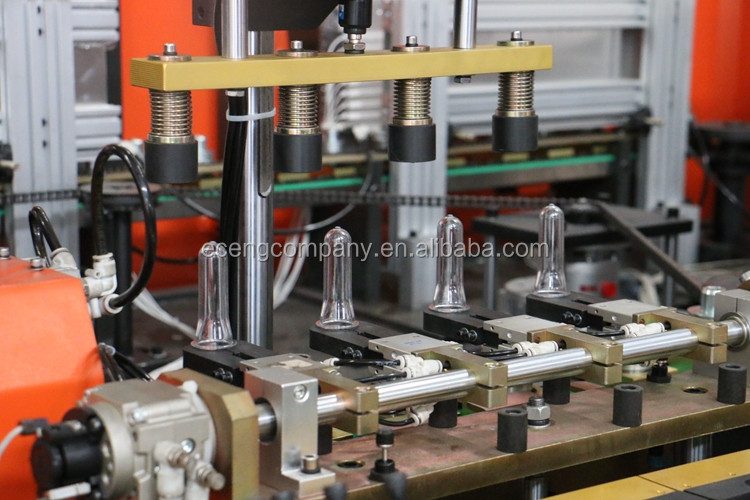

3.Efficient and soft perform inlet system



By rotary and soft preform inlet system, the speed of preform feeding is ensured meanwhile, the preform neck is well protected.



4.Servo driving and cam linking blowing section:

The unique cam linking system integrates movement of mold-opening, mold-locking and bottom mold-elevating in one movement, equipped with high speed servo driving system which greatly shorten the cycle of blowing and increase the capacity.

  SGS 4 Cavities Plastic PET Bottle Making Machine 380V/50HZ 11

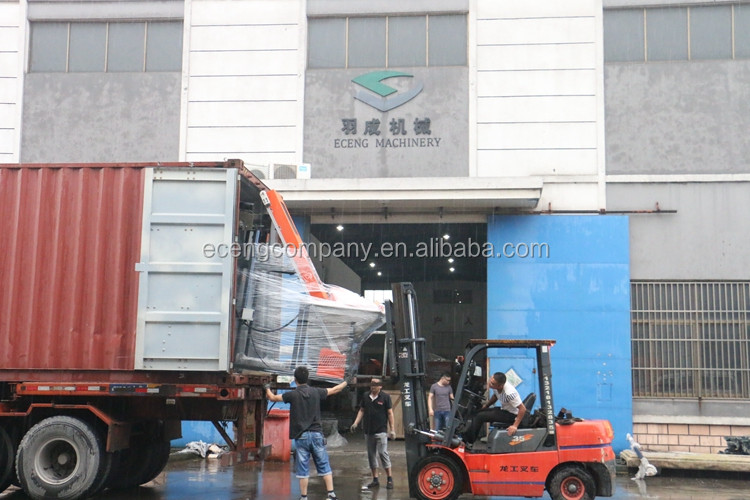

Packaging & Shipping
