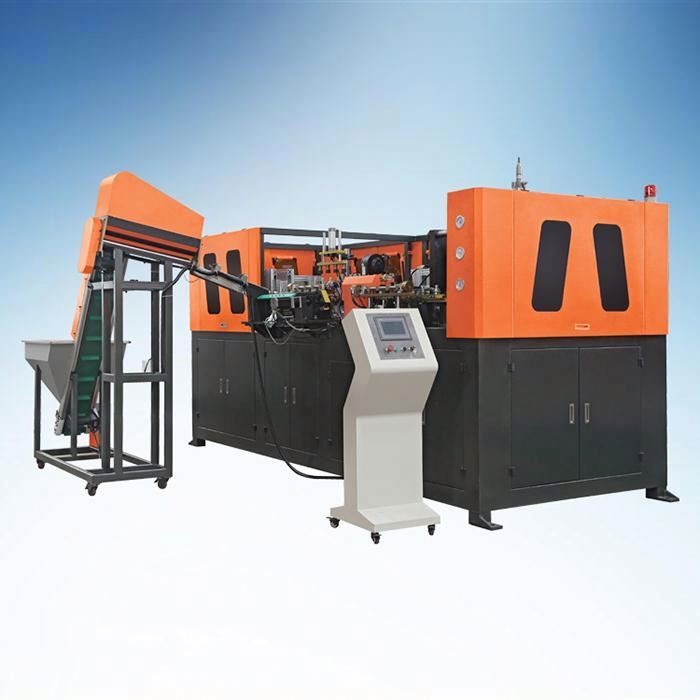

SGS Fully Automatic PET 5 Gallon Bottle Blowing Machine 1200PCS/HR

SGS Fully Automatic PET 5 Gallon Bottle Blowing Machine 1200PCS/HR

  • SGS Fully Automatic PET 5 Gallon Bottle Blowing Machine 1200PCS/HR
  • SGS Fully Automatic PET 5 Gallon Bottle Blowing Machine 1200PCS/HR
  • SGS Fully Automatic PET 5 Gallon Bottle Blowing Machine 1200PCS/HR
  • SGS Fully Automatic PET 5 Gallon Bottle Blowing Machine 1200PCS/HR
  • SGS Fully Automatic PET 5 Gallon Bottle Blowing Machine 1200PCS/HR
  • SGS Fully Automatic PET 5 Gallon Bottle Blowing Machine 1200PCS/HR
SGS Fully Automatic PET 5 Gallon Bottle Blowing Machine 1200PCS/HR
Product Details:
Place of Origin: China
Brand Name: eceng
Certification: CE ISO SGS
Model Number: YCQ-10L-1
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $15,000.00 - $35,000.00/Sets
Packaging Details: wooden package for max 10 liter fully automatic pet blowing machine
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8 Set/Sets per Month 6
Contact Now
Detailed Product Description
Plastic Processed: PET Condition: New
Application: Bottle Blow Moulding Type: Stretch Blow Moulding
Year: 2019 Voltage: According To Customer's Request
Dimension(L*W*H): 2.7x1.5x1.7 (m) Hollow Part Volume: 10l
Power (kW): 49 Weight (KG): 4500
Automation: Automatic Warranty: One Year
Key Selling Points: Easy To Operate Applicable Industries: Food & Beverage Factory
Automatic: Yes Power(W): 75kw
Weight: 3600kg Color: Blue
Heating Method: Electric Cycle Heating Style: Plastic Bottle Machine
Processing: Filling Machine Port: Shanghai
High Light:

SGS 5 Gallon Bottle Blowing Machine

,

fully automatic pet bottle blowing machine 1200PCS/HR

,

5 Gallon fully automatic pet bottle blowing machine

max 10 liter fully automatic pet blowing machineSGS Fully Automatic PET 5 Gallon Bottle Blowing Machine 1200PCS/HR 0

 SGS Fully Automatic PET 5 Gallon Bottle Blowing Machine 1200PCS/HR 2SGS Fully Automatic PET 5 Gallon Bottle Blowing Machine 1200PCS/HR 4



SGS Fully Automatic PET 5 Gallon Bottle Blowing Machine 1200PCS/HR 6



SGS Fully Automatic PET 5 Gallon Bottle Blowing Machine 1200PCS/HR 8

SGS Fully Automatic PET 5 Gallon Bottle Blowing Machine 1200PCS/HR 10

YCQ series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 6 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

Feature:

A. Advanced PLC control system, stable and excellent performance.

B. Conveyor belt automatically feeds preforms.

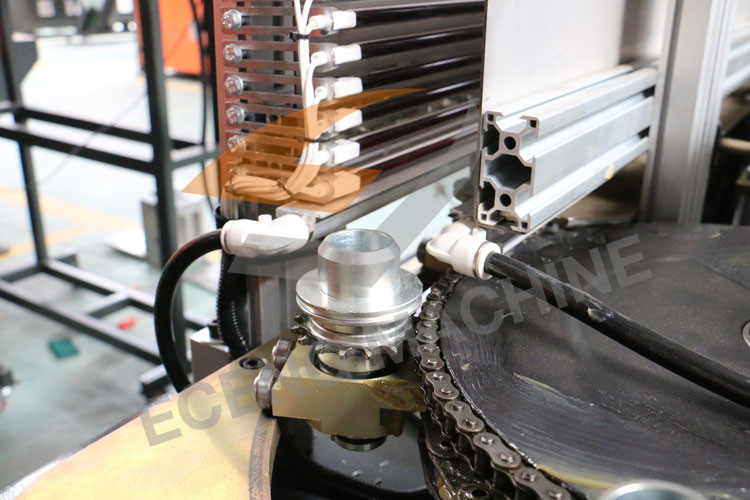

C.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously inthe  infrared pre-heater.

D. High adaptability,preform absorbs heat by adjusting the distance between lamp and reflector.With automatic constant temperature device,temperature is kept within a certain range.

E. Safety locks are provided during each mechanical action to protect operator's safety.

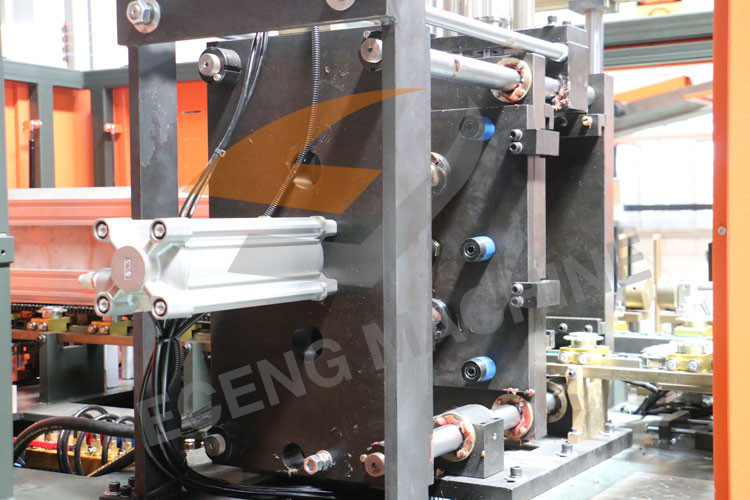

F. Use cylinder instead of hydraulic cylinder, low pollution, low noise.

G. Use different air pressure for blowing and machine operation,energy saving and environmental protection.

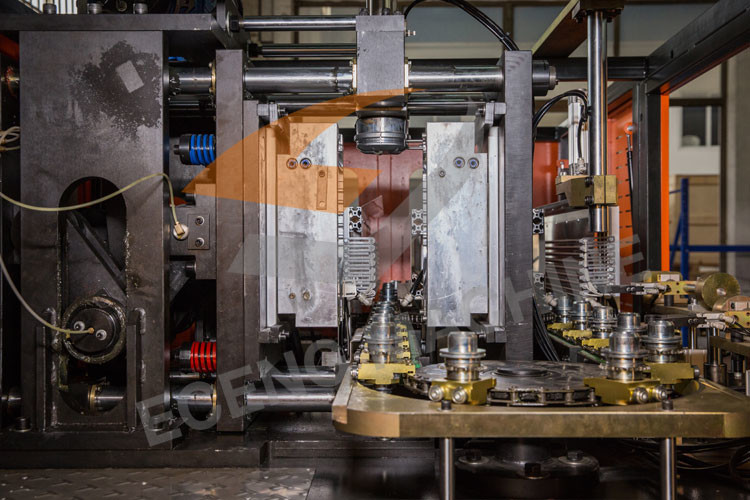

H. Equipped with high pressure and double-crank linkage clamping, providing high clamping force.

I. Two ways of operating: automatic and manual.

J. Safe, reliable, unique valve position design makes blowing process easier to control.

K. Low-cost, high-efficiency, easy-to-operate, easy-to-maintain, advanced automatic process flow.

L. Avoid bottle contamination.

M. Protection of low temperature cooling system.

N. Easy to install and start.

O. Low scrap rate.

SGS Fully Automatic PET 5 Gallon Bottle Blowing Machine 1200PCS/HR 12





item

YCQ-10L-1



Bottle type specification



cavity

1

theory output (PCS/HR)

1000-1200

Max. volume (L)

10L

Bottle mouth maximum overall diameter (mm)

150mm

Bottle biggest diameter

240mm

Bottle maximum height

450mm



Power specifications



Light tube quantity

48pcs

Light tube power

1.5kw

Maximum heating power

72kw

All electric machine installation

75kw

Actual consumption

37.5kw



Air pressure specification



Work pressure

7-9kg/cm2

Low-pressure gas consumption

1600Ltr/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

2000-3000 Ltr/min



Frozen water specification



Work pressure

5-6 kg/cm2

Temperature range

10°C

Consumption

8000kcal/hr

Frozen water flow

88Ltr/min

Machine specification



Size of the machine

2.7x1.5x1.7 (m)

Weight of the machine

3.6ton

SGS Fully Automatic PET 5 Gallon Bottle Blowing Machine 1200PCS/HR 14



Fully automatic,low investment,high efficiency,easy operation, simple maintenance and safety.



Servo transmission system,high positioning accuracy, fast speed and stability, good reliability.Gas circuit design will divide action and blowing into three parts to meet the needs of different pressure for blowing bottles and movement;Adopt high pressure and double crank arm link locking,strong clamping force.



Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.



Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

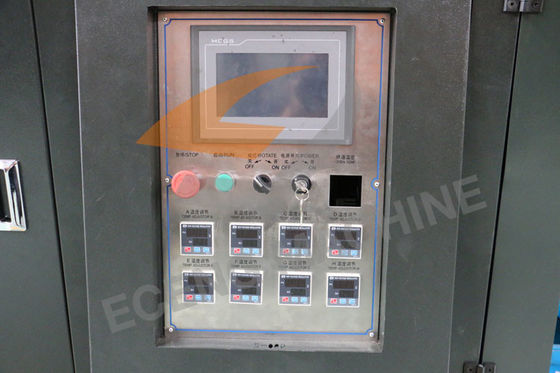

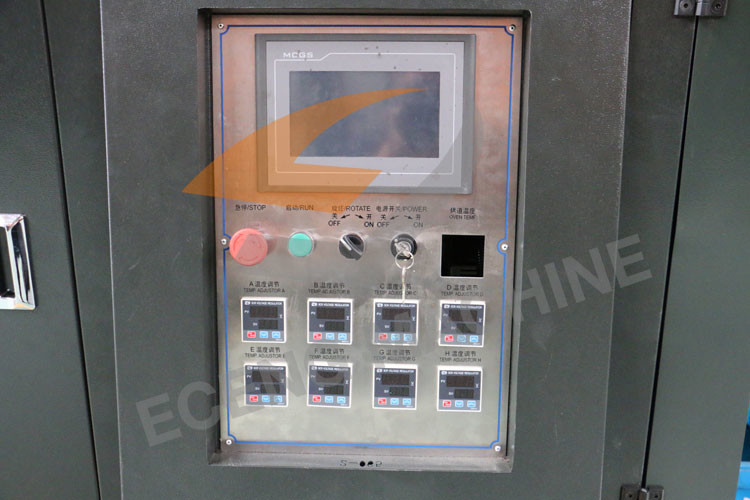

YCQ linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.



SGS Fully Automatic PET 5 Gallon Bottle Blowing Machine 1200PCS/HR 16



SGS Fully Automatic PET 5 Gallon Bottle Blowing Machine 1200PCS/HR 18SGS Fully Automatic PET 5 Gallon Bottle Blowing Machine 1200PCS/HR 20

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
