Bottle 2000ml 6 Cavity PET Blowing Machine 8000 Pcs/Hr Eceng

Bottle 2000ml 6 Cavity PET Blowing Machine 8000 Pcs/Hr Eceng

Bottle 2000ml 6 Cavity PET Blowing Machine 8000 Pcs/Hr Eceng
Bottle 2000ml 6 Cavity PET Blowing Machine 8000 Pcs/Hr Eceng
Bottle 2000ml 6 Cavity PET Blowing Machine 8000 Pcs/Hr Eceng
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO
Model Number: Q9000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5,000.00 - $25,000.00/Pieces
Packaging Details: packed in wooden cases or package design according to the requirement of customers
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 sets per Year
Contact Now
Detailed Product Description
Plastic Processed: PET Condition: New
Voltage: 380V,50HZ Dimension(L*W*H): 5.4*1.6*1.7
Hollow Part Volume: 2000ML Automation: Automatic
Warranty: One Year For Free, One Year For Free Port: SHANGHAI
High Light:

6 cavity pet blowing machine 8000 PCS/HR

,

2000ml 6 cavity pet blowing machine

,

2000ml pet blowing machine Eceng

gallon blow molding machine well use popular in the world,Model: Q9000.



     What is technical parameter of our gallon blow molding machine?







item

Q9000



Bottle type specification









cavity

6

theory output (PCS/HR)

7000-8000

Max. volume (L)

2L

Bottle mouth maximum overall diameter (mm)

28-38mm

Bottle biggest diameter

100mm

Bottle maximum height

330mm



Power specifications





Light tube quantity

32pcs

Light tube power

1.25kw

Maximum heating power

40kw

All electric machine installation

43kw



Air pressure specification





Work pressure

7-9kg/cm2

Low-pressure gas consumption

1600Ltr/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

4000 Ltr/min



Frozen water specification





Work pressure

5-6 kg/cm2

Temperature range

10°C

Consumption

8000kcal/hr

Frozen water flow

88Ltr/min

Machine specification



Size of the machine

6.5x1.5x1.9 (m)

Weight of the machine

4ton



     What is the feature for our gallon blow molding machine?



A. Stable performance with advanced PLC.



B. Conveying preforms automatically with conveyor.



C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.



D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.



E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.



F.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.



G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.



H. Strong clamping force with high pressure and double crank contact to lock the mold.



I. Two ways of operating: automatic and manual.



J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.



K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.



L. Contamination is avoided for the bottle body.



M. Ideal effect of the chilling with the chilling system.



N. Easy installation and starting



O. Low rejection rate: less than 0.3percent.



     What is the parts of our gallon blow molding machine?



machine parts name Brand Original place
Pneumatic components PARKER AND FESTO USA AND GERMANY
turning cylinder FESTO Germany
high pressure air blowing valve FESTO Germany
low pressure work valve PARKER USA
PLC controller MITSUBISHI JAPAN
full computer screen WINWIEW506L TAIWAN
high pressure muffler HENGLI CHINA
Photoelectric switch OMRON JAPAN
Switching power OMRON AND ZHENGTAI JAPAN and CHINA
circuit breaker ZHENTAI CHINA
Air switch OMRON JAPAN
relay OMRON JAPAN
finger cylinder JINGQI TAIWAN



Bottle 2000ml 6 Cavity PET Blowing Machine 8000 Pcs/Hr Eceng 1

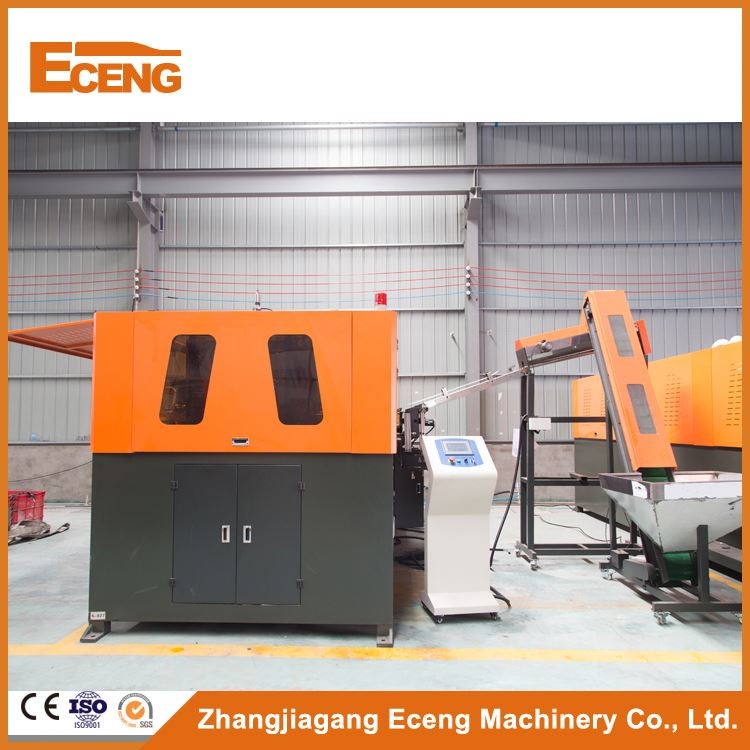

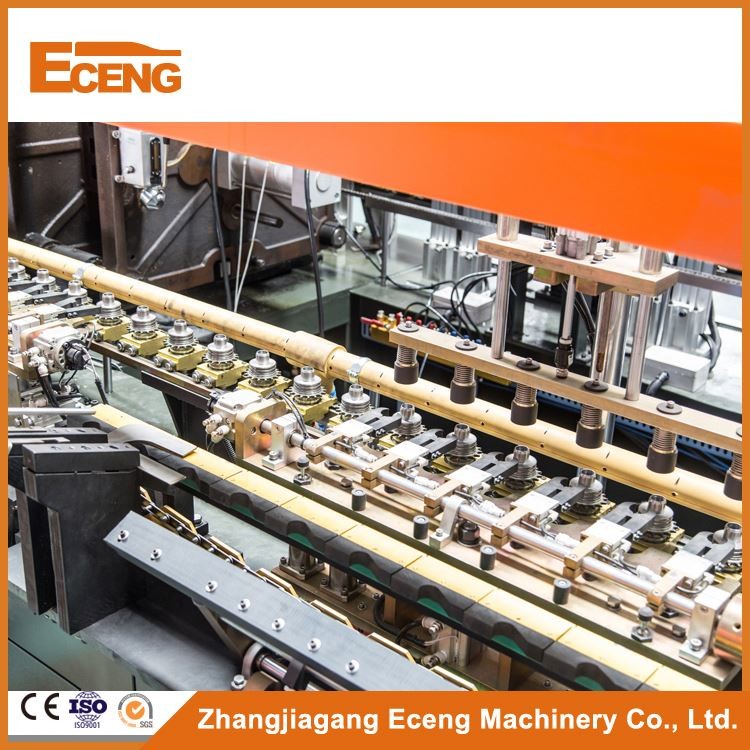

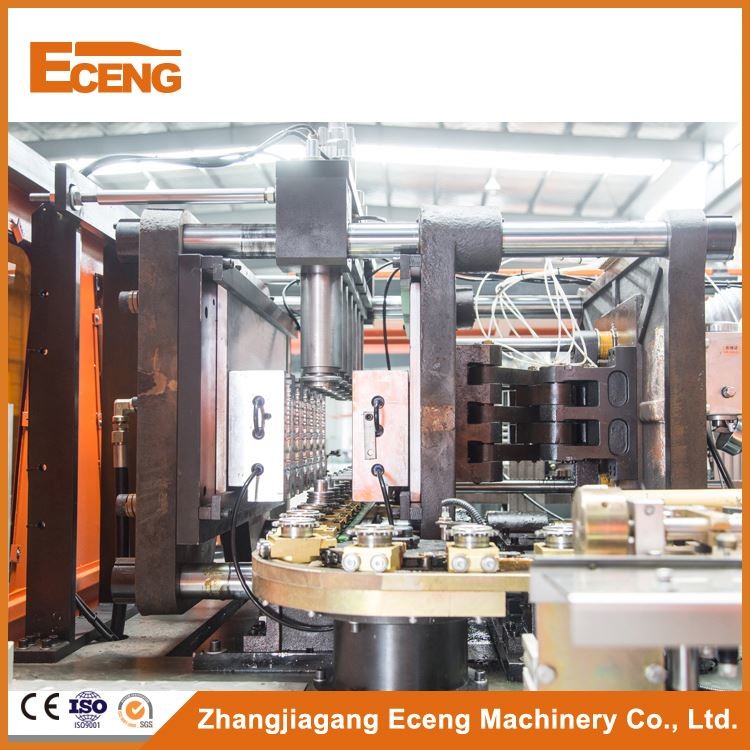

Poduct photos

Bottle 2000ml 6 Cavity PET Blowing Machine 8000 Pcs/Hr Eceng 2

Bottle 2000ml 6 Cavity PET Blowing Machine 8000 Pcs/Hr Eceng 3



Bottle 2000ml 6 Cavity PET Blowing Machine 8000 Pcs/Hr Eceng 4

Bottle 2000ml 6 Cavity PET Blowing Machine 8000 Pcs/Hr Eceng 6



Packaging & Shipping

Bottle 2000ml 6 Cavity PET Blowing Machine 8000 Pcs/Hr Eceng 8



Company Information

Bottle 2000ml 6 Cavity PET Blowing Machine 8000 Pcs/Hr Eceng 10



Certifications

Bottle 2000ml 6 Cavity PET Blowing Machine 8000 Pcs/Hr Eceng 12



Customers

Bottle 2000ml 6 Cavity PET Blowing Machine 8000 Pcs/Hr Eceng 14



FAQ

Bottle 2000ml 6 Cavity PET Blowing Machine 8000 Pcs/Hr Eceng 16
