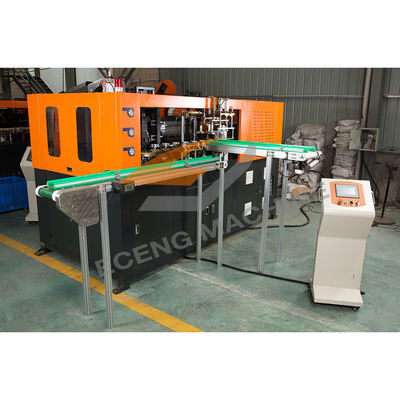

1300BPH PET Jar Blow Molding Machine Fully Automatic 4.7*1.6*1.9m

1300BPH PET Jar Blow Molding Machine Fully Automatic 4.7*1.6*1.9m

1300BPH PET Jar Blow Molding Machine Fully Automatic 4.7*1.6*1.9m
1300BPH PET Jar Blow Molding Machine Fully Automatic 4.7*1.6*1.9m
1300BPH PET Jar Blow Molding Machine Fully Automatic 4.7*1.6*1.9m
Product Details:
Place of Origin: China
Brand Name: eceng
Certification: ce iso
Model Number: J2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $30,000.00/Sets 1-1 Sets
Packaging Details: wooden package or as your request
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8 Set/Sets per Month 6
Contact Now
Detailed Product Description
Blow Moulding Type: Stretch Blow Moulding Voltage: According To Customer's Request
Automation: Automatic Warranty: 1 Year
Key Selling Points: Easy To Operate Applicable Industries: Food & Beverage Factory
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Key Words: Candy Cans Making Machine
High Light:

1300BPH PET Jar Blow Molding Machine

,

fully automatic blow moulding machine 4500KG

,

fully automatic blow moulding machine 4.7*1.6*1.9m



Full automatic 2 cavity wide mouth candy jar blowing machine PET bottle making machine with preform hand feeding

1300BPH PET Jar Blow Molding Machine Fully Automatic 4.7*1.6*1.9m 0
specification
Item

J2



      Bottle type        specification
Cavity
2

Theory output
1200-1300

Max.volume
5L

Bottle mouth maximum overall DIdiameter
150mm

Bottle biggest diameter
180mm

Bottle maximum height
400mm


Power specifications
Light tube quantity
32pcs

Light tube power
1.5KW

Maximum heating power
48KW

All electric machine installation
51KW

Actual consumption
35.7KW


Air pressure specification
Work pressure
7-9kg/cm2

Low-pressure gas consumption
1600L/min

Blow bottle pressure
25-35kg/cm2

Higher -pressure gas consumption
3400Ltr/min


Forzen water specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
6000kcal/hr

Forzen water flow
50L/min
Machine specification
Size of the machine
4.7x1.6x1.9

Weight of the machine
3ton
Product Description

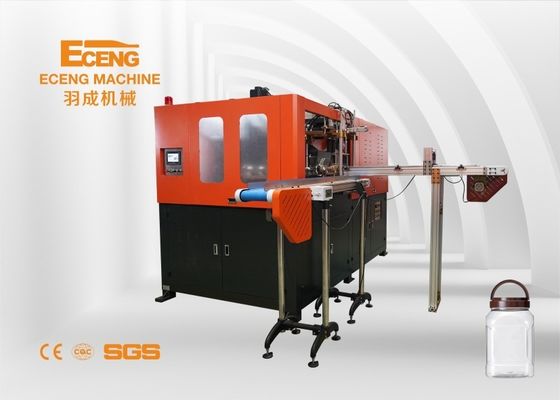

1300BPH PET Jar Blow Molding Machine Fully Automatic 4.7*1.6*1.9m 2
Automatic China PET jar blowing machine J2 is specialized euipment designed for wide neck PET jars.It is high automatically,wide versatility and easy operation.It is especially suitable for the production of neck 50-180mm.J series bottle making machine is precisely positioned and adopts advanced microcomputer PLC control system,which is more stable.

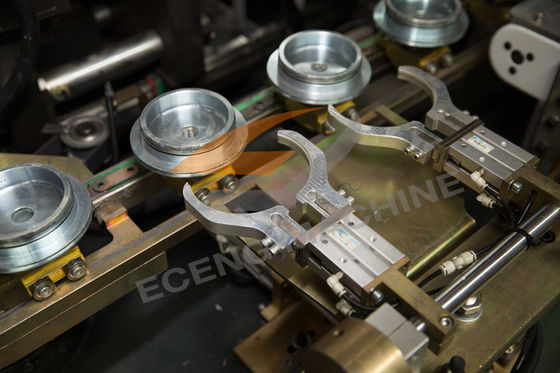

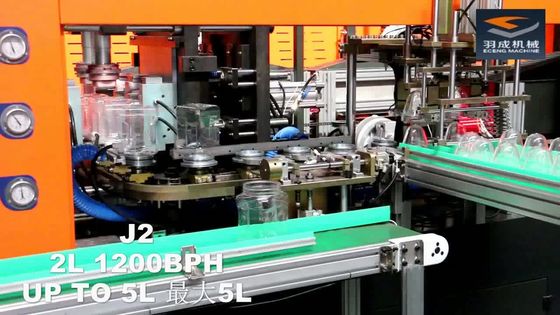

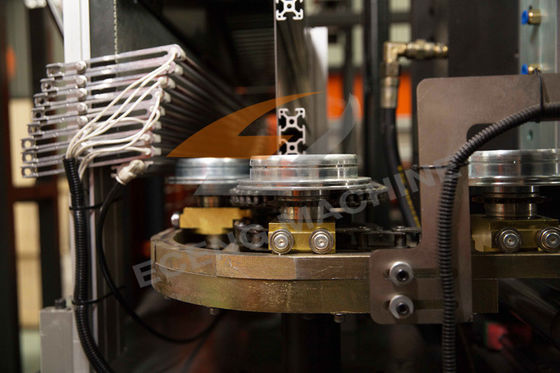

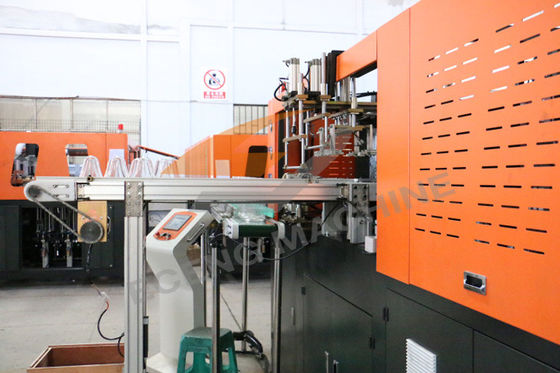

Detailed Images
1300BPH PET Jar Blow Molding Machine Fully Automatic 4.7*1.6*1.9m 4
1300BPH PET Jar Blow Molding Machine Fully Automatic 4.7*1.6*1.9m 6
1300BPH PET Jar Blow Molding Machine Fully Automatic 4.7*1.6*1.9m 8
J linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. J series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .
Company Introduction
1300BPH PET Jar Blow Molding Machine Fully Automatic 4.7*1.6*1.9m 10
Packing&Shipping
1300BPH PET Jar Blow Molding Machine Fully Automatic 4.7*1.6*1.9m 12
Exhibition
1300BPH PET Jar Blow Molding Machine Fully Automatic 4.7*1.6*1.9m 15
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
