Blow your bottle, Shape your dream

|
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE ISO |
| Model Number: | H2 |
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | To be packed in strong new wooden cases,suitable for long distance ocean for H2 pet water bottle blow molding machine |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Set/Sets per Year |
| Blow Moulding Type: | Injection Blow Moulding | Voltage: | 380V/50HZ |
|---|---|---|---|
| Dimension(L*W*H): | 2.25mx1.6mx1.7m | Automation: | Automatic |
| Key Selling Points: | Easy To Operate | Cavity: | 2 |
| Theory Output: | 2200BPH | Port: | Shanghai |
| High Light: | 2200BPH Pet Injection Blow Moulding Machine,Manual Hand Feeding Injection Blow Moulding,Pet Bottle Blowing Machine 50HZ |
||
|
Item
|
|
H2
|
|
|
Bottle type specification
|
Cavity
|
2
|
|
|
|
Theory output
|
2200
|
|
|
|
Max.volume
|
2L
|
|
|
|
Bottle mouth maximum overall diameter
|
80mm
|
|
|
|
Bottle biggest diameter
|
100mm
|
|
|
|
Bottle maximum height
|
330mm
|
|
|
Power specification
|
Light tube quantity
|
32pcs
|
|
|
|
Light tube power
|
0.75KW
|
|
|
|
Maximum heating power
|
24KW
|
|
|
|
All electric machine installation
|
27KW
|
|
|
|
Actual consumption
|
19KW
|
|
|
Air pressure specification
|
Work pressure
|
7-9kg/cm2
|
|
|
|
Low-pressure gas consumption
|
1000L/min
|
|
|
|
Blow bottle pressure
|
25-35kg/cm2
|
|
|
|
Higher -pressure gas consumption
|
1500Ltr/min
|
|
|
Air pressure specification
|
Work pressure
|
5-6 kg/cm2
|
|
|
|
Temperature range
|
10℃
|
|
|
|
Consumption
|
5000kcal/hr
|
|
|
|
Frozen water flow
|
30L/min
|
|
|
Machine specification
|
Machine size
|
2.25x1.6x1.7
|
|
|
|
Machine weight
|
2.5ton
|
|
Cheap Price Small Plastic Blowing Machines:

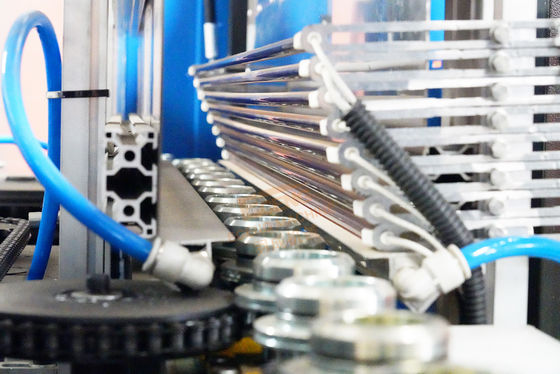

Manual feeding, motion control, infrared heating, electric or pneumatic clamping.Small size, flexibility, space saving, and output can be controlled manually.

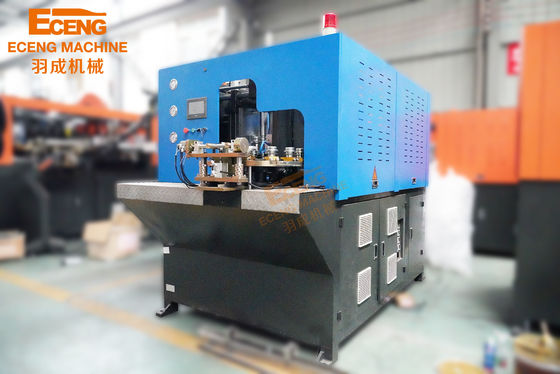

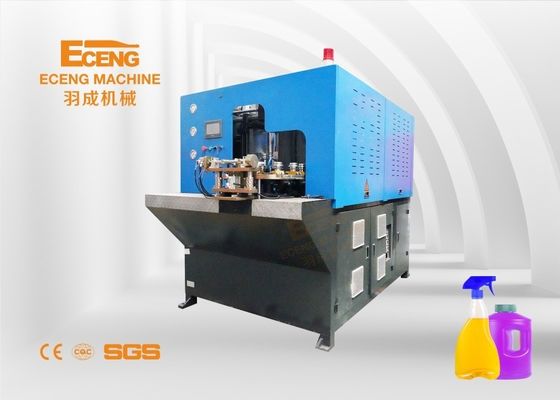

Eceng H series PET bottle blowing machine is a professional equipment designed for cosmetic bottles, daily-chemical bottles,special-shaped bottles,small-quantity conventional bottles,which is simple to operate and has a wide range of applications.It is suitable for various diameter of PET bottles for various purposes.H series bottle blowing machine is not equipped with auto-loader.It is by manual.It is stable and reliable,with low cost,safe and practical alternative to traditional semi-automatic equipment.
Eceng Machinery was established in 2007. It has been specialized in the production of PET blow molding machines for 15 years.stretch blow moulding machines,plastic bottle making machine,plastic blowing machines,blow molding machine,blowing machine.
