Automatic PET Bottle Blow Molding Machine 3 Cavity 4500BPH 0.5L-2L
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE SGS ISO
Model Number: Q4500
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Film pack
Delivery Time: 35days
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Blow Moulding Type: Stretch Blow Moulding, Extrusion Blow Moulding Voltage: Three Phase 380V
Dimension(L*W*H): 2.6*1.8*2.45(m) PLC Brand: XINJE
Automation: Automatic Showroom Location: Saudi Arabia, Spain, Turkey, France, Italy, Mexico, Pakistan, Viet Nam, Canada, United States, Brazil, United Kingdom, Indonesia, Germany, Egypt, Philippines, South Korea, Algeria, Chile, UAE, Japan, Uzbekistan, Nigeria, Argentina, Australia, Ukraine, Kyrg
Model Type: Eceng Company Make Blowing Machine Port: Shanghai
High Light:

4500BPH PET blow molding machine

,

Automatic PET Linear Bottle Blowing Machine

,

bottle blow molding machine 3 Cavity

Automatic PET Bottle Blow Molding Machine 3 Cavity 4500BPH 0.5L-2L

Automatic PET Bottle Blow Molding Machine 3 Cavity 4500BPH 0.5L-2L 0

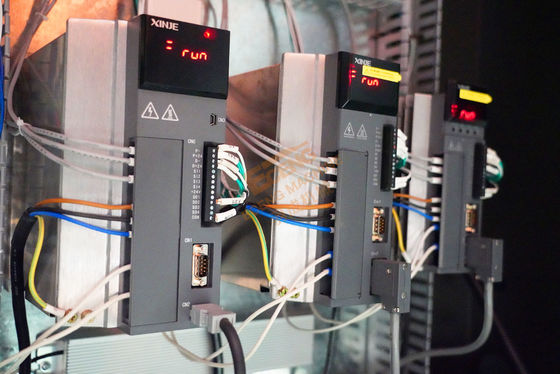

Q linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Q series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .



Automatic PET Bottle Blow Molding Machine 3 Cavity 4500BPH 0.5L-2L 1

Item Q4500
Bottle type specification Cavity 3
Max.volume 2000ML
Bottle mouth maximum overall DIdiameter 38mm
Bottle biggest diameter 105mm
Bottle maximum height 330mm
Production specification Theoretical output 4500BPH
Bottle type capacity 500ML
Bottle type weight 17g
Bottle type circular
Power specifications Light tube quantity 18pcs
Light tube power 1.5KW
Maximum heating power 24KW
All electric machine installation 27KW
Actual consumption 19KW
Air pressure specification Work pressure 7-9kg/cm2
Low-pressure gas consumption 1000L/min
Blow bottle pressure 25-35kg/cm2
Higher -pressure gas consumption 1500Ltr/min
Forzen water specification Work pressure 5-6 kg/cm2
Temperature range 10℃
Consumption 5000kcal/hr
Forzen water flow 30L/min
Machine specification Size of the machine 2.6x1.8x2.45
Weight of the machine 2.5ton

In today's world, where it's all about convenience, automatic machines have made our lives much easier. One such 4500BPH 0.5L-2L Automatic PET bottle blow blowing mold molding machine Eceng Q4500. This machine is designed to automate the process of PET bottle blowing and molding, and its efficiency is unmatched.
With its advanced technology, the machine produces high-quality bottles that are suitable for use in various industries, including food and beverage, healthcare, and beauty products. The 3 Cavity 4500BPH 0.5L-2L Automatic PET bottle blow blowing mold molding machine has a unique ability to create PET bottles of different shapes and sizes without compromising quality.
This machine comes with a 3-cavity mold system that allows it to produce a maximum of 4500 bottles per hour. Additionally, it is capable of creating bottles ranging from 0.5L to 2L. This makes the machine highly versatile and suitable for small to medium-sized businesses that require consistent production of bottles.
The 3 Cavity 4500BPH 0.5L-2L Automatic PET bottle blow blowing mold molding machine works by blowing preheated PET material into a bottle shape based on the design specifications programmed into the machine's software. The machine then molds the bottle to ensure it meets the desired shape and size.
One of the benefits of using this machine is its ability to minimize waste by producing uniform bottles. The machine ensures that the bottles produced have the same proportions, which eliminates the need for overproduction and reduces material waste.
Another advantage of this machine is its low operational cost. The machine has an automated system that requires minimal supervision to operate, which reduces labor costs. Additionally, its energy-efficient system significantly reduces power consumption, resulting in lower electricity bills.
In conclusion, Q4500 3 Cavity 4500BPH 0.5L-2L Automatic PET bottle blow blowing mold molding machine is an advanced automated machine that can boost a small to medium-sized business's operations. With its excellent productivity and high-quality output, this machine is an excellent investment that can improve the efficiency and profitability of any business.

Automatic PET Bottle Blow Molding Machine 3 Cavity 4500BPH 0.5L-2L 2

Fully Automatic Water Beverages Bottle Blowing Machine K8 8 Cavitys 16

Automatic PET Bottle Blow Molding Machine 3 Cavity 4500BPH 0.5L-2L 4

Automatic PET Bottle Blow Molding Machine 3 Cavity 4500BPH 0.5L-2L 5

Automatic PET Bottle Blow Molding Machine 3 Cavity 4500BPH 0.5L-2L 6

Automatic PET Bottle Blow Molding Machine 3 Cavity 4500BPH 0.5L-2L 7

Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 36,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging.
So far Eceng machinery have provided more than 2050 sets machines for more than 170 countries in the world.Our equipments are highly estimated by the clients, and are well known at home and abroad.We sincerely hope to establish business relationship with friends all over the world.
Automatic PET Bottle Blow Molding Machine 3 Cavity 4500BPH 0.5L-2L 8
Automatic PET Bottle Blow Molding Machine 3 Cavity 4500BPH 0.5L-2L 9

our advantage:1. Resonable price;2. Good after service;3. experienced skilled workers and professional engineers;4. Good quality ,excellent service ,long life mould;5. on time delivery time;6.our engineers can be online for 24 hours to serve you.



Automatic PET Bottle Blow Molding Machine 3 Cavity 4500BPH 0.5L-2L 10
Automatic PET Bottle Blow Molding Machine 3 Cavity 4500BPH 0.5L-2L 11

Automatic PET Bottle Blow Molding Machine 3 Cavity 4500BPH 0.5L-2L 12

Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.

Automatic PET Bottle Blow Molding Machine 3 Cavity 4500BPH 0.5L-2L 13

Automatic PET Bottle Blow Molding Machine 3 Cavity 4500BPH 0.5L-2L 14

FAQ

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
