Blow your bottle, Shape your dream

|
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE SGS ISO |
| Model Number: | J2 |
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | standard export wooden case or according to your requirements |
| Delivery Time: | 45days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 Set/Sets per Year |
| Plastic Processed: | PET | Blow Moulding Type: | Stretch Blow Moulding |
|---|---|---|---|
| Automation: | Automatic | Showroom Location: | Egypt, Philippines, Peru, Saudi Arabia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Ta |
| Applicable Industries: | Manufacturing Plant | Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel |
| Automatic: | Yes | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Light: | 1300BPH jar blow molding machine,Wide Mouth jar blow molding machine,1300BPH pet jar blow moulding machine |
||

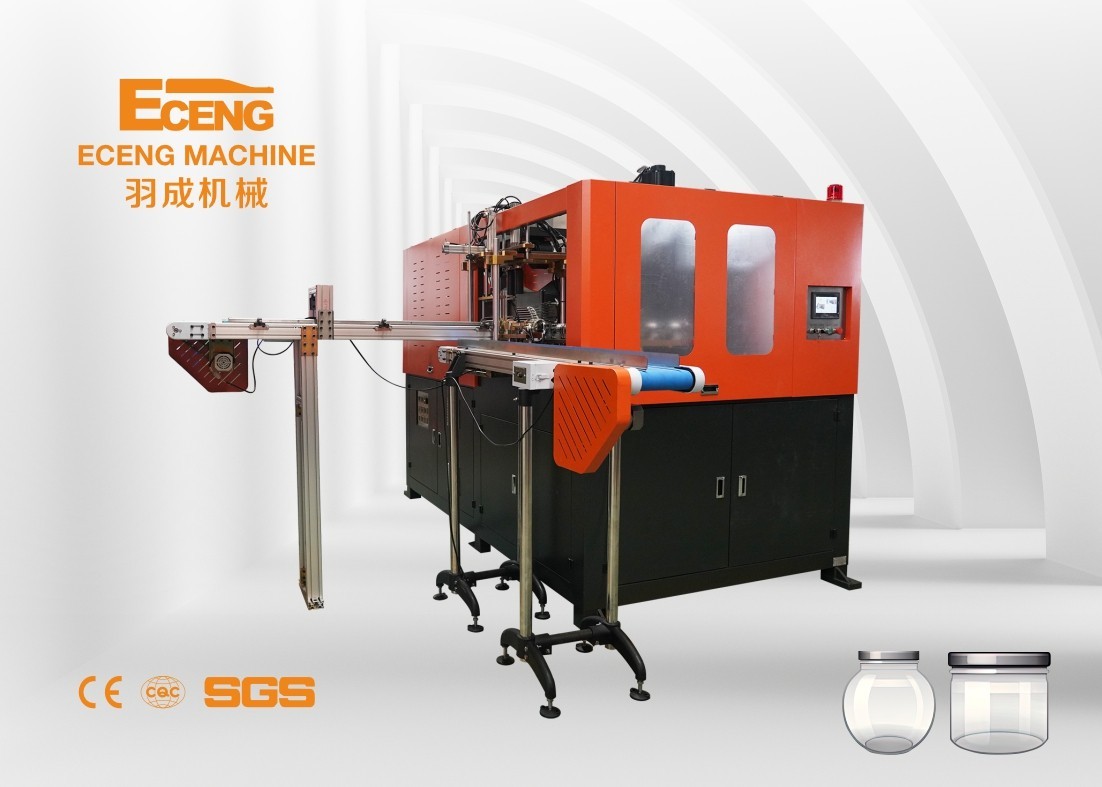

J2 1300BPH Wide Mouth Jar Plastic Blowing Machines
J2 1300BPH Wide Mouth Jar Plastic Blowing Machines, designed for efficient production of wide-mouth jars. With a capacity of 1300 bottles per hour (BPH), this machine offers high-speed and reliable performance. Its advanced technology allows for the seamless production of wide-mouth jars, meeting the demands of various industries. The J2 machine ensures precision and quality, with a focus on minimizing downtime and maximizing productivity. Experience the convenience and efficiency of the J2 1300BPH Wide Mouth Jar Plastic Blowing Machines, the ideal solution for your wide-mouth jar manufacturing needs.
| Model | J2 | |
| Bottle type specification | Cavity | 2 |
| Theory output | 3000 | |
| Max.volume | 2L | |
| Bottle mouth maximum overall DIdiameter | 80mm | |
| Bottle biggest diameter | 100mm | |
| Bottle maximum height | 330mm | |
| Production specification | Theoretical output | 3000BPH |
| Bottle type capacity | 500ML | |
| Bottle type weight | 20-22g | |
| Bottle type | circular | |
| Power specifications | Light tube quantity | 32pcs |
| Light tube power | 0.75KW | |
| Maximum heating power | 24KW | |
| All electric machine installation | 27KW | |
| Actual consumption | 19KW | |
| Air pressure specification | Work pressure | 7-9kg/cm2 |
| Low-pressure gas consumption | 1000L/min | |
| Blow bottle pressure | 25-35kg/cm2 | |
| Higher -pressure gas consumption | 1500Ltr/min | |
| Forzen water specification | Work pressure | 5-6 kg/cm2 |
| Temperature range | 10℃ | |
| Consumption | 5000kcal/hr | |
| Forzen water flow | 30L/min | |
| Machine specification | Size of the machine | 2.2x1.9x2.0 |
| Weight of the machine | 2.5ton | |
Automatic China PET jar blowing machine J2 is specialized euipment designed for wide neck PET jars.It is high automatically,wide versatility and easy operation.It is especially suitable for the production of neck 50-180mm.J series bottle making machine is precisely positioned and adopts advanced microcomputer PLC control system,which is more stable.One worker can control two or three machines.Labor cost saved.
1.Strong versatility,suitable for 50-180mm diameter,high automatic degree,suitable for preform loading of jar bottle,automatically unloading the bottle.
2.One worker can control two to three machines,high output,can be equipped with all-electric stretching and mould clamping.
3.High heat penetration and preform rotation by itself,making preform subject to even heat during preheating process.
4.Safe, reliable and unique valve position design makes blowing process easier to control.
5.Safety locking device in every mechanical action to protect operator's safety.
6.Advanced automatic process flow with low cost,high efficiency,easy operation and easy maintenance.
7.With both automatic and manual operation method.
8.Use different air pressure for blowing and machine operation, energy saving and environmental protection.
9.Easy to install and start, low scrap rate.
Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 36,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging.
So far Eceng machinery have provided more than 2050 sets machines for more than 170 countries in the world.Our equipments are highly estimated by the clients, and are well known at home and abroad.We sincerely hope to establish business relationship with friends all over the world.
our advantage:1. Resonable price;2. Good after service;3. experienced skilled workers and professional engineers;4. Good quality ,excellent service ,long life mould;5. on time delivery time;6.our engineers can be online for 24 hours to serve you.
Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
