50KW PET Bottle Blowing Machine 3500bpn Plastic Bottle Manufacturing Equipment

50KW PET Bottle Blowing Machine 3500bpn Plastic Bottle Manufacturing Equipment

Products - PET Bottle Blowing Machine
  • High Light

    50KW PET Bottle Blowing Machine

    ,

    3500bpn plastic bottle manufacturing equipment

    ,

    50KW plastic bottle manufacturing equipment

  • Plastic Processed
    PET
  • Max.Bottle Height(mm)
    330 Mm
  • Neck Diameter(mm)
    28 Mm
  • Max.Bottle Diameter(mm)
    100 Mm
  • Bottle Volume(ml)
    2000 Ml
  • Condition
    New
  • Application
    Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Voltage
    380V,50HZ
  • Dimension(L*W*H)
    2.25*1.6*1.7m
  • Hollow Part Volume
    2l
  • High Pressure Valve Brand
    MAC
  • Rotary Cylinder Brand
    SMC
  • PLC Brand
    XINJE
  • Power (kW)
    50
  • Weight (KG)
    2500 KG
  • Automation
    Automatic
  • Warranty
    1 Year
  • Key Selling Points
    Easy To Operate
  • Showroom Location
    Egypt, United States, Philippines, Saudi Arabia, Pakistan, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Ta
  • Applicable Industries
    Manufacturing Plant
  • Marketing Type
    Hot Product 2019
  • Machinery Test Report
    Provided
  • Video Outgoing-inspection
    Provided
  • Warranty Of Core Components
    1 Year
  • Core Components
    Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
  • Automatic
    Yes
  • Power(W)
    50KW
  • Weight
    2.5 Tons
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas, Field Maintenance And Repair Service, Field Installation, Commissioning And Training, Free Spare Parts, Video Technical Support, Online Support
  • Color
    Blue And Orange
  • Output
    3000
  • Size Of The Machine
    2.25x1.6x1.9
  • Weight Of The Machine
    2500kg
  • Local Service Location
    Egypt, United States, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South
  • After Warranty Service
    Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng
  • Certification
    CE ISO
  • Model Number
    q3000
  • Price
    $10,000.00 - $35,000.00/Sets
  • Packaging Details
    standard export wooden case or according to your requirements
  • Supply Ability
    500 Set/Sets per Year

50KW PET Bottle Blowing Machine 3500bpn Plastic Bottle Manufacturing Equipment

  • 50KW PET Bottle Blowing Machine 3500bpn Plastic Bottle Manufacturing Equipment
  • 50KW PET Bottle Blowing Machine 3500bpn Plastic Bottle Manufacturing Equipment
  • 50KW PET Bottle Blowing Machine 3500bpn Plastic Bottle Manufacturing Equipment
  • 50KW PET Bottle Blowing Machine 3500bpn Plastic Bottle Manufacturing Equipment
  • 50KW PET Bottle Blowing Machine 3500bpn Plastic Bottle Manufacturing Equipment
  • 50KW PET Bottle Blowing Machine 3500bpn Plastic Bottle Manufacturing Equipment
  • 50KW PET Bottle Blowing Machine 3500bpn Plastic Bottle Manufacturing Equipment
Get Price Contact Now
fully auto blow moulding machines capacity good price plastic bottle making machine made in China
50KW PET Bottle Blowing Machine 3500bpn Plastic Bottle Manufacturing Equipment 0
specification
Item

Q3000




Bottle type specification
Cavity
2

Theory output
3500

Max.volume
2L

Bottle mouth maximum overall diameter
80mm

Bottle biggest diameter
100mm

Bottle maximum height
330mm



Power specification
Light tube quantity
32pcs

Light tube power
0.75KW

Maximum heating power
24KW

All electric machine installation
27KW

Actual consumption
19KW


Air pressure specification
Work pressure
7-9kg/cm2

Low-pressure gas consumption
1000L/min

Blow bottle pressure
25-35kg/cm2

Higher -pressure gas consumption
1500Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
5000kcal/hr

Frozen water flow
30L/min

Machine specification
Machine size
2.25x1.6x1.7

Machine weight
2.5ton
50KW PET Bottle Blowing Machine 3500bpn Plastic Bottle Manufacturing Equipment 2
Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
50KW PET Bottle Blowing Machine 3500bpn Plastic Bottle Manufacturing Equipment 4

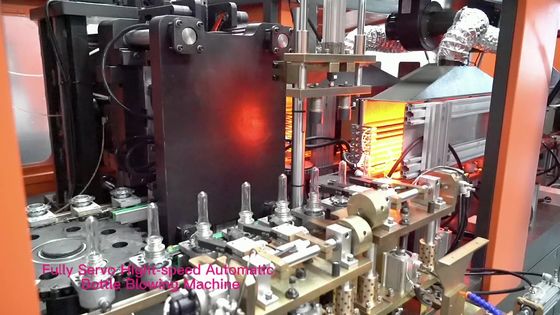

Detailed Images
50KW PET Bottle Blowing Machine 3500bpn Plastic Bottle Manufacturing Equipment 6
50KW PET Bottle Blowing Machine 3500bpn Plastic Bottle Manufacturing Equipment 8
Q linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Q series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .
50KW PET Bottle Blowing Machine 3500bpn Plastic Bottle Manufacturing Equipment 10
50KW PET Bottle Blowing Machine 3500bpn Plastic Bottle Manufacturing Equipment 12
our advantage
1. Resonable price
2. Good after service
3. experienced skilled workers and professional engineers
4. Good quality ,excellent service ,long life mould
5. on time delivery time
6.our engineers can be online for 24 hours to serve you
Company Introduction
50KW PET Bottle Blowing Machine 3500bpn Plastic Bottle Manufacturing Equipment 14
Packing&Shipping
50KW PET Bottle Blowing Machine 3500bpn Plastic Bottle Manufacturing Equipment 16
After Sales Service
1.Installation, debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.the sample service
1'We can send you the video of the running machine.
2'You are welcome to come to visit our factory,and see the machine running.
4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5.well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .12 Months guarantee and life-long technical support.
7.Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions.
50KW PET Bottle Blowing Machine 3500bpn Plastic Bottle Manufacturing Equipment 18
50KW PET Bottle Blowing Machine 3500bpn Plastic Bottle Manufacturing Equipment 20
50KW PET Bottle Blowing Machine 3500bpn Plastic Bottle Manufacturing Equipment 22
Recommend Products
50KW PET Bottle Blowing Machine 3500bpn Plastic Bottle Manufacturing Equipment 24
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
