4 Cavity Fully Automatic Pet Bottle Making Machine Cost

1set
MOQ
4 Cavity Fully Automatic Pet Bottle Making Machine Cost
Features Gallery Product Description Request A Quote
Features
Specifications
Blow Moulding Type: Stretch Blow Moulding
Voltage: 380V,50HZ
Dimension(L*W*H): 3.3*1.6*1.9m
Hollow Part Volume: 2L
PLC Brand: DELTA
Weight (KG): 3400 KG
Applicable Industries: Manufacturing Plant
Size Of The Machine: 3.3*1.6*1.9
Highlight:

4 Cavity Pet Bottle Making Machine

,

Fully Automatic Pet Bottle Making Machine

,

4 Cavity pet bottle blowing machine

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO
Model Number: K4
Payment & Shipping Terms
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Product Description

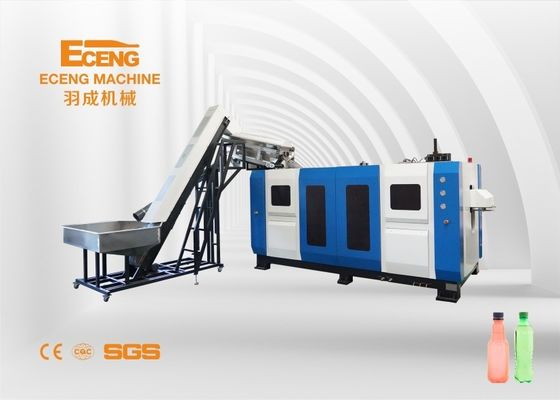

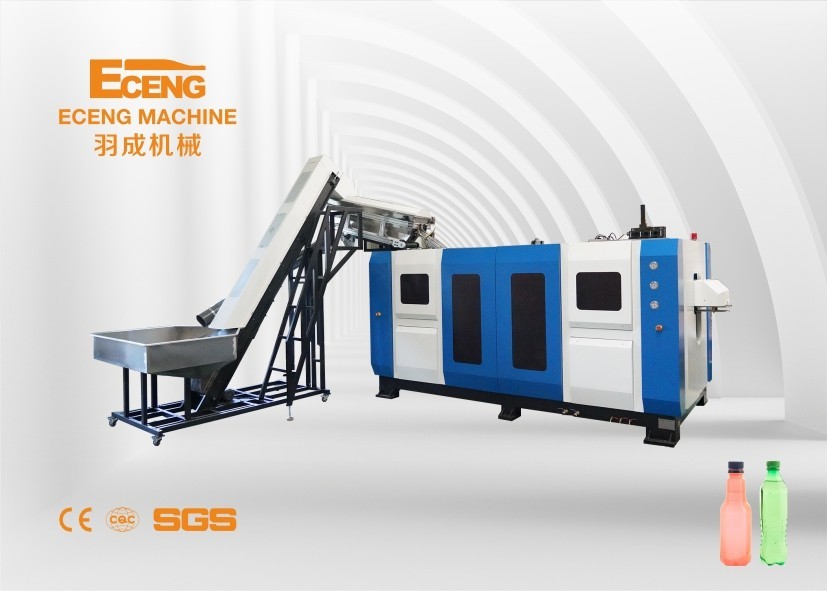

4 Cavity Fully Automatic Pet Bottle Making Machine Cost

4 Cavity Fully Automatic Pet Bottle Making Machine Cost 0

4 Cavity Fully Automatic PET Bottle Making Machine – your ultimate solution for efficient and cost-effective bottle production. Designed for precision and reliability, this advanced machine offers:

High Efficiency: Capable of producing multiple bottles simultaneously, maximizing your output and reducing production time.
Fully Automatic Operation: Streamlined processes with minimal manual intervention, ensuring consistent quality and minimizing labor costs.
Energy-Efficient Technology: Engineered to reduce energy consumption, lowering operational costs while being environmentally friendly.
User-Friendly Interface: Intuitive controls and easy-to-use software for seamless operation and quick troubleshooting.
Invest in the 4 Cavity Fully Automatic PET Bottle Making Machine and elevate your production capabilities while keeping costs under control. Ideal for manufacturers looking to enhance productivity and achieve superior bottle quality.

4 Cavity Fully Automatic Pet Bottle Making Machine Cost 1

Model Eceng K4

Bottle type specification



Cavity 4
Max.volume 200ml-2000ml
Bottle mouth maximum overall diameter 25-29mm NECK
Bottle biggest diameter 100mm
Bottle maximum height 330mm

Capacity specification



Theory output 8000-10000BPH
Bottle type volume 600ML
Bottle type weight 13.5g
Bottle type Round
Power specification Light tube quantity 16pcs
Light tube power 1.25KW
Maximum heating power 20KW
All electric machine installation 29KW
Actual consumption 30%--60%

Air pressure specification



Work pressure 5-6kg/cm2
Blow bottle pressure 25-45kg/cm2
Higher -pressure gas consumption 6000Ltr/min
Forzen water specification Work pressure 5-6 kg/cm2
Temperature range 10℃
Consumption 8000kcal/hr
Forzen water flow 120L/min
Machine specification Machine size 3.6*1.6*1.9
Machine weight 4.3ton



4 Cavity Fully Automatic Pet Bottle Making Machine Cost 2

Eceng K series fully-electric blow molding machine according to the advanced rotary blow molding machine technology in the world, which is derived from the mechanical transmission structure of being infinitely close to rotary blow molding machine.

Compared with the traditional linear blowing machine featuring advantages of simple operation, high mechanical linkage, good stability and energy saving.lt is widely used in food, beverages, cosmetics,ensuring top-notch quality for your products.

4 Cavity Fully Automatic Pet Bottle Making Machine Cost 3

Eceng machinery designs the most suitable machine model according to the special requirements of customers, which is suitable for 5ml - 50L pet containers, including water, soft drinks, juice, milk, cooking oil, beer, solid food. Cosmetics, medicine, etc.

4 Cavity Fully Automatic Pet Bottle Making Machine Cost 4

4 Cavity Fully Automatic Pet Bottle Making Machine Cost 5

Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 36,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging.

So far Eceng machinery have provided more than 2050 sets machines for more than 170 countries in the world.Our equipments are highly estimated by the clients, and are well known at home and abroad.We sincerely hope to establish business relationship with friends all over the world.

4 Cavity Fully Automatic Pet Bottle Making Machine Cost 6

4 Cavity Fully Automatic Pet Bottle Making Machine Cost 7
4 Cavity Fully Automatic Pet Bottle Making Machine Cost 8

4 Cavity Fully Automatic Pet Bottle Making Machine Cost 9
4 Cavity Fully Automatic Pet Bottle Making Machine Cost 10



4 Cavity Fully Automatic Pet Bottle Making Machine Cost 11
4 Cavity Fully Automatic Pet Bottle Making Machine Cost 12

Eceng Plastic Automatic Blow Molding Machine Pet Bottle Shampoo Making 10

FAQ

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
