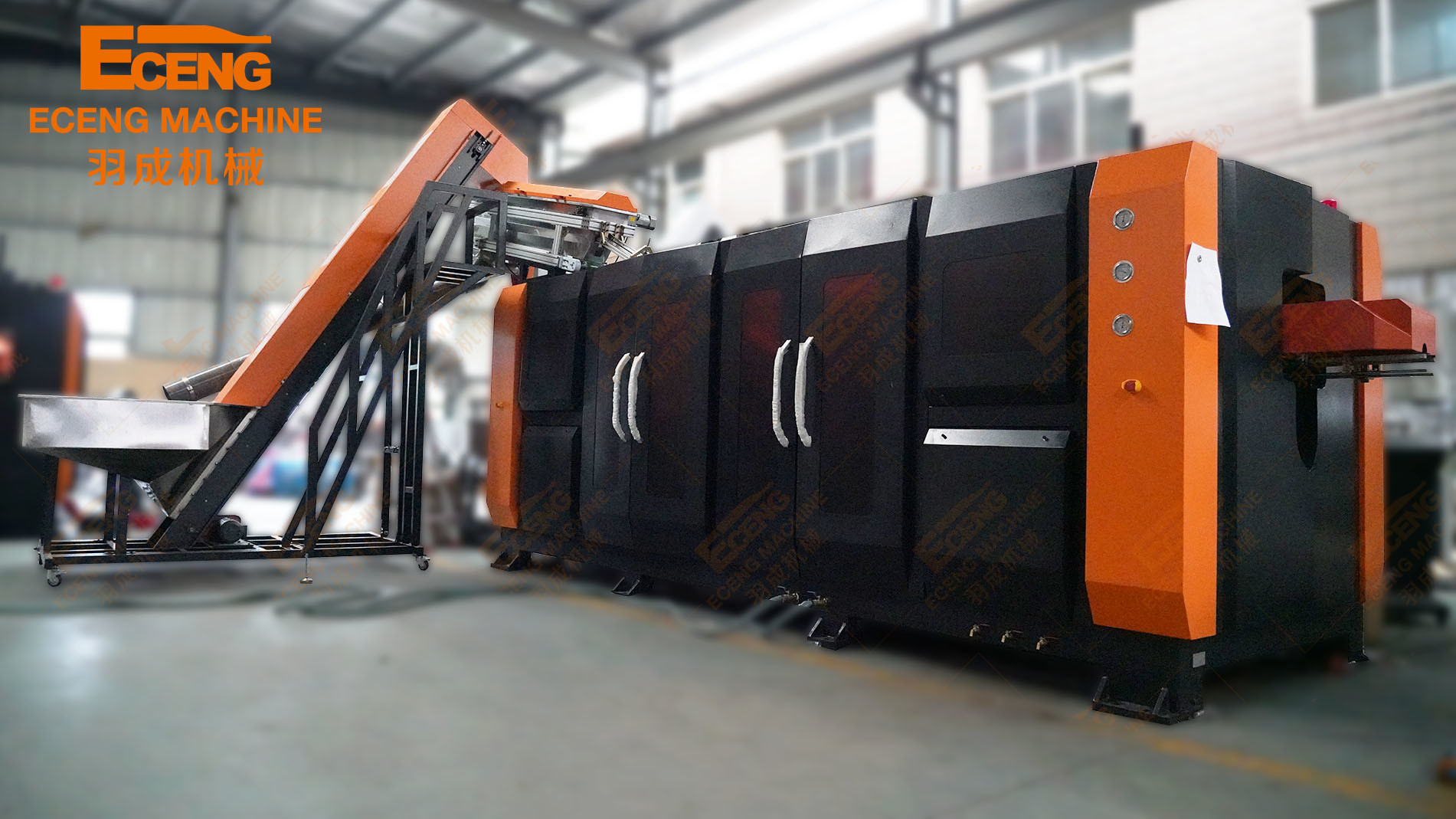

PET Stretch Bottle Blowing Molding Machine 6cavity High Speed 600ml Water Bottle

PET Stretch Bottle Blowing Molding Machine 6cavity High Speed 600ml Water Bottle

PET Stretch Bottle Blowing Molding Machine 6cavity High Speed 600ml Water Bottle
PET Stretch Bottle Blowing Molding Machine 6cavity High Speed 600ml Water Bottle
PET Stretch Bottle Blowing Molding Machine 6cavity High Speed 600ml Water Bottle
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO
Model Number: K6
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Contact Now
Detailed Product Description
PET Making Machine: Water Bottle Blowing Machine Blow Moulding Type: Stretch Blow Moulding
Voltage: 380V,50HZ Dimension(L*W*H): 5.5*1.8*1.9m
PLC Brand: DELTA Weight (KG): 6100 KG
Automation: Automatic Key Selling Points: Automatic
Warranty Of Core Components: 1 Year Size Of The Machine: 5.5*1.8*1.9
Weight: 6.1tons Power(W): 50KW
High Light:

PET Stretch Bottle Blowing Molding Machine

,

6cavity Stretch Bottle Blowing Molding Machine

,

600ml Water Bottle Blowing Molding Machine

PET Stretch bottle blowing molding machine 6cavity high speed making 600ml water bottle.

Automatic cheap price small plastic pet drink water juice bottle jar can maker stretch blow blowing mold moulding making.

1 The Application Of Servo System On Main Transmission
The transmission adopts servomotor for positioning that can orientate the preform-heating base quickly, accurately and steadily when the machine starts and running.

2 Servo Technology Innovation On Clamping System & Stretching
*Adopts servo motor to drive the two cranks to control the clamping system which can shorten the mold-clamping time and improve productivity, and also solve the swelling mold and big joint line problem with the effect of pressurize plate.
* Servo motor using for stretching to ensure the bottle blowing speed faster and more stable bottle quality.

3 Easy To Change Bottle Shape
*Drawer type mold structure design is easy for mold changing. Within one hour can change a mold on the
condition of same bottleneck diameter.


specification
             Model                                                                    K6






Bottle type specification
Cavity
6

Max.volume
2L

Bottle mouth maximum overall diameter
28-30mm

Bottle biggest diameter
100mm

Bottle maximum height
330mm


Capacity specification
Theory output
9000~12000BPH

Bottle type volume
500ML

Bottle type weight
17g

Bottle type
Round



Power specification
Light tube quantity
32pcs

Light tube power
1.25KW

Maximum heating power
40KW

All electric machine installation
49KW

Actual consumption
30%--60%


Air pressure specification
Work pressure
5-6kg/cm2

Blow bottle pressure
25-45kg/cm2

Higher -pressure gas consumption
8000Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
8000kcal/hr

Forzen water flow
120L/min

Machine specification
Machine size
5.5x1.8x1.9

Machine weight
6.1ton
Product Description
PET Stretch Bottle Blowing Molding Machine 6cavity High Speed 600ml Water Bottle 1PET Stretch Bottle Blowing Molding Machine 6cavity High Speed 600ml Water Bottle 2
K series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 4 cavity to 12 cavity with a speed of 1500 bottles per hour (750 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
Detailed Images
PET Stretch Bottle Blowing Molding Machine 6cavity High Speed 600ml Water Bottle 4
PET Stretch Bottle Blowing Molding Machine 6cavity High Speed 600ml Water Bottle 6
PET Stretch Bottle Blowing Molding Machine 6cavity High Speed 600ml Water Bottle 8
K linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.
Kseries linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .
blowing mould
PET Stretch Bottle Blowing Molding Machine 6cavity High Speed 600ml Water Bottle 10
PET Stretch Bottle Blowing Molding Machine 6cavity High Speed 600ml Water Bottle 12

our advantage
1. Resonable price
2. Good after service
3. experienced skilled workers and professional engineers
4. Good quality ,excellent service ,long life mould
5. on time delivery time
6.our engineers can be online for 24 hours to serve you

Company Introduction
PET Stretch Bottle Blowing Molding Machine 6cavity High Speed 600ml Water Bottle 14
PET Stretch Bottle Blowing Molding Machine 6cavity High Speed 600ml Water Bottle 16
PET Stretch Bottle Blowing Molding Machine 6cavity High Speed 600ml Water Bottle 18
Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,located in Zhangjiagang city,only 120km away from Shanghai.We are professional manufacturer of PET bottle blowing machines and plastic molds. We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 20,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging. Our products has covered all over China and exported to more than 100 countries,including Southest Asia,Middle East,South America,Africa etc.We’d like to provide high quality solution to clients with our enthusiasm and rich experience.We sincerely hope to establish business relationship with friends all over the world.
Packing&Shipping
PET Stretch Bottle Blowing Molding Machine 6cavity High Speed 600ml Water Bottle 20
PET Stretch Bottle Blowing Molding Machine 6cavity High Speed 600ml Water Bottle 22
Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
