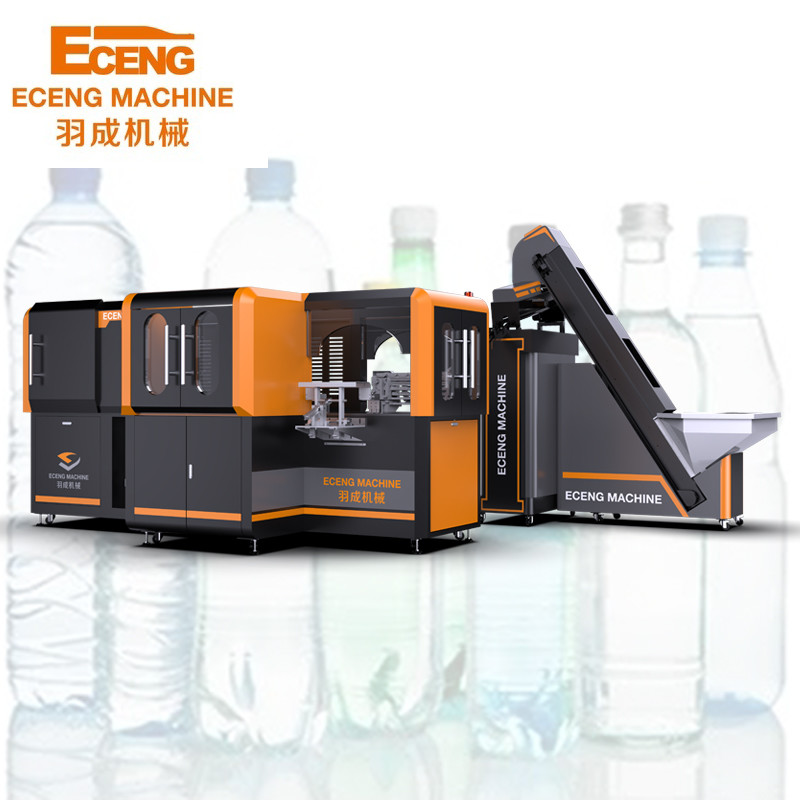

Fully Automatic Pet Linear Bottle Blowing Molding Machine Three Phase 100mm 2L

Fully Automatic Pet Linear Bottle Blowing Molding Machine Three Phase 100mm 2L

  • Fully Automatic Pet Linear Bottle Blowing Molding Machine Three Phase 100mm 2L
  • Fully Automatic Pet Linear Bottle Blowing Molding Machine Three Phase 100mm 2L
  • Fully Automatic Pet Linear Bottle Blowing Molding Machine Three Phase 100mm 2L
  • Fully Automatic Pet Linear Bottle Blowing Molding Machine Three Phase 100mm 2L
  • Fully Automatic Pet Linear Bottle Blowing Molding Machine Three Phase 100mm 2L
Fully Automatic Pet Linear Bottle Blowing Molding Machine Three Phase 100mm 2L
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE SGS ISO
Model Number: Qseries
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Film pack
Delivery Time: 35days
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Blow Moulding Type: Stretch Blow Moulding, Extrusion Blow Moulding Voltage: Three Phase 380V
Dimension(L*W*H): 2.6*1.8*2.45(m) Hollow Part Volume: 2L
PLC Brand: XINJE Warranty: 1 Year
Showroom Location: Saudi Arabia, Spain, Turkey, France, Italy, Mexico, Pakistan, Viet Nam, Canada, United States, Brazil, United Kingdom, Indonesia, Germany, Egypt, Philippines, South Korea, Algeria, Chile, UAE, Japan, Uzbekistan, Nigeria, Argentina, Australia, Ukraine, Kyrg Applicable Industries: Food & Beverage Factory
High Light:

pet Linear bottle blowing molding machine

,

2L Linear bottle blowing molding machine

,

100mm Pet Linear bottle blowing machine

Qseries is a linear bottle blowing machine which is developed and researched by the most advanced bottom making technology in the current world and molded through blowing PET(Polyethylene Terepthalate)by high pressure compressed gas.The machine needs a bottle blank appropriate to bottle type.this linear bottle blowing machine can be used independently for blowing bottles or completion of bottle blowing before filling lines.The machine shows characteristics such as high intelligence,stable and reliable mechanical performance, high production efficiency,low cost and pollution free from intermediate process,it is widely used for production of food,drink,cosmetic and medical vessel.

specification
  Item Q3000 QX4500 Q6000 QX9000
Bottle type specification Cavity 2 3 4 6
Theory output 3000BPH 4500BPH 6000BPH 9000BPH
Max.volume 2L 0.75L 2L 0.75L
Bottle mouth maximum overall diameter 28-80mm 28-38mm 28-38mm 28-38mm
Bottle biggest diameter 100mm 65mm 100mm 65mm
Bottle maximun height 330mm 240mm 330mm 240mm

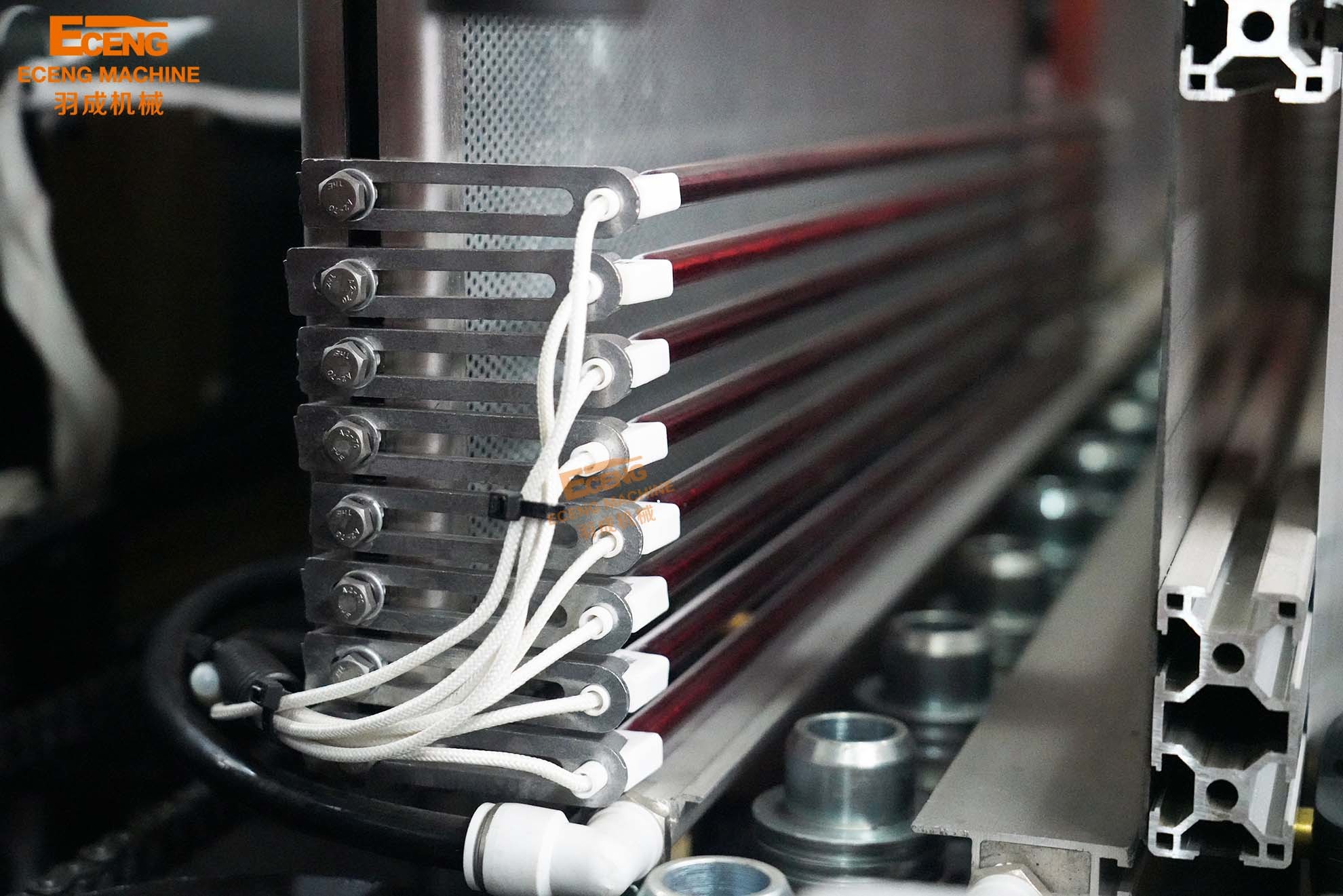

Power specification Light tube quantity 32pcs 18pcs 32pcs 32pcs
Light tube power 0.75KW 1.5KW 1KW 1.25KW
Maximum heating pwoer 24KW 24KW 32KW 40WK
All electric machine installtion 27KW 27KW 42KW 43KW
Actual consumption 30%-60% 30%-60% 30%-60% 30%-60%
Air pressure specification Work pressure 7-9kg/cm² 7-9kg/cm² 7-9kg/cm² 7-9kg/cm²
Blow bottle pressure 25-35kg/cm² 25-35kg/cm² 25-35kg/cm² 25-35kg/cm²
Higher-pressure ges consumption 1500Ltr/min 1500Ltr/min 3000Ltr/min 4000Ltr/min
Forzen water specification Work pressure 5-6 kg/cm² 5-6 kg/cm² 5-6 kg/cm² 5-6 kg/cm²
Temperature range 10℃ 10℃ 10℃ 10℃
Consumption 5000kcal/hr 5000kcal/hr 8000kcal/hr 8000kcal/hr
Forzen water flow 30L/min 30L/min 138L/min 88L/min
Machine specification Size of the machine 2.25*1.6*1.7 2.6*1.8*2.45 4.1*1.6*1.9 4.15*1.85*2.13
Weight of the machine 2.5ton 3ton 3.9ton 4.5ton



Fully Automatic Pet Linear Bottle Blowing Molding Machine Three Phase 100mm 2L 0

Eceng 600ML plastic sport drink bottle blow moulding machine bottles moulding machines
Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
Fully Automatic Pet Linear Bottle Blowing Molding Machine Three Phase 100mm 2L 1
Fully Automatic Pet Linear Bottle Blowing Molding Machine Three Phase 100mm 2L 3
Fully Automatic Pet Linear Bottle Blowing Molding Machine Three Phase 100mm 2L 5
Fully Automatic Pet Linear Bottle Blowing Molding Machine Three Phase 100mm 2L 7
Fully Automatic Pet Linear Bottle Blowing Molding Machine Three Phase 100mm 2L 9



Fully Automatic Pet Linear Bottle Blowing Molding Machine Three Phase 100mm 2L 11
Our Advantage
1. Resonable price
2. Good after service
3. experienced skilled workers and professional engineers
4. Good quality ,excellent service ,long life mould
5. on time delivery time
Fully Automatic Pet Linear Bottle Blowing Molding Machine Three Phase 100mm 2L 13
Want to know more message , contact us with out hesitate ! Inquiry us now !

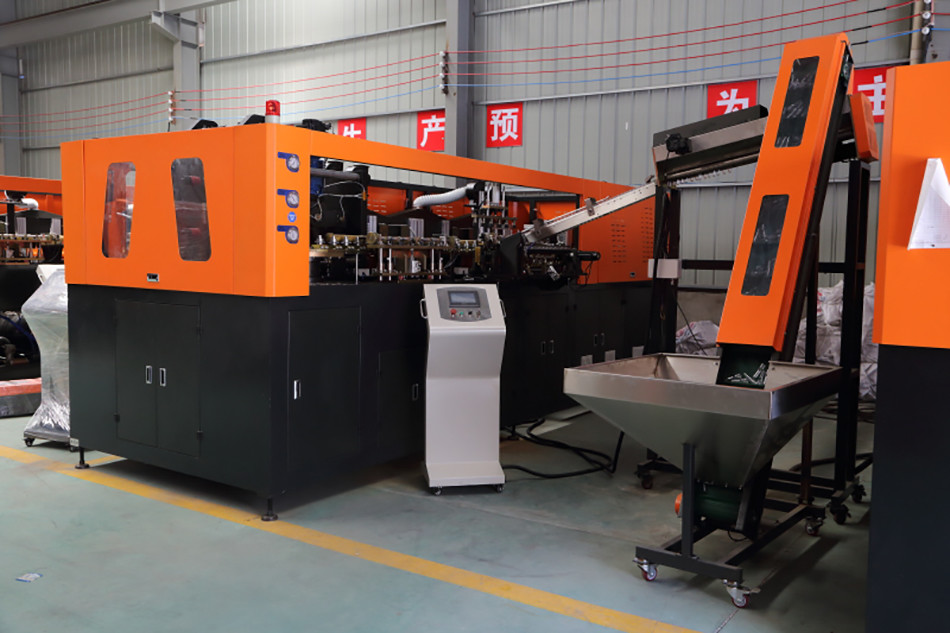

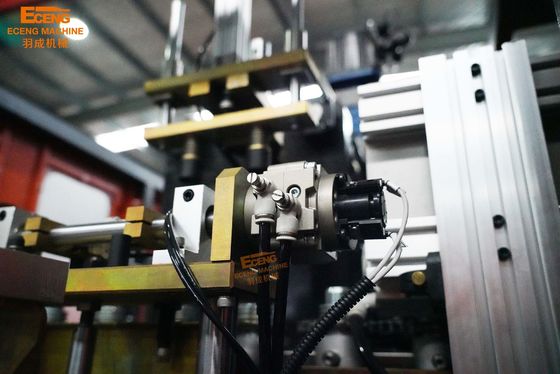

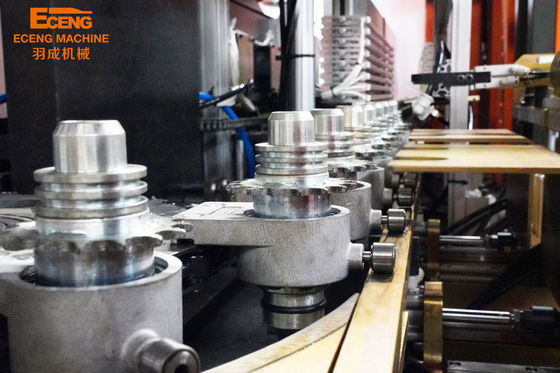

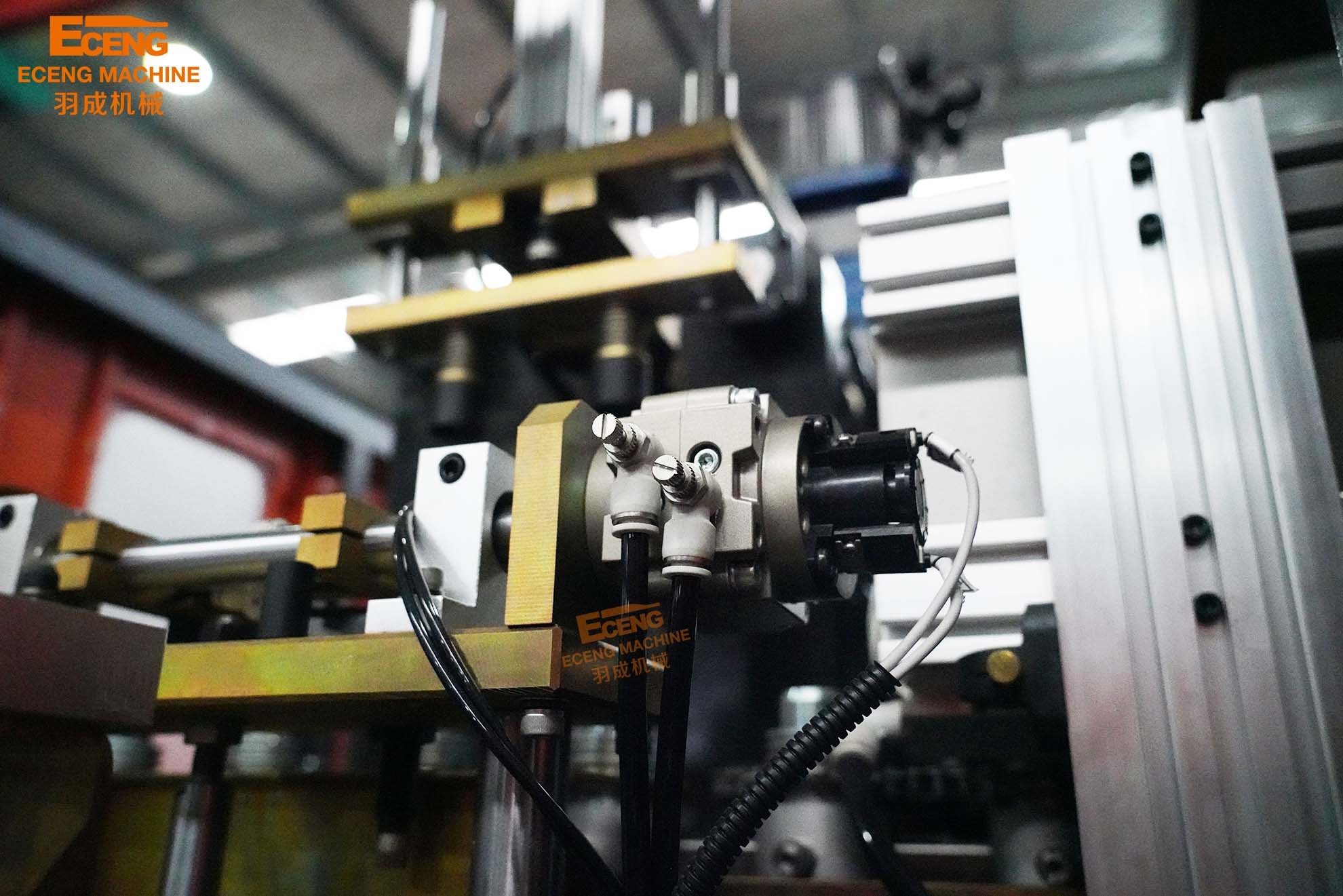

Detailed Images
Q linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Q series linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .
Fully Automatic Pet Linear Bottle Blowing Molding Machine Three Phase 100mm 2L 15
Company Introduction
Fully Automatic Pet Linear Bottle Blowing Molding Machine Three Phase 100mm 2L 17
Packing&Shipping
Fully Automatic Pet Linear Bottle Blowing Molding Machine Three Phase 100mm 2L 19

packing

Conventional packaging: inside is wrapped with PE film outside is wooden box
Fully Automatic Pet Linear Bottle Blowing Molding Machine Three Phase 100mm 2L 21

delivery

Conventional packaging: inside is wrapped with PE film outside is wooden box
After Sales Service
1. Installation, debug We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.the sample service 1'We can send you the video of the running machine. 2'You are welcome to come to visit our factory,and see the machine running.
4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5.We provide one year warranty
6.well-trained & experienced staff are to answer all your inquiries in English and Chinese
7 .12 Months guarantee and life-long technical support.
8.Your business relationship with us will be confidential to any third party.
9. Good after-sale service offered, please get back to us if you got any questions.
Fully Automatic Pet Linear Bottle Blowing Molding Machine Three Phase 100mm 2L 23
Fully Automatic Pet Linear Bottle Blowing Molding Machine Three Phase 100mm 2L 25
Fully Automatic Pet Linear Bottle Blowing Molding Machine Three Phase 100mm 2L 27
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
