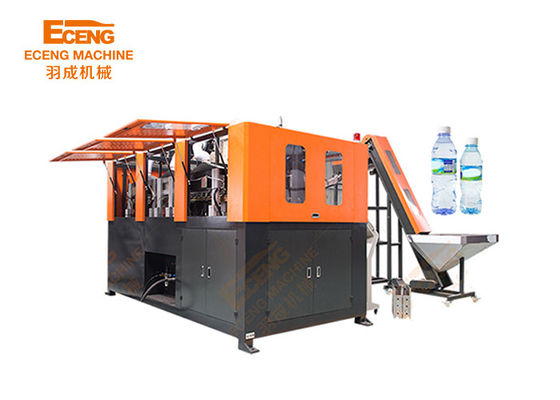

4 Cavity PET Blow Moulding Machine 6000BPH For Mineral Water Bottle Production Line

4 Cavity PET Blow Moulding Machine 6000BPH For Mineral Water Bottle Production Line

  • 4 Cavity PET Blow Moulding Machine 6000BPH For Mineral Water Bottle Production Line
  • 4 Cavity PET Blow Moulding Machine 6000BPH For Mineral Water Bottle Production Line
  • 4 Cavity PET Blow Moulding Machine 6000BPH For Mineral Water Bottle Production Line
  • 4 Cavity PET Blow Moulding Machine 6000BPH For Mineral Water Bottle Production Line
  • 4 Cavity PET Blow Moulding Machine 6000BPH For Mineral Water Bottle Production Line
  • 4 Cavity PET Blow Moulding Machine 6000BPH For Mineral Water Bottle Production Line
4 Cavity PET Blow Moulding Machine 6000BPH For Mineral Water Bottle Production Line
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE SGS ISO
Model Number: Q6000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Contact Now
Detailed Product Description
Plastic Processed: PET Max.Bottle Height(mm): 330 Mm
Neck Diameter(mm): 28 Mm Max.Bottle Diameter(mm): 105 Mm
Bottle Volume(ml): 2000 Ml Condition: New
Application: Bottle Blow Moulding Type: Stretch Blow Moulding
High Light:

4 Cavity PET Blow Moulding Machine

,

Stretch PET Blow Bottle Moulding Machine

,

6000BPH Water Bottle Production Line

Eceng Q6000 6000BPH 4cavity stretch pet blow moulding machine for mineral water bottle production line.



Model Q6000

Bottle type specification



Cavity 4
Max.volume 2L
Bottle mouth maximum overall diameter 28-38mm
Bottle biggest diameter 105mm
Bottle maximum height 330mm
Production specification Theoretical output 6000BPH
Bottle type capacity 500ML
Bottle type weight 17g
Bottle type circular
Power specification Light tube quantity 32pcs
Light tube power 1.5KW
Maximum heating power 48KW
All electric machine installation 52KW
Actual consumption 40%--70%

Air pressure specification



Work pressure 7-9kg/cm2
Low-pressure gas consumption 1000L/min
Blow bottle pressure 25-35kg/cm2
Higher -pressure gas consumption 3000Ltr/min

Air pressure specification



Work pressure 5-6 kg/cm2
Temperature range 10℃
Consumption 8000kcal/hr
Forzen water flow 138L/min

Machine specification



Machine size 4.2x1.6x1.9
Machine weight 4.5ton

Product Description
1.6000BPH Stretch Pet Blow Moulding Machine 4cavity is a top-quality machine that is perfect for producing mineral water bottles on a large scale. This machine operates at a high speed of 6000 bottles per hour, ensuring that you can meet the demands of your customers efficiently.
2. With its 4cavity design, this machine is capable of producing four bottles at the same time, allowing you to increase your production output with ease. The Moulding Machine is constructed from high-quality materials, making it durable and perfect for long-term use.
3. This machine is specifically designed for producing PET bottles for mineral water bottling lines, making it an ideal option for businesses that focus on production in this industry. The machine is easy to operate and maintain, ensuring that you can get the most out of your investment without compromising quality.
4. Featuring advanced technology and a high degree of automation, the 6000BPH Stretch Pet Blow Moulding Machine 4cavity is capable of delivering consistent results every time. The machine includes a range of safety features and is built to meet international standards, ensuring that you can be confident in its performance and reliability.
5. Whether you are just starting out in the mineral water production industry or you are looking to expand your production capacity, the 6000BPH Stretch Pet Blow Moulding Machine 4cavity is an excellent option. With its advanced features, reliable performance, and high-quality construc.

4 Cavity PET Blow Moulding Machine 6000BPH For Mineral Water Bottle Production Line 0

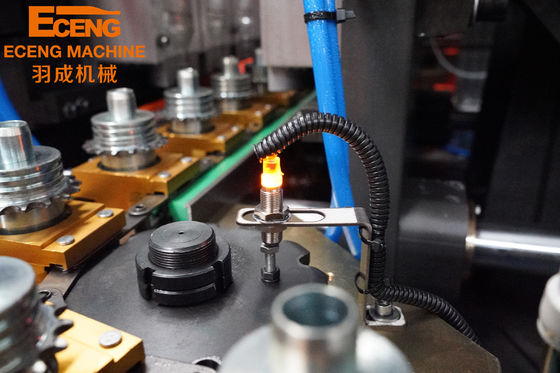

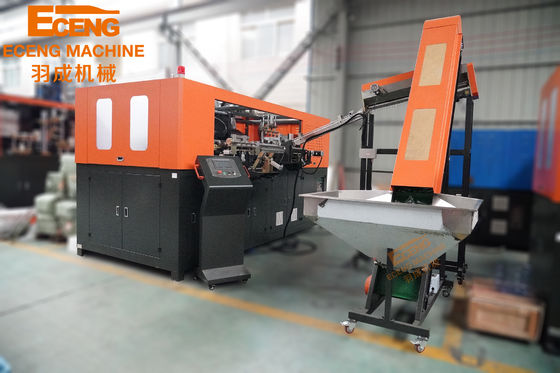

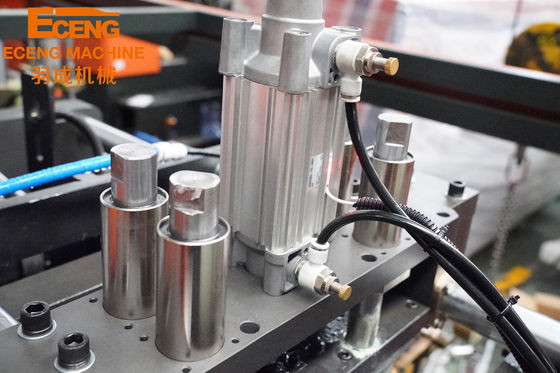

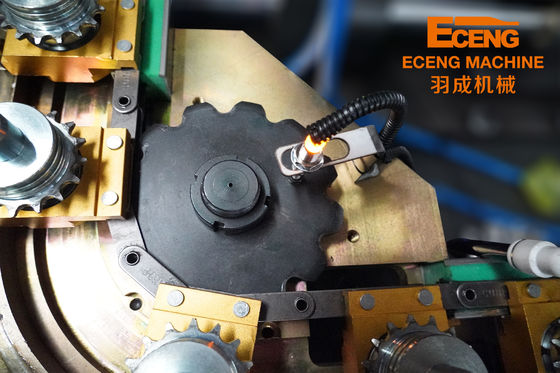

Detailed Images


4 Cavity PET Blow Moulding Machine 6000BPH For Mineral Water Bottle Production Line 34 Cavity PET Blow Moulding Machine 6000BPH For Mineral Water Bottle Production Line 4
Q linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Q series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .
4 Cavity PET Blow Moulding Machine 6000BPH For Mineral Water Bottle Production Line 6
4 Cavity PET Blow Moulding Machine 6000BPH For Mineral Water Bottle Production Line 8
Packing&Shipping
4 Cavity PET Blow Moulding Machine 6000BPH For Mineral Water Bottle Production Line 10
4 Cavity PET Blow Moulding Machine 6000BPH For Mineral Water Bottle Production Line 12
4 Cavity PET Blow Moulding Machine 6000BPH For Mineral Water Bottle Production Line 13

4 Cavity PET Blow Moulding Machine 6000BPH For Mineral Water Bottle Production Line 16
4 Cavity PET Blow Moulding Machine 6000BPH For Mineral Water Bottle Production Line 18
