Blow your bottle, Shape your dream

|
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE ISO |
| Model Number: | K6 |
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | standard export wooden case or according to your requirements |
| Delivery Time: | 60days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 Set/Sets per Year |
| Bottle Volume(ml): | 2000 Ml | Application: | Bottle |
|---|---|---|---|
| Blow Moulding Type: | Stretch Blow Moulding | PLC Brand: | DELTA |
| Applicable Industries: | Manufacturing Plant | Output: | 10000 |
| Power(W): | 50KW | Port: | Shanghai |
| High Light: | K6 Fully Automatic Bottle Blowing Machine,12000BPH Automatic Bottle Blowing Machine,50KW Electric Bottle Blowing Machine |
||

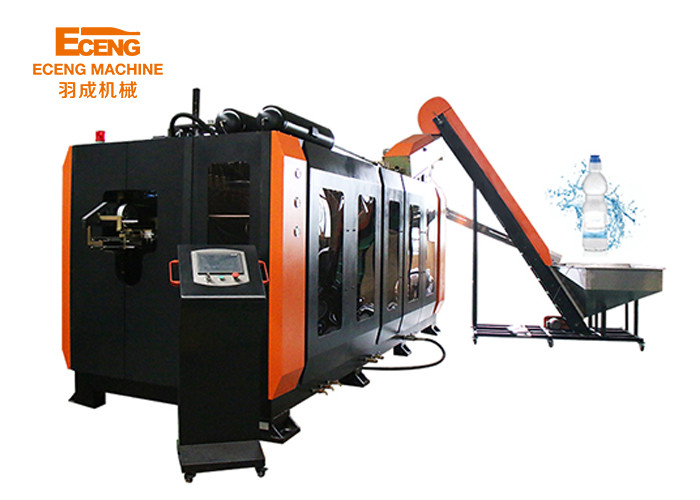

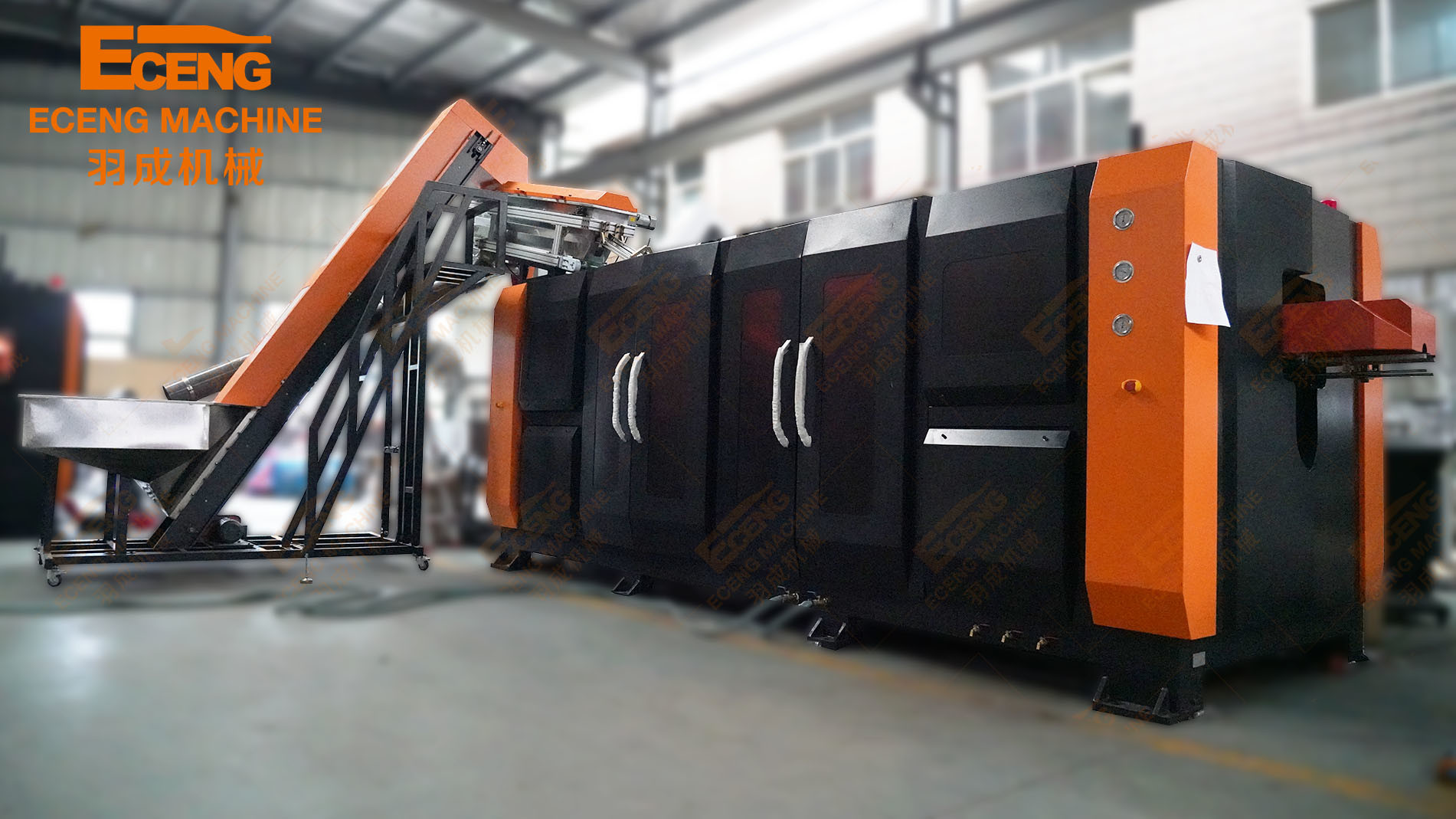

K6 Fully Automatic Bottle Blowing Machine 12000BPH Electric For Producing Water Bottles
| Model Eceng K6 | ||
|
Bottle type specification
|
Cavity | 6 |
| Max.volume | 200ml-2000ml | |
| Bottle mouth maximum overall diameter | 25-29mm NECK | |
| Bottle biggest diameter | 100mm | |
| Bottle maximum height | 330mm | |
|
Capacity specification
|
Theory output | 12000-14000BPH |
| Bottle type volume | 600ML | |
| Bottle type weight | 13.5g | |
| Bottle type | Round | |
| Power specification | Light tube quantity | 32pcs |
| Light tube power | 1.25KW | |
| Maximum heating power | 40KW | |
| All electric machine installation | 49KW | |
| Actual consumption | 30%--60% | |
|
Air pressure specification
|
Work pressure | 5-6kg/cm2 |
| Blow bottle pressure | 25-45kg/cm2 | |
| Higher -pressure gas consumption | 8000Ltr/min | |
| Forzen water specification | Work pressure | 5-6 kg/cm2 |
| Temperature range | 10℃ | |
| Consumption | 8000kcal/hr | |
| Forzen water flow | 120L/min | |
| Machine specification | Machine size | 5.5x1.8x1.9 |
| Machine weight | 6.1ton | |
1. High Production Capacity: The 12000BPH water bottle automatic blow molding machine fully electric K6 is designed to produce a large number of bottles at a rapid pace, making it an ideal choice for businesses that require high output and efficiency.
2. Energy-Efficient Operation: With its fully electric operation, this machine consumes significantly less energy than traditional hydraulic machines, resulting in lower operational costs and a reduced carbon footprint.
3. Precise Molding Performance: The K6 boasts advanced features that enable it to deliver precise molding performance, resulting in consistent bottle quality and shape. This ensures that every bottle meets the highest standards for functionality and appearance.
4. User-Friendly Controls: The machine is equipped with user-friendly controls that make it easy for operators to set up and operate. This reduces the chances of errors and downtime, resulting in increased productivity and profitability.
5. Durable and Reliable Construction: Made from high-quality materials, the K6 is built to withstand the rigors of continuous use, ensuring long-lasting performance and reliability. This makes it a smart investment for businesses seeking a high-performance blow molding machine to meet their production needs.
K linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.
Kseries linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .
Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 36,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging.
So far Eceng machinery have provided more than 2050 sets machines for more than 170 countries in the world.Our equipments are highly estimated by the clients, and are well known at home and abroad.We sincerely hope to establish business relationship with friends all over the world.
1.Installation,debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2.Training
Eceng offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, thetechnician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.Quality guarantee
We promise that our goods quality, specification and function all meet the demand of contract. One year warranty,during warranty period,All parts and components exceptthose damaged by non-human factors are quaranteed free of charge (vulnerable parts are not included). In addition, the seller provides free spare parts and accessories for shipment with the machine.
During warranty period ,the equipment is damaged due to incorrect operation by thebuyer,we provide maintenance solutions,the buyer will cover the loss and cost.during warranty period we provide technical service,which is usually solved by telephone,etc.if not,provide door-to-door service.
Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
