Fully Electric Blow Molding Machine 18000-24000BPH High Speed 12 Cavity

Fully Electric Blow Molding Machine 18000-24000BPH High Speed 12 Cavity

Fully Electric Blow Molding Machine 18000-24000BPH High Speed 12 Cavity
Fully Electric Blow Molding Machine 18000-24000BPH High Speed 12 Cavity
Fully Electric Blow Molding Machine 18000-24000BPH High Speed 12 Cavity
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Contact Now
Detailed Product Description
Model Number: K12 Plastic Processed: PET
Application: Bottle Blow Moulding Type: Stretch Blow Moulding
Automation: Automatic Key Selling Points: Automatic Blow Molding Machine
Warranty Of Core Components: 1 Year Applicable Industries: Manufacturing Plant
High Light:

Fully Electric Blow Molding Machine

,

24000BPH Electric Blow Molding Machine

,

12 Cavity Electric Molding Blowing Machine

Fully Electric Blow Molding Machine 18000-24000BPH High Speed 12 Cavity
Fully Electric Blow Molding Machine 18000-24000BPH High Speed 12 Cavity 0Fully Electric Blow Molding Machine 18000-24000BPH High Speed 12 Cavity 1



Model Eceng K12

Bottle type specification



Cavity 12
Max.volume 200ml-750ml
Bottle mouth maximum overall diameter 25-30mm NECK
Bottle biggest diameter 75mm
Bottle maximum height 180mm

Capacity specification



Theory output 22000~26000BPH
Bottle type volume 600ML
Bottle type weight 13.5g
Bottle type Round
Power specification Light tube quantity 32pcs
Light tube power 1.75KW
Maximum heating power 56KW
All electric machine installation 71KW
Actual consumption 30%--60%

Air pressure specification



Work pressure 5-6kg/cm2
Blow bottle pressure 25-45kg/cm2
Higher -pressure gas consumption 24000Ltr/min
Forzen water specification Work pressure 5-6 kg/cm2
Temperature range 10℃
Consumption 12000kcal/hr
Temperature range 10℃
Forzen water flow 180L/min
Machine specification Machine size 9.0x2.0x2.3
Machine weight 10.0ton

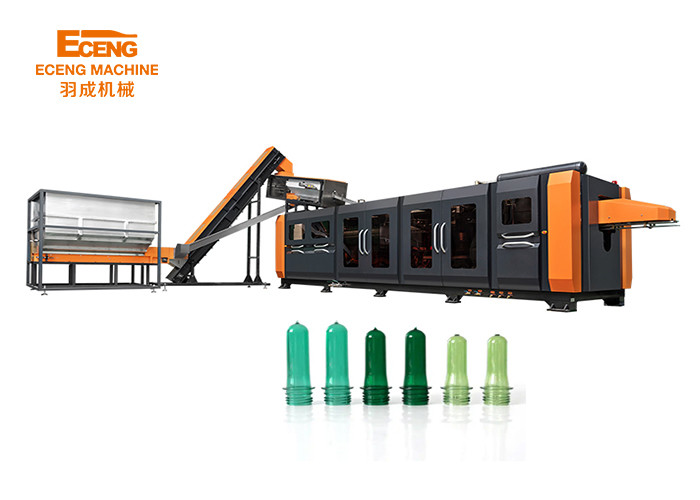

Eceng K12 22000-26000BPH 12 cavity electric blow molding machine can produce up to 24,000 bottles per hour with its 12 cavities. Its electric motor ensures stable and consistent production, providing an efficient output of high-quality finished products. The technology used in this machine is of the highest standard, ensuring that it is reliable and durable.

K12 electric blow molding machine unique is its can be inserted into Blowing-Filling-Capping Combiblock flexibly. The Combiblock technology saves space, reduces the number of machines to be operated, and minimizes the number of operators required to carry out the entire production process.

With the Blowing-Filling-Capping Combiblock, the bottles are molded, filled, and capped on the same machine. The process is fully automatic, from the initial shaping of the bottle to the final packaging. This automation not only ensures consistent quality but also reduces labor costs and increases production efficiency.

With this technology, manufacturers can increase their production capacity and reduce their operation costs. It is a wise investment for anyone who wants to stay ahead in the production industry.

Fully Electric Blow Molding Machine 18000-24000BPH High Speed 12 Cavity 2

Fully Automatic Water Beverages Bottle Blowing Machine K8 8 Cavitys 16



Fully Electric Blow Molding Machine 18000-24000BPH High Speed 12 Cavity 4

Fully Electric Blow Molding Machine 18000-24000BPH High Speed 12 Cavity 5

Fully Electric Blow Molding Machine 18000-24000BPH High Speed 12 Cavity 6

Fully Electric Blow Molding Machine 18000-24000BPH High Speed 12 Cavity 7

Fully Electric Blow Molding Machine 18000-24000BPH High Speed 12 Cavity 8

Fully Electric Blow Molding Machine 18000-24000BPH High Speed 12 Cavity 9

Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 36,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging.
So far Eceng machinery have provided more than 2050 sets machines for more than 170 countries in the world.Our equipments are highly estimated by the clients, and are well known at home and abroad.We sincerely hope to establish business relationship with friends all over the world.



Fully Electric Blow Molding Machine 18000-24000BPH High Speed 12 Cavity 10
Fully Electric Blow Molding Machine 18000-24000BPH High Speed 12 Cavity 11

Fully Electric Blow Molding Machine 18000-24000BPH High Speed 12 Cavity 12
Fully Electric Blow Molding Machine 18000-24000BPH High Speed 12 Cavity 13

Fully Electric Blow Molding Machine 18000-24000BPH High Speed 12 Cavity 14

Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.

Fully Electric Blow Molding Machine 18000-24000BPH High Speed 12 Cavity 15



Fully Electric Blow Molding Machine 18000-24000BPH High Speed 12 Cavity 16

FAQ

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
