Blow your bottle, Shape your dream
 |
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE ISO |
| Model Number: | K4 |
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | standard export wooden case or according to your requirements |
| Delivery Time: | 60days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 Set/Sets per Year |
| Blow Moulding Type: | Stretch Blow Moulding | Voltage: | 380V,50HZ |
|---|---|---|---|
| Dimension(L*W*H): | 3.3*1.6*1.9m | Hollow Part Volume: | 2L |
| PLC Brand: | DELTA | Weight (KG): | 3400 KG |
| Applicable Industries: | Manufacturing Plant | Size Of The Machine: | 3.3*1.6*1.9 |
| High Light: | 2L small water bottle making machine,10000 BPH small water bottle making machine,4 Cavities water blowing machine |
||

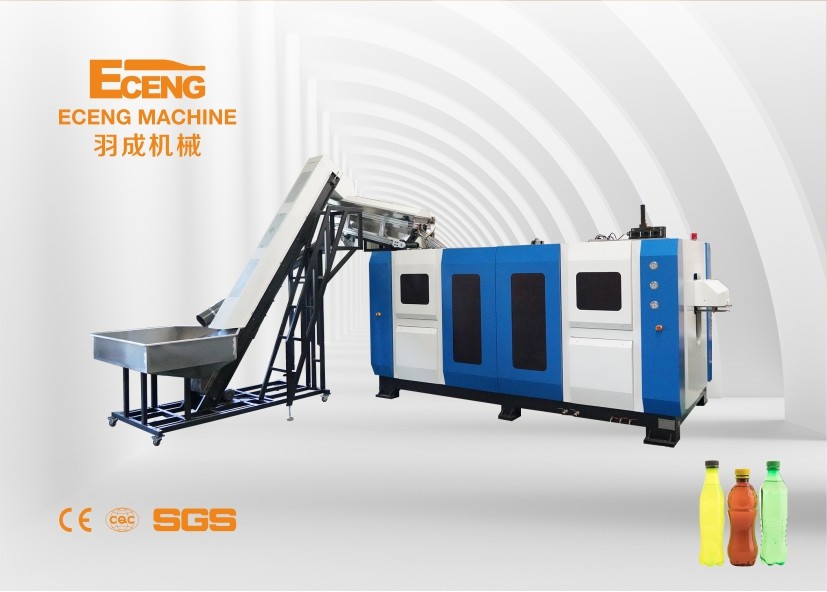

4 Cavitys 10000BPH Drinking Water Bottle Making Machine
| Model Eceng K4 | ||
|
Bottle type specification
|
Cavity | 4 |
| Max.volume | 200ml-2000ml | |
| Bottle mouth maximum overall diameter | 25-29mm NECK | |
| Bottle biggest diameter | 100mm | |
| Bottle maximum height | 330mm | |
|
Capacity specification
|
Theory output | 8000-10000BPH |
| Bottle type volume | 600ML | |
| Bottle type weight | 13.5g | |
| Bottle type | Round | |
| Power specification | Light tube quantity | 16pcs |
| Light tube power | 1.25KW | |
| Maximum heating power | 20KW | |
| All electric machine installation | 29KW | |
| Actual consumption | 30%--60% | |
|
Air pressure specification
|
Work pressure | 5-6kg/cm2 |
| Blow bottle pressure | 25-45kg/cm2 | |
| Higher -pressure gas consumption | 6000Ltr/min | |
| Forzen water specification | Work pressure | 5-6 kg/cm2 |
| Temperature range | 10℃ | |
| Consumption | 8000kcal/hr | |
| Forzen water flow | 120L/min | |
| Machine specification | Machine size | 3.6*1.6*1.9 |
| Machine weight | 4.3ton | |
Eceng K series fully-electric blow molding machine according to the advanced rotary blow molding machine technology in the world, which is derived from the mechanical transmission structure of being infinitely close to rotary blow molding machine.
Compared with the traditional linear blowing machine featuring advantages of simple operation, high mechanical linkage, good stability and energy saving.lt is widely used in food, beverages, cosmetics,ensuring top-notch quality for your products.
Eceng machinery designs the most suitable machine model according to the special requirements of customers, which is suitable for 5ml - 50L pet containers, including water, soft drinks, juice, milk, cooking oil, beer, solid food. Cosmetics, medicine, etc.
Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 36,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging.
So far Eceng machinery have provided more than 2050 sets machines for more than 170 countries in the world.Our equipments are highly estimated by the clients, and are well known at home and abroad.We sincerely hope to establish business relationship with friends all over the world.
