Blow your bottle, Shape your dream

 |
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE ISO SGS |
| Model Number: | 5L4 |
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | standard export wooden case or according to your requirements |
| Delivery Time: | 60days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 Set/Sets per Year |
| Plastic Processed: | PET | Voltage: | 380V,50HZ |
|---|---|---|---|
| Automatic: | Yes | Power: | 50KW |
| Weight: | 6 Tons | Color: | Blue And Orange |
| Warranty: | 1 Year | Output: | 2500-3000 |
| Size Of The Machine: | 5.2*2.0*2.0 | Weight Of The Machine: | 6000kg |
| Port: | Shanghai | ||
| High Light: | 50KW fully automatic pet bottle blowing machine,50KW 5 litre blow moulding machine,5 litre blow moulding machine 6000kg |
||

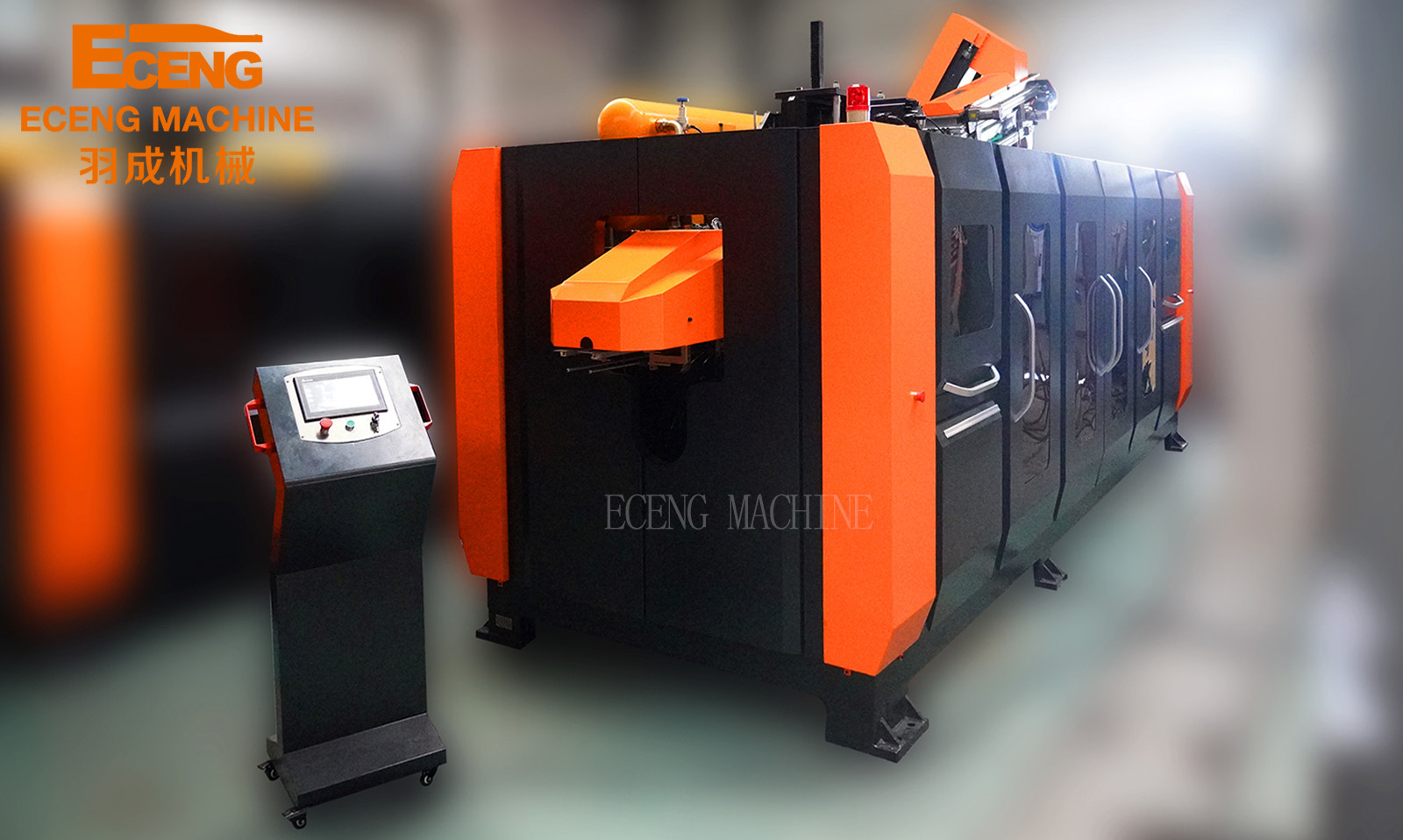

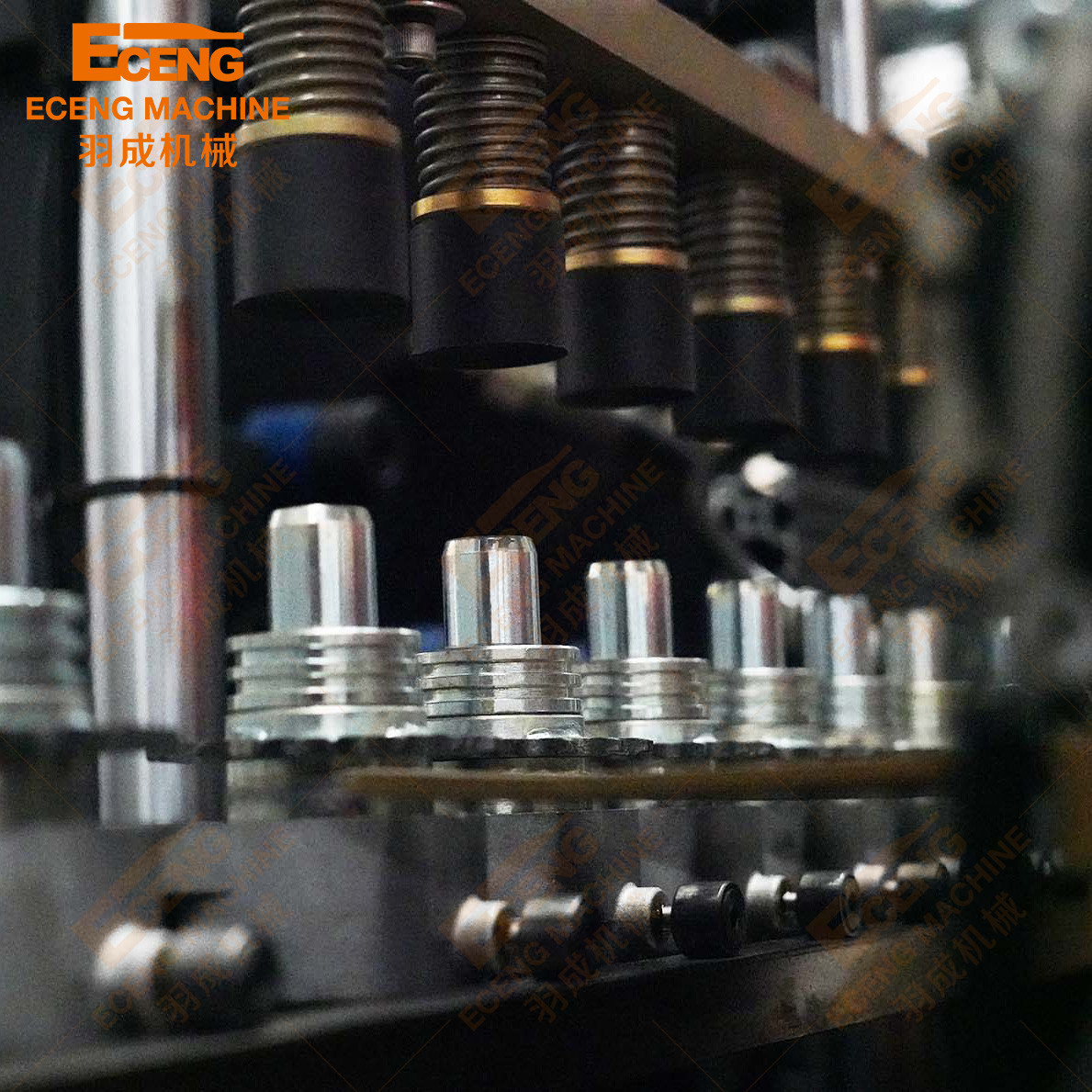

fully automatic blow moulding examples equipment high output

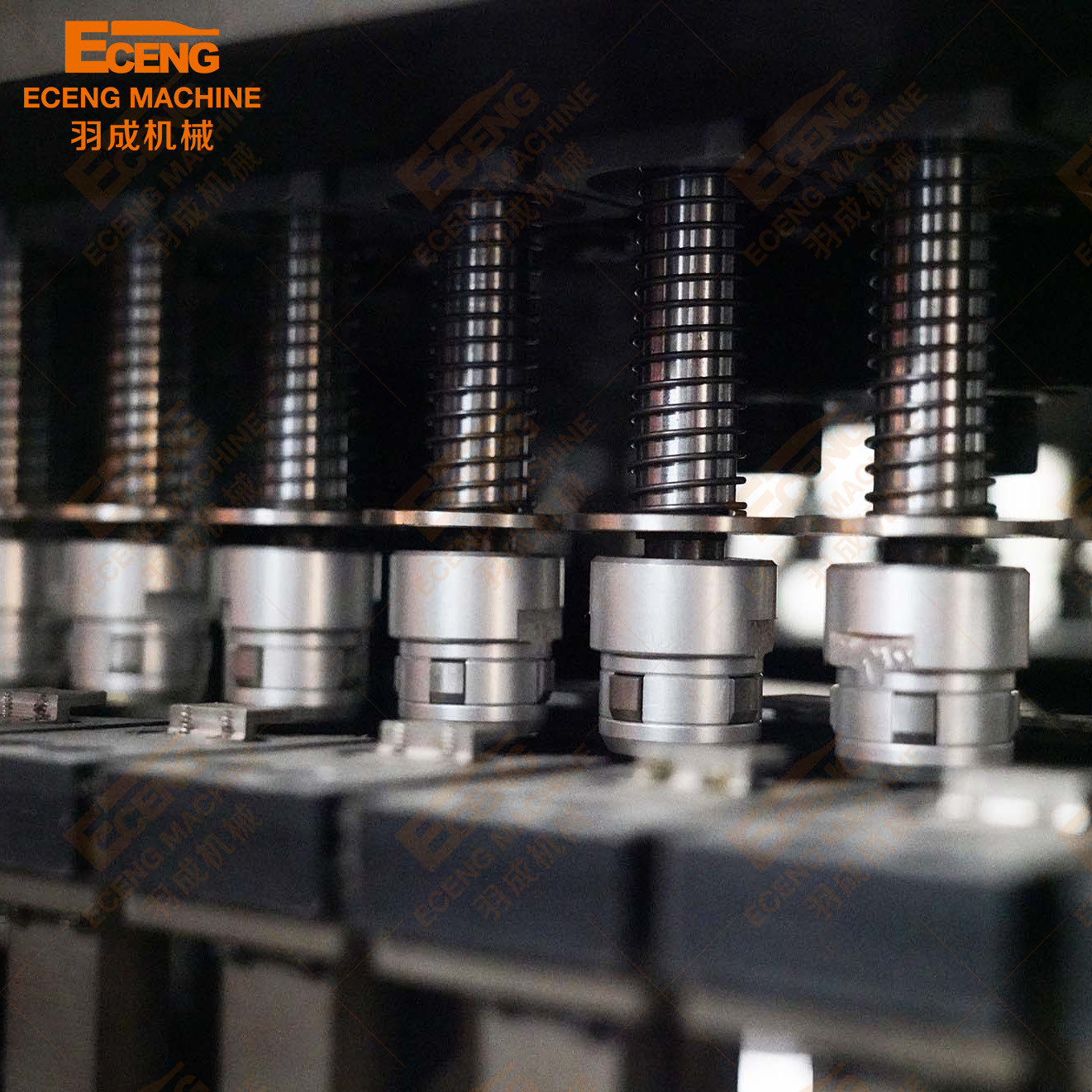

Q series linear bottle blowing machines are used in the production of PET water bottles, hot filling bottles, carbonated beverage bottles, edible oil bottles, and pesticide bottles.Eceng Machinery's Q series linear bottle blowing machine stretches preforms by using a servo motor-controlled stretch rod. The advantage is that it can be stretched in sections,and positioning of the preform is at first in order to ensure the verticality of the preforms during stretching, then secondary stretching.Ensure the uniformity and consistency of each preform stretching.At the same time,bottle blowing machine has a fast stretching speed and precise position.
Q series linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. servo transmission system, high positioning accuracy, fast speed, good stability and reliability.
4. suitable for flexible production of small quantity and various bottle shape,wide range of applications,meet customer needs.
5. increase energy using efficiency,increase productivity per unit of time.
6. manual and automatic methods of operation, human-machine interface control, simple operation.
7. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
8. safety self-locking device in each mechanical action,when a certain process fails, the program will automatically switch to a safe state.
9. heat and noise are significantly reduced compared with YCQ series.
10. less than 0.2% scrap rate for finished bottle .
|
5L-4 |
Item |
Parameter |
|
Bottle Type
|
Max volume(ML) |
5000 |
|
Max diameter(MM) |
Φ150 |
|
|
Bottleneck diameter(MM) |
Φ18 ~ Φ120 |
|
|
Bottle max height(MM) |
<330 |
|
|
Preform max height(MM) |
<155 |
|
|
Mold clamping stroke(MM) |
120 |
|
|
Bottom mold stroke(MM) |
60 |
|
|
Distance between bottles(MM) |
/ |
|
|
Theory output(bottles/hour) |
3,500(5L round bottle) |
|
|
Mold cavity |
4 |
|
|
Oven Specification
|
Heating unit |
4 |
|
Heating lamp layer |
8 |
|
|
Preform seat(pieces) |
42 |
|
|
Power Specification
|
Voltage |
380V |
|
Frequency |
50Hz |
|
|
Actual consumption |
40~80kw/h |
|
|
All installation power |
120kw |
|
|

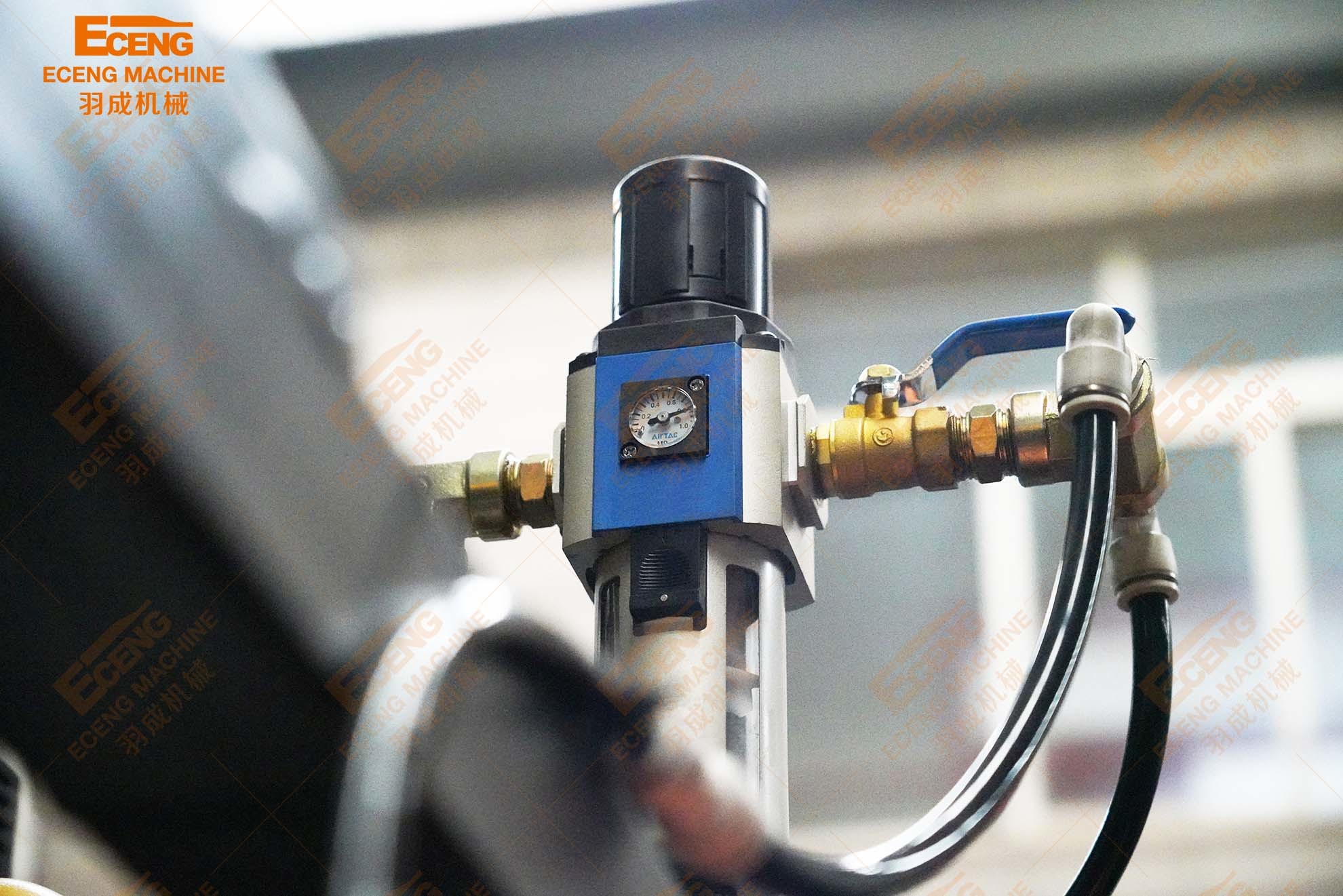

Air Source (High Pressuure air consumption depends on volume of pet bottle)
|
LP compressed air pressure |
1Mpa |
|
LP compressed air consumption |
1m3/min |
|
|
HP compressed air pressure |
3.5Mpa |
|
|
HP compressed air consumption |
2m3/min |
|
|
Cooling Water (Temperature≤18℃)
|
Pressure |
2~4bar |
|
Flow |
2.5m3/h |
|
|
Weight |
Main machineovenelectric cabinet |
about 2t |
|
Machine dimension |
Main machine(L×W×H) |
6.2×2.4×2.4m |
|
|
Preform auto-loader(L×W×H) |
2.0×2.4×2.4m |
|
Note:air consumption of the air source is adjusted according to bottle volume,altitude etc. |
||
Q series linear bottle blowing machine adopt servo control system,with stable and reliable structure,high speed,stable, simple maintenance,flexible and convenient mold matching etc,which can meet needs of continuous production.Use microcomputer touch screen controls and adjusts temperature, make temperature adjustment of blow molding different bottle type simple.Servo transmission system,high positioning accuracy,fast speed,good stability and reliability, no need air source,energy saving,low maintenance cost.
Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.

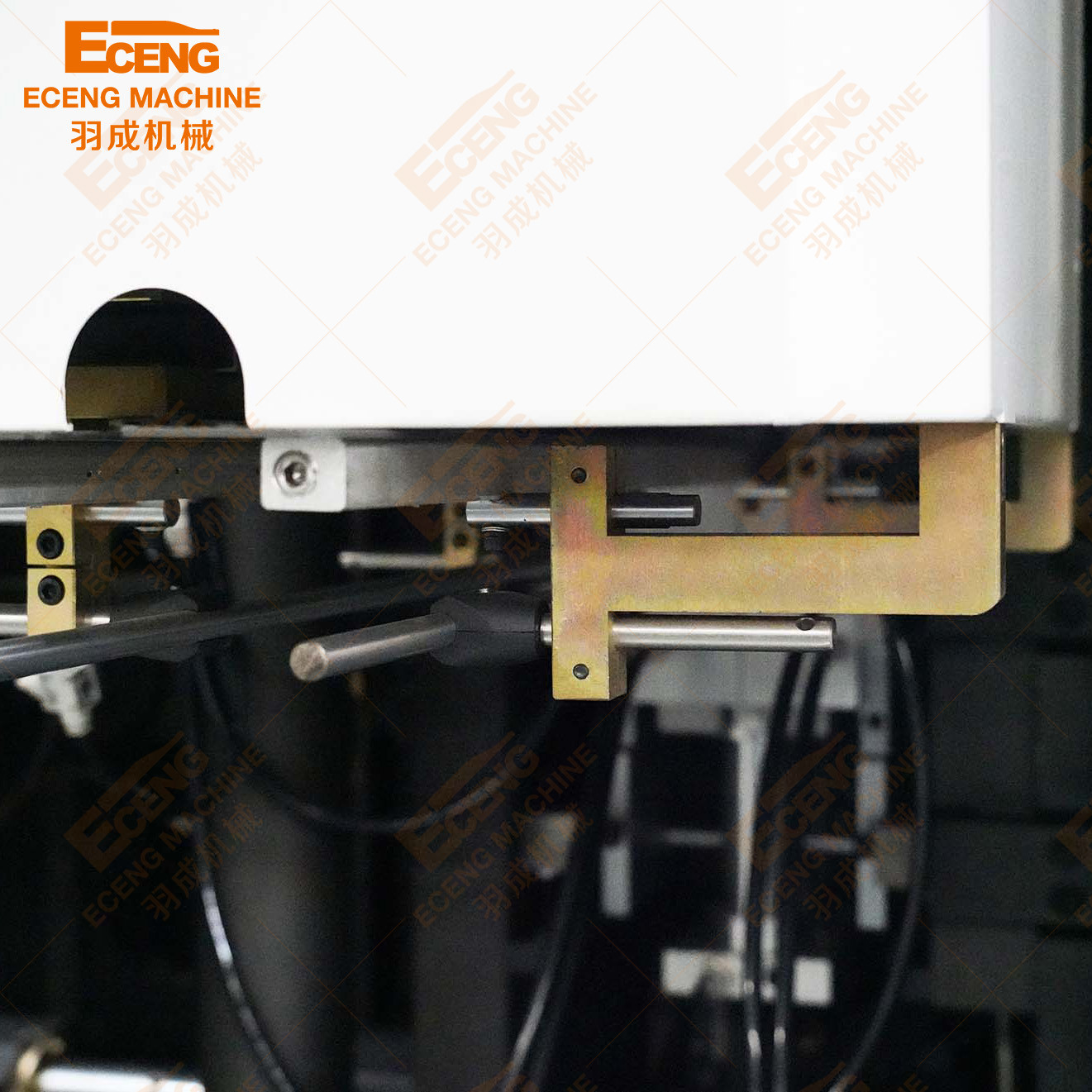

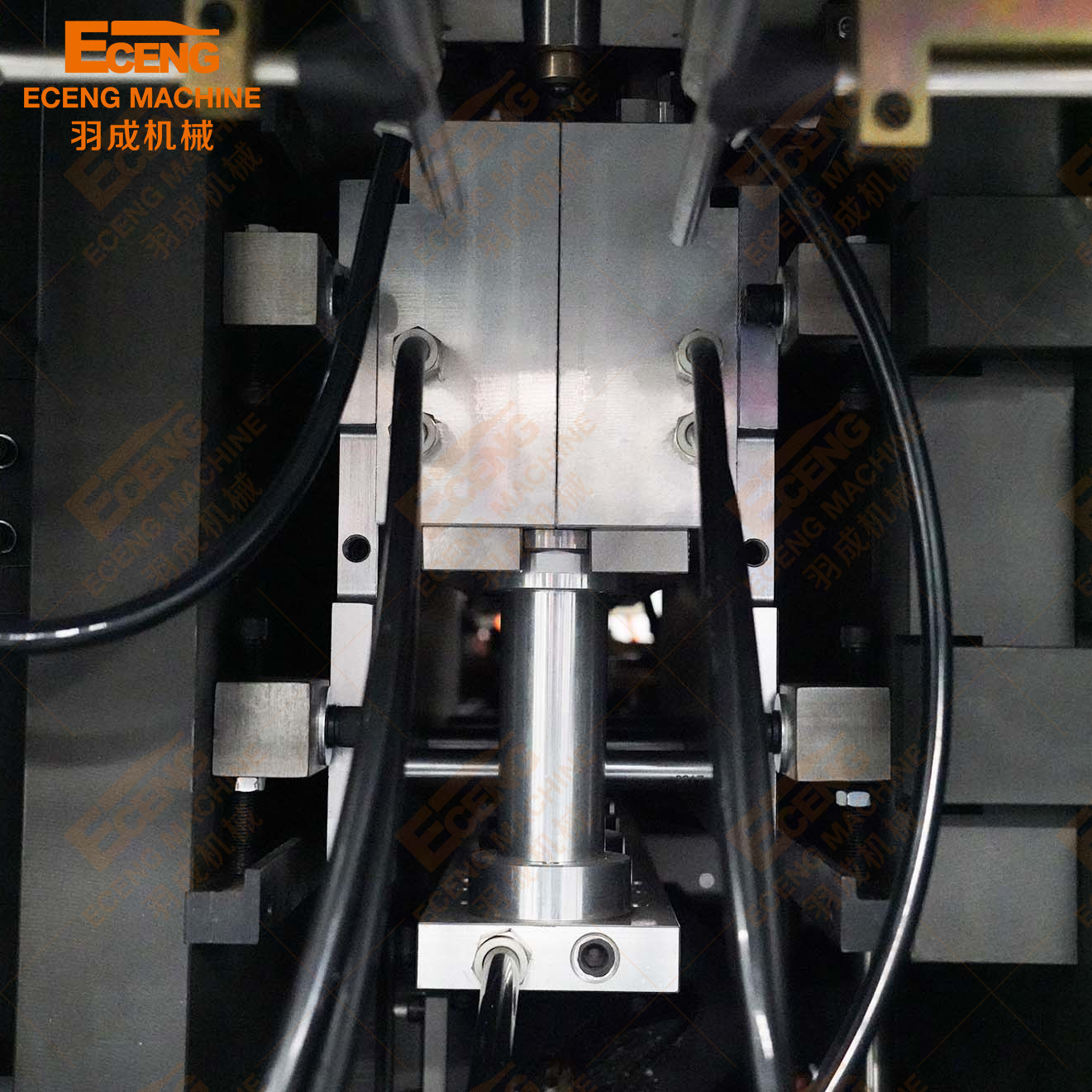

New clamping system,upgraded on the basis of the original ones,increase mould clamping speed and output,greatly reduce mold clamping noise.
Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.
Q series bottle blowing machine adopts advanced microcomputer PLC control system, stable performance; servo transmission system, high positioning accuracy, fast speed, stable and reliable.
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
