J Series Jar Blow Molding Machine

Home /  Products /  Bottle Blow molding machine /  J Series Jar Blow Molding Machine

J2L2 2Cavity 3000BPH Auto Honey Jar Making machine

  • Technical Parameter
  • Machine details
  • About us
  • Sample Room
  • Eceng Machinery Service
  • Video
  • Recommended Products
J2L2 2Cavity 3000BPH Auto Honey Jar Making machine J2L2 2Cavity 3000BPH Auto Honey Jar Making machine

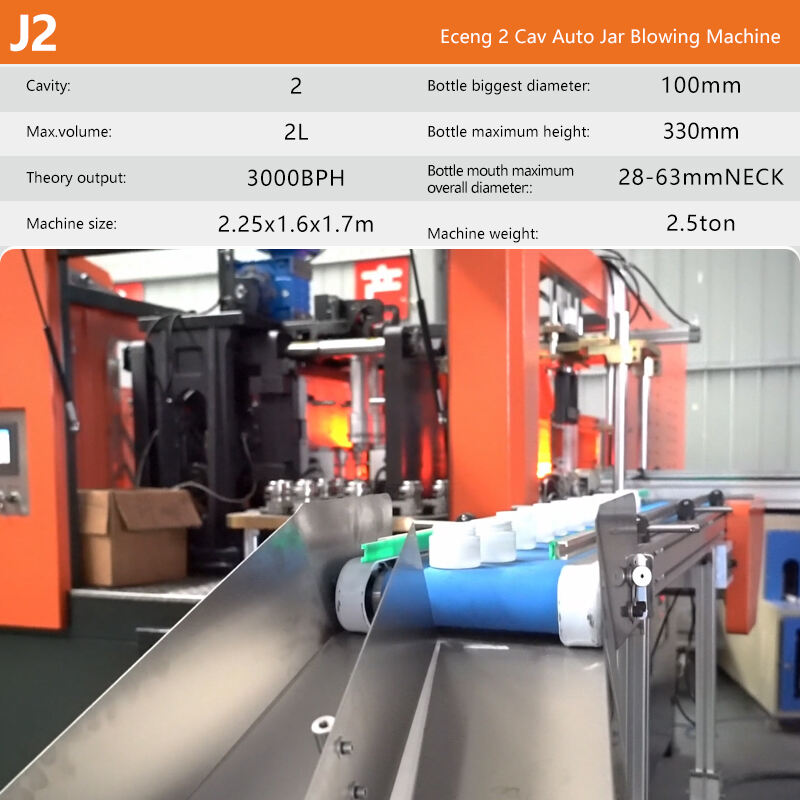

       Model                           J2L2
Bottle type specification             Cavity 2
Theory output 3000BPH
Max.volume 2L
Bottle mouth maximum overall diameter 28-63mm NECK
Bottle biggest diameter 100mm
Bottle maximum height 330mm
Power specification       Light tube quantity 32pcs
Light tube power 0.75KW
All electric machine installation 27KW
Actual consumption 30%--60%
Air pressure specification     Work pressure 7-9kg/cm2
Blow bottle pressure 25-35kg/cm2
Forzen water specification   Work pressure 5-6 kg/cm2
Temperature range 10℃
Machine specification   Machine size 2.2*1.9*2.0m
Machine weight 2.5ton

横栏1 拷贝1.jpg

  • _DSC3195 拷贝.jpg

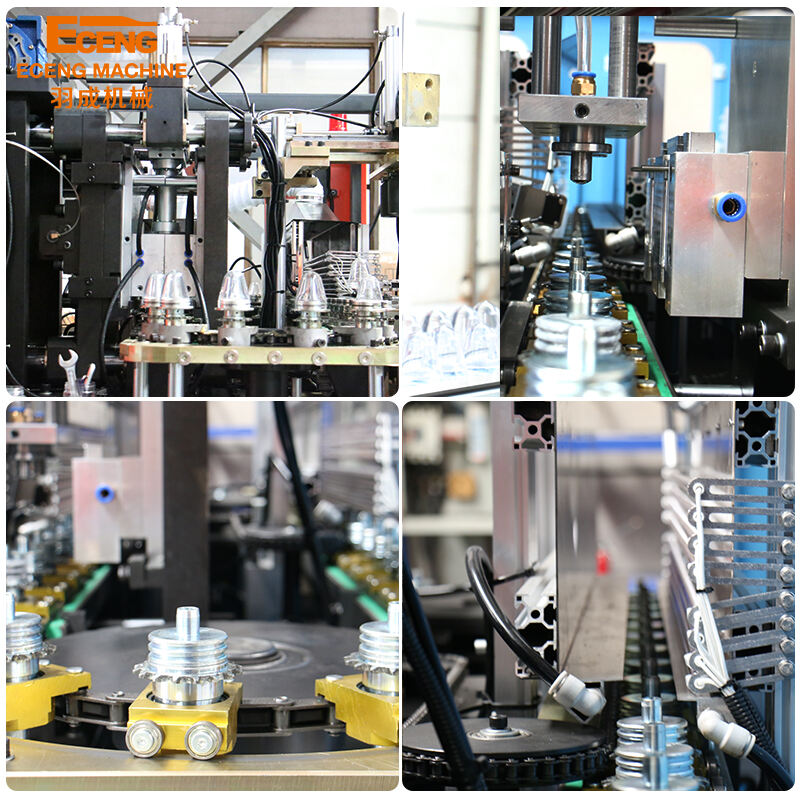

    Touch screen has a remote control

    Control it online, makes support quick and easy

  • DSC07671 拷贝.jpg

    Double-link crank arm clamping system

    Improves bottle quality

  • _DSC3198 拷贝(26e4928691).jpg

    Servo motors

    Servo motors improve machine response speed

  • IMG_3638.JPG

    Heating system

    Infrared heating: Fast and thorough

  • DSC07685 拷贝.jpg

    Clamping system

    Four-plate toggle, super strong clamping force

  • 图层 3 拷贝.jpg

    Blowing system

    Clear, flawless, High quality bottles.

横栏1 拷贝2.jpg


横栏1 拷贝3.jpg


What Can Blow with Eceng Bottle Blowing Machine

including but not limited to:

Round Bottles: commonly used for water bottles, juice bottles, soda bottles, etc.

Square Bottles: commonly used for shipping liquid detergents, cleaning agents, soap solutions, etc.

Oval Bottles: commonly used for personal care products such as cosmetics, body washes, shampoos, etc.

Irregular-Shaped Bottles: such as flat bottles, triangular bottles, hexagonal bottles, etc.

We can make the most suitableconfiguration according to your requirement in you new project.

横栏1 拷贝4.jpg

  • J系列 (2).jpg

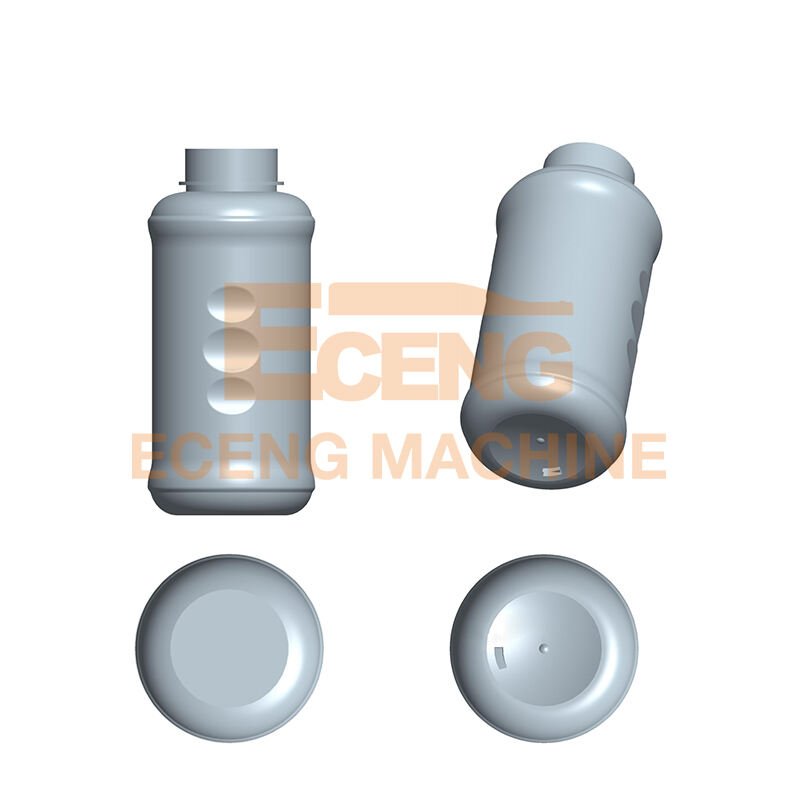

    Bottle Design.

    Our designers can design bottle styles according to your requirements.

  • 微信图片_20250617142033.jpg

    Machine Layout.

    We will confirm the machine layout according to your factory.

  • 微信图片_20250617141421.jpg

    Sample Project.

    We can provide a sample project for you to visit.

J2L2 2Cavity 3000BPH Auto Honey Jar Making machine
