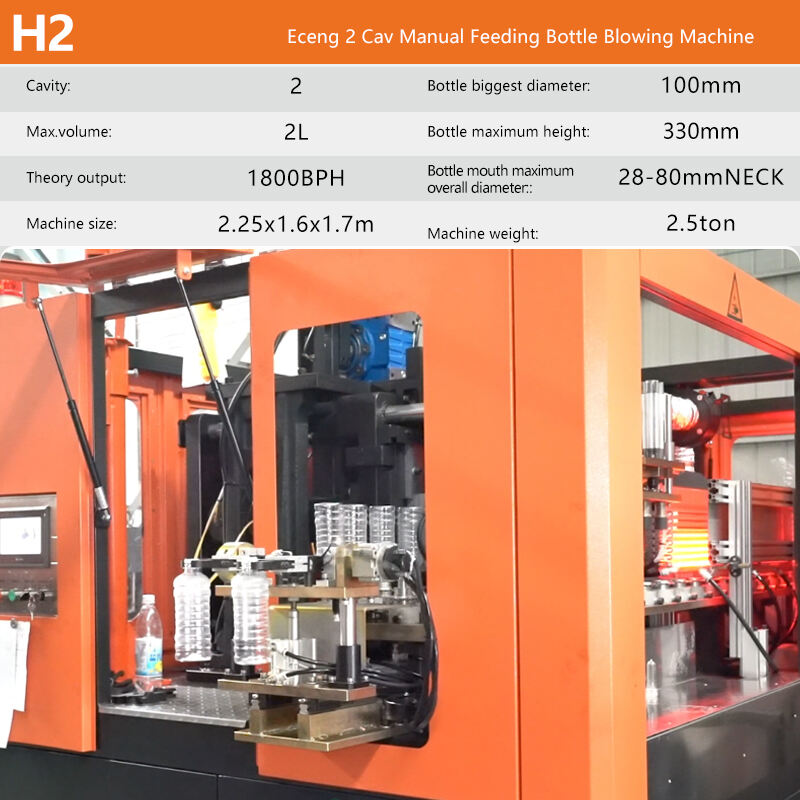

| Model | H2 | |
| Bottle type specification | Cavity | 2 |
| Theoryapp:ds:theory output | 1800BPH | |
| Max.volume | 2L | |
| Bottle mouth maximum overall diameter | 28-80mm NECK | |
| Bottle biggest diameter | 100mm | |
| Bottle maximum height | 330mm | |
| Power specification | Light tube quantity | 32pcs |
| Light tube power | 0.75KW | |
| All electric machine installation | 27KW | |
| Actual consumption | 30%--60% | |
| Air pressure specification | Work pressure | 7-9kg/cm2 |
| Low-pressure gas consumption | 1000L/ min | |
| Blow bottle pressure | 25-35kg/cm2 | |
| Forzen water specification | Work pressure | 5-6 kg/cm2 |
| Temperature range | 10℃ | |
| Machine specification | Machine size | 2.25*1.6*1.7m |
| Machine weight | 2.5ton | |
-
Touch screen
Easy to set the parameters of the machine
-

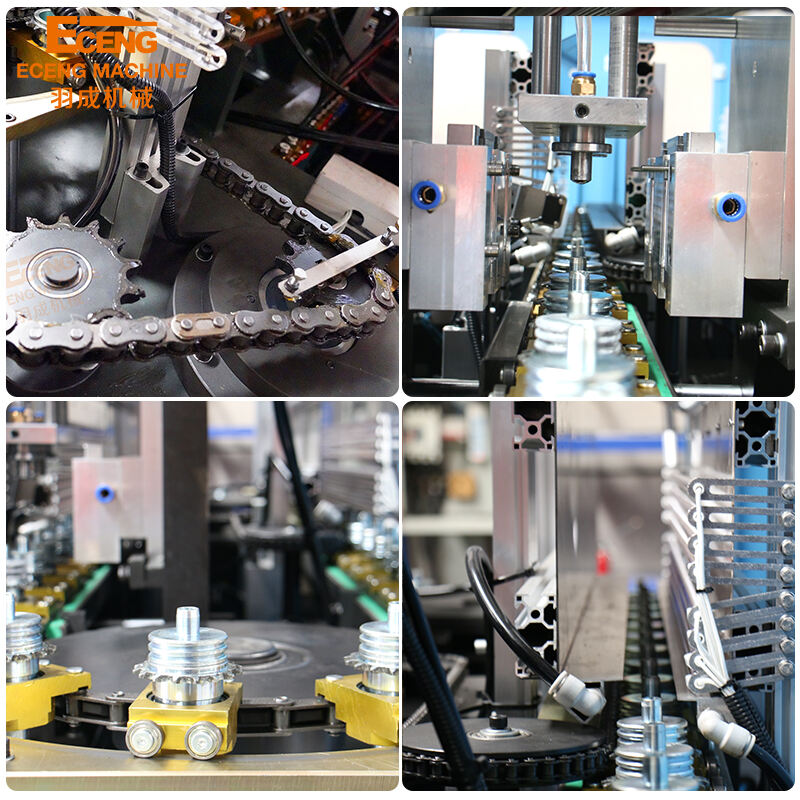

Pneumatic system
Pneumatic for opening/closing and stretching. Less mess, less noise
-
Preheating system
Circular, short pre-heating saves over 50% energy
-
Clamping system
Booster plates give strong closing force, sure bottles blown perfectly
-
Blowing system
Clear, flawless, High quality bottles.

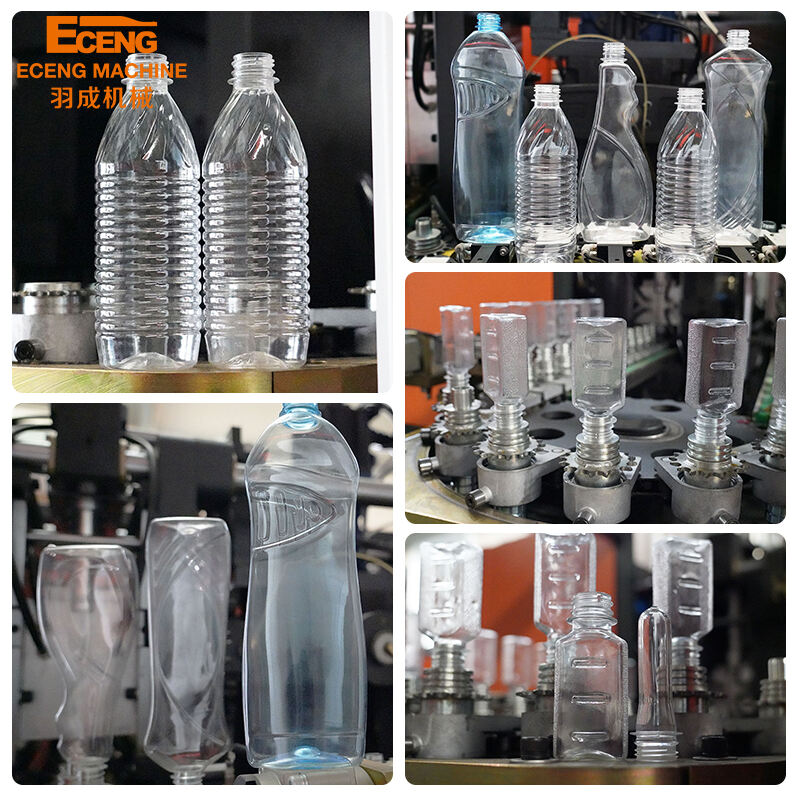

What Can Blow with Eceng Bottle Blowing Machine
including but not limited to:
Round Bottles: commonly used for water bottles, juice bottles, soda bottles, etc.
Square Bottles: commonly used for shipping liquid detergents, cleaning agents, soap solutions, etc.
Oval Bottles: commonly used for personal care products such as cosmetics, body washes, shampoos, etc.
Irregular-Shaped Bottles: such as flat bottles, triangular bottles, hexagonal bottles, etc.
We can make the most suitableconfiguration according to your requirement in you new project.
-

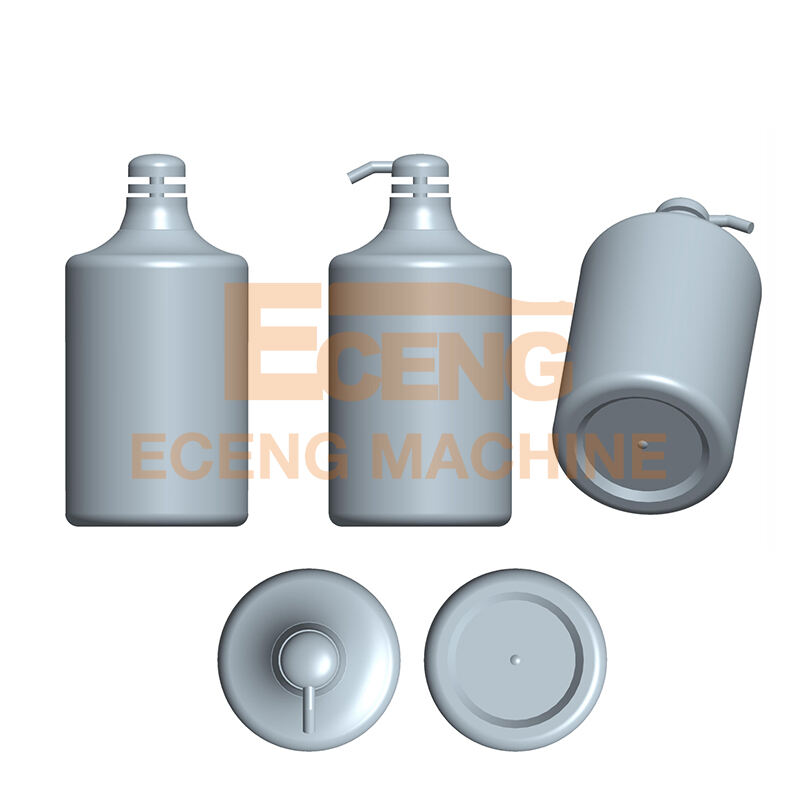

Bottle Design.
Our designers can design bottle styles according to your requirements.
-
Machine Layout.
We will confirm the machine layout according to your factory.
-
Sample Project.
We can provide a sample project for you to visit.
