24 Cavity High Speed Cavity CCM Machine for Water Cap Advanced Cap Compression Moulding Machine Cap Compression Making Machine

Eceng cap compression moulding machine

Eceng full automatic high speed cap compression moulding machine adopts hydraulic clamping principle, technic of rapid prototyping and mould release of low pressure, etc. to manufacture with continuous totation, widely used in the manufacture of bottle caps of carbonated beverage, mineral spring water, cosmetic products. The maximum productivity can reach 45000pcs one hour

	Model	24T
1	Output Capacity	20000-28000
2	Cap Diameter	20-60mm
3	Cap Height	10-30mm
4	Extrusion Heating Power	12KW
5	Extruder Motor Power	11KW
6	Cap Material	PE/PP
7	Cavity No.	24
8	Mold Compression Motor	3.5KW
9	Hydraulic System Power	17.5KW
10	Power Supply	380V/50HZ
11	Air Consumption	0.4m³/hr, 0.8Mpa
12	Machine Dimension	4.2*1.8*2.2m
13	Machine Weight	5000KG

Lower cost, higher productivity Output threefold vs. plastic injection Easy to assemble and disassemble Great cap quality, stable Grammage Quick mold change, less downtime Optimized design, user-friendly touch control Compact size, easy to handle

Water plastic closure

Cold Fill plastic closure

CSD BCPL plastic closure

1, The machine bottle production process without the injection point, good bottle products, beautiful appearance 2, The machine adopts multi-speed rotating grinding repression approach to production, to ensure high productivity 3, The machine rotary manner aero-assisted quit threaded mode, to avoid stripping the thread damage caused strong 4, The machine is compact, fully automated operation 5, The machine replacement material molds convenient and easier maintenance festival time

We Have The Right Products to Fit Your Needs Purchase

Zhangjiagang Eceng Machinery Co., Ltd., established in 2007, Our factory spans over 10,000 square meters, and we hold independent research and development patents. We offer a comprehensive production system for PET liquid packaging. Our main products include fully automatic and semi auto bottle blowing machines, jar blowing machines, bottle cap compression molding machines, ISBM machines(injection stretch blow molding machines), self-adhesive labeling machines, OPP labeling machines, sleeve labeling machines, baler, Film shrink wrapping machine, carton packing machines, Pelletizing machines, blow moulds, injection pet preform mold, bottle cap molds, air compressors, cold dryer, and chiller. As a leading one-stop service provider in PET liquid packaging, we supply factory direct products to over 170 countries and look forward to building long-term partnerships worldwide

Exhibition and Customer Visit

Packaging & Shipping

FAQ

Q:Your company is a trading company or a direct factory

A:We are a direct factory which locates in Zhangjiagang city, in close proximity to Shanghai and Wuxi. If you arrive at either Shanghai or Wuxi, we can arrange transportation to pick you up and accompany you for a visit to our factory

Q: How can I know your machine works well

A: Before delivery, we will debug the production line, take photos, videos and send them to you via mail or instant tools. And you are welcome to come to visit our factory, and see the machine running

Q:All of your products are made by yourself or compacted via purchasing the others

A:We have independent technical team who focus on making machines, all the products are made by our technical team

Eceng presents the 24 Cavity High Speed Cavity CCM Machine for Water Cap, a reliable and efficient solution for manufacturers seeking fast and consistent cap production. Designed specifically for high-volume output, this Cap Compression Moulding Machine combines robust engineering with user-friendly controls, making it an ideal choice for professionals working from home who need industrial-grade performance in a compact footprint.

This advanced Cap Compression Making Machine is built around a 24-cavity mold system that dramatically increases throughput without sacrificing quality. Each cycle produces multiple caps with uniform dimensions and precise sealing features, ensuring compatibility with standard water bottle necks and lids. The machine’s high-speed operation reduces cycle time and boosts productivity, helping businesses meet tight deadlines and scale up production as demand rises.

Eceng’s design focuses on stable, continuous operation. The machine uses durable materials and precision components engineered for long service life. Key parts are hardened and tested to withstand high-frequency use, minimizing downtime and maintenance. The result is a dependable production line that maintains consistent output even under rigorous daily schedules. For professionals working from home, this means more reliable runs and fewer interruptions to production.

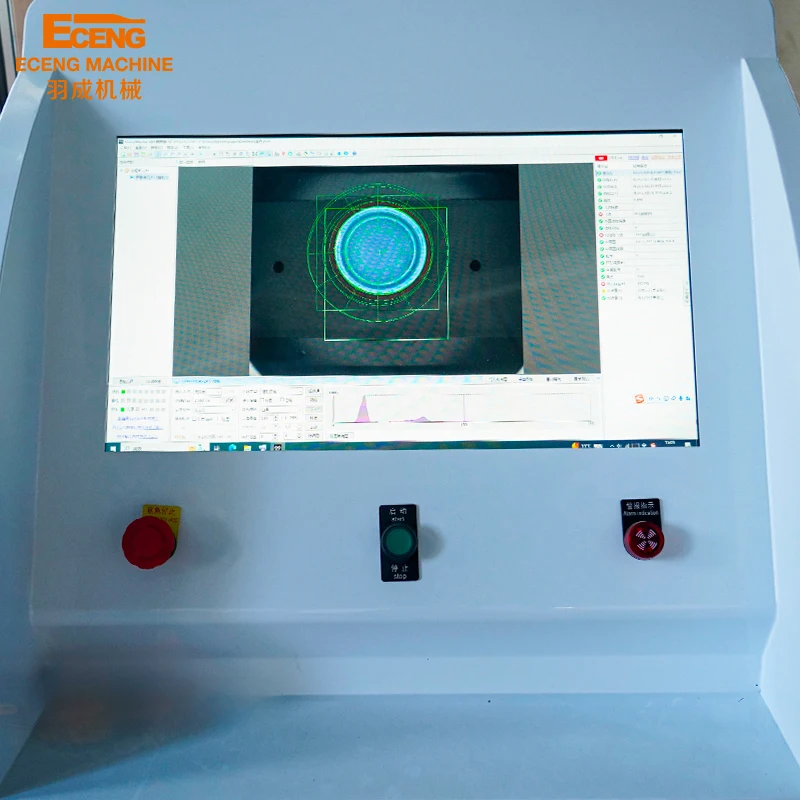

Ease of use is central to the Eceng 24 Cavity High Speed CCM Machine. The control panel is intuitive, with clear settings for temperature, pressure, and cycle timing. Operators can quickly adjust parameters to optimize cap quality across different materials and mold types. Built-in safety features protect both the operator and the equipment, including emergency stop functions and thermal overload protection. These safeguards give home-based professionals confidence to run the machine for extended shifts with minimal supervision.

Precision is a hallmark of this Cap Compression Moulding Machine. It delivers tight tolerances that produce consistent cap threads, flatness, and rim profiles. This precision reduces rejection rates and waste, leading to cost savings on raw materials and improved overall yield. The 24 cavities are balanced to ensure even filling and curing, which is especially important for maintaining uniform appearance and functionality across all caps in each cycle.

The Eceng machine supports a variety of thermoplastic materials commonly used in water caps, enabling flexibility for different product lines. Manufacturers can switch between materials with minimal retooling, allowing for experimentation with new designs and features. Mold changeover is streamlined, with straightforward mounting points and alignment guides. This quick change capability is beneficial for small businesses and professionals working from home who need to produce multiple variations without extensive downtime.

Energy efficiency is built into the machine’s operation. Advanced heating elements and optimized cycle control reduce power consumption per cap. For professionals working from home, lower energy use translates to reduced operating costs and a lighter environmental footprint. The machine’s compact footprint also makes it suitable for smaller workshop spaces while still delivering industrial-level results.

Maintenance and serviceability were considered during the Eceng design process. Access panels and modular components allow for rapid inspection and routine maintenance. Operators can perform regular cleaning, lubrication, and parts replacement without needing specialized tools. Spare parts are standardized and easy to source, which helps keep long-term maintenance costs predictable and manageable.

Quality assurance is integral to the 24 Cavity High Speed CCM Machine. The unit includes process monitoring features that log key variables such as temperature, pressure, and cycle counts. These logs help operators maintain consistent quality and provide traceability for production batches. For businesses producing caps for water bottles, this traceability supports compliance with industry standards and simplifies quality audits.

The machine’s high-speed performance does not compromise safety. Eceng has incorporated multiple protective measures, including guarded moving parts and interlocks that prevent operation if safety doors are open. This focus on safety is important for professionals working from home who may operate the machine without a large support staff. Clear labeling and straightforward operation further reduce the risk of user error.

Customization options are available to meet specific production needs. Eceng can supply the machine with different mold configurations, automation interfaces, and post-molding options such as trimming or stacking mechanisms. These options help create a tailored production line that fits the particular workflow of home-based professionals and small manufacturers. Automation interfaces enable integration with conveyors or robotic pick-and-place systems for semi-automated workflows.

Installation support and training are provided to ensure smooth startup. Eceng offers guidance on optimal placement, power requirements, and initial settings to achieve the best results. Training covers safe operation, routine maintenance, and troubleshooting techniques. This support is particularly valuable for professionals working from home who may be transitioning from smaller-scale equipment to a full-featured industrial machine.

The Eceng 24 Cavity High Speed Cavity CCM Machine for Water Cap is a powerful, precise, and user-friendly Cap Compression Moulding Machine suited to professionals working from home who demand high throughput, consistent quality, and operational efficiency. Its combination of robust construction, intuitive controls, and flexible material compatibility makes it a strategic investment for scaling production while maintaining cost-effectiveness. With safety features, energy efficiency, and comprehensive support, Eceng delivers a machine that helps small manufacturers produce professional-grade water caps reliably and profitably.
