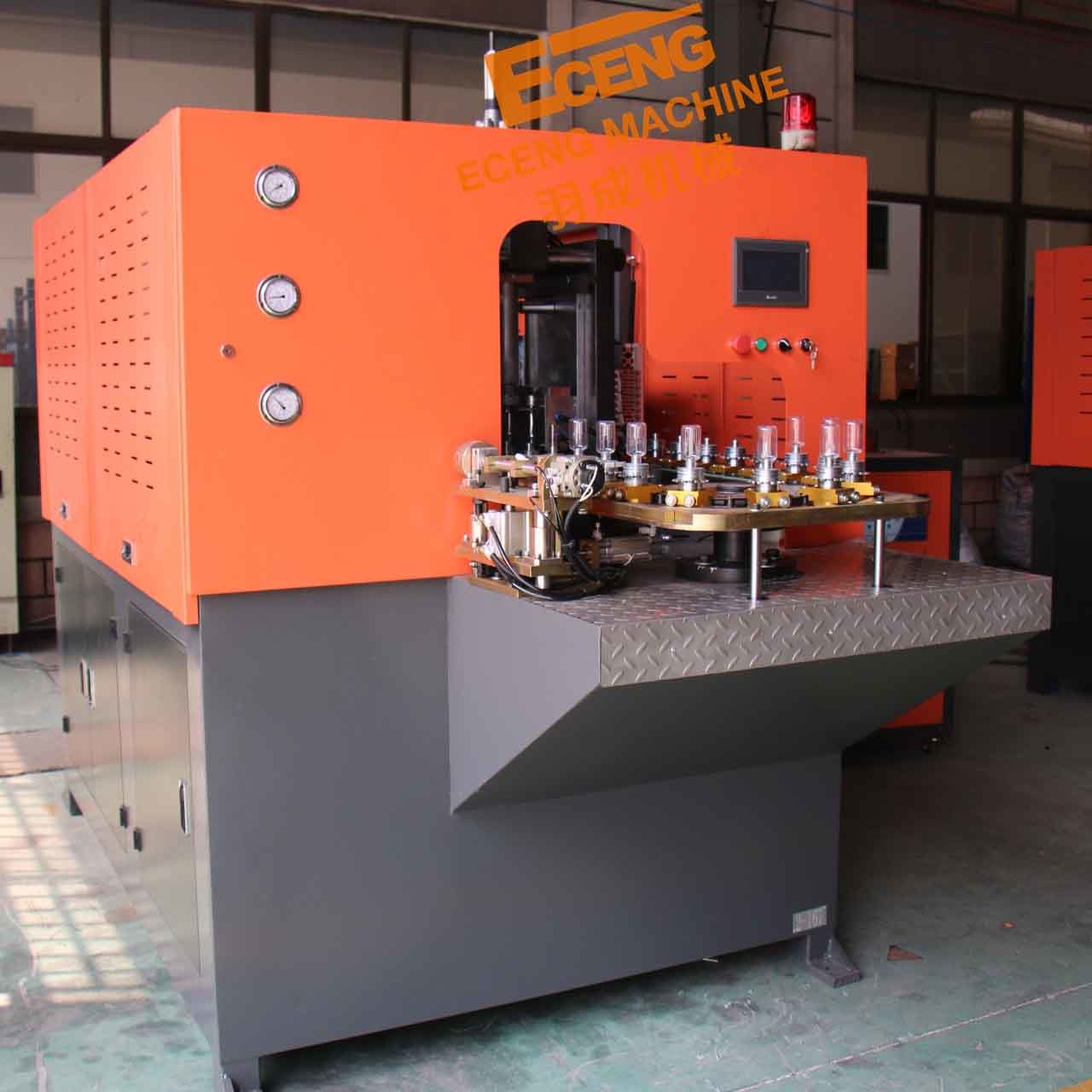

3 Cavity Plastic Bottle Molding Machine

3 Cavity Plastic Bottle Molding Machine

  • High Light

    3 cavity Plastic Bottle Molding Machine

    ,

    300ml Plastic Bottle Molding Machine

    ,

    300ml Cosmetic plastic bottle making machine

  • Model Number
    Cosmetic Bottle Blow Molding Machine
  • Color
    Qrange
  • Output
    3000bph
  • Weight
    3.5ton
  • Place of Origin
    CHINA
  • Brand Name
    ECENG
  • Certification
    CE SGS ISO
  • Model Number
    Cosmetic bottle Blow Molding Machine
  • Minimum Order Quantity
    One
  • Price
    Negotiable
  • Packaging Details
    film/wooden
  • Delivery Time
    45days
  • Payment Terms
    TT LC western Union
  • Supply Ability
    10sets Per month

3 Cavity Plastic Bottle Molding Machine

3 cavity 300ml Cosmetic bottle Cosmetic hand wash bottle making machine3 Cavity Plastic Bottle Molding Machine 0

3 Cavity Plastic Bottle Molding Machine 1



Model Cosmetic bottle Blow Molding Machine
Bottle type specification Cavity 3
Theory output 2800BPH
Max.volume 2L
Bottle mouth maximum overall diameter 28-80mm
Bottle biggest diameter 100mm
Bottle maximun height 330mm
Power specification Light tube quantity 32pcs
Light tube power 1KW
Maximum heating pwoer 32KW
All electric machine installtion 40KW
Actual consumption 30%--60%
Air pressure specification Work pressure 7-9kg/cm2
Low-pressure gas consumption 1200L/min
Blow bottle pressure 25-35kg/cm2
Higher-pressure ges consumption 1500Ltr/min
Forzen water specification Work pressure 5-6 kg/c㎡
Temperature range 10℃
Consumption 6000kcal/hr
Forzen water flow 30L/min
Machine specification Size of the machine 3x1.6x1.9
Weight of the machine 3.5ton



Simple operation and convenient maintenance. We can control and view the operating status of the whole machine through the man-machine interface. If a fault occurs, the machine will automatically sound the whistle through the alarm device, and the man-machine interface can accurately locate the fault location, which is convenient for maintenance personnel to repair in time.
