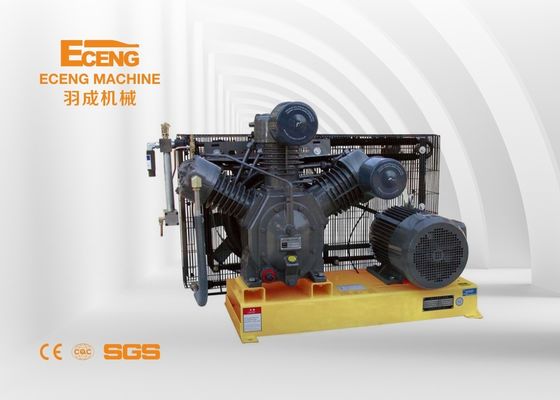

Industrial Use Air Compressor System 30 Bar Piston Type Air Cooling 7.5KW

Industrial Use Air Compressor System 30 Bar Piston Type Air Cooling 7.5KW

  • Industrial Use Air Compressor System 30 Bar Piston Type Air Cooling 7.5KW
Industrial Use Air Compressor System 30 Bar Piston Type Air Cooling 7.5KW
Product Details:
Place of Origin: China
Brand Name: Eceng
Certification: CE
Model Number: 1.2m³/30KG
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 1500-2500$
Packaging Details: wooden pack
Delivery Time: 10days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30sets per month
Contact Now
Detailed Product Description
Condition: New Oil: SHell
Colling Type: Air Cooling Air Valve: Hoerbiger
Place Of Origin: Jiangsu, China Machinery Test Report: Provided
Core Components: Pressure Vessel, Engine, Gear, Motor, Pump Application: General Industry
High Light:

30Bar Air Compressor System

,

Piston Type Air Compressor System

,

7.5KW Air Compressor System

Specification
Model
air capacity
(Nm3/min)
Outlet preesure (MPa)
Power
(KW)
Speed(r.p.m)
size
(mm)
weight(kg)
VH-0.7/30-SB
0.7
3.0
7.5
680
1240*630*780
310
WH-1.0/30-SB
1.0
3.0
11
600
1470*780*885
430
WH-1.2/30-SB
1.2
3.0
15
760
1470*780*885
450
WH-1.5/30-SB
1.5
3.0
18.5
790
1530*765*1105
520
VH-0.7/30
0.7
3.0
7.5
800
1800*630*1140
410
WH-1.0/30
1.0
3.0
11
600
2005*795*1260
530
WH-1.2/30
1.2
3.0
15
700
2005*795*1260
550
WH-1.5/30
1.5
3.0
18.5
790
1140*735*1450
520
WH-2.0/30
2.0
3.0
22
670
1150*860*1600
610
WH-2.35/30
2.35
3.0
25
760
1150*860*1600
620
2-WH-2.0/30
2.0
3.0
2*11
600
2050*1570*980
1050
2-WH-2.4/30
2.4
3.0
2*15
700
2050*1570*980
1080
2-WH-3.0/30
3.0
3.0
2*18.5
790
1880*1180*1440
1150
3-WH-3.6/30
3.6
3.0
3*15
700
2350*1570*1880
1580



4. Technical characteristics:



4.1 Automatic pressure unloading system, ensure machine starting without loading.

4.2 With exhaust check valve on outlet.

4.3 Removable type inlet silencing filter, 10 micron precision.

4.4 Normal inertia flywheel, 2 root V belt drive.

4.5 Splashing lubrication to all moving Parts.

4.6 Light alloy pistons, with PTFE.

4.7 Cast iron cylinder head, independent valve seat.

4.8 Automatic hoop valve piston rings, big flow, more action, high efficiency.

4.9 World famous brand rolling bearing, ensure the stable operation unit.

4.10 Enough space between the cylinder and the crankcase design, avoid friction between connecting rod, moving parts and crankcase.

4.11 With Safety Valve Between after-cooling.





Eceng Series rang of high pressure air compressor are used widely in Power Gernartion, Oil&Gas,Carbon Fibre industried,emergenc deisel engine starting, compressored air filling station,burst testing,hydraulic pressurizes chamber and fast growing PET BLOWING Moulding for food and beveragempharmaceutical, and others modern inndustries applications.
