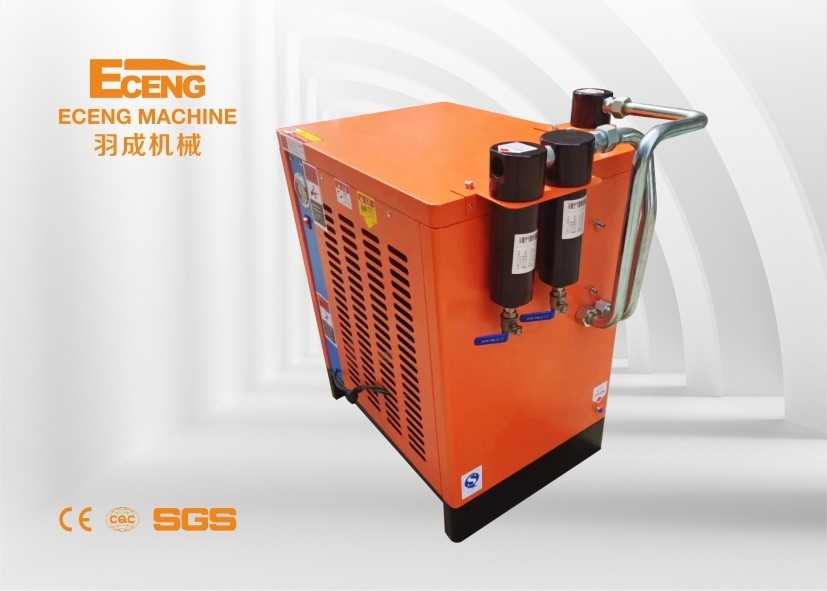

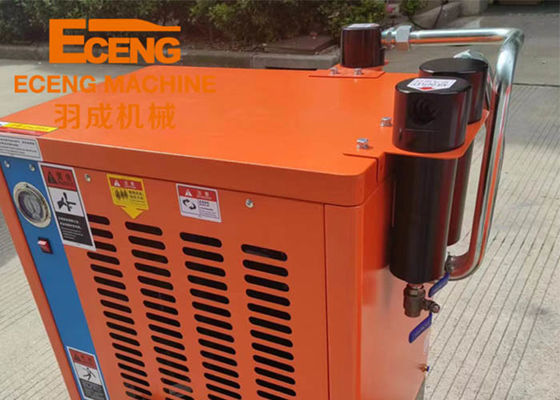

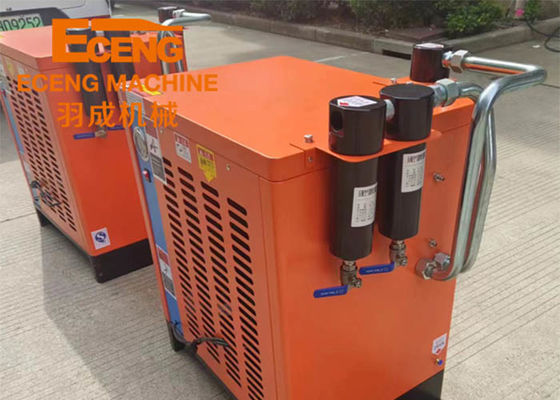

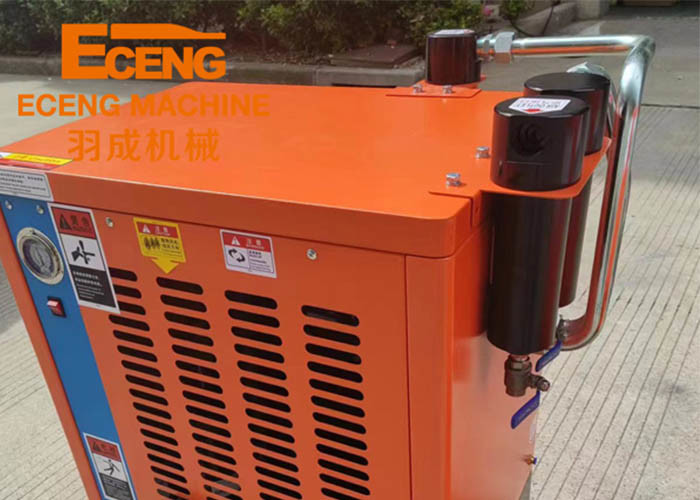

High efficiency high presssure cold dryer 1HP refrigerated air drier for Sale
freeze-drying machine is a form of vacuum dryer used to remove moisture through sublimation. Freeze-drying is typically used for heat-sensitive materials such as pharmaceutical products, biological samples, and food. freeze-drying machine is ideal for removing moisture from heat-sensitive materials.
| Performance parameters | 1HTF/30 | 2HTF/30 | 3HTF/30 | 6HTF/30 | 8HTF/30 | 10HTF/30 |
| capacity | 1.5m3/min | 2.6m3/min | 4.0m3/min | 6.5m3/min | 8.5m3/min | 11.5m3/min |
| Compressor power(HP) | 0.75 | 1 | 1.25 | 1. 5 | 2 | 3 |
| Fan power(W) | 120 | 150 | 150 | 150 | 190 | 240 |
| Air connection | DN25 | DN25 | DN25 | DN40 | DN50 | DN50 |
| weight(kg) | 55 | 75 | 86 | 156 | 217 | 257 |
| Dimension(L*W*H)mm | 700*450*750 | 700*450*750 | 700*500*820 | 800*550*900 | 600*1000*1200 | 600*1000*1200 |
| Cooling method | air cooling | |||||
| Design dew point | 2~10℃ | |||||
