40 Bar Screw Booster Air Compressor With High Performance Portable

40 Bar Screw Booster Air Compressor With High Performance Portable

  • 40 Bar Screw Booster Air Compressor With High Performance Portable
  • 40 Bar Screw Booster Air Compressor With High Performance Portable
  • 40 Bar Screw Booster Air Compressor With High Performance Portable
  • 40 Bar Screw Booster Air Compressor With High Performance Portable
  • 40 Bar Screw Booster Air Compressor With High Performance Portable
  • 40 Bar Screw Booster Air Compressor With High Performance Portable
40 Bar Screw Booster Air Compressor With High Performance Portable
Product Details:
Place of Origin: China
Brand Name: Eceng
Certification: CE
Model Number: ZYH-6/10-40
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 14000-14500$
Packaging Details: wooden pack
Delivery Time: 30days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100sets per month
Contact Now
Detailed Product Description
Condition: New Air Capacity: 6.0m3/min
Colling Type: Air Cooling Product Name: Booster Screw Air Compressor
High Light:

6.0m3/min Screw Booster Air Compressor

,

Portable CE Screw Booster Air Compressor

,

40Bar Screw Booster Air Compressor

Product Description

high pressure air compressor for PET bottle technical specification
Item

Unit

Data

Remark

Model



ZYH-6/10-40



compressed



Air



Compressor method



Screw -booster



Cooling



Air cooling



Drive



Part 1 direct drive

Part 2 belt drive

Compress stage



2

Part 1 first stage compress
part 2 2nd stage compress

Inlet temp


≤46



Outlet temp


≤46

After cooling

Motor

KW

67



Connect



1.5寸



Power



380V/50Hz



Size

mm

2200*1950*1600



Weight

kg

2300




Specification

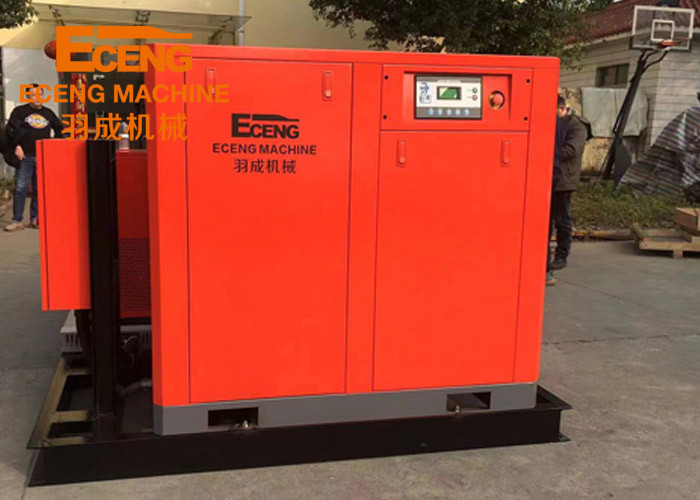

40 Bar Screw Booster Air Compressor With High Performance Portable 0



part 1
1.The first stage use screw compression to take full advantage of the screw's high efficiency and energy saving advantages at low pressure. screw compression system: first stage compressed the standard atmosphere to 0.8MPa

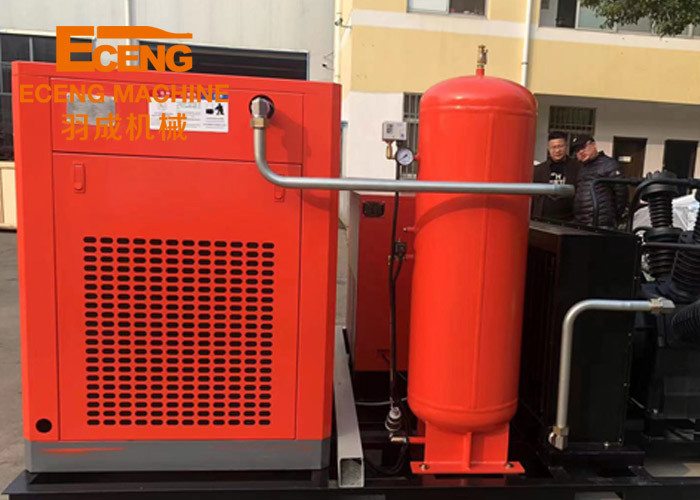

40 Bar Screw Booster Air Compressor With High Performance Portable 1



part 2
though piston Booster compressor compressed 0.8MPA air to high pressure 3.0MPA or 4.0MPA

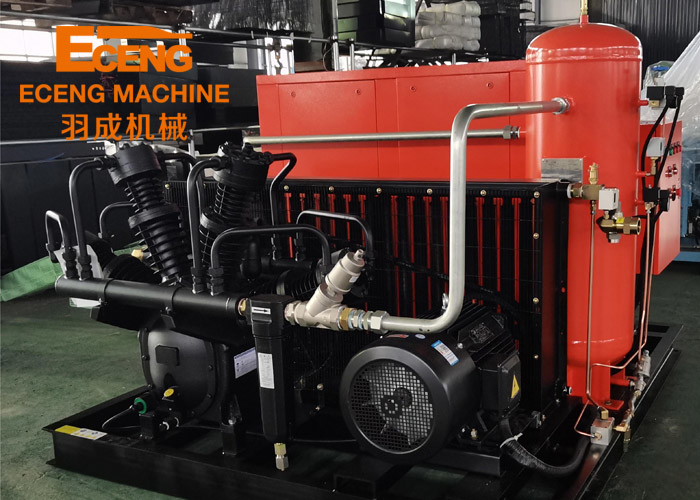

40 Bar Screw Booster Air Compressor With High Performance Portable 2



part 3
Air cushion valve (stainless steel) Proprietary air cushion valves with low noise; The use of pagoda spring, long life, valve core force uniform, reliable work; Large circulation area, small resistance, high efficiency.

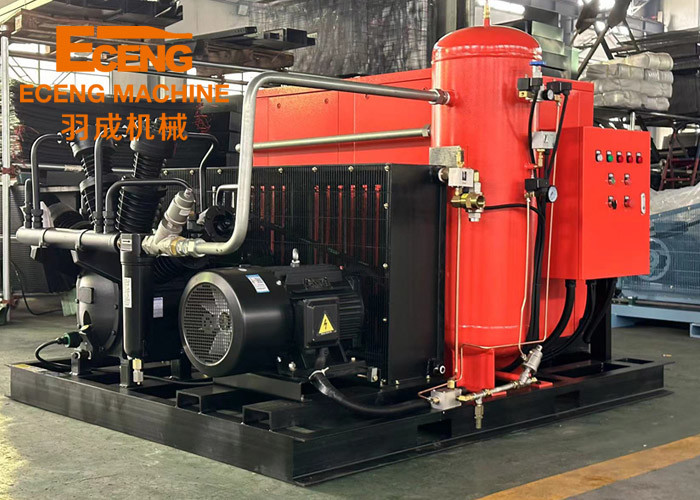

40 Bar Screw Booster Air Compressor With High Performance Portable 3



part 4
Automatic monitoring system unit operation, all operating conditions at a glance, inform the accurate location of the fault; According to the severity level of the problem, the system automatically prompts, diagnoses, alarms or stops for protection to ensure the safety of the unit.

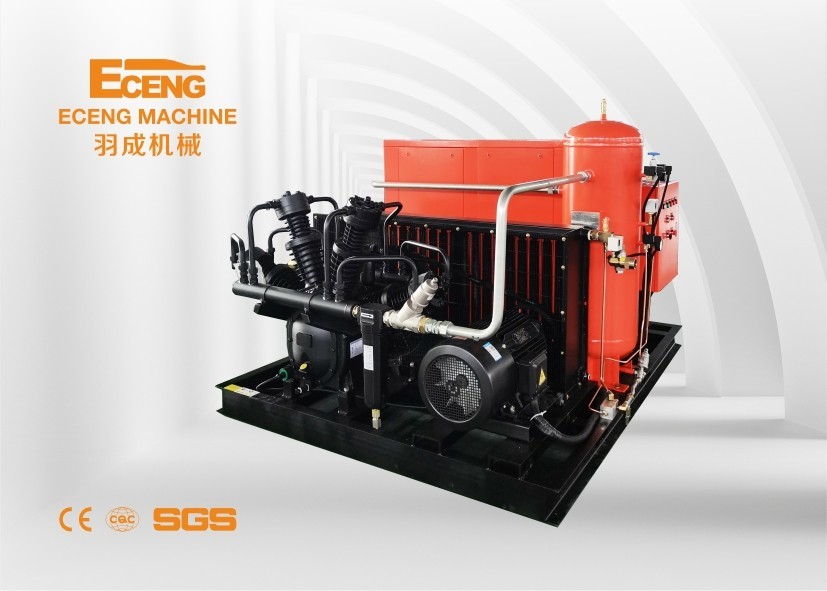

40 Bar Screw Booster Air Compressor With High Performance Portable 4



part 5
The efficient post-treatment system provides clean, stable and low-temperature gas for the pressurization of the gas end to increase production and efficiency for enterprises.

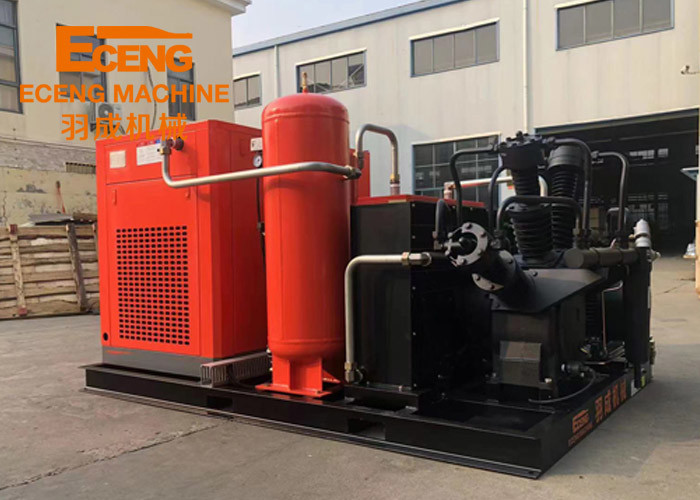

40 Bar Screw Booster Air Compressor With High Performance Portable 5



part 6
Do not need to make the foundation, directly placed on the horizontal plane can be; Easy to maintain and replace piston packing without removing cylinder.
Packing & Delivery


40 Bar Screw Booster Air Compressor With High Performance Portable 6

40 Bar Screw Booster Air Compressor With High Performance Portable 7

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile


40 Bar Screw Booster Air Compressor With High Performance Portable 8

Our company specializes in manufacturing plastic machinery and moulds. We are mainly engaged in making automatic PET blow mould machine, semi-automatic PET blow machine, and all kinds of moulds. We have been committed to the design of plastic bottle making machine, especially the fully-automatic PET blow mould machine, from 300ml- 20L. Our machine complying with CE certification has good quality with praise by our customers. Our standard spares are free. We insist on quality first. What's more, we design kinds of plastic moulds for domestic and foreign customers. With a professional design team, we use advanced CAD / CAM / CAE system. We have gained a well-known reputation from our customers.






FAQ



1. who are we?

Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
