High Pressure Screw Air Compressor 40bar 10.0m3 / Min 105kw With Booster Combined

High Pressure Screw Air Compressor 40bar 10.0m3 / Min 105kw With Booster Combined

High Pressure Screw Air Compressor 40bar 10.0m3 / Min 105kw With Booster Combined
High Pressure Screw Air Compressor 40bar 10.0m3 / Min 105kw With Booster Combined
High Pressure Screw Air Compressor 40bar 10.0m3 / Min 105kw With Booster Combined
Product Details:
Brand Name: Eceng
Certification: CE
Model Number: ZYH-10/10-40
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: wooden pack
Delivery Time: 30days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100sets per month
Contact Now
Detailed Product Description
Place Of Origin: Jiangsu, China Condition: New
Air Capacity: 10.0m3/min Colling Type: Air Cooling
Product Name: Booster Screw Air Compressor Marketing Type: New Product 2023
Core Components: Pressure Vessel, Engine, Gear, Motor, Pump Test Report: Provided
High Light:

CE Air Compressor With Booster Combined

,

105kw Screw Air Compressor

,

40bar Screw Air Compressor

Product Description

In PET, hydro power, military industry, petroleum, chemical industry and other industries, the main supplier of compressed air, through the accumulation of long-term practical experience, we fully understand the customer's demand for air system, is to provide efficient and high-quality air system suppliers. The number of air compressor can be automatically selected according to the actual demand of the customer, which avoids the energy loss and component wear of the big machine running without load. It is very energy-saving. Conker unit saves electric energy and water, it is very simple to install, no special foundation excavation is needed, it can be arbitrarily placed on the flat ground and can be used, easy to move. Quick and convenient maintenance.


Item

Unit

Data

Remark

Model



ZYH-10/10-40



compressed




Air




Compressor method




Screw -booster




Cooling



Air cooling



Drive



Part 1 direct drive

Part 2 belt drive

Compress stage



2

Part 1 first stage compress
part 2 2nd stage compress

Capacity

10.0m3/min

10.0



Inlet temp


≤46



Outlet temp


≤46

After cooling

Motor

KW

105



Connect



1.5寸



Power



380V/50Hz



Size

mm

2700*2150*1800



Weight

kg

3000

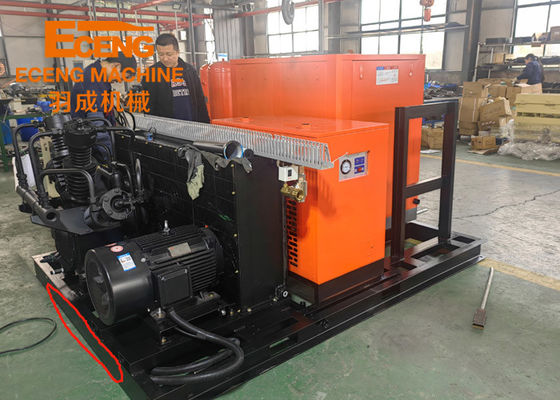

High Pressure Screw Air Compressor 40bar 10.0m3 / Min 105kw With Booster Combined 0

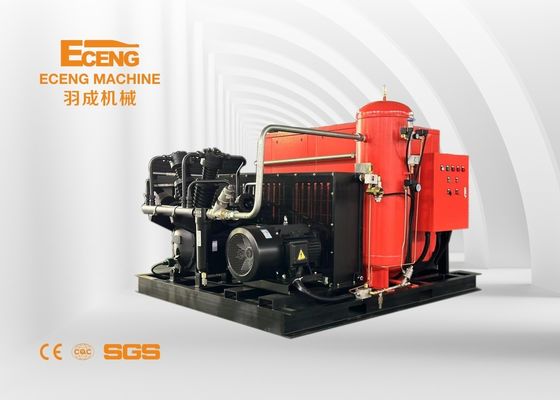

High Pressure Screw Air Compressor 40bar 10.0m3 / Min 105kw With Booster Combined 1

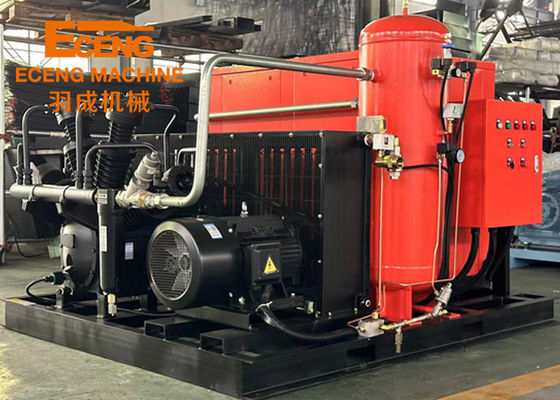

High Pressure Screw Air Compressor 40bar 10.0m3 / Min 105kw With Booster Combined 2

Packing & Delivery

High Pressure Screw Air Compressor 40bar 10.0m3 / Min 105kw With Booster Combined 3

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile


High Pressure Screw Air Compressor 40bar 10.0m3 / Min 105kw With Booster Combined 4

Our company specializes in manufacturing plastic machinery and moulds. We are mainly engaged in making automatic PET blow mould machine, semi-automatic PET blow machine, and all kinds of moulds. We have been committed to the design of plastic bottle making machine, especially the fully-automatic PET blow mould machine, from 300ml- 20L. Our machine complying with CE certification has good quality with praise by our customers. Our standard spares are free. We insist on quality first. What's more, we design kinds of plastic moulds for domestic and foreign customers. With a professional design team, we use advanced CAD / CAM / CAE system. We have gained a well-known reputation from our customers.
