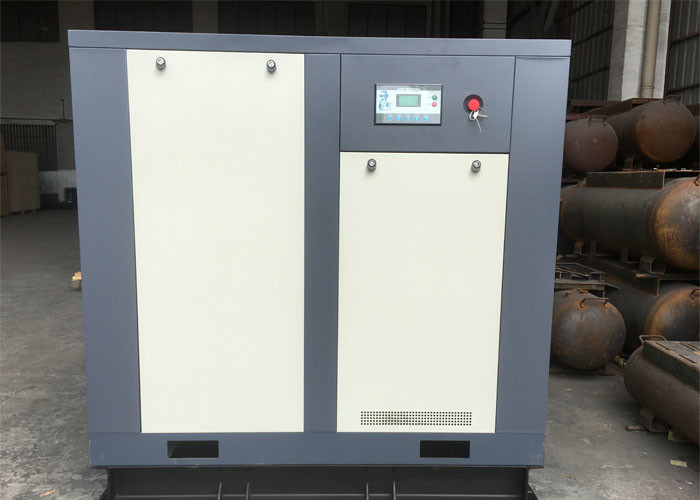

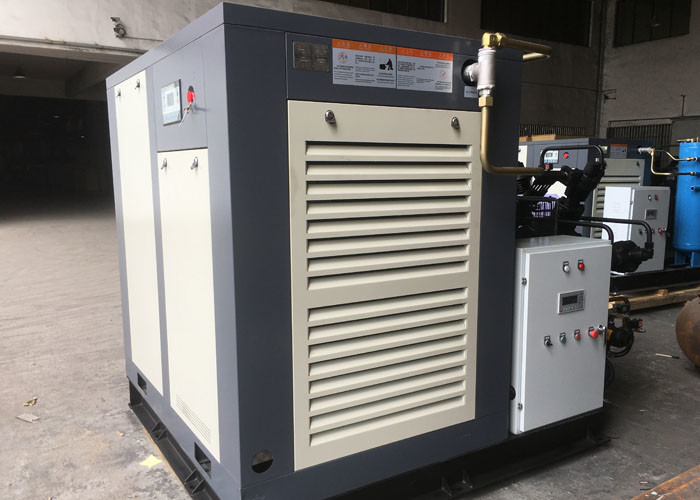

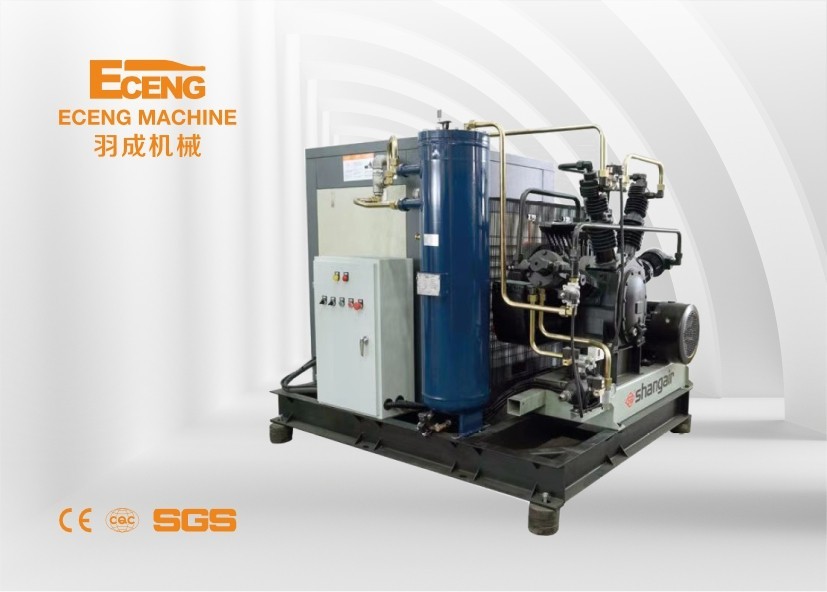

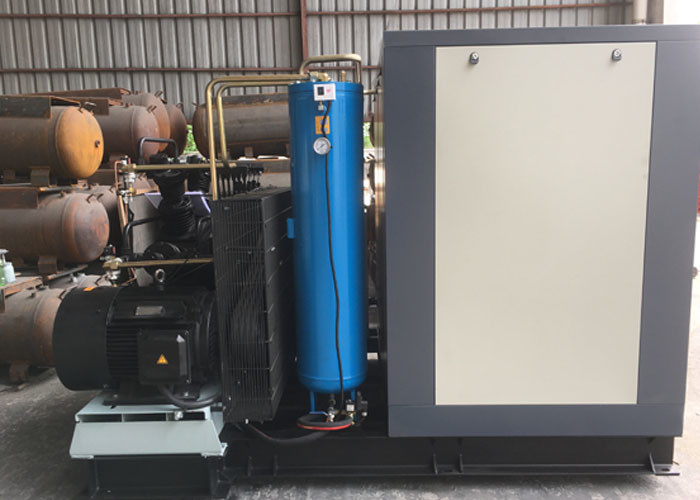

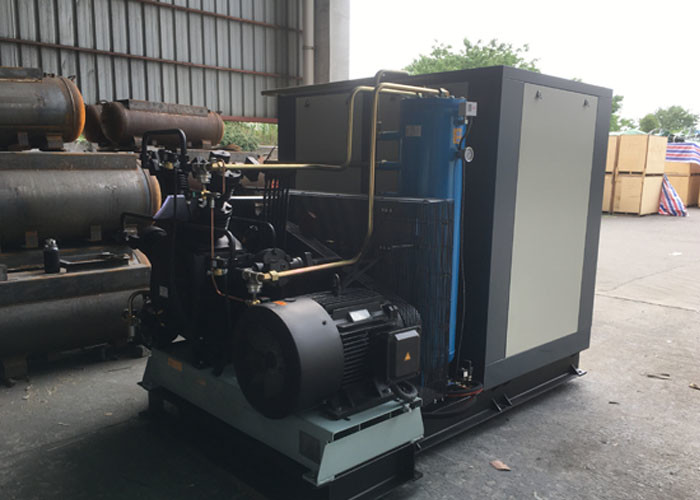

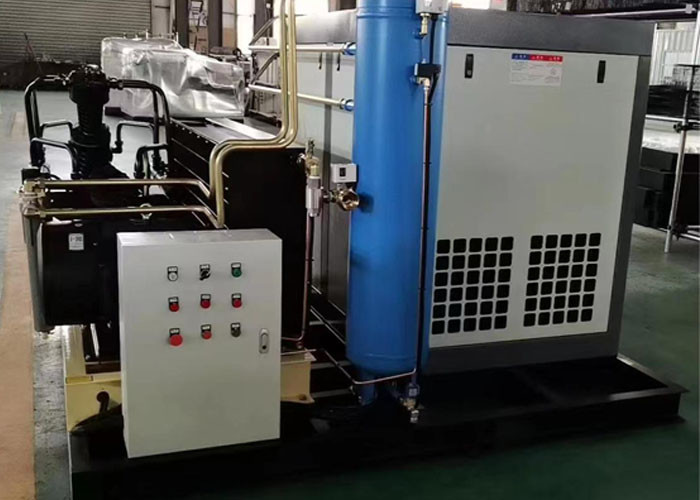

30 Bar High Pressure PET Screw Booster Air Compressor Energy Saving

30 Bar High Pressure PET Screw Booster Air Compressor Energy Saving

  • 30 Bar High Pressure PET Screw Booster Air Compressor Energy Saving
  • 30 Bar High Pressure PET Screw Booster Air Compressor Energy Saving
  • 30 Bar High Pressure PET Screw Booster Air Compressor Energy Saving
  • 30 Bar High Pressure PET Screw Booster Air Compressor Energy Saving
  • 30 Bar High Pressure PET Screw Booster Air Compressor Energy Saving
  • 30 Bar High Pressure PET Screw Booster Air Compressor Energy Saving
30 Bar High Pressure PET Screw Booster Air Compressor Energy Saving
Product Details:
Place of Origin: China
Certification: CE
Model Number: LZ-6/8/30
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: wooden pack
Delivery Time: 30days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100sets per month
Contact Now
Detailed Product Description
Condition: New Air Discharge: 6 Nm3/min
Colling Type: Air Cooling Product Name: Booster Screw Air Compressor
High Light:

Booster Screw Air Compressor High Pressure

,

30Bar Booster Screw Air Compressor

,

6 Nm3/min Booster Screw Air Compressor




 30 Bar High Pressure PET Screw Booster Air Compressor Energy Saving 0


Specification
item

value

Applicable Industries

Manufacturing Plant, Food & Beverage Factory, Farms

Showroom Location

None

Condition

New

Type

Screw

Configuration

Stationary

Power Source

AC POWER

Lubrication Style

OIL-LESS

Mute

NO

Place of Origin

shanghai, China

Voltage

380v, 50Hz

Dimension(L*W*H)

2216×2150×1508 mm

Weight

2350 kg

Warranty

1 Year

Working Pressure

Other

Air capacity

6 Nm3/min

Machinery Test Report

Provided

Video outgoing-inspection

Provided

Marketing Type

New Product 2022

Warranty of core components

1 Year

Core Components

Motor, Pump

Gas Type

Air

Model No

LZ-6/8/30

Air discharge

6 Nm3/min


Brief description of equipment performanc
Item

Product name specification

quantity

Brief description of the system equipment performance

1

DQ-LZ-37-China soft-start electric control box

1

The control screw and the supercharger coordinate operation, such as startup, shutdown, loading, unloading, operation

2

SA-75AZ screw machine

1

Draw up and rotate the compressed air from the ambient atmosphere.
Rated gas volume / pressure: 8.0m³

3

NTLY-10 / 13
gas-liquid separator

1

Dry, settle, buffer, and provide energy storage of compressed air
Operating pressure is 1.3Mpa, the treated gas volume is 10m³, and the volume is

4

87SZ supercharger

1

Charge the detached compressed air to a rated output pressure of 4.0MPa, with a total system displacement of 8.0m³

5

ZY 11-0200 base

1

Item 1,2,3 and 4 purification equipment
Combine the pry and pack it together


Packing & Delivery


30 Bar High Pressure PET Screw Booster Air Compressor Energy Saving 1

30 Bar High Pressure PET Screw Booster Air Compressor Energy Saving 2

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
