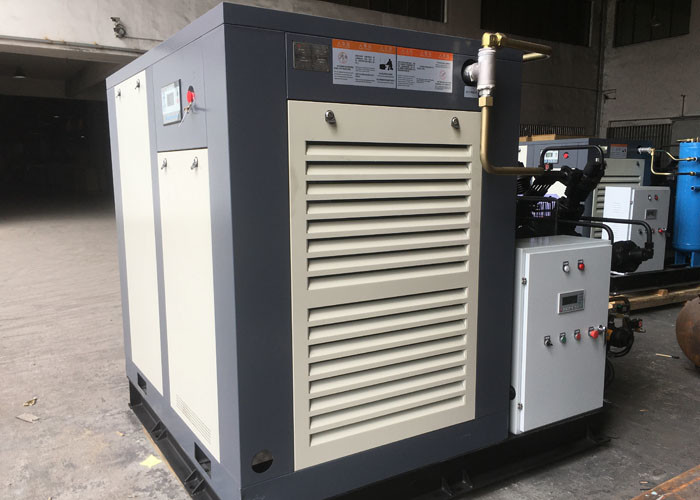

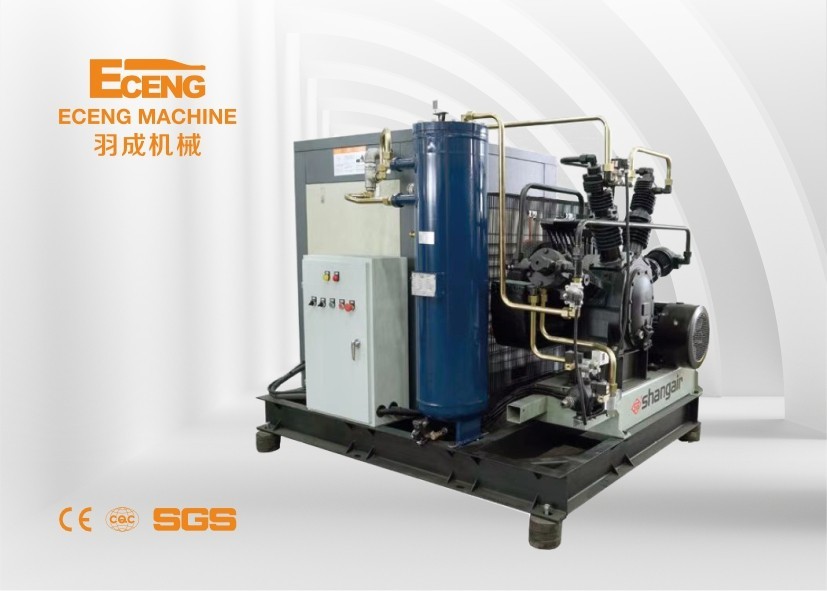

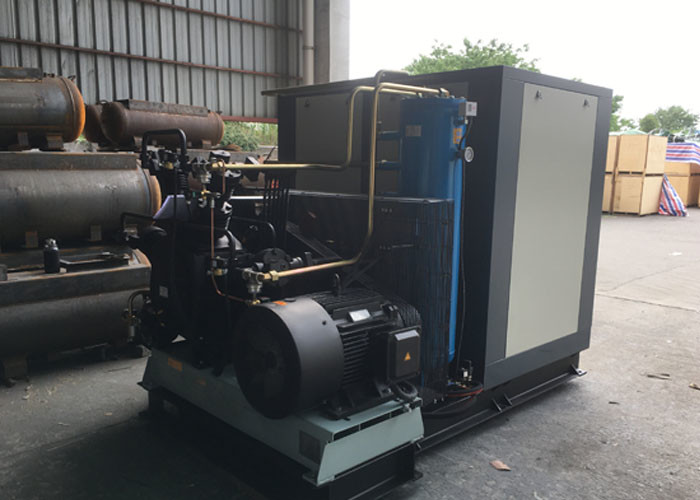

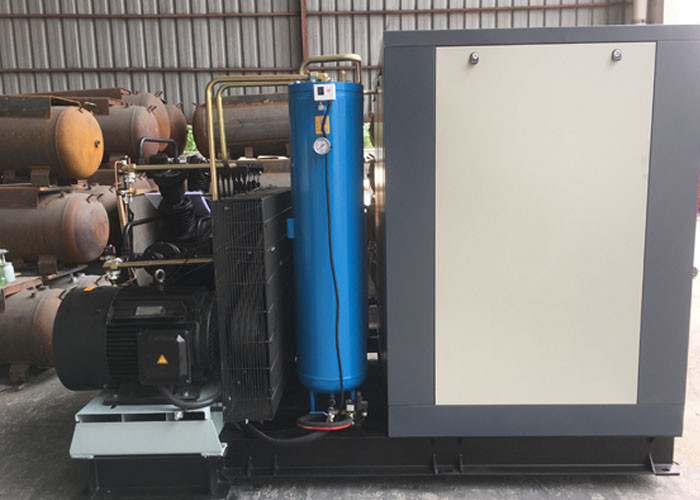

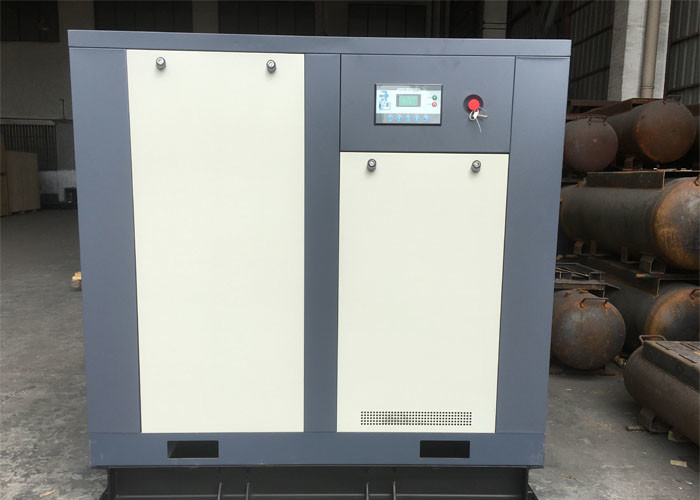

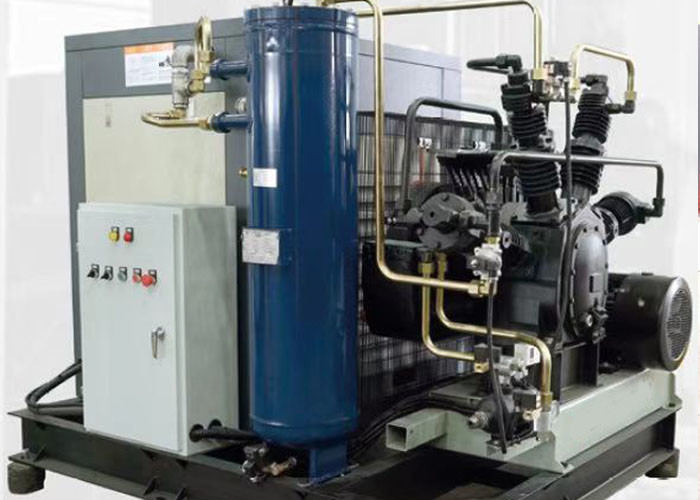

Cooling Screw Booster Air Compressor For Stretch Blow Molding Machine
Product Description
Product Description
This type of screw air compressor which is characterized by less inner leaks, high loading capacity, high volume efficiency and low energy consumption.
Adopts direct drive, no radial-direction tension from the belts made on male-rotor bearing, and can perform high-efficiency conveyance and serve longer. Rotating speed of main machine is 630 rpm or so,.which is the operating speed of screw compressor to realize its safety, longer working life, economically cost, and low noise level and vibration.
Brief description of the system equipment performance
1
DQ-LZ-30-China soft-start electric control box
1
The control screw and the supercharger coordinate operation, such as startup, shutdown, loading, unloading, operation
2
SA-50AZ screw compressor
1
Draw up and rotate the compressed air from the ambient atmosphere. Rated gas volume / pressure: 8.0m³/1.0MPa
3
NTLY-6/12
gas-liquid separator
1
Dry, settle, buffer, and provide energy storage of compressed air Operating pressure is 1.3Mpa, the treated gas volume is 10m³,and the volume is about 100L
4
87SZ supercharger
1
Charge the detached compressed air to a rated output pressure of 4.0MPa, with a total system displacement of 8.0m³
5
ZY 10-0200 base
1
Item 1,2,3 and 4 purification equipment Combine the pry and pack it together
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
