Blow your bottle, Shape your dream
 |
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE&ISO |
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | Wooden package |
| Delivery Time: | 30days |
| Product: | Air Cooled Chiller | Application: | Industrial Cooling Solutions |
|---|---|---|---|
| Voltage: | 380V-50HZ | Type: | Air-cooled |
| Place Of Origin: | Jiangsu,China | ||
| High Light: | Industrial water cooling chiller,15HP Air Cooled Cooling Chiller Machine,Water Cooling Chiller 3HP |
||

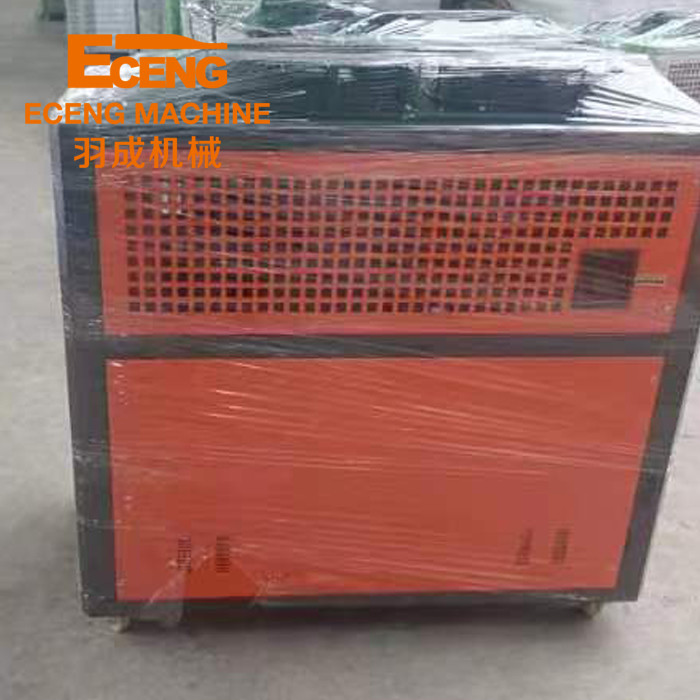

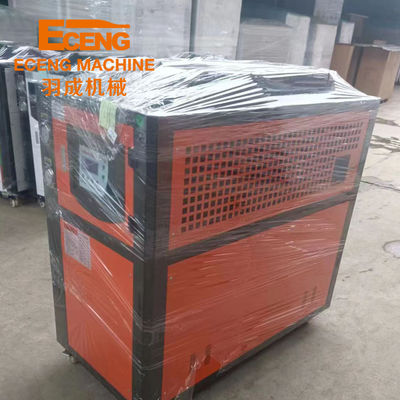

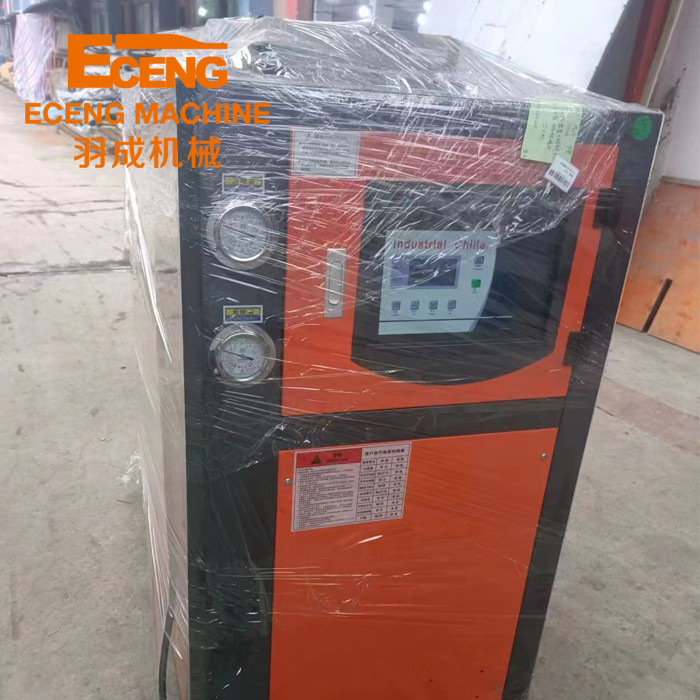

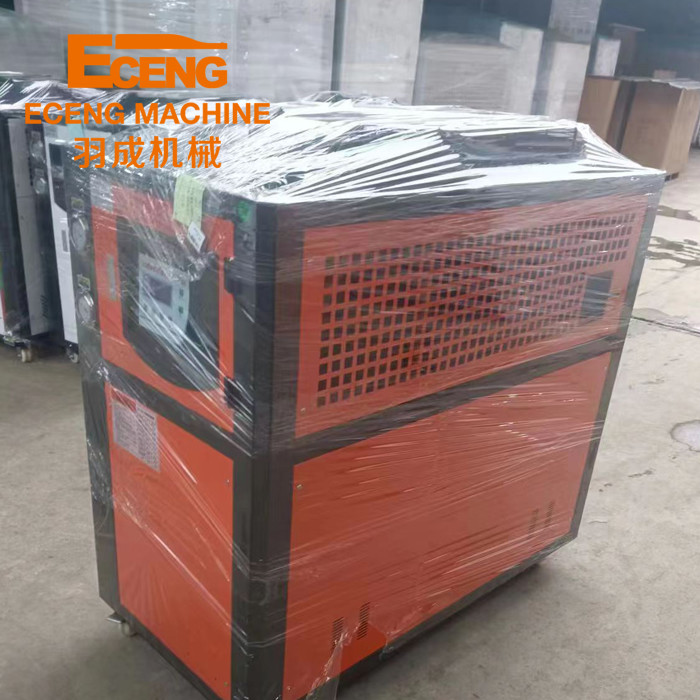

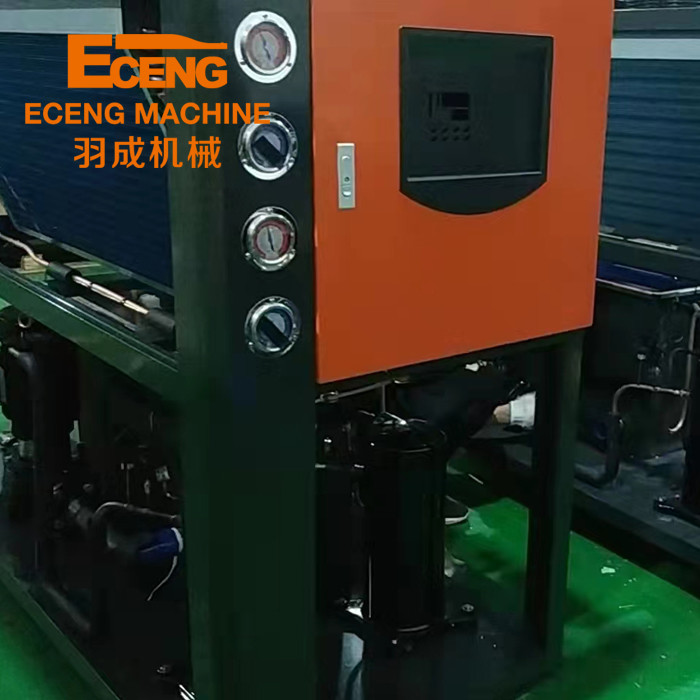

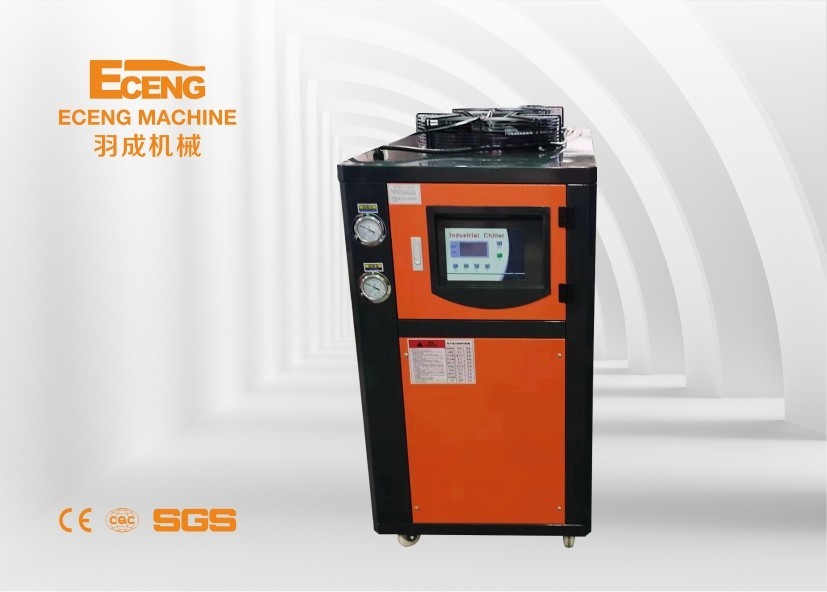

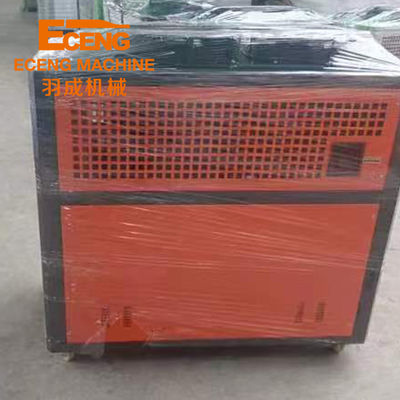

Industrial water cooling chiller 3HP 5HP 8HP 15HP air cooled cooling chiller machine.
Air-cooled chiller is a type of cooling system that uses air as the cooling medium instead of water. It works by collecting heat from the building or equipment that needs to be cooled and exhausts the heat into the air through a process called thermal transfer. The air-cooled chiller has a heat exchanger or condenser that uses fans to blow air over the coils, which contains refrigerant. The refrigerant absorbs the heat from the building or equipment and is cooled down by the air passing over the coils. The cooled refrigerant is then pumped back into the building or equipment to repeat the process. Air-cooled chillers are commonly used in small to medium-sized buildings, data centers, and industrial applications due to their lower installation and maintenance costs compared to water-cooled chillers.
Specification:
| Eceng-03A | Eceng-05A | Eceng-08AD | Eceng-10AD | Eceng-12AD | Eceng-15AD | |
| Model | 3HP | 5HP | 8HP | 10HP | 12HP | 15HP |
| Cooling capacity | 7216Kcal/h | 11990cal/h | 18748cal/h | 24089cal/h | 29059cal/h | 37965cal/h |
| Total power | 3.6KW | 4.8KW | 8.6KW | 9.6KW | 13.3KW | 16KW |
| The refrigerant Charge | 2.7KG | 4.3KG | 4.3*2KG | 4.3*2KG | 5*2KG | 6.5*2KG |
| Weight | 130KG | 170KG | 170KG | 220KG | 385KG | 430KG |
| Dimension(L*W*H)mm | 1150*680*1060 | 1200*670*1300 | 1540*760*1460 | 1540*760*1460 | 1470*710*1600 | 1770*850*1480 |
| Air volume | 3000 | 5000 | 8000 | 10000 | 10000 | 15000 |
| Power supply | 3N-380V-50HZ | |||||
FEATURES:
1.High/low pressure protection for the compressor and overheating protection inside the machine.
2.Low water level alarm and low water temperature alarm.
3.Imported compressor from Europe US and japan.
4.Refrigerating system welded with oxygen free method,to reduce oxides and ensure the smooth surface.
5.Throttle components from Danfoss(Denmark)and Alco (US).
6.SUS304 stainless steel water tank,to avoid corrosion or water leak.
7.Stainless plate,coil, shell and tube or fin type efficient heat exchanger.
8.Electrical devices supplied from OMRON,FUJI,TE,LG,MOELLER and SCHNEIDER.
9.Control mode:imported micro-computer or PLC(optional).
10.Perfect safety protection failure display,and not requiring professional personnel for maintenance.
11.Highly efficient evaporator and condenser ,to save over 30% energy.
12.2 compressor heads for over BKL-08,for individualor joint operation.
 |
|
|
