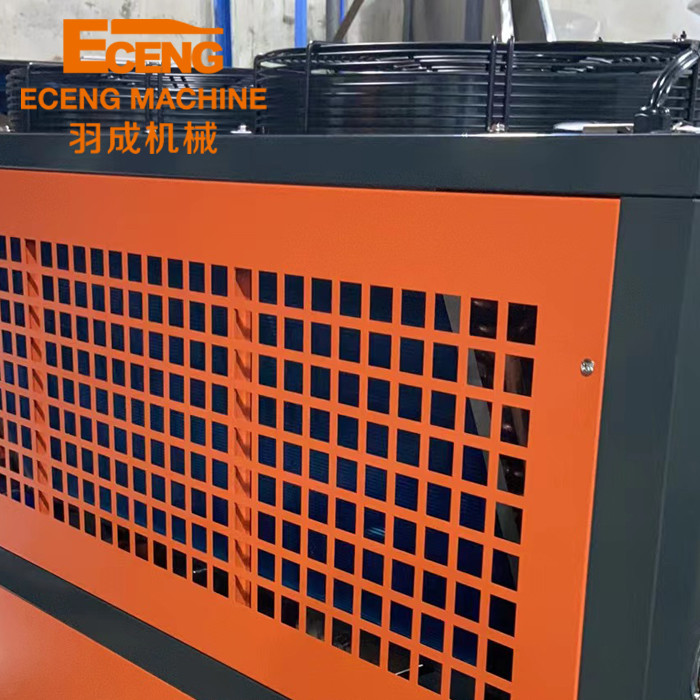

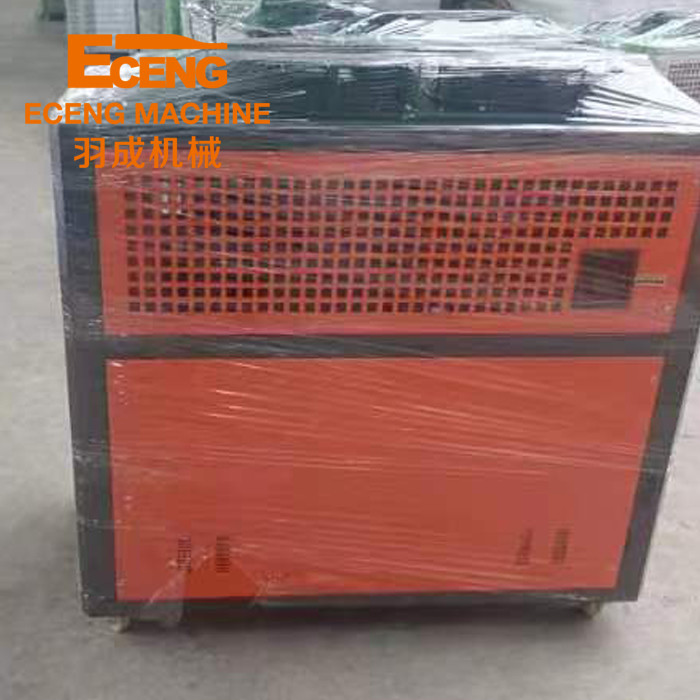

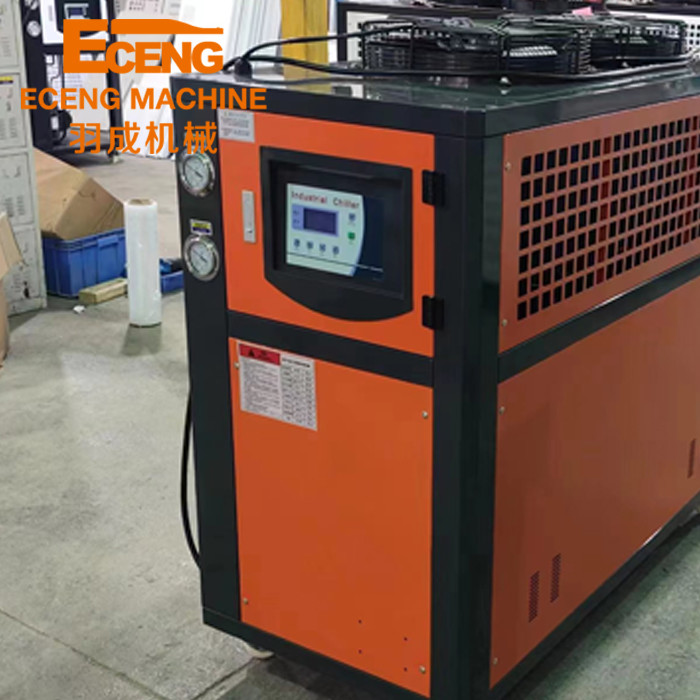

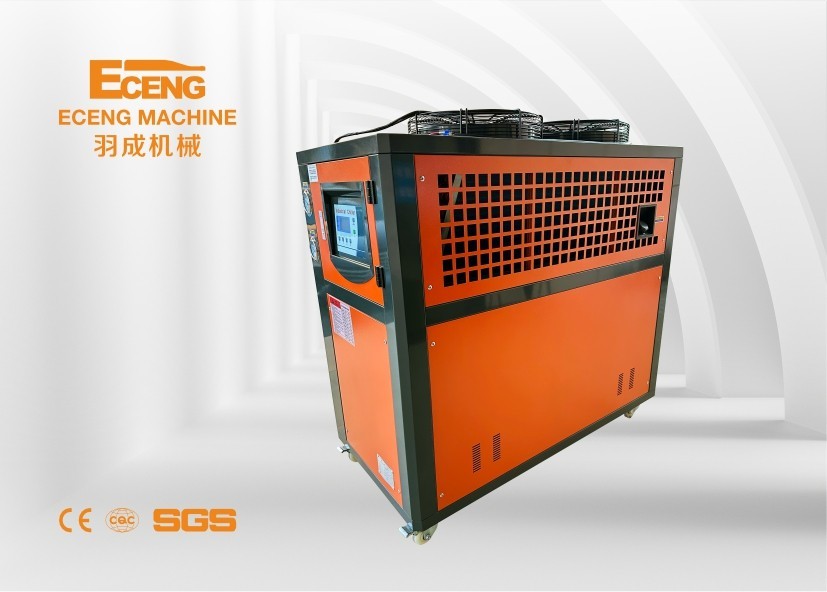

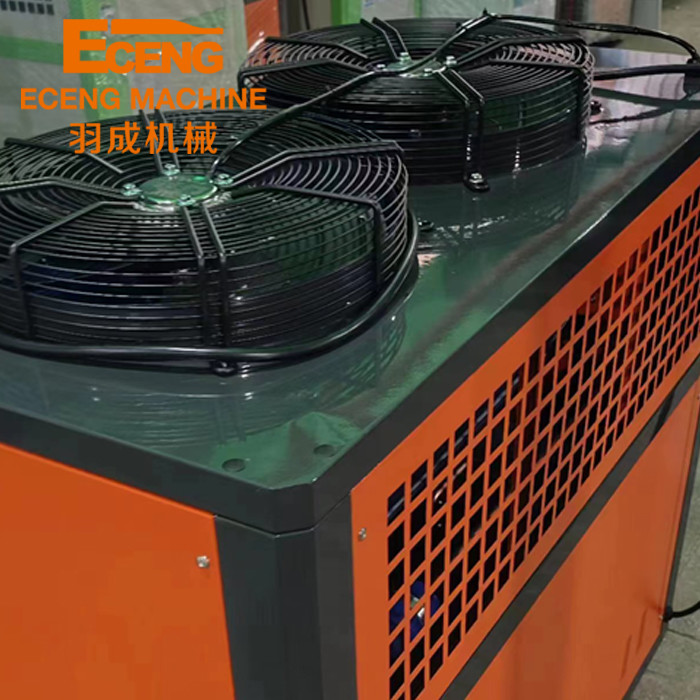

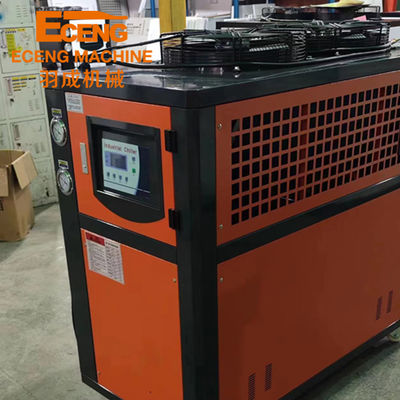

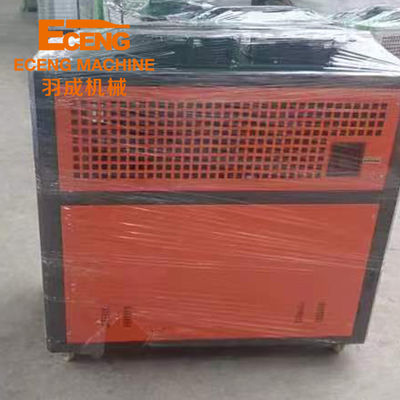

Eceng customize water cooling system Industrial air cooled chiller for bottle molding machine.
Product Description
Air cooled chiller used in plastic processing machinery molding mold cooling, can greatly improve the surface finish of plastic products, reduce the surface marks and internal stress of plastic products, so that the product does not shrink, does not deformation, easy to release plastic products, accelerate product styling, so as to greatly improve the production efficiency of plastic molding. machine.
| Performance parameters | ||||||
| Model | 3HP | 5HP | 8HP | 10HP | 12HP | 15HP |
| Cooling capacity | 7216Kcal/h | 11990cal/h | 18748cal/h | 24089cal/h | 29059cal/h | 37965cal/h |
| Total power | 3.6KW | 4.8KW | 8.6KW | 9.6KW | 13.3KW | 16KW |
| The refrigerant Charge | 2.7KG | 4.3KG | 4.3*2KG | 4.3*2KG | 5*2KG | 6.5*2KG |
| Weight | 130KG | 170KG | 170KG | 220KG | 385KG | 430KG |
| Dimension(L*W*H)mm | 1150*680*1060 | 1200*670*1300 | 1540*760*1460 | 1540*760*1460 | 1470*710*1600 | 1770*850*1480 |
| Air volume | 3000 | 5000 | 8000 | 10000 | 10000 | 15000 |
| Power supply | 3N-380V-50HZ | |||||
