SMC 4 Cavity PET Stretch Blow Molding Machine XINJIE PLC Control

Minimum Order Quantity : 1set Price : $35,800.00/Sets 1-1 Sets
Packaging Details : standard export wooden case or according to your requirements Delivery Time : 10days
Payment Terms : L/C, T/T, Western Union Supply Ability : 500 Set/Sets per Year
Place of Origin: Jiangsu, China Brand Name: Eceng
Certification: CE SGS ISO Model Number: YC-2L-4

Detail Information

Plastic Processed: PET Max.Bottle Height(mm): 300 Mm
Neck Diameter(mm): 100 Mm Max.Bottle Diameter(mm): 180 Mm
Bottle Volume(ml): 2000 Ml Condition: New
Application: Bottle Blow Moulding Type: Stretch Blow Moulding
Year: 2021 Voltage: 380V,50HZ
Dimension(L*W*H): 1.35*0.55*1.15 Hollow Part Volume: 2L
High Pressure Valve Brand: SMC Rotary Cylinder Brand: SMC
PLC Brand: XINJIE Power (kW): 16
Weight (KG): 300 KG Automation: Automatic
Warranty: 1 Year Key Selling Points: Easy To Operate
Applicable Industries: Manufacturing Plant Marketing Type: New Product 2020
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Color: Blue/Orange
Output: 2600-2800BPH Size Of The Machine: 1.35*0.55*1.15
Weight: 300tons Power(W): 16KW
Port: Shanghai
High Light:

SMC pet stretch blow molding machine

,

pet stretch blow molding machine XINJIE PLC

,

SMC 4 cavity pet blowing machine

Product Description

Eceng Semi-automatic pet plastic blowing machine stretch blow moulding machine

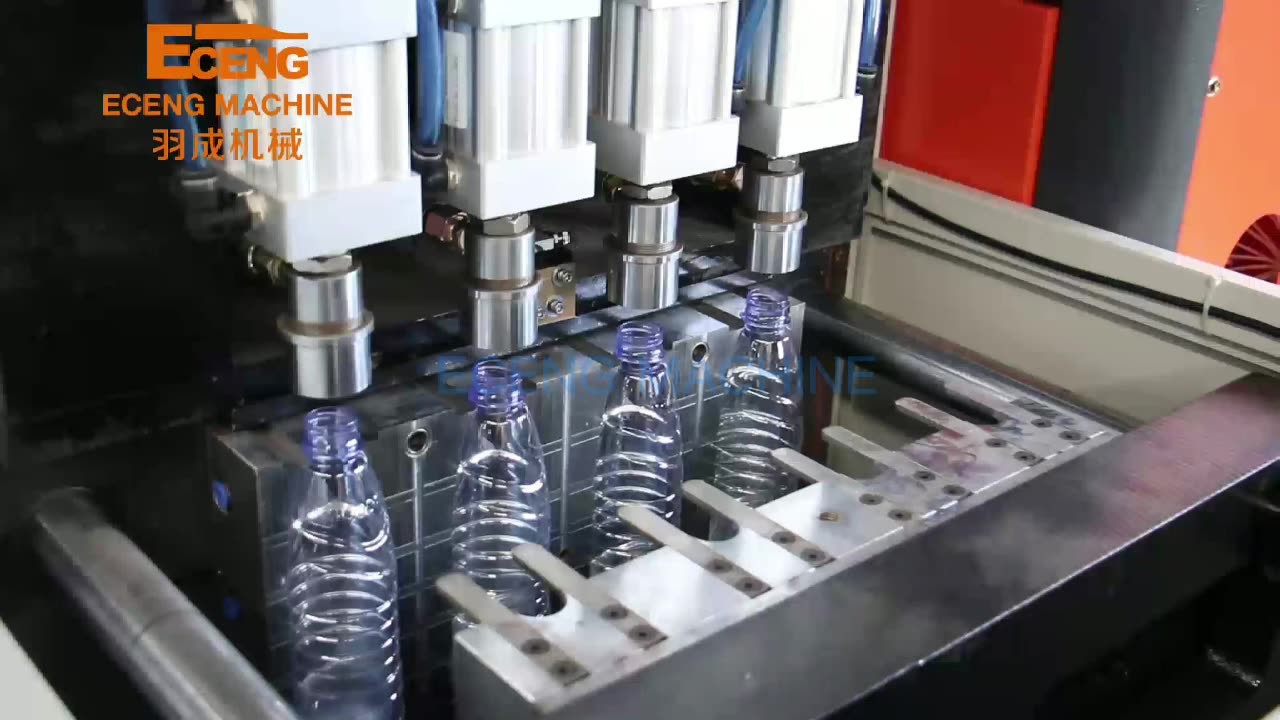

SMC 4 Cavity PET Stretch Blow Molding Machine XINJIE PLC Control 0
specification
             Model                                                                    YC-2L-4






Bottle type specification
Cavity
4

Max.volume
2L

Bottle mouth maximum overall diameter
100mm

Bottle biggest diameter
180mm

Bottle maximum height
300mm


           Blow molding part


Die force (KN)
100

Die stroke (mm)
270

Max. mould size(mm)
390*345

Mould thickness
Adjustable






          Blow molding part
Mould spacing(mm)
Adjustable

Max. pulling stroke(mm)
400

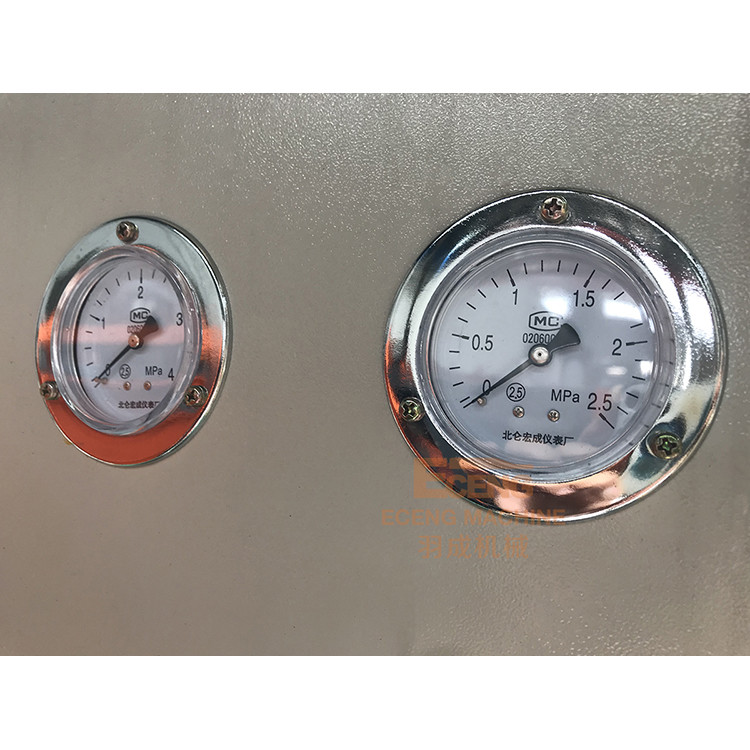

Operation pressure(Mpa)
0.8-1.0

Operation air pressure consumption(1tr/min)
200

Blow pressure(Mpa)
1.2-2.8

Blow air pressure consumption (1tr/min)
300

Output(pcs/h)
2600-2800

Machine size(L×W×H)(m)
1.46×0.58×1.8

Machine weight(KG)
650



Oven
Temperature grade(rate)
8

Heating time(S)
90-200

Voltage(V)
220 or as your request

Frequency(HZ)
50/60

Total power(KW)
16

Oven Size (L×W×H)
1.35×0.55×1.15

Oven weight (KG)
300

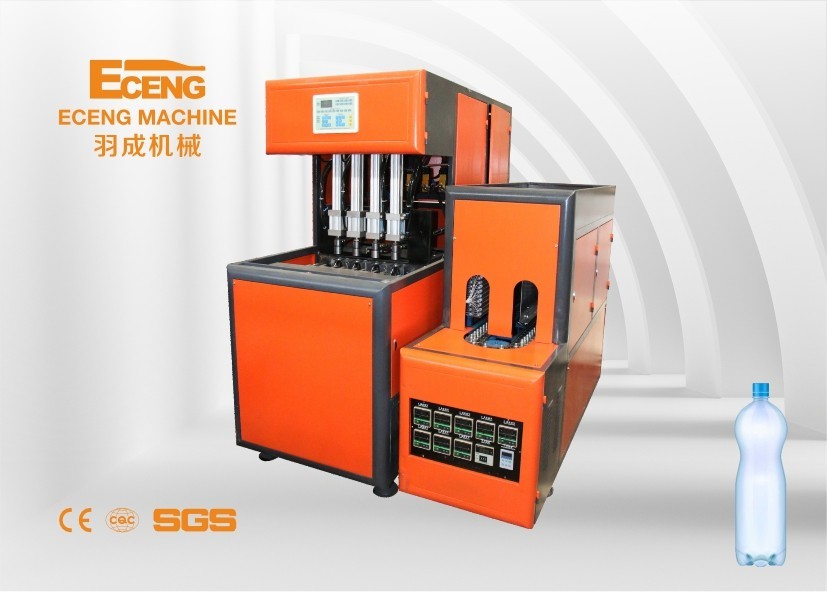

SMC 4 Cavity PET Stretch Blow Molding Machine XINJIE PLC Control 2
SMC 4 Cavity PET Stretch Blow Molding Machine XINJIE PLC Control 4

YC series Plastic making Top quality useful semi automatic pet blowing machinery is controlled by microcomputer. The plastic blowing machine can control the technical parameters more accurately.With the upper and lower system,emergency stop system,independent counter device,count the output accurately.With infrared lamp heating device,penetrating power, preform rotation heating, heating evenly and quickly.YC series semi-automatic plastic bottle blowing machine is suitable for blowing plastic PET bottles such as carbonated beverage bottles,mineral water bottles, cosmetic bottles and hot filling bottles etc.
SMC 4 Cavity PET Stretch Blow Molding Machine XINJIE PLC Control 6
SMC 4 Cavity PET Stretch Blow Molding Machine XINJIE PLC Control 8
SMC 4 Cavity PET Stretch Blow Molding Machine XINJIE PLC Control 10

YC series semi-automatic bottle blowing machine is controlled by microcomputer,control the technical parameters more accurately.PET bottle blowing machine is simple and safe to operate.It only requires one person and does not require special training.YC series PET blow molding machine is suitable for blow molding of plastic packaging bottles such as carbonated beverage bottles, mineral water bottles, hot filling bottles and cosmetic bottles. It is suitable for the production of small beverage companies and daily chemical product companies.

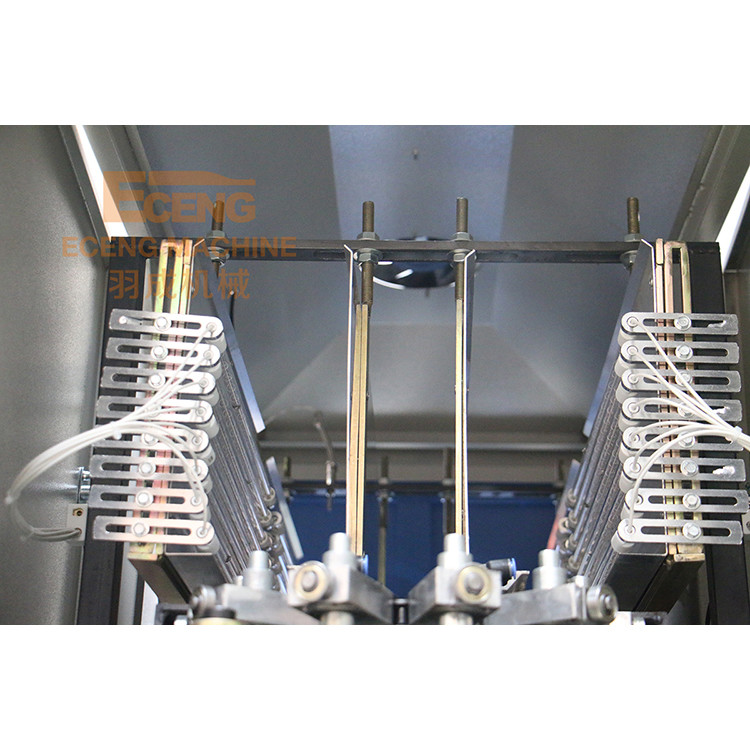

Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable;
heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic
temperature-removal device to ensure the constant temperature of oven.

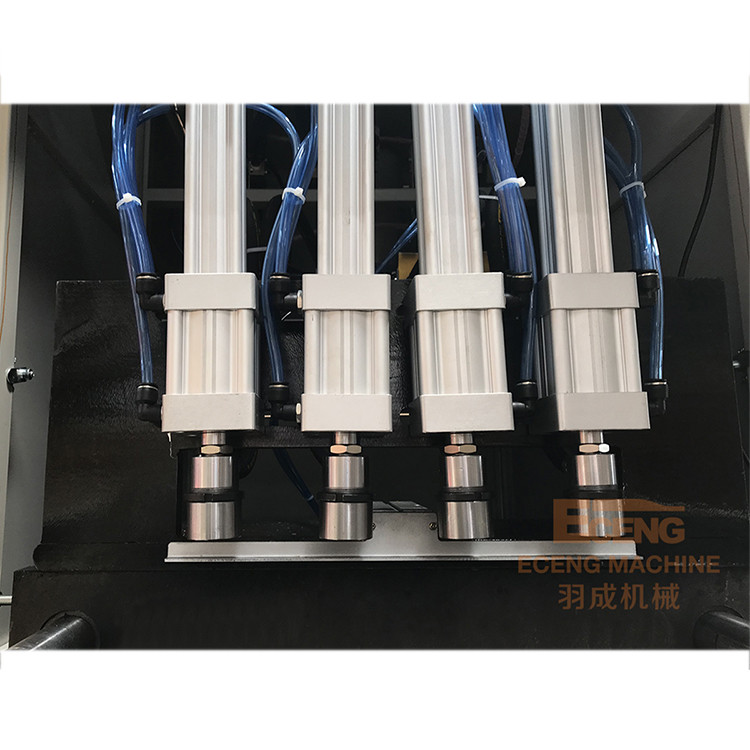

Specially designed high rigidity composite mold structure, wide applicability, suitable for various types of mold thickness, easy to adjust and save energy, less air demand, precision polished spindle, equipped with photoelectric sensor, low noise,rapid response, long working hours , stable performance,ensure stable operation.

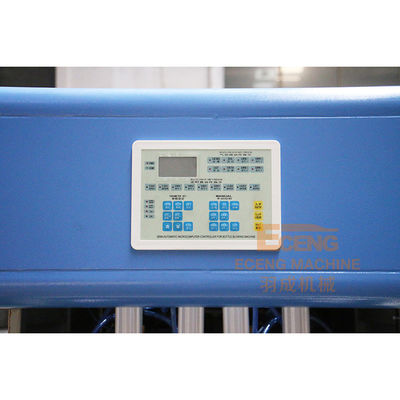

YC linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.

blowing mould
SMC 4 Cavity PET Stretch Blow Molding Machine XINJIE PLC Control 12
Company Introduction
SMC 4 Cavity PET Stretch Blow Molding Machine XINJIE PLC Control 14
SMC 4 Cavity PET Stretch Blow Molding Machine XINJIE PLC Control 16
SMC 4 Cavity PET Stretch Blow Molding Machine XINJIE PLC Control 18
Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,located in Zhangjiagang city,only 120km away from Shanghai.We are professional manufacturer of PET bottle blowing machines and plastic molds. We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 20,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging. Our products has covered all over China and exported to more than 100 countries,including Southest Asia,Middle East,South America,Africa etc.We’d like to provide high quality solution to clients with our enthusiasm and rich experience.We sincerely hope to establish business relationship with friends all over the world.
Packing&Shipping
SMC 4 Cavity PET Stretch Blow Molding Machine XINJIE PLC Control 20
Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods SMC 4 Cavity PET Stretch Blow Molding Machine XINJIE PLC Control 22
by sea as the freight is most reasonable in this way.
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
