350ml 500ml 750ml Small Plastic Blow Molding Machine 380V 3PHASE

350ml 500ml 750ml Small Plastic Blow Molding Machine 380V 3PHASE

  • High Light

    350ml 500ml 750ml small plastic blow molding machine

    ,

    350ml 500ml 750ml plastic bottle making machine

    ,

    plastic bottle making machine 380V 3PHASE

  • Plastic Processed
    PET
  • Max.Bottle Height(mm)
    330 Mm
  • Neck Diameter(mm)
    38 Mm
  • Max.Bottle Diameter(mm)
    100 Mm
  • Bottle Volume(ml)
    2000 Ml
  • Condition
    New
  • Application
    Bottle
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng
  • Certification
    CE,ISO
  • Minimum Order Quantity
    1set
  • Price
    $3,000.00 - $4,000.00/Sets
  • Packaging Details
    Wooden package
  • Delivery Time
    10days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    20 Set/Sets per Month

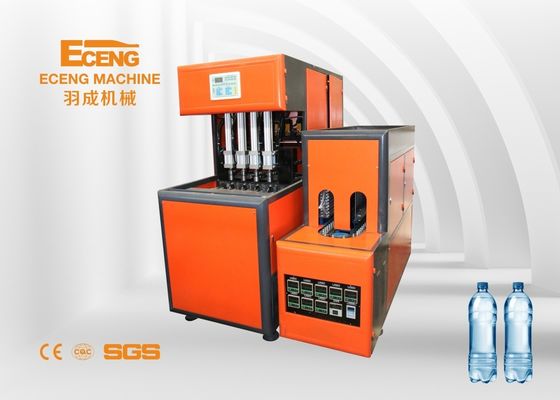

350ml 500ml 750ml Small Plastic Blow Molding Machine 380V 3PHASE

Semi Automatic 2 Cavity 200ML 350ml 500ml 750ml 1L 2L Small Plastic Bottle Making Machine PET Bottle Blower Blowing Bott



Semi Automatic 2 Cavity 200ML 350ml 500ml 750ml 1L 2L Small Plastic Bottle Making Machine PET Bottle Blower Blowing Bottle machine.

YC series Plastic making Top quality useful semi automatic pet blowing machinery is controlled by microcomputer. The plastic blowing machine can control the technical parameters more accurately.With the upper and lower system,emergency stop system,independent counter device,count the output accurately.With infrared lamp heating device,penetrating power, preform rotation heating, heating evenly and quickly.YC series semi-automatic plastic bottle blowing machine is suitable for blowing plastic PET bottles such as carbonated beverage bottles,mineral water bottles, cosmetic bottles and hot filling bottles etc.



350ml 500ml 750ml Small Plastic Blow Molding Machine 380V 3PHASE 0



350ml 500ml 750ml Small Plastic Blow Molding Machine 380V 3PHASE 1





Main machine  (blower + oven)

Item

YC-2L-4

Product Spec

Max. product volume(L/cav)

2L

Max. preform neck size(mm)

100

Max. product diameter(mm)

180

Max. product height (mm)

300

Cavities

4

Blow molding part

Die force (KN)

100

Die stroke (mm)

270

Max. mould size(mm)

390*345

Mould thickness

Adjustable

Mould spacing(mm)

Adjustable

Max. pulling stroke(mm)

400

Operation pressure(Mpa)

0.8-1.0

Operation air pressure consumption

(1tr/min)

200

Blow pressure(Mpa)

1.2-2.8

Blow air pressure consumption (1tr/min)

300

Output(pcs/h)

2600-2800(500ml bottle)

Machine size(LxWxH)(m)

1.46*0.58*1.8

Machine weight(KG)

650

Oven

Temperature grade(rate)

8

Heating time(S)

90-200

Voltage(V)

220 or as your request

Frequency(HZ)

50/60

Total power(KW)

16

Oven Size (LxWxH)

1.35*0.55*1.15

Oven weight (KG)

300

350ml 500ml 750ml Small Plastic Blow Molding Machine 380V 3PHASE 3350ml 500ml 750ml Small Plastic Blow Molding Machine 380V 3PHASE 5

350ml 500ml 750ml Small Plastic Blow Molding Machine 380V 3PHASE 7

YC series semi-automatic bottle blowing machine is controlled by microcomputer,control the technical parameters more accurately.PET bottle blowing machine is simple and safe to operate.It only requires one person and does not require special training.YC series PET blow molding machine is suitable for blow molding of plastic packaging bottles such as carbonated beverage bottles, mineral water bottles, hot filling bottles and cosmetic bottles. It is suitable for the production of small beverage companies and daily chemical product companies.

 350ml 500ml 750ml Small Plastic Blow Molding Machine 380V 3PHASE 9

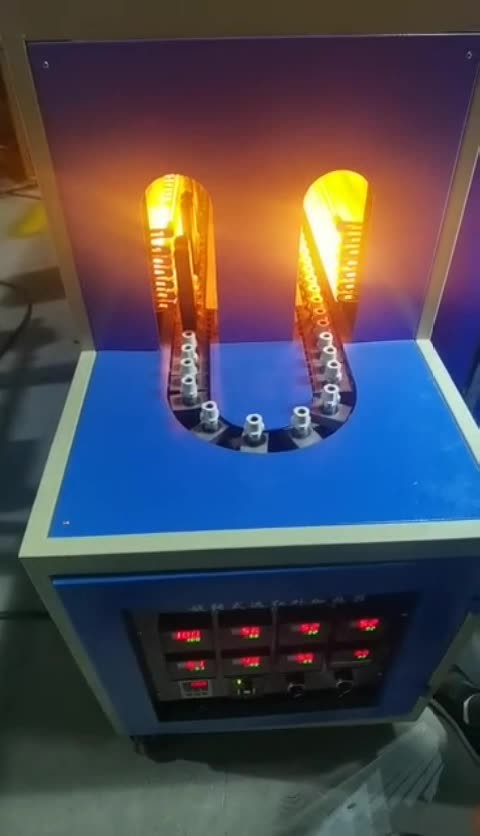

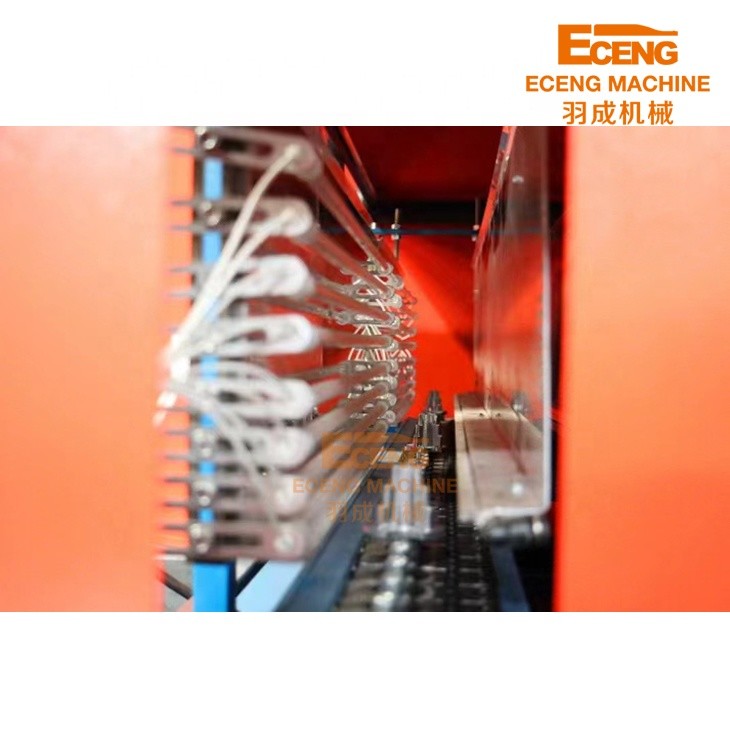

Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

 350ml 500ml 750ml Small Plastic Blow Molding Machine 380V 3PHASE 11

Specially designed high rigidity composite mold structure, wide applicability, suitable for various types of mold thickness, easy to adjust and save energy, less air demand, precision polished spindle, equipped with photoelectric sensor, low noise,rapid response, long working hours , stable performance,ensure stable operation.

 350ml 500ml 750ml Small Plastic Blow Molding Machine 380V 3PHASE 13

YC linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.



350ml 500ml 750ml Small Plastic Blow Molding Machine 380V 3PHASE 15



350ml 500ml 750ml Small Plastic Blow Molding Machine 380V 3PHASE 17350ml 500ml 750ml Small Plastic Blow Molding Machine 380V 3PHASE 19

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
