Blow your bottle, Shape your dream
 |
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE,ISO |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $6,000.00 - $8,000.00/Sets |
| Packaging Details: | Wooden package |
| Delivery Time: | 10days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 Set/Sets per Month |
| Bottle Volume(ml): | 5000 Ml | Application: | Bottle |
|---|---|---|---|
| Blow Moulding Type: | Stretch Blow Moulding | Hollow Part Volume: | 5L |
| Warranty: | 1 Year, One Year | Key Selling Points: | Easy To Operate |
| Applicable Industries: | Food & Beverage Factory | Name: | Semi Automatic Pet Bottle Blowing Machine |
| High Light: | beverage bottle 2 cavity pet blowing machine,5000ml 2 cavity pet blowing machine,5000ml semi automatic pet stretch blow moulding machine |
||

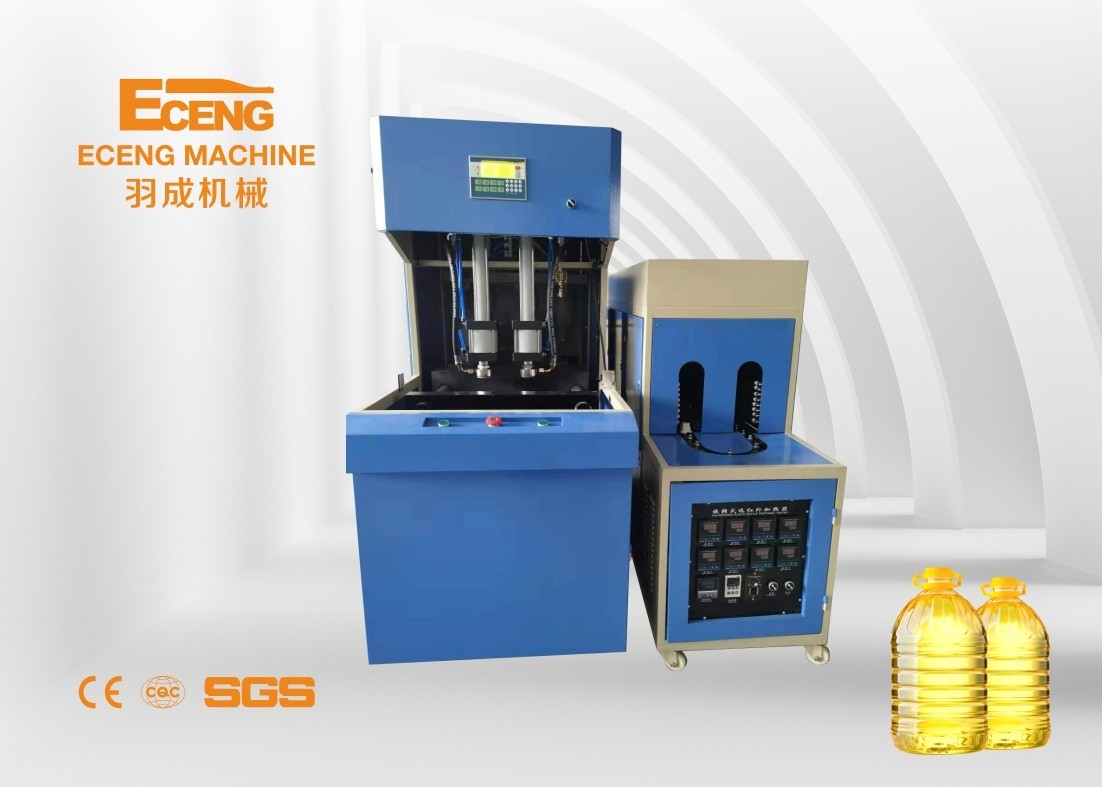

Eceng 2cavity PET two blower semi automatic water food beverage bottle bottles blow molding making machine
Eceng semi Automatic 2 cavity plastic pet blowing 3L 5L soda water bottle making machine
Semi automatic 5L liter pet water bottle bottol makeing making blowing machine
YC series Plastic making Top quality useful semi automatic pet blowing machinery is controlled by microcomputer. The plastic blowing machine can control the technical parameters more accurately.With the upper and lower system,emergency stop system,independent counter device,count the output accurately.With infrared lamp heating device,penetrating power, preform rotation heating, heating evenly and quickly.YC series semi-automatic plastic bottle blowing machine is suitable for blowing plastic PET bottles such as carbonated beverage bottles,mineral water bottles, cosmetic bottles and hot filling bottles etc.
|
Main machine (blower + oven) |
Item |
YC-5L-2 |
|
Product Spec |
Max. product volume(L/cav) |
5 |
|
Max. preform neck size(mm) |
130 |
|
|
Max. product diameter(mm) |
200 |
|
|
Max. product height (mm) |
400 |
|
|
Cavities |
2 |
|
|
Blow molding part |
Die force (KN) |
150 |
|
Die stroke (mm) |
300 |
|
|
Max. mould size(mm) |
390*530 |
|
|
Mould thickness |
Adjustable |
|
|
Mould spacing(mm) |
Adjustable |
|
|
Max. pulling stroke(mm) |
500 |
|
|
Operation pressure(Mpa) |
0.8-1.0 |
|
|
Operation air pressure consumption (1tr/min) |
350 |
|
|
Blow pressure(Mpa) |
1.2-2.8 |
|
|
Blow air pressure consumption (1tr/min) |
360 |
|
|
Output(pcs/h) |
700(5L bottle) |
|
|
Machine size(LxWxH)(m) |
1.7*0.85*2.1 |
|
|
Machine weight(KG) |
800 |
|
|
Oven |
Temperature grade(rate) |
8 |
|
Heating time(S) |
90-200 |
|
|
Voltage(V) |
220 or as your request |
|
|
Frequency(HZ) |
50/60 |
|
|
Total power(KW) |
16 |
|
|
Oven Size (LxWxH) |
1.45*0.65*1.15 |
|
|
Oven weight (KG) |
330 |
YC series semi-automatic bottle blowing machine is controlled by microcomputer,control the technical parameters more accurately.PET bottle blowing machine is simple and safe to operate.It only requires one person and does not require special training.YC series PET blow molding machine is suitable for blow molding of plastic packaging bottles such as carbonated beverage bottles, mineral water bottles, hot filling bottles and cosmetic bottles. It is suitable for the production of small beverage companies and daily chemical product companies.
Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.
Specially designed high rigidity composite mold structure, wide applicability, suitable for various types of mold thickness, easy to adjust and save energy, less air demand, precision polished spindle, equipped with photoelectric sensor, low noise,rapid response, long working hours , stable performance,ensure stable operation.
YC linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first
