Eceng Mineral Water Bottle Blowing Machine

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Eceng
Certification:	CE ISO
Model Number:	q9000

Payment & Shipping Terms:

Price:	$5,000.00 - $25,000.00/Pieces
Packaging Details:	packed in wooden cases or package design according to the requirement of customers
Supply Ability:	500 Piece/Pieces per Year

Contact Now

Detailed Product Description

Plastic Processed:	PET, PVC, PE, PE/PP, LDPE, HDPE	Bottle Volume(ml):	2000 Ml
Blow Moulding Type:	Stretch Blow Moulding	Voltage:	380V,50HZ
Hollow Part Volume:	2l	Core Components:	Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	After Warranty Service:	Spare Parts, Field Maintenance And Repair Service, Video Technical Support, Online Support
High Light:	Eceng mineral water bottle blowing machine , 2000ml mineral water bottle blowing machine , pet bottle moulding machine 4500KG

specification

Item			Q9000
Bottle type specification	Cavity	6
		Theory output	90000
		Max.volume	2L
		Bottle mouth maximum overall diameter	28-38mm
		Bottle biggest diameter	105mm
		Bottle maximum height	330mm
Power specification	Light tube quantity	32pcs
		Light tube power	1.5KW
		Maximum heating power	72KW
		All electric machine installation	75KW
		Actual consumption	40%--70%
Air pressure specification	Work pressure	7-9kg/cm2
		Low-pressure gas consumption	1000L/min
		Blow bottle pressure	25-35kg/cm2
		Higher -pressure gas consumption	3000Ltr/min
Air pressure specification	Work pressure	5-6 kg/cm2
		Temperature range	10℃
		Consumption	8000kcal/hr
		Frozen water flow	138L/min
Machine specification	Machine size	5.5x1.6x1.9
Machine specification		Machine weight	4.5ton

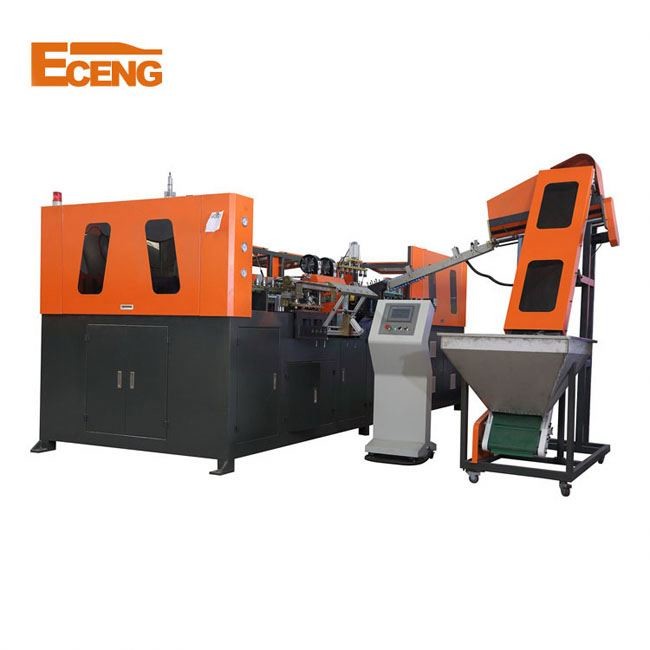

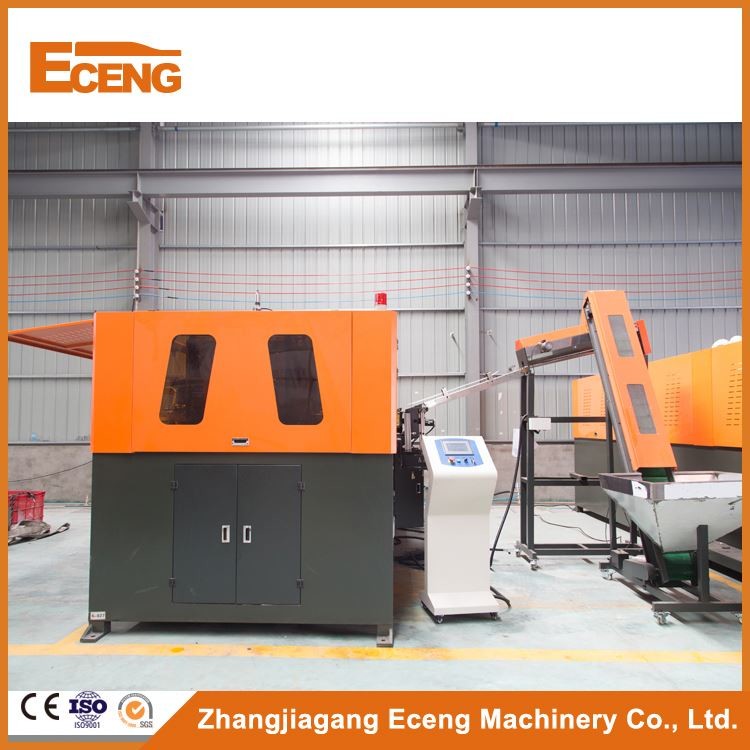

Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

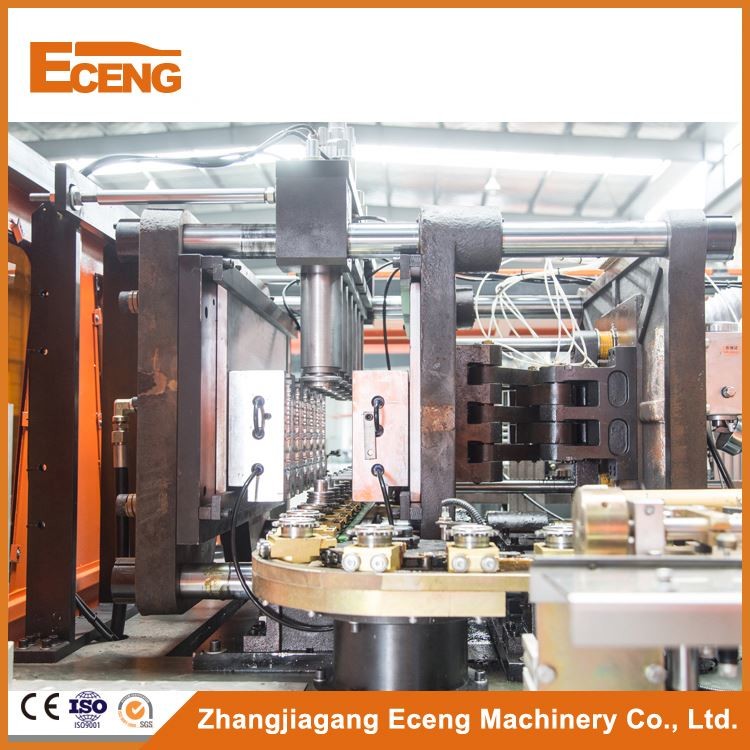

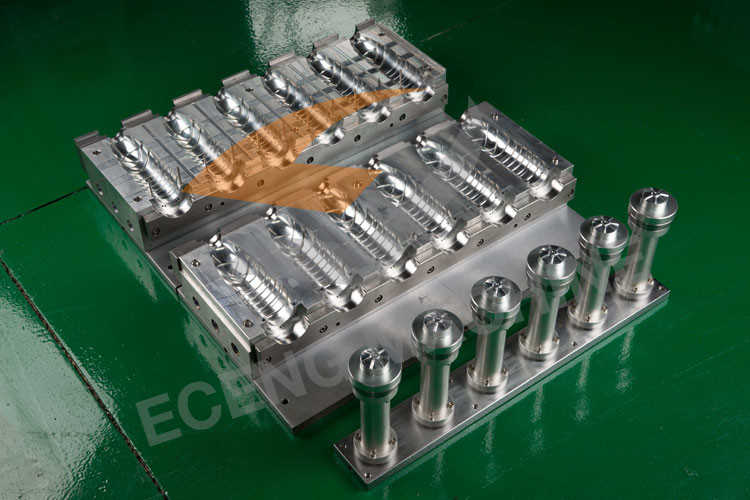

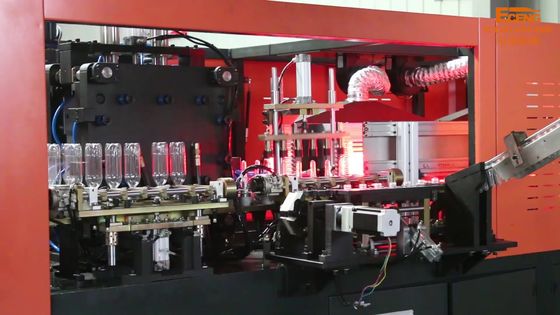

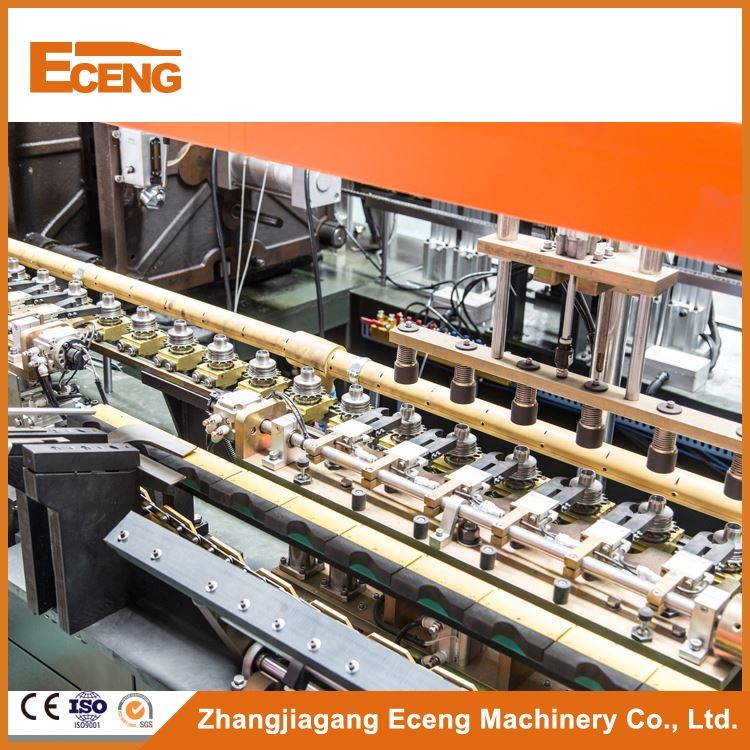

Detailed Images

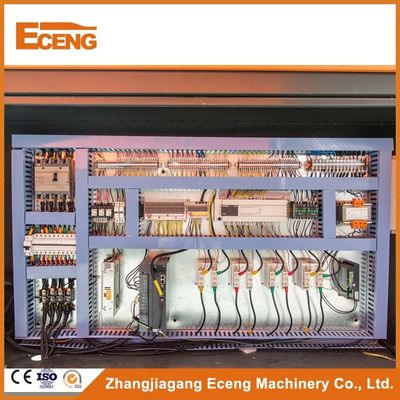

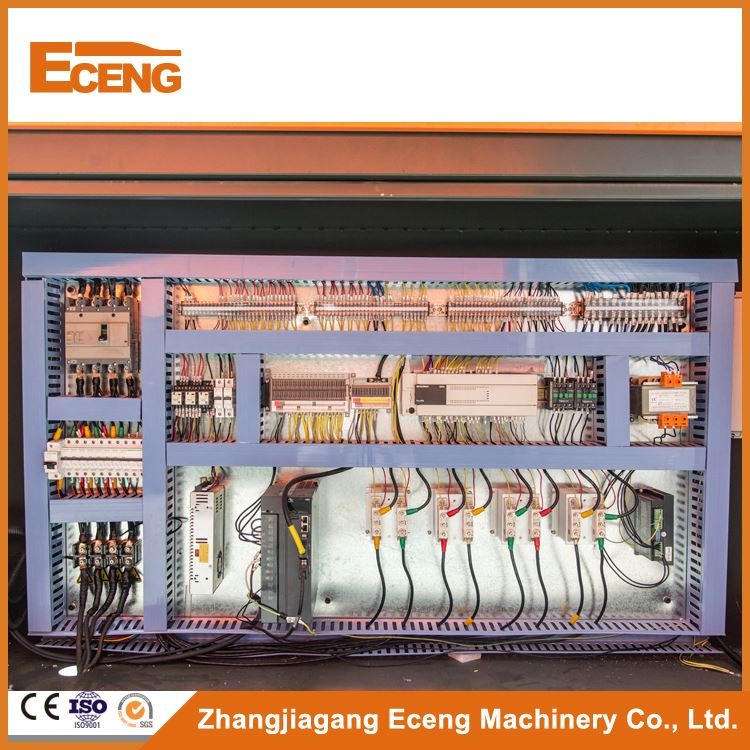

Q linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Qseries linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .

Company Introduction

Packing&Shipping

After Sales Service

1. Installation, debug We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line. 2. Training Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures. 3. Quality guarantee We promise that our goods quality, specification and function all meet the demand of contract. One year warranty,during warranty period,All parts and components except those damaged by non-human factors are guaranteed free of charge (vulnerable parts are not included). In addition, the seller provides free spare parts and accessories for shipment with the machine. During warranty period ,the equipment is damaged due to incorrect operation bythe buyer,we provide maintenance solutions,the buyer will cover the loss and cost.during warranty period we provide technical service,which is usually solved by telephone,etc.if not,provide door-to-door service.
