MAC Water Bottle PET Bottle Blowing Machine 2500KG DELTA PLC Control

MAC Water Bottle PET Bottle Blowing Machine 2500KG DELTA PLC Control

  • High Light

    MAC PET Bottle Blowing Machine

    ,

    water bottle moulding machine 2500KG

    ,

    water bottle moulding machine DELTA PLC

  • Plastic Processed
    PET
  • Max.Bottle Height(mm)
    330 Mm
  • Neck Diameter(mm)
    28 Mm
  • Max.Bottle Diameter(mm)
    100 Mm
  • Bottle Volume(ml)
    2000 Ml
  • Condition
    New
  • Application
    Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Year
    2019
  • Voltage
    380V,50HZ
  • Dimension(L*W*H)
    2.25*1.6*1.7m
  • Hollow Part Volume
    100ml-2000ml
  • High Pressure Valve Brand
    MAC
  • Rotary Cylinder Brand
    SMC
  • PLC Brand
    DELTA
  • Power (kW)
    51
  • Weight (KG)
    2500 KG
  • Automation
    Automatic
  • Warranty
    1 Year, One Year For Free
  • Key Selling Points
    FULLY SERVO
  • Showroom Location
    Saudi Arabia, Spain, Russia, Italy, Thailand, Mexico, India, Pakistan, Canada, United States, Brazil, United Kingdom, Indonesia, Germany, Egypt, Philippines, South Korea, Algeria, Chile, UAE, Japan, Uzbekistan, Nigeria, Romania, Australia, Ukraine, Kyrgyzs
  • Applicable Industries
    Food & Beverage Factory
  • Marketing Type
    Hot Product 2019
  • Machinery Test Report
    Provided
  • Video Outgoing-inspection
    Provided
  • Warranty Of Core Components
    1 Year
  • Core Components
    Bearing, Motor, Pump, Gear, PLC, Pressure Vessel
  • Automatic
    Yes
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas, Field Maintenance And Repair Service, Video Technical Support, Online Support, Field Installation, Commissioning And Training
  • Color
    White And Orange
  • Warranty
    1 Year
  • Output
    3000
  • Size Of The Machine
    2.25*1.6*1.7m
  • Weight Of The Machine
    2500KG
  • Power
    51KW
  • Local Service Location
    United States, Viet Nam, Saudi Arabia, Italy, France, Germany, Thailand, Russia, Egypt, Mexico, Indonesia, Canada, Brazil, South Africa, Chile, Malaysia, Kyrgyzstan, UAE, Argentina, South Korea, Kenya, Bangladesh, Algeria, Colombia, Japan, Sri Lanka, Ukrai
  • After Warranty Service
    Spare Parts, Field Maintenance And Repair Service, Video Technical Support, Online Support
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng
  • Certification
    CE
  • Model Number
    Q3000
  • Minimum Order Quantity
    1set
  • Price
    $30,000.00 - $60,000.00/Sets
  • Packaging Details
    Wooden/film package suits transportation of Fully autoamtic 6 cavity mineral water bottle pet blow machine
  • Delivery Time
    30days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    15 Set/Sets per Month

MAC Water Bottle PET Bottle Blowing Machine 2500KG DELTA PLC Control

Eceng hot sale Automatic PET softenner bottle blow molding machine water bottle blowing machine

Fully autoamtic 2 cavity mineral water bottle pet blow machine

MAC Water Bottle PET Bottle Blowing Machine 2500KG DELTA PLC Control 0

MAC Water Bottle PET Bottle Blowing Machine 2500KG DELTA PLC Control 2MAC Water Bottle PET Bottle Blowing Machine 2500KG DELTA PLC Control 4MAC Water Bottle PET Bottle Blowing Machine 2500KG DELTA PLC Control 6
MAC Water Bottle PET Bottle Blowing Machine 2500KG DELTA PLC Control 8

Item

Q3000

Bottle type specification



Cavity

2

Theory output

3000

Max.volume

2L

Bottle mouth maximum overall diameter

28-80mm

Bottle biggest diameter

100mm

Bottle maximum height

330mm

Power specification

Light tube quantity

32pcs

Light tube power

0.75KW

Maximum heating power

24KW

All electric machine installation

27KW

Actual consumption

30%--60%

Air pressure specification



Work pressure

5-6kg/cm2

Low-pressure gas consumption

1000L/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

1500Ltr/min

Air pressure specification



Work pressure

5-6 kg/cm2

Temperature range

10℃

Consumption

5000kcal/hr

Frozen water flow

30L/min

Machine specification



Machine size

2.25x1.6x1.7

Machine weight

2.5ton


MAC Water Bottle PET Bottle Blowing Machine 2500KG DELTA PLC Control 10

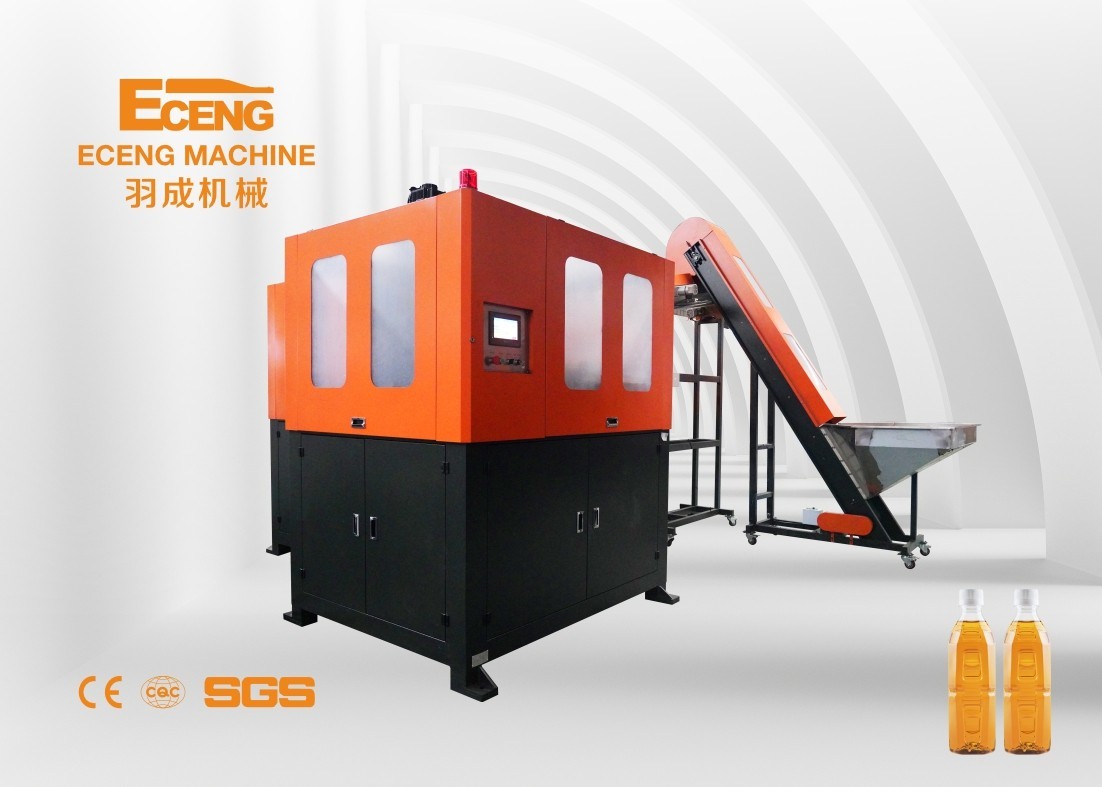

1. Q Series PET Bottle Blowing Machine Description:

1. Stable performance with Advanced PLC

2. Conveying performs automatically with conveyor.

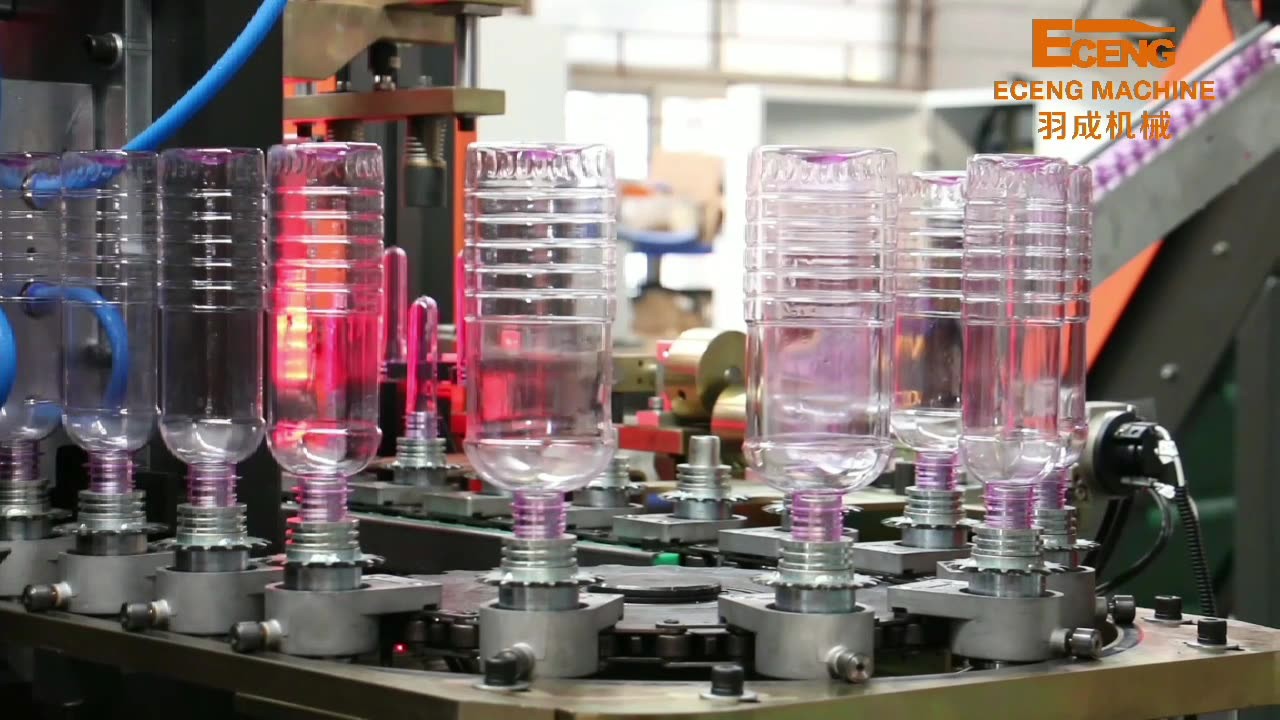

3. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.

4. High adjustability to enable the preheater to preheat performs in shapes by adjusting the light tube and the length of the reflecting board in the preheating area,and  eternal temperature in the preheater with an automatic thermostatic apparatus.

5. Optimization of the oven,suction and convulsion devices,cool the preform surface.Waterway,air duct directly through the device,double protect the screw neck

6. Each mechanical action has safety self-locking device,whe a process fails, the program will automatically switch to the security status.

7. Servo device for the material transfer and bottle perform distribution, fast,reliable,and high stability.

8. Using high pressure and hyperbolic arm connecting rod clamping,strong clamping force,speed and distance of clamp open are adjustable.

9. Safe,reliable,and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.

10. Along with remotemaintenance systems,remote inspection maintenance,solve the troubles for you.

11. Low rejection rete: less than 0.2 percent.



2. Q Series PET Bottle Blowing Machine Advantages:

1) Servo driving and cam linking blowing section:

The unique cam linking system integrates movement of mold-opening, mold-locking and bottom mold-elevating in one movement, equipped with high speed servo driving system which greatly shorten the cycle of blowing and increase the capacity.



MAC Water Bottle PET Bottle Blowing Machine 2500KG DELTA PLC Control 12

2)Small performs distance heating system

Heater distance in the heating oven is reduced to 38mm, compared with the conventional heating oven it saves more than 30% electricity consumption.

Equipped with the air cycling system and redundant heat discharge system, it ensures the constant temperature of the heating zone.

MAC Water Bottle PET Bottle Blowing Machine 2500KG DELTA PLC Control 14

3)Efficient and soft perform inlet system

By rotary and soft preform inlet system, the speed of prefom feeding is ensured meanwhile, the preform neck is well protected.

MAC Water Bottle PET Bottle Blowing Machine 2500KG DELTA PLC Control 16

3.Samples photos(PET bottles)

MAC Water Bottle PET Bottle Blowing Machine 2500KG DELTA PLC Control 18



MAC Water Bottle PET Bottle Blowing Machine 2500KG DELTA PLC Control 20

4.Moulds

MAC Water Bottle PET Bottle Blowing Machine 2500KG DELTA PLC Control 22





MAC Water Bottle PET Bottle Blowing Machine 2500KG DELTA PLC Control 24

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
