Eceng Drink Bottle PET Stretch Blow Molding Machine 5000ml

Eceng Drink Bottle PET Stretch Blow Molding Machine 5000ml

  • High Light

    Eceng pet stretch blow molding machine

    ,

    pet stretch blow molding machine 5000ml

    ,

    bottle blow molding machine 5000ml

  • Plastic Processed
    PET
  • Max.Bottle Height(mm)
    360 Mm
  • Neck Diameter(mm)
    150 Mm
  • Max.Bottle Diameter(mm)
    180 Mm
  • Bottle Volume(ml)
    5000 Ml
  • Condition
    New
  • Application
    Bottle, Plastic Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Year
    2019
  • Voltage
    3phase 380V/220V
  • Dimension(L*W*H)
    4.12x1.8x2.25(m)
  • Hollow Part Volume
    5L
  • Power (kW)
    48
  • Weight (KG)
    3000 KG
  • Automation
    Automatic
  • Warranty
    1 Year
  • Key Selling Points
    Automatic
  • Showroom Location
    Peru, Turkey, France, None, Italy, Thailand, Mexico, Viet Nam, Canada, United States, Brazil, United Kingdom, Indonesia, Germany, Egypt, Philippines, South Korea, Algeria, Chile, UAE, Uzbekistan, Nigeria, Argentina, Romania, Ukraine, Kyrgyzstan, Kazakhstan
  • Applicable Industries
    Food & Beverage Shops
  • Marketing Type
    Hot Product 2019
  • Machinery Test Report
    Provided
  • Video Outgoing-inspection
    Provided
  • Warranty Of Core Components
    1 Year
  • Core Components
    Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
  • Automatic
    Yes
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Video Technical Support, Online Support
  • Color
    Orange
  • Cavity
    2
  • Output
    1500BPH
  • Factory Location
    Zhangjiagang,nearby Shanghai
  • Local Service Location
    United States, United Kingdom, Viet Nam, India, Pakistan, Peru, Saudi Arabia, Italy, France, Germany, Thailand, Russia, Mexico, Indonesia, None, Canada, Brazil, South Africa, Malaysia, Kyrgyzstan, Argentina, South Korea, Bangladesh, Colombia, Japan, Sri La
  • After Warranty Service
    Spare Parts, Field Maintenance And Repair Service, Video Technical Support, Online Support
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng
  • Certification
    CE&ISO
  • Model Number
    Q5L-2
  • Minimum Order Quantity
    1set
  • Price
    $40,000.00/Sets 1-1 Sets
  • Packaging Details
    Wooden package
  • Delivery Time
    45days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    10 Set/Sets per Month

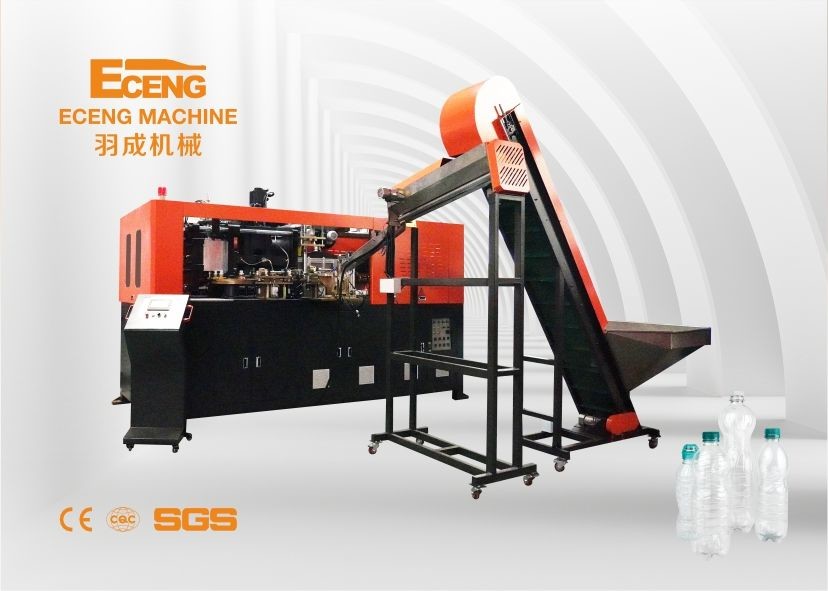

Eceng Drink Bottle PET Stretch Blow Molding Machine 5000ml

Eceng Fully automatic small plastic blowing moulding pet drink bottle stretch blow molding making machine price

bottle making machine / bottle stretch blowing machine Q5L-2

Eceng Drink Bottle PET Stretch Blow Molding Machine 5000ml 0

 Eceng Drink Bottle PET Stretch Blow Molding Machine 5000ml 2

Eceng Drink Bottle PET Stretch Blow Molding Machine 5000ml 4

technical parametre-- 5L pet bottle machine







Item

Q5L-2

Bottle type specification

Cavity

2

Theory output

1500

Max.volume

5L

Bottle mouth maximum overall DIdiameter

150mm

Bottle biggest diameter

180mm

Bottle maximum height

360mm

Power specifications

Light tube quantity

40pcs

Light tube power

2.5KW

Maximum heating power

48KW

All electric machine installation

51KW

Actual consumption

35.7KW

Air pressure specification

Work pressure

7-9kg/cm2

Low-pressure gas consumption

1600L/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

1600Ltr/min

Forzen water specification

Work pressure

25-35 kg/cm2

Temperature range

10℃

Consumption

6000kcal/hr

Forzen water flow

50L/min

Machine specification

Size of the machine

4.12x1.8x2.25

Weight of the machine

3ton







related introduction-- 5L pet bottle machine



1). Stable performance with advanced PLC.



2). Automatic preform conveyer to save human cost.



3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.



4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.



5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.



6). Introduce the FESTO air cylinder to avoid contamination and noise.



7). Satisfaction with different atmosphShirley pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.



8). Strong clamping force with high pressure and double crank links to lock the mould.



9). Two ways of operating: automatic and manual.



10). Safe,reliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.



11). Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process.



12). Ideal cooling system make the finished bottles without any flaws.



13). Easy for you to install,test and start up.



14). Low rejection rate: less than 0.2 percent.

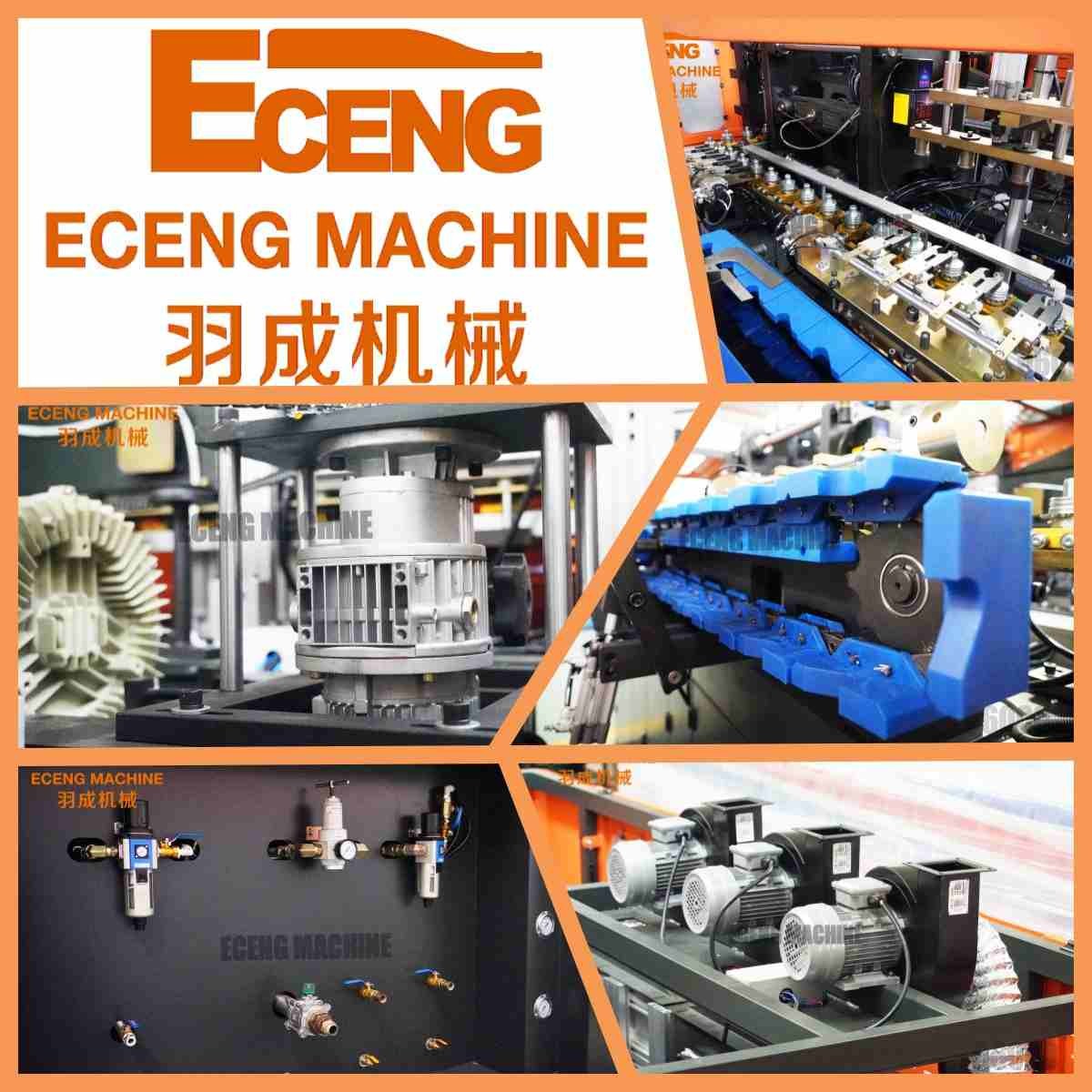

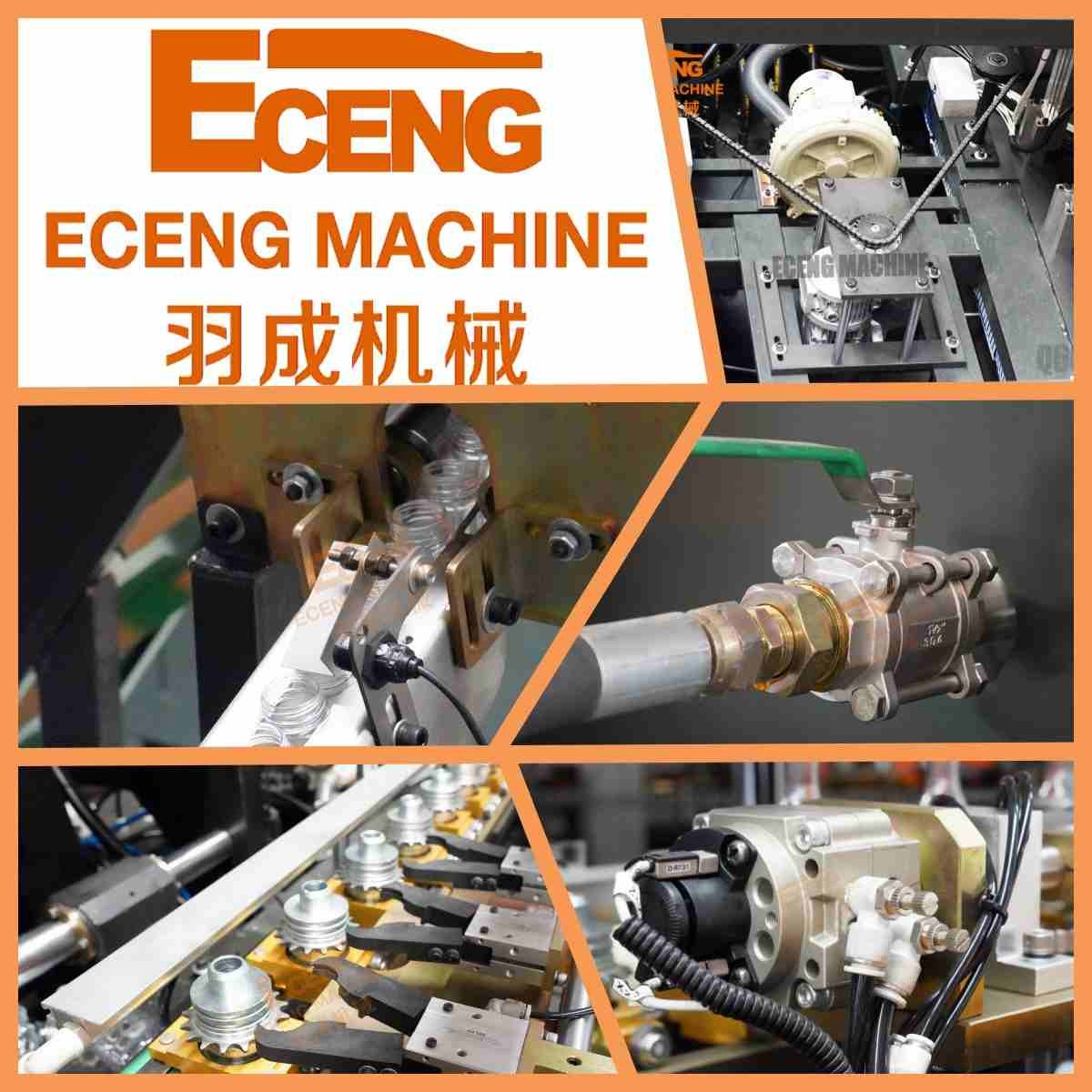

photo show--  5L pet bottla machine







Eceng Drink Bottle PET Stretch Blow Molding Machine 5000ml 6

company introduction



Our company, Zhangjiagang Eceng Machinery Co., Ltd. we are a special manufacturer of PET bottle blowing machine,blow molding machine and mould, We have been engaged in moulds for years, and have gained a well-known reputation from our customers who spread all over the world.

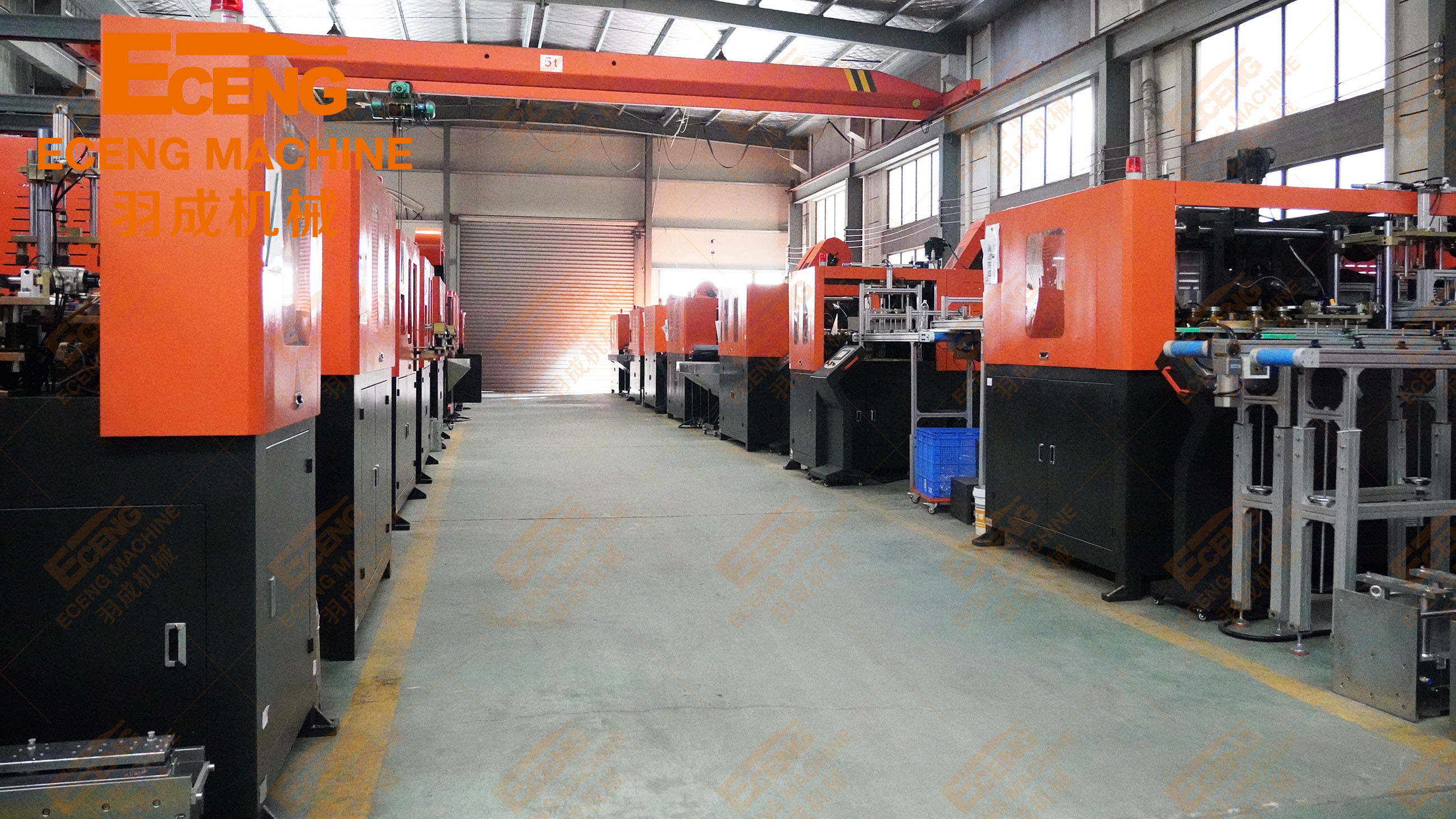

our workshop--  5L pet bottle machine





Eceng Drink Bottle PET Stretch Blow Molding Machine 5000ml 8



   We Warmly Welcome Customers All Over The World To Our Company!
