3000BPH Semi Auto Bottle Blowing Machine

1set
MOQ
3000BPH Semi Auto Bottle Blowing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: YC-2L-4
Output: 3000bph
Weight: 300KG
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Name: Semi Automatic Pet Bottle Blowing Machine
Blow Moulding Type: Stretch Blow Moulding
Certification: CE,ISO
After Warranty Service: Online Support
Highlight:

3000BPH Semi Auto Bottle Blowing Machine

,

3000BPH plastic bottle manufacturing machine

,

4 cavity plastic bottle manufacturing machine

Basic Infomation
Place of Origin: CHINA
Brand Name: ECENG
Certification: CE SGS ISO
Model Number: YC-2L-4
Payment & Shipping Terms
Packaging Details: film/wooden
Delivery Time: 45days
Payment Terms: TT LC western Union
Supply Ability: 10sets Per month
Product Description

YC-2L-4 4cavity 3000BPH 2L water bottle Semi auto bottle blowing machine

ain machine (blower + oven) Item YC-2L-4
Product Spec Max. product volume(L/cav) 2L
Max. preform neck size(mm) 100
Max. product diameter(mm) 180
Max. product height (mm) 300
Cavities 4
Blow molding part Die force (KN) 100
Die stroke (mm) 270
Max. mould size(mm) 390*345
Mould thickness Adjustable
Mould spacing(mm) Adjustable
Max. pulling stroke(mm) 400
Operation pressure(Mpa) 0.8-1.0

Operation air pressure consumption

(1tr/min)

200
Blow pressure(Mpa) 1.2-2.8
Blow air pressure consumption (1tr/min) 300
Output(pcs/h) 2600-2800(500ml bottle)
Machine size(LxWxH)(m) 1.46*0.58*1.8
Machine weight(KG) 650
Oven Temperature grade(rate) 8
Heating time(S) 90-200
Voltage(V) 220 or as your request
Frequency(HZ) 50/60
Total power(KW) 16
Oven Size (LxWxH) 1.35*0.55*1.15
Oven weight (KG) 300

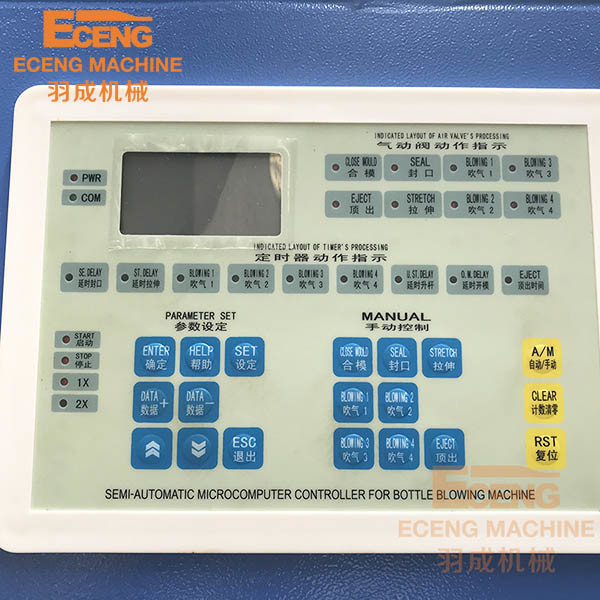

YC series Plastic making Top quality useful semi automatic pet blowing machinery is controlled by microcomputer. The plastic blowing machine can control the technical parameters more accurately.With the upper and lower system,emergency stop system,independent counter device,count the output accurately.With infrared lamp heating device,penetrating power, preform rotation heating, heating evenly and quickly.YC series semi-automatic plastic bottle blowing machine is suitable for blowing plastic PET bottles such as carbonated beverage bottles,mineral water bottles, cosmetic bottles and hot filling bottles etc.

3000BPH Semi Auto Bottle Blowing Machine 0

3000BPH Semi Auto Bottle Blowing Machine 1

3000BPH Semi Auto Bottle Blowing Machine 2
