380KG Single Stage PET Bottle Machine 20 Litre Jar Manufacturing With Handle Insert

380KG Single Stage PET Bottle Machine 20 Litre Jar Manufacturing With Handle Insert

  • High Light

    380KG single stage pet bottle machine

    ,

    380KG 20 litre jar manufacturing machine

    ,

    20 litre jar manufacturing machine 80bph

  • Model Number
    Handle Bottle Blow Molding Machine
  • Color
    Qrange
  • Output
    80BPH
  • Weight
    380KG
  • Place of Origin
    CHINA
  • Brand Name
    ECENG
  • Certification
    CE SGS ISO
  • Model Number
    Handle bottle Blow Molding Machine
  • Minimum Order Quantity
    One
  • Price
    Negotiable
  • Packaging Details
    film/wooden
  • Delivery Time
    45days
  • Payment Terms
    TT LC western Union
  • Supply Ability
    10sets Per month

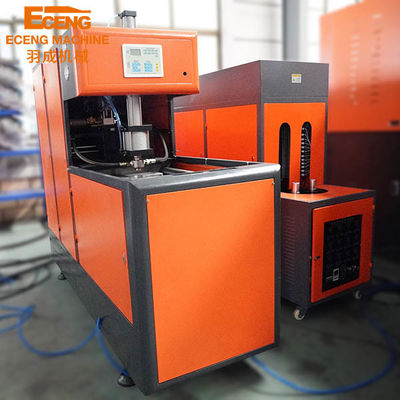

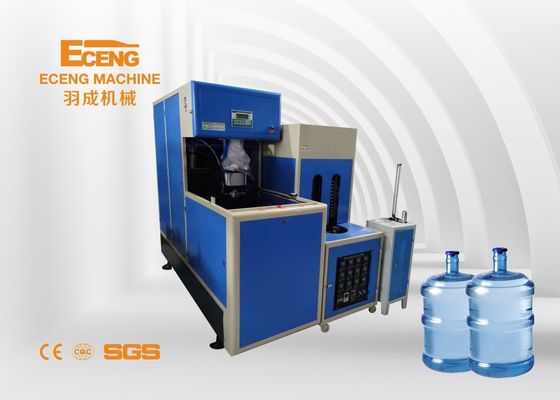

380KG Single Stage PET Bottle Machine 20 Litre Jar Manufacturing With Handle Insert

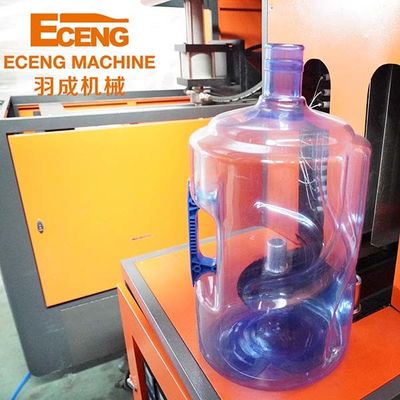

1cavity 80bph 20L mineral water bottle with handle insert blowing machine

380KG Single Stage PET Bottle Machine 20 Litre Jar Manufacturing With Handle Insert 0380KG Single Stage PET Bottle Machine 20 Litre Jar Manufacturing With Handle Insert 1380KG Single Stage PET Bottle Machine 20 Litre Jar Manufacturing With Handle Insert 2

Main machine (blower + oven) Item Handle bottle Blow Molding Machine
Product Spec Max. product volume(L/cav) 20
Max. preform neck size(mm) 200
Max. product diameter(mm) 400
Max. product height (mm) 600
Cavities 1
Blow molding part Die force (KN) 150
Die stroke (mm) 340
Max. mould size(mm) 420*500
Mould thickness Adjustable
Mould spacing(mm) Adjustable
Max. pulling stroke(mm) 500
Operation pressure(Mpa) 0.8-1.0

Operation air pressure consumption

(1tr/min)

560
Blow pressure(Mpa) 1.2-2.8
Blow air pressure consumption (1tr/min) 650
Output(pcs/h) 80
Machine size(LxWxH)(m) 2.18*0.77*1.96
Machine weight(KG) 1000
Oven Temperature grade(rate) 8
Heating time(S) 90-200
Voltage(V) 220 or as your request
Frequency(HZ) 50/60
Total power(KW) 15-40
Oven Size (LxWxH) 2.37*0.68*1.65
Oven weight (KG) 380


It is widely used to produce the carbonated bottle,mineral water bottle,etc.

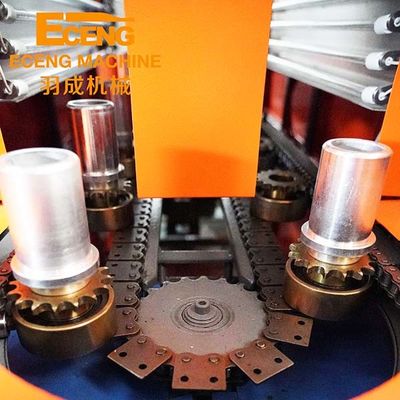

1. Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the preform , the preform rotated and heated equally.

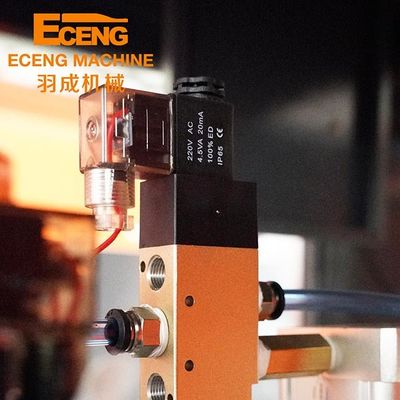

2. The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow.
3. The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.

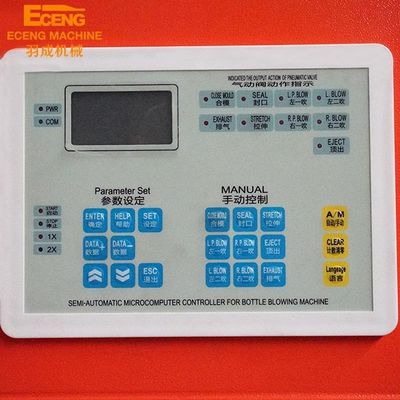

4. The machine can be operated in the step-by-step mode and the semi-auto mode
.
