Wide Mouth PET Bottle Mould SKD61 Injection Molding Mold

Wide Mouth PET Bottle Mould SKD61 Injection Molding Mold

  • Wide Mouth PET Bottle Mould SKD61 Injection Molding Mold
  • Wide Mouth PET Bottle Mould SKD61 Injection Molding Mold
  • Wide Mouth PET Bottle Mould SKD61 Injection Molding Mold
  • Wide Mouth PET Bottle Mould SKD61 Injection Molding Mold
  • Wide Mouth PET Bottle Mould SKD61 Injection Molding Mold
  • Wide Mouth PET Bottle Mould SKD61 Injection Molding Mold
Wide Mouth PET Bottle Mould SKD61 Injection Molding Mold
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE SGS ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000 Set/Sets per Year
Contact Now
Detailed Product Description
Shaping Mode: Plastic Injection Mould Product Material: Steel
Product: PET Injection Preform Mold Cavities: 6
Mould Frame Material: 4Cr13 Stainless Steel Core Material: S136
Cavity Material: S136 Valve Pin Brand: SKD61 (Japan)
Heater Ring Brand: Hotest(Germany) Port: Shanghai
High Light:

Wide mouth injection molding mold

,

Wide mouth PET Bottle Mould

,

SKD61 injection molding mold

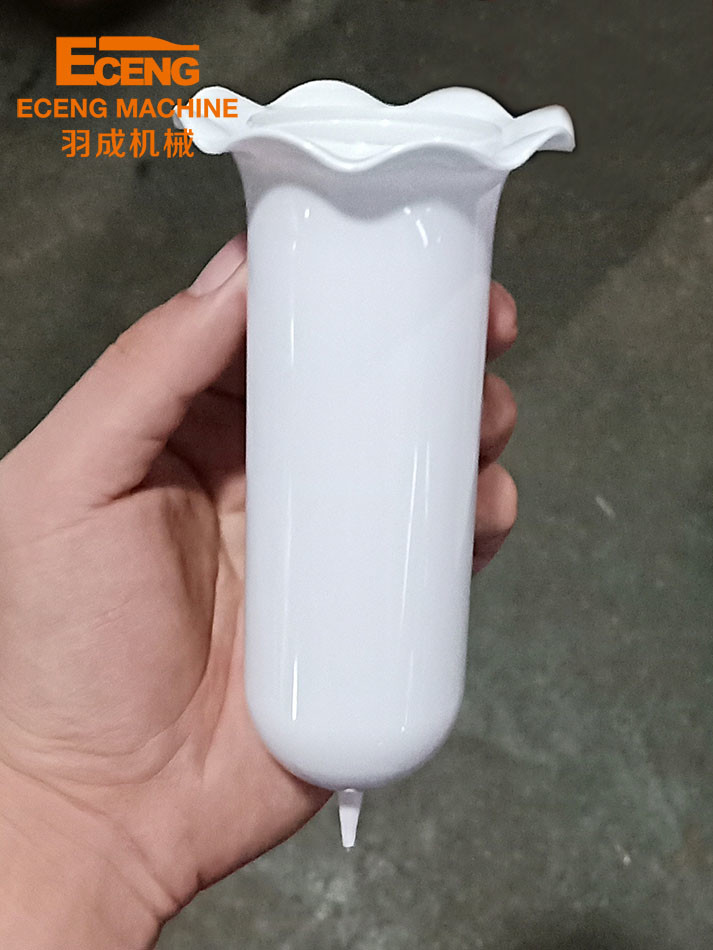

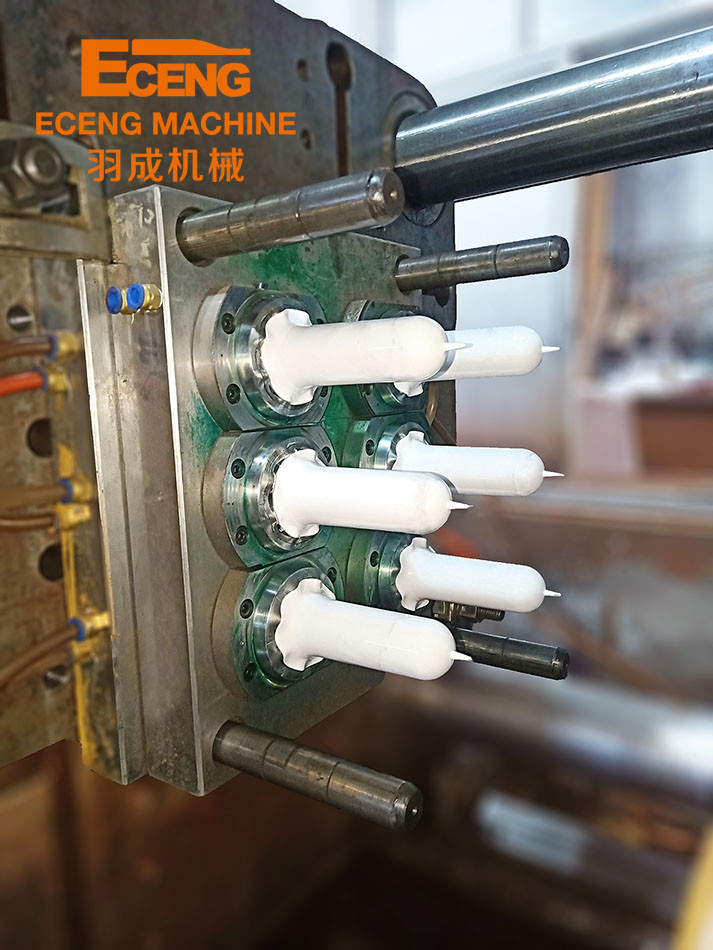

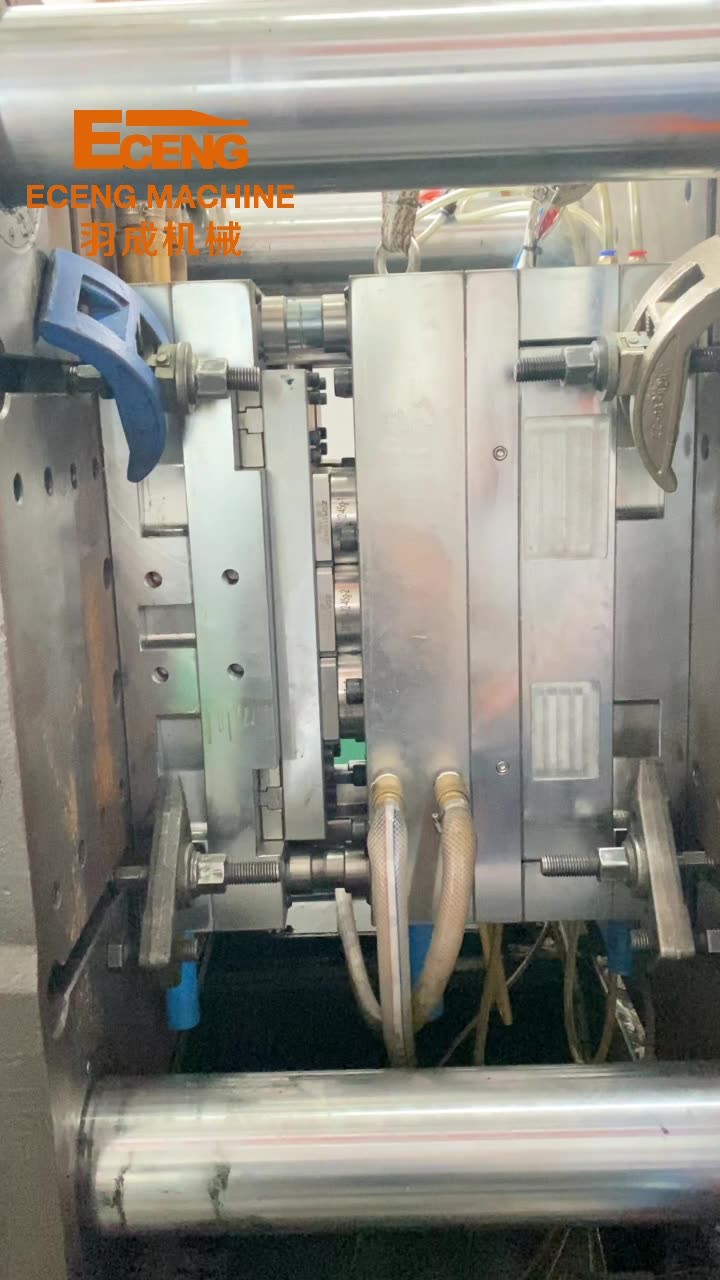

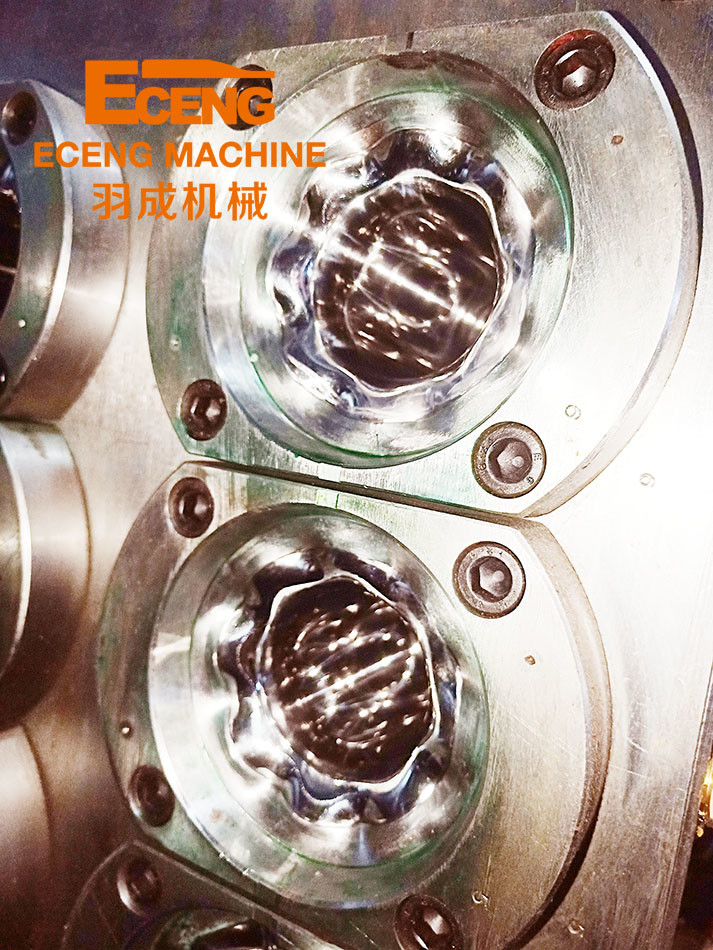

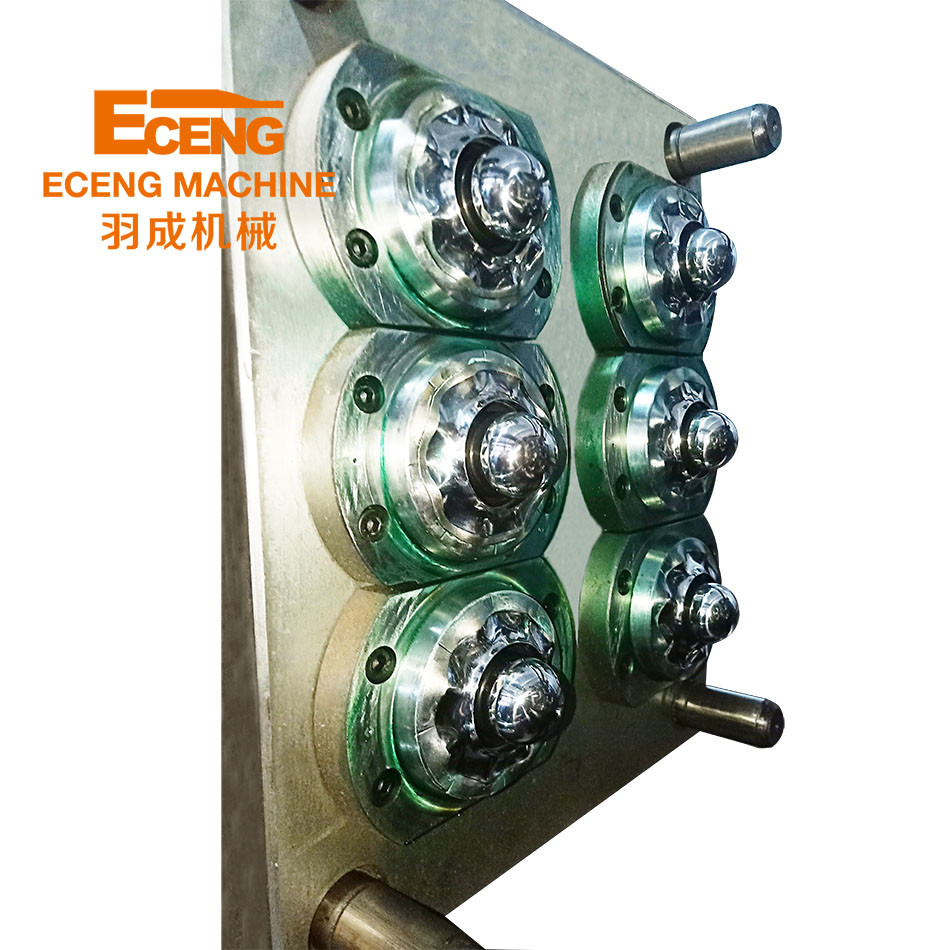

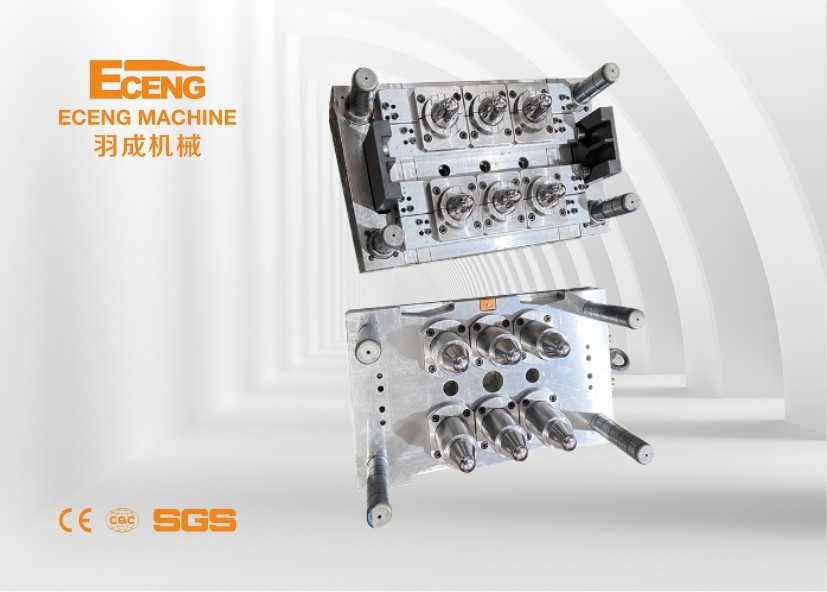

Eceng 6 cavities PET preform mold injection mould for Wide mouth plastic jar candy bottle
Product Description
Wide Mouth PET Bottle Mould SKD61 Injection Molding Mold 0
Wide Mouth PET Bottle Mould SKD61 Injection Molding Mold 2
Packing & Delivery
Wide Mouth PET Bottle Mould SKD61 Injection Molding Mold 4
Wide Mouth PET Bottle Mould SKD61 Injection Molding Mold 6
Wide Mouth PET Bottle Mould SKD61 Injection Molding Mold 8
Specification
preform injection mould material
S136
Precision machining
CNC, milling machine, drilling machine, numerical lathe, all types of lathe
Standard
Self made or LKM
Surface finish process
polishing, sand blasting, heat treatment, painting, powder coating, anodizing, electroplating, mirror polishing .
Runner
Hot runner
Shaping mould
injection mould
Specification drawings
Pro/E, Auto CAD, Solidwork, CAXA UG, CAD/CAM/CAE.
Service
OEM service available, good after-sales service .
Eceng 6 cavities PET preform mold injection mould for Wide mouth plastic jar candy bottle
instructions 1: The number of preform cavity from 1 to 96. 2: The bottle preform is designed by computer simulation tensile test to improve the finished product rate of the blown bottle. 3: Adopt the world advanced two-level double-taper positioning technology, each cavity is self-locked independently, to ensure the concentricity of the mold. 4: Mold injection cavity and injection core are made of high quality preheating special die steel from the original Factory in Sweden. 5: Thread mouth according to international standard manufacturing, the material selection of imported nitriding, high hardness, long service life. 6: Advanced design of hot runner, uniform heating temperature, improve the quality of plastic products. 7: no shear gate, reduce the labor intensity of workers. 8: Mold life is guaranteed to be more than 3 million mold times.
Company Profile
Wide Mouth PET Bottle Mould SKD61 Injection Molding Mold 10
Wide Mouth PET Bottle Mould SKD61 Injection Molding Mold 12
Our company specializes in manufacturing plastic machinery and moulds. We are mainly engaged in making automatic PET blow mould machine, semi-automatic PET blow machine, PE/PP/PVE/HDPE extruding blowing machine, injection machine and all kinds of moulds. We have been committed to the design of plastic bottle making machine, especially the fully-automatic PET blow mould machine, from 300ml- 20L. Our machine complying with CE certification has good quality with praise by our customers. Our standard spares are free. We insist on quality first. What's more, we design kinds of plastic moulds for domestic and foreign customers. With a professional design team, we use advanced CAD / CAM / CAE system. We have gained a well-known reputation from our customers.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2010,sell to Southeast Asia(30.00%),Africa(20.00%),Domestic Market(20.00%),Mid East(15.00%),South America(10.00%),North America(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Fully Auto Bottle Blowing Machine

4. why should you buy from us not from other suppliers?
We have been committed to the design of plastic bottle making machine, especially the fully-automatic PET blow mould machine, from 300ml- 20L. Our machine complying with CE certification has good quality with praise by our customers. Our standard spares ar

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
