SKD61 PET Bottle Mould Manufacturer 9kw PET Moulding 730x450x480mm

SKD61 PET Bottle Mould Manufacturer 9kw PET Moulding 730x450x480mm

  • SKD61 PET Bottle Mould Manufacturer 9kw PET Moulding 730x450x480mm
  • SKD61 PET Bottle Mould Manufacturer 9kw PET Moulding 730x450x480mm
  • SKD61 PET Bottle Mould Manufacturer 9kw PET Moulding 730x450x480mm
  • SKD61 PET Bottle Mould Manufacturer 9kw PET Moulding 730x450x480mm
  • SKD61 PET Bottle Mould Manufacturer 9kw PET Moulding 730x450x480mm
SKD61 PET Bottle Mould Manufacturer 9kw PET Moulding 730x450x480mm
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE SGS ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $600.00 - $8,200.00/Sets
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000 Set/Sets per Year
Contact Now
Detailed Product Description
Shaping Mode: Plastic Injection Mould Product Material: Steel
Product: PET Injection Preform Mold Cavities: 24
Mould Frame Material: 4Cr13 Stainless Steel Valve Pin Brand: SKD61 (Japan)
Heater Ring Brand: Hotest(Germany) The Mould Features: Self-lock,air Seal, Valve Gate
High Light:

SKD61 pet bottle mould manufacturer

,

pet moulding 730x450x480mm

,

pet bottle mould manufacturer 9kw

Eceng Multi Cavities PET 28MM 28g bottle Preform Mould manufacturer in china with Hot Runner



SKD61 PET Bottle Mould Manufacturer 9kw PET Moulding 730x450x480mm 0

The Specification Of Hot Runner Preform Mould
Cavities 24-cavities
Mould frame material 4Cr13 Stainless steel
Core material S136
cavity material S136
Valve Pin Brand SKD61 (Japan)
Heat insulation tip Brand DuPont(America)
Heater ring brand Hotest(Germany)
Runner structure
enter runner one gate
base runner 3 points
Sub channel 24 points
Mould information
Mold outline size 730x450x480mm
Mould weight 1300KGS
The mould features Self-lock,air seal, valve gate
Cycle times 28 seconds
Mould power 9 kw
After-sales Service
Mould life More than 3 million shot injection times
Guarantee period One Year
Payment terms

50% deposit in advance

50% balance before shipping

Packaging requirement
standard export packaging.
Product information Neck size:30mm
Weight:13grams

Eceng Multi Cavities PET 28MM 28g bottle Preform Mould manufacturer in china with Hot Runner

instructions
1: The number of preform cavity from 1 to 96.
2: The bottle preform is designed by computer simulation tensile test to improve the finished product rate of the blown bottle.
3: Adopt the world advanced two-level double-taper positioning technology, each cavity is self-locked independently, to ensure the concentricity of the mold.
4: Mold injection cavity and injection core are made of high quality preheating special die steel from the original Factory in Sweden.
5: Thread mouth according to international standard manufacturing, the material selection of imported nitriding, high hardness, long service life. 6: Advanced design of hot runner, uniform heating temperature, improve the quality of plastic products.
7: no shear gate, reduce the labor intensity of workers.
8: Mold life is guaranteed to be more than 3 million mold times.

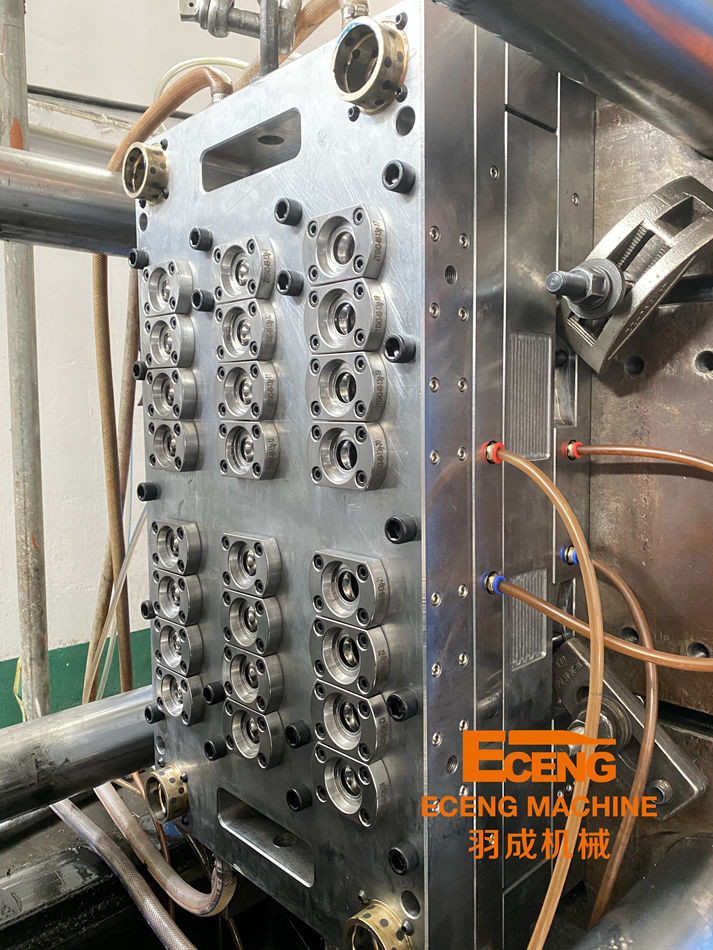

SKD61 PET Bottle Mould Manufacturer 9kw PET Moulding 730x450x480mm 1

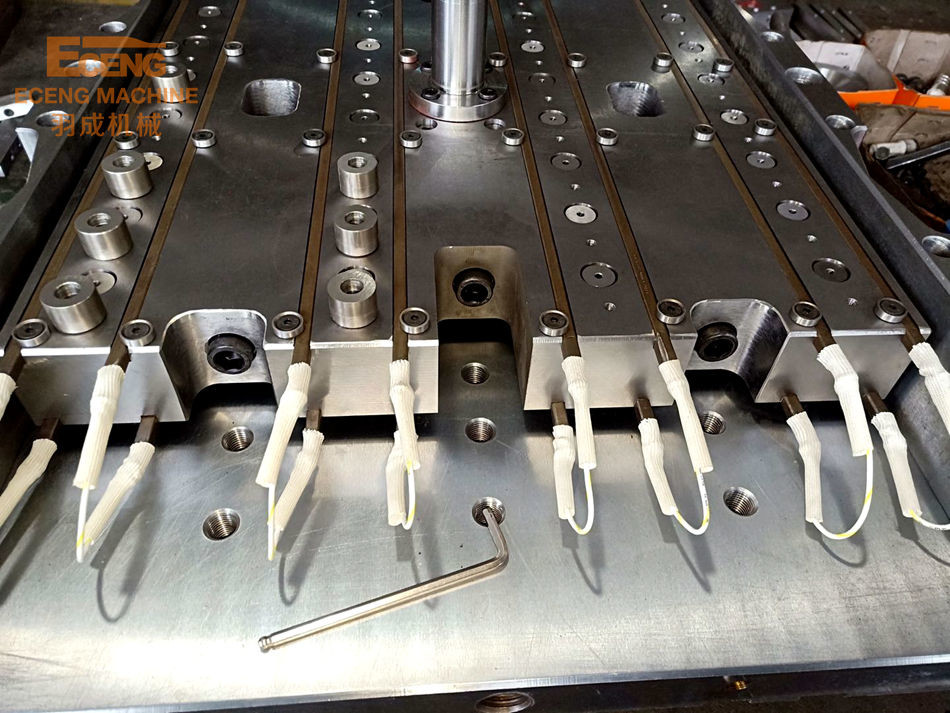

SKD61 PET Bottle Mould Manufacturer 9kw PET Moulding 730x450x480mm 2

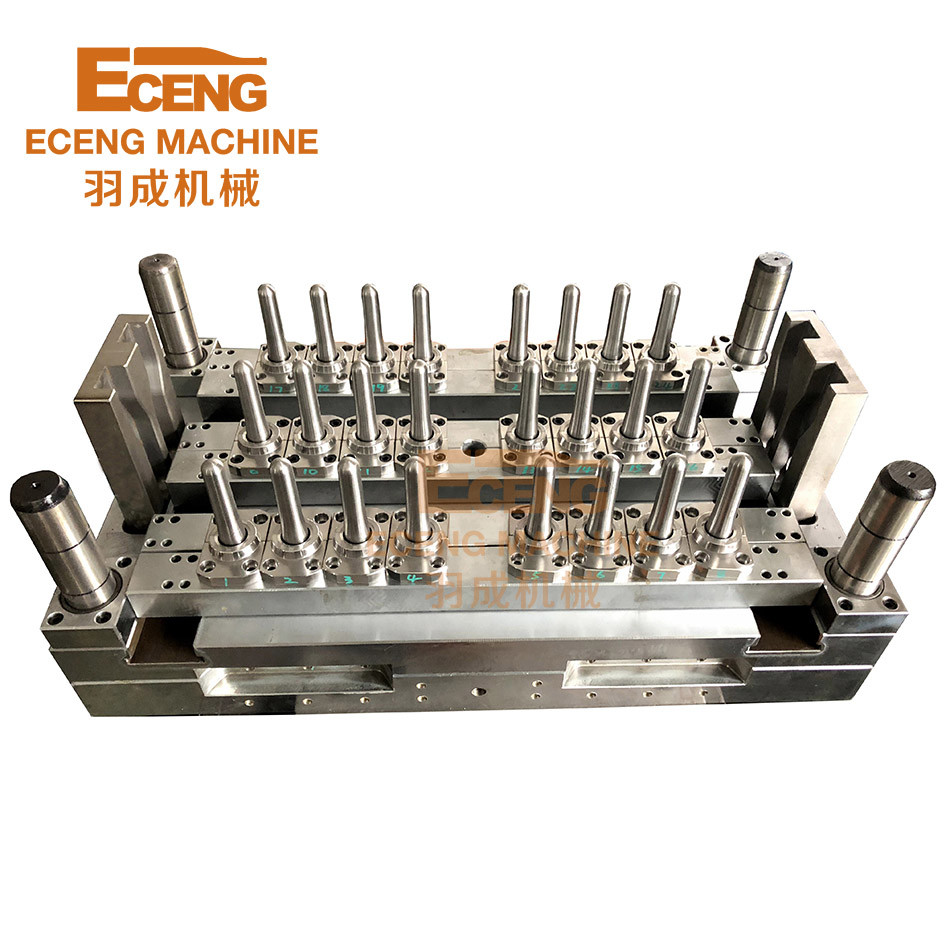

SKD61 PET Bottle Mould Manufacturer 9kw PET Moulding 730x450x480mm 3

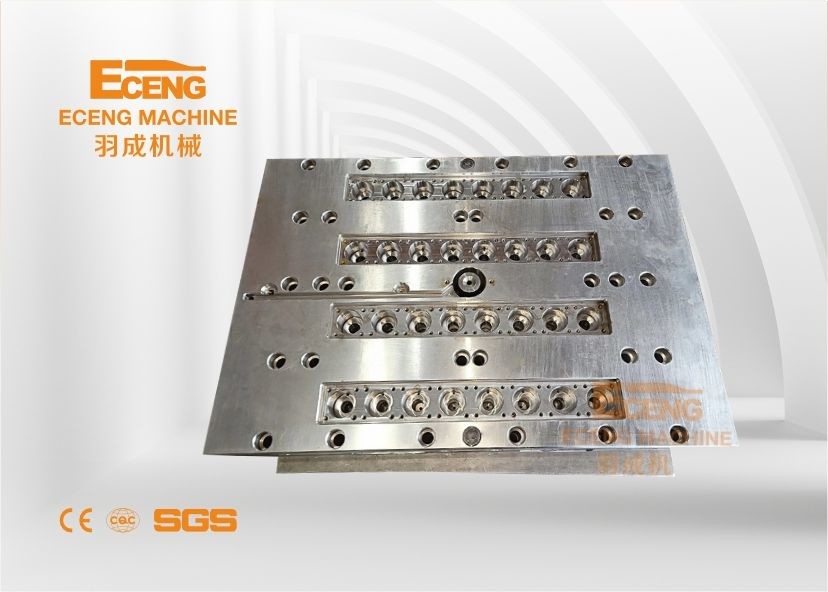

SKD61 PET Bottle Mould Manufacturer 9kw PET Moulding 730x450x480mm 5

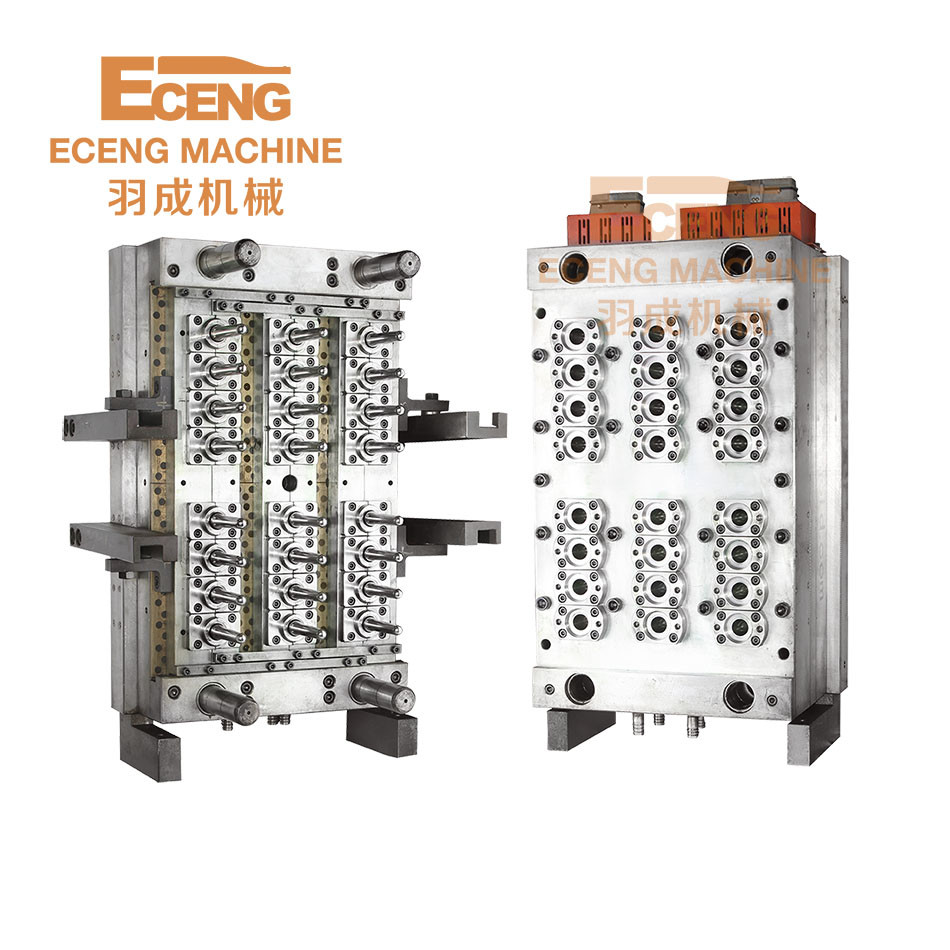

SKD61 PET Bottle Mould Manufacturer 9kw PET Moulding 730x450x480mm 6



SKD61 PET Bottle Mould Manufacturer 9kw PET Moulding 730x450x480mm 9

Our company specializes in manufacturing plastic machinery and moulds. We are mainly engaged in making automatic PET blow mould machine, semi-automatic PET blow machine, PE/PP/PVE/HDPE extruding blowing machine, injection machine and all kinds of moulds. We have been committed to the design of plastic bottle making machine, especially the fully-automatic PET blow mould machine, from 300ml- 20L. Our machine complying with CE certification has good quality with praise by our customers. Our standard spares are free. We insist on quality first. What's more, we design kinds of plastic moulds for domestic and foreign customers. With a professional design team, we use advanced CAD / CAM / CAE system. We have gained a well-known reputation from our customers.
