Blow your bottle, Shape your dream
 |
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $3,000.00 - $39,900.00/Sets |
| Packaging Details: | standard export wooden case or according to your requirements |
| Delivery Time: | 45days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000 Set/Sets per Year |
| Shaping Mode: | Plastic Injection Mould | Product Material: | Steel |
|---|---|---|---|
| Product: | PET Injection Preform Mold | Cavities: | 32 |
| Mould Frame Material: | 4Cr13 Stainless Steel | Core Material: | S136 |
| Cavity Material: | S136 | Valve Pin Brand: | SKD61 (Japan) |
| Heater Ring Brand: | Hotest(Germany) | Mold Outline Size: | 780x560x590mm |
| Mould Weight: | 1300KGS | The Mould Features: | Self-lock,air Seal, Valve Gate |
| Port: | Shanghai | ||
| High Light: | 32 cavity pet bottle mold manufacturer,24mm plastic mold steel grades,plastic mold steel grades 32 cavity |
||
|

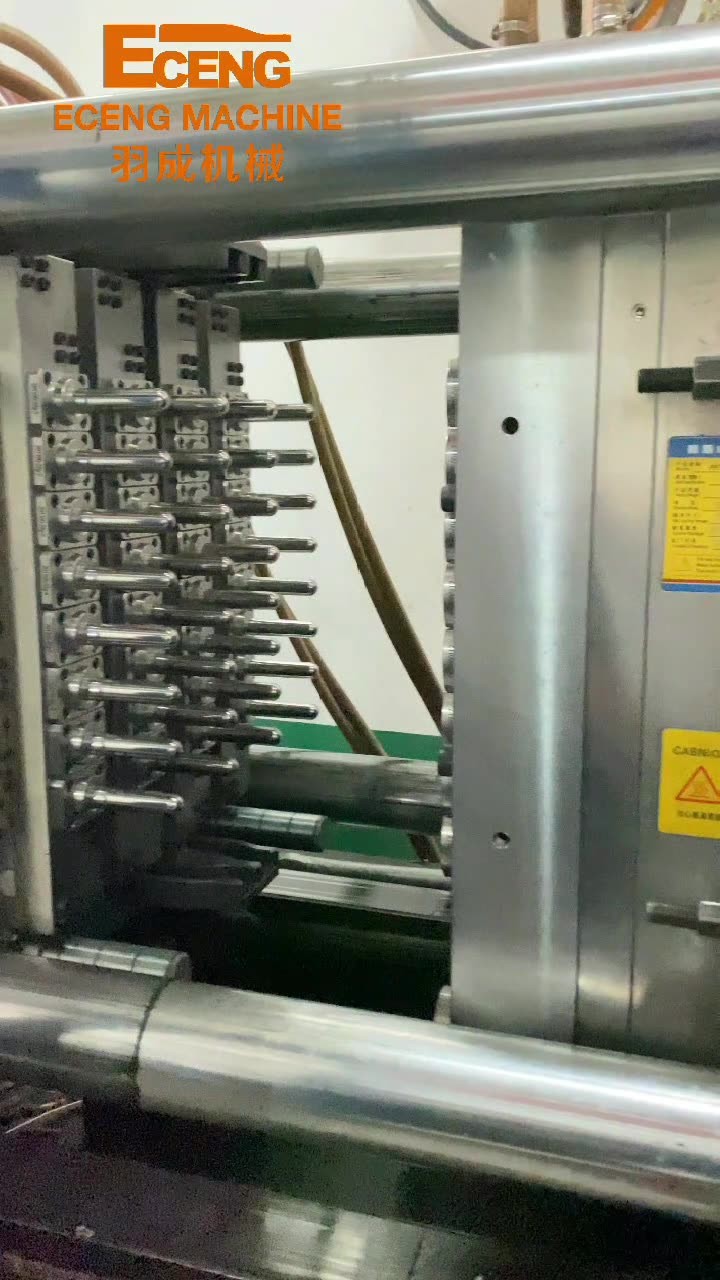

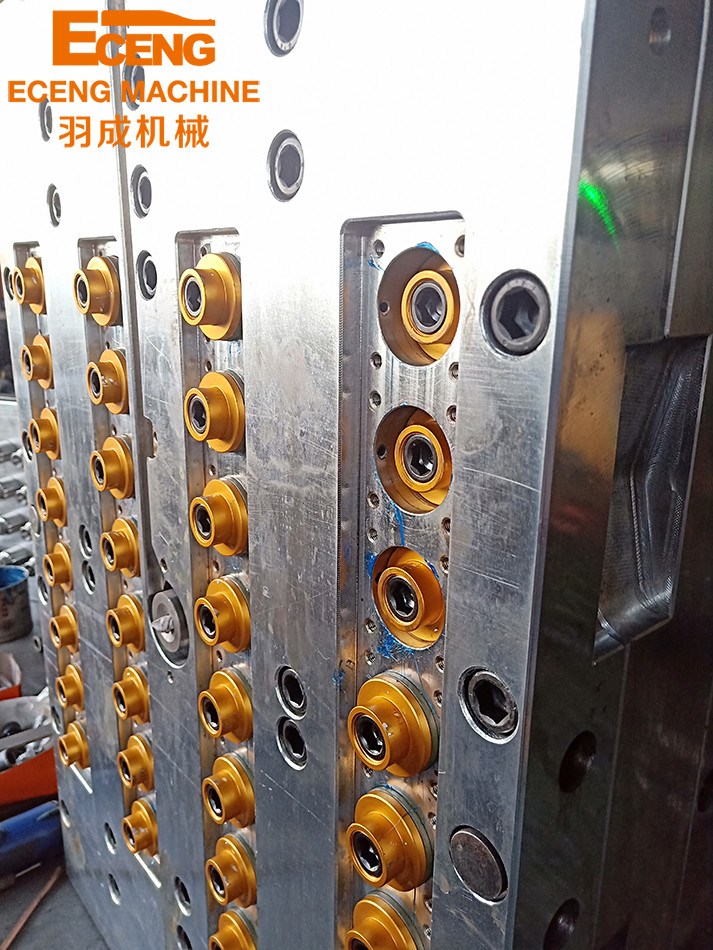

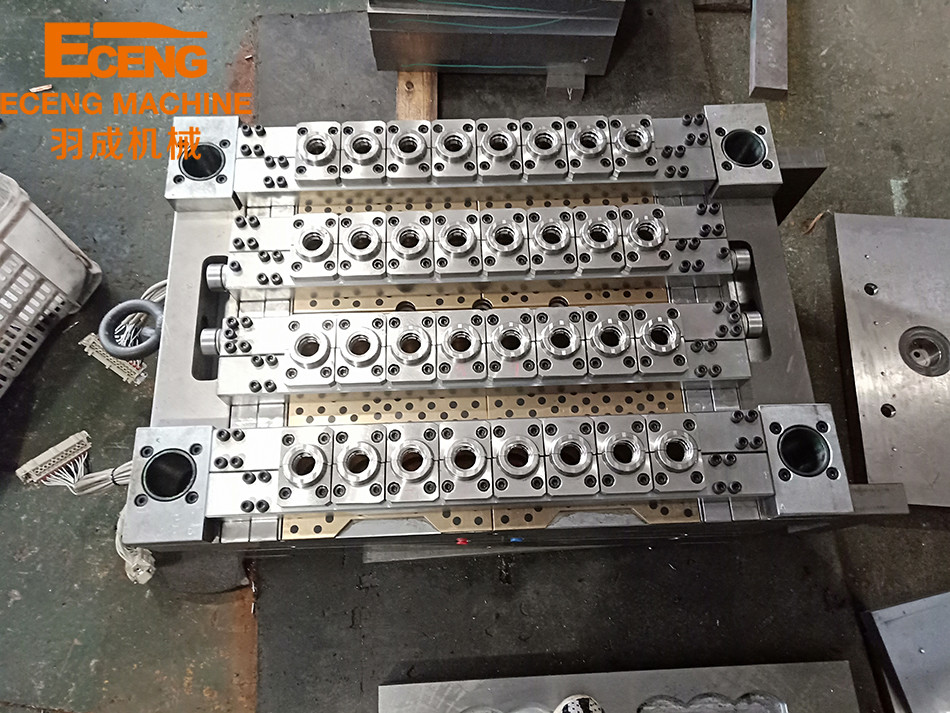

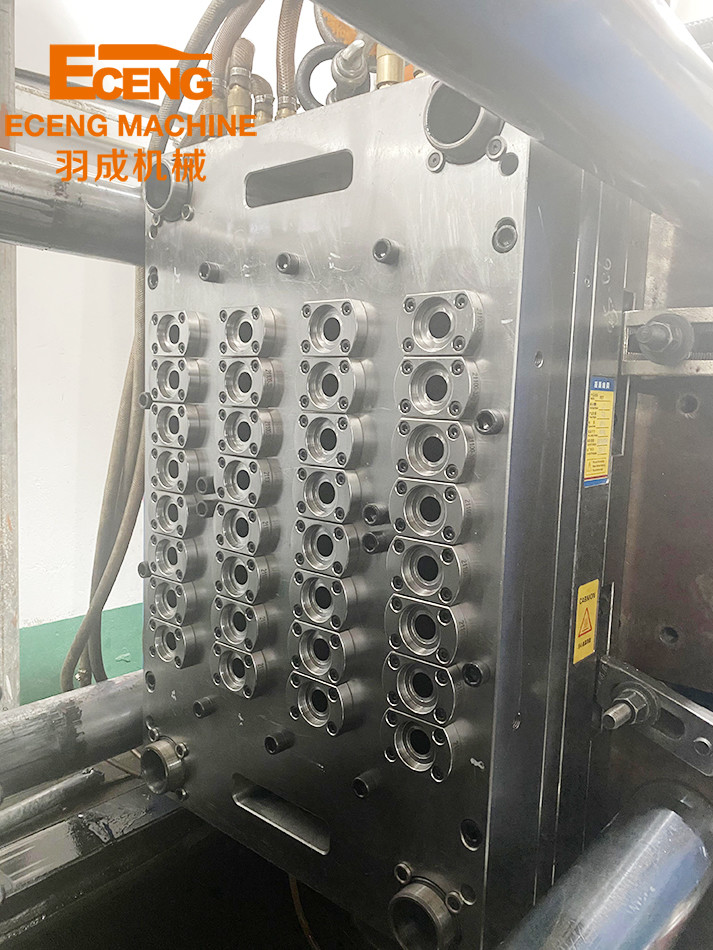

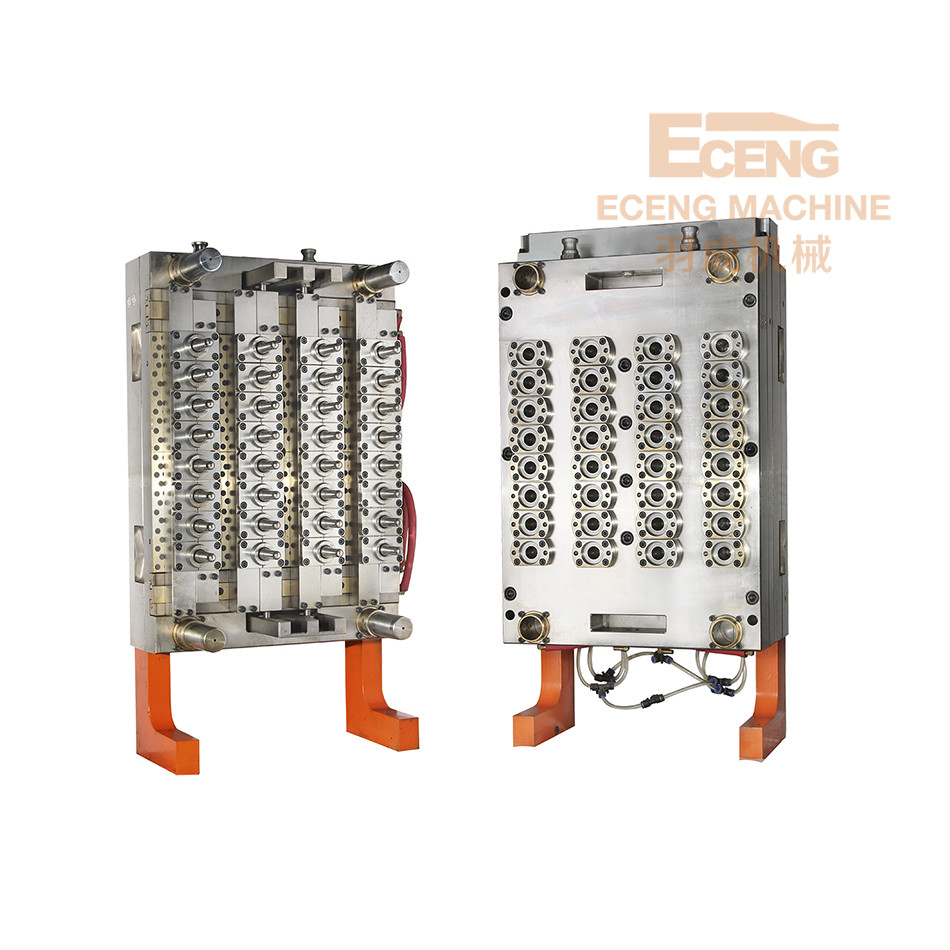

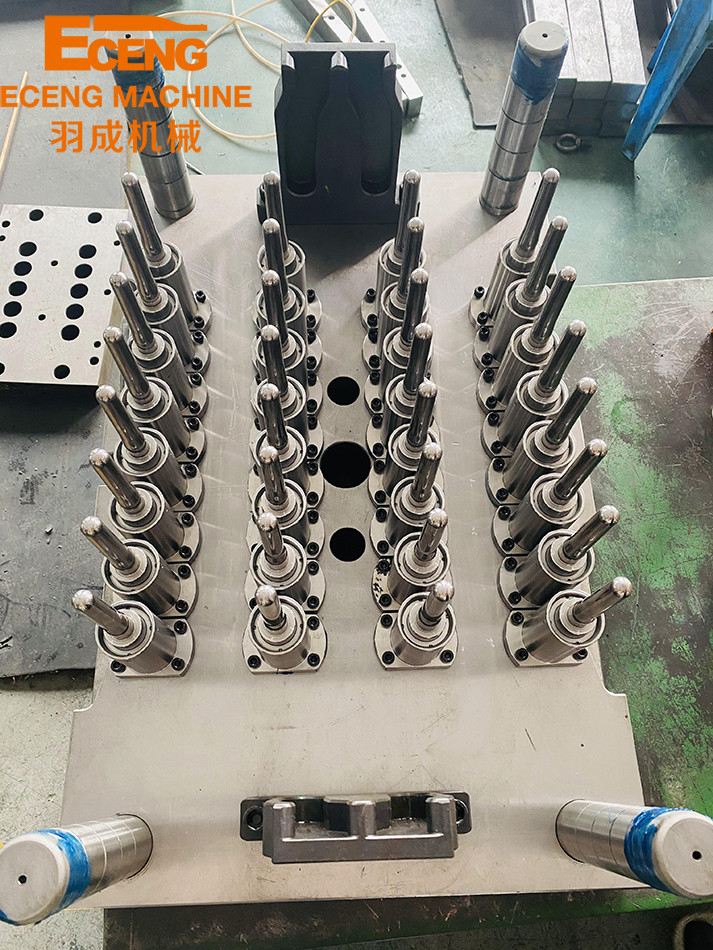

The Specification Of Hot Runner Preform Mould
|
|
|
|
Cavities
|
32-cavities
|
|
|
Mould frame material
|
4Cr13 Stainless steel
|
|
|
Core material
|
S136
|
|
|
cavity material
|
S136
|
|
|
Valve Pin Brand
|
SKD61 (Japan)
|
|
|
Heat insulation tip Brand
|
DuPont(America)
|
|
|
Heater ring brand
|
Hotest(Germany)
|
|
|
Runner structure
|
|
|
|
enter runner
|
one gate
|
|
|
base runner
|
4 points
|
|
|
Sub channel
|
32 points
|
|
|
Mould information
|
|
|
|
Mold outline size
|
780x560x590mm
|
|
|
Mould weight
|
1300KGS
|
|
|
The mould features
|
Self-lock,air seal, valve gate
|
|
|
Cycle times
|
20 seconds
|
|
|
Mould power
|
9 kw
|
|
|
After-sales Service
|
|
|
|
Mould life
|
More than 3 million shot injection times
|
|
|
Guarantee period
|
One Year
|
|
|
Payment terms
|
30% deposit in advance
|
|
|
|
70% balance before shipping
|
|
|
Packaging requirement
|
standard export packaging
|
|
|
Product information
|
Neck size:28mm
|
|
|
|
Weight:20grams
|
|
