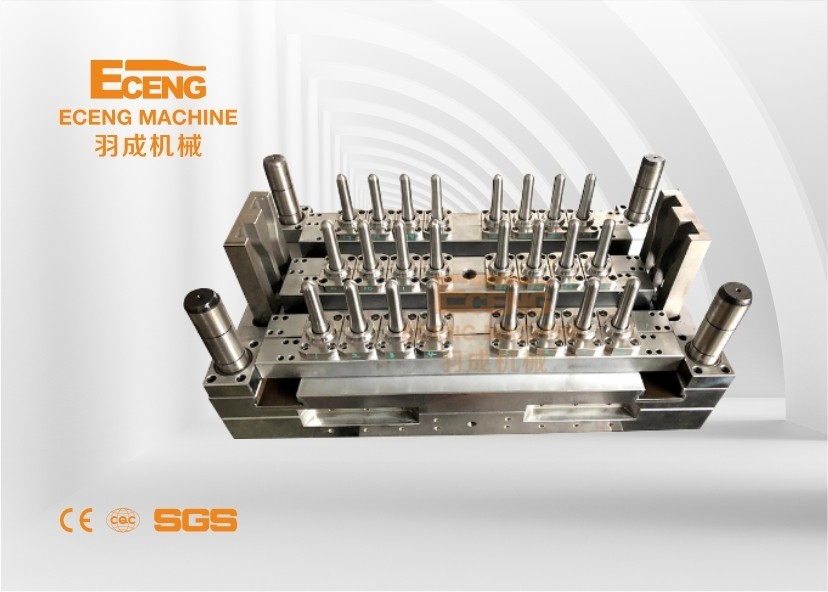

28mm PET Preform Mold 24 Cavities Water Bottle Blow Molding

28mm PET Preform Mold 24 Cavities Water Bottle Blow Molding

  • 28mm PET Preform Mold 24 Cavities Water Bottle Blow Molding
  • 28mm PET Preform Mold 24 Cavities Water Bottle Blow Molding
  • 28mm PET Preform Mold 24 Cavities Water Bottle Blow Molding
  • 28mm PET Preform Mold 24 Cavities Water Bottle Blow Molding
  • 28mm PET Preform Mold 24 Cavities Water Bottle Blow Molding
  • 28mm PET Preform Mold 24 Cavities Water Bottle Blow Molding
  • 28mm PET Preform Mold 24 Cavities Water Bottle Blow Molding
28mm PET Preform Mold 24 Cavities Water Bottle Blow Molding
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE SGS ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $600.00 - $8,200.00/Sets
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000 Set/Sets per Year
Contact Now
Detailed Product Description
Shaping Mode: Plastic Injection Mould Product Material: Steel
Product: PET Injection Preform Mold Cavities: 24
Mould Frame Material: 4Cr13 Stainless Steel Core Material: S136
Cavity Material: S136 Valve Pin Brand: SKD61 (Japan)
Heater Ring Brand: Hotest(Germany) Mold Outline Size: 730x450x480mm
Mould Weight: 1300KGS The Mould Features: Self-lock,air Seal, Valve Gate
Port: Shanghai
High Light:

28mm pet preform mold

,

24 cavities pet preform mold

,

24 cavities water bottle blow molding

Eceng zhangjiagang 28mm water bottle 24 cavities pet preform injection mold manufacturer
Product Description
28mm PET Preform Mold 24 Cavities Water Bottle Blow Molding 0
28mm PET Preform Mold 24 Cavities Water Bottle Blow Molding 2
28mm PET Preform Mold 24 Cavities Water Bottle Blow Molding 4
28mm PET Preform Mold 24 Cavities Water Bottle Blow Molding 6
28mm PET Preform Mold 24 Cavities Water Bottle Blow Molding 8
28mm PET Preform Mold 24 Cavities Water Bottle Blow Molding 10
28mm PET Preform Mold 24 Cavities Water Bottle Blow Molding 12
28mm PET Preform Mold 24 Cavities Water Bottle Blow Molding 14
Specification
The Specification Of Hot Runner Preform Mould

Cavities
24-cavities
Mould frame material
4Cr13 Stainless steel
Core material
S136
cavity material
S136
Valve Pin Brand
SKD61 (Japan)
Heat insulation tip Brand
DuPont(America)
Heater ring brand
Hotest(Germany)
Runner structure

enter runner
one gate
base runner
3 points
Sub channel
24 points
Mould information

Mold outline size
730x450x480mm
Mould weight
1300KGS
The mould features
Self-lock,air seal, valve gate
Cycle times
28 seconds
Mould power
9 kw
After-sales Service

Mould life
More than 3 million shot injection times
Guarantee period
One Year

Payment terms
50% deposit in advance

50% balance before shipping
Packaging requirement
standard export packaging

Product information
Neck size:30mm

Weight:13grams
Eceng zhangjiagang 28mm water bottle 24 cavities pet preform injection mold manufacturer
instructions 1: The number of preform cavity from 1 to 96. 2: The bottle preform is designed by computer simulation tensile test to improve the finished product rate of the blown bottle. 3: Adopt the world advanced two-level double-taper positioning technology, each cavity is self-locked independently, to ensure the concentricity of the mold. 4: Mold injection cavity and injection core are made of high quality preheating special die steel from the original Factory in Sweden. 5: Thread mouth according to international standard manufacturing, the material selection of imported nitriding, high hardness, long service life. 6: Advanced design of hot runner, uniform heating temperature, improve the quality of plastic products. 7: no shear gate, reduce the labor intensity of workers. 8: Mold life is guaranteed to be more than 3 million mold times.
Packing & Delivery
28mm PET Preform Mold 24 Cavities Water Bottle Blow Molding 16
Company Profile
28mm PET Preform Mold 24 Cavities Water Bottle Blow Molding 18
28mm PET Preform Mold 24 Cavities Water Bottle Blow Molding 20
Our company specializes in manufacturing plastic machinery and moulds. We are mainly engaged in making automatic PET blow mould machine, semi-automatic PET blow machine, PE/PP/PVE/HDPE extruding blowing machine, injection machine and all kinds of moulds. We have been committed to the design of plastic bottle making machine, especially the fully-automatic PET blow mould machine, from 300ml- 20L. Our machine complying with CE certification has good quality with praise by our customers. Our standard spares are free. We insist on quality first. What's more, we design kinds of plastic moulds for domestic and foreign customers. With a professional design team, we use advanced CAD / CAM / CAE system. We have gained a well-known reputation from our customers.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2010,sell to Southeast Asia(30.00%),Africa(20.00%),Domestic Market(20.00%),Mid East(15.00%),South America(10.00%),North America(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Fully Auto Bottle Blowing Machine

4. why should you buy from us not from other suppliers?
We have been committed to the design of plastic bottle making machine, especially the fully-automatic PET blow mould machine, from 300ml- 20L. Our machine complying with CE certification has good quality with praise by our customers. Our standard spares ar

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
