Place of Origin: | Jiangsu, China |
Brand Name: | Eceng |
Certification: | CE SGS ISO |
Minimum Order Quantity: | 1set |
---|---|
Packaging Details: | standard export wooden case or according to your requirements |
Delivery Time: | 30days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50000 Set/Sets per Year |
Shaping Mode: | Plastic Injection Mould | Product Material: | Steel |
---|---|---|---|
Product: | PET Injection Preform Mold | Cavities: | 24 |
Mould Frame Material: | 4Cr13 Stainless Steel | Core Material: | S136 |
Cavity Material: | S136 | Valve Pin Brand: | SKD61 (Japan) |
Heater Ring Brand: | Hotest(Germany) | Mold Outline Size: | 730x450x480mm |
Mould Weight: | 1300KGS | The Mould Features: | Self-lock,air Seal, Valve Gate |
Port: | Shanghai | ||
Highlight: | 4Cr13 SS PET Bottle Mould,730x450x480mm injection molding,4Cr13 SS injection molding |

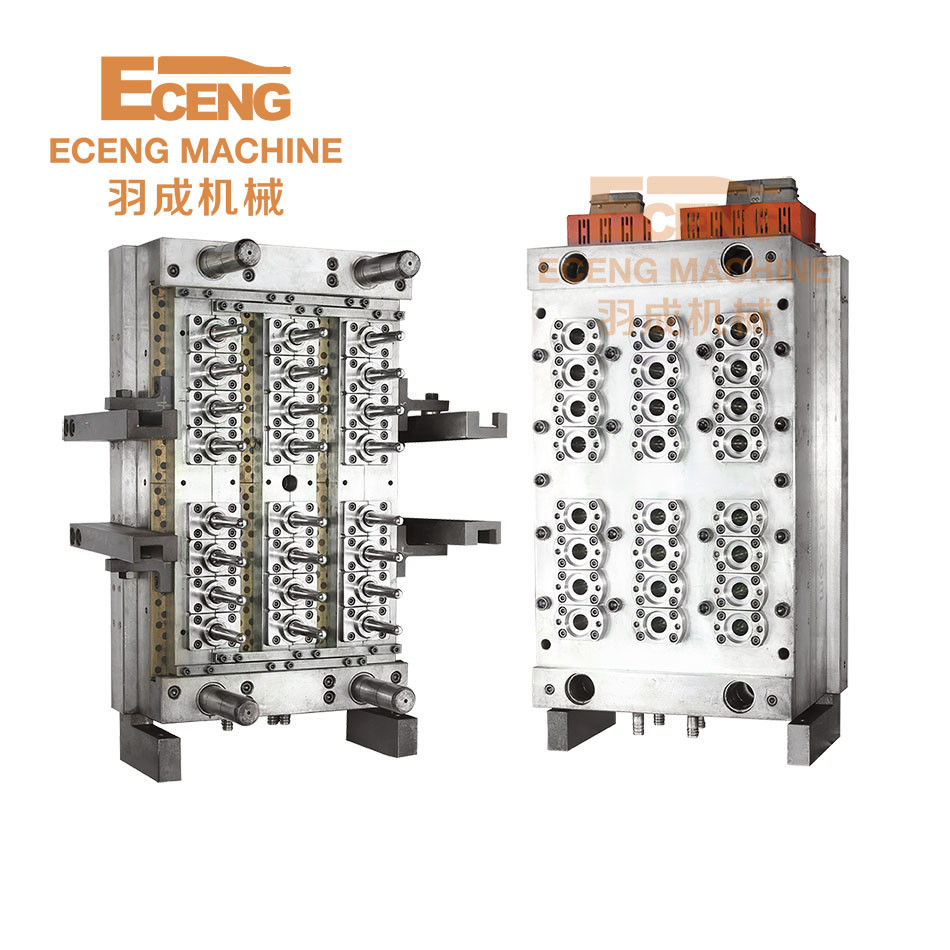

The Specification Of Hot Runner Preform Mould
|
|
|
Cavities
|
24-cavities
|
|
Mould frame material
|
4Cr13 Stainless steel
|
|

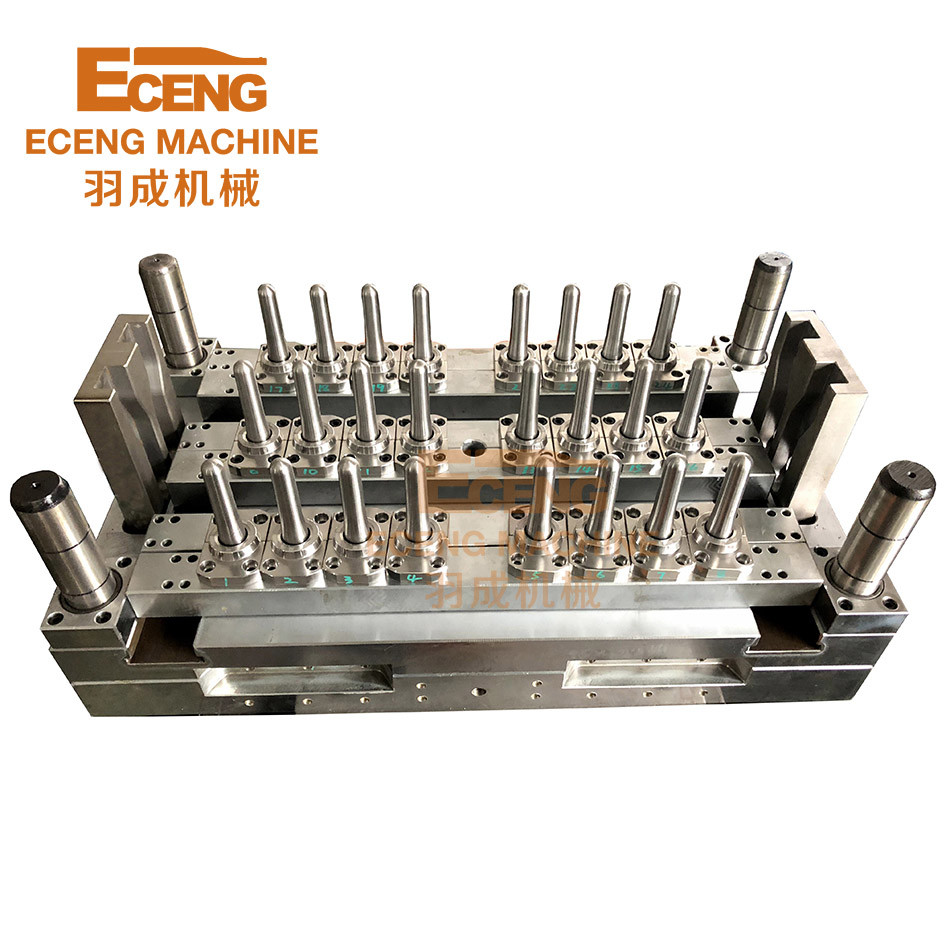

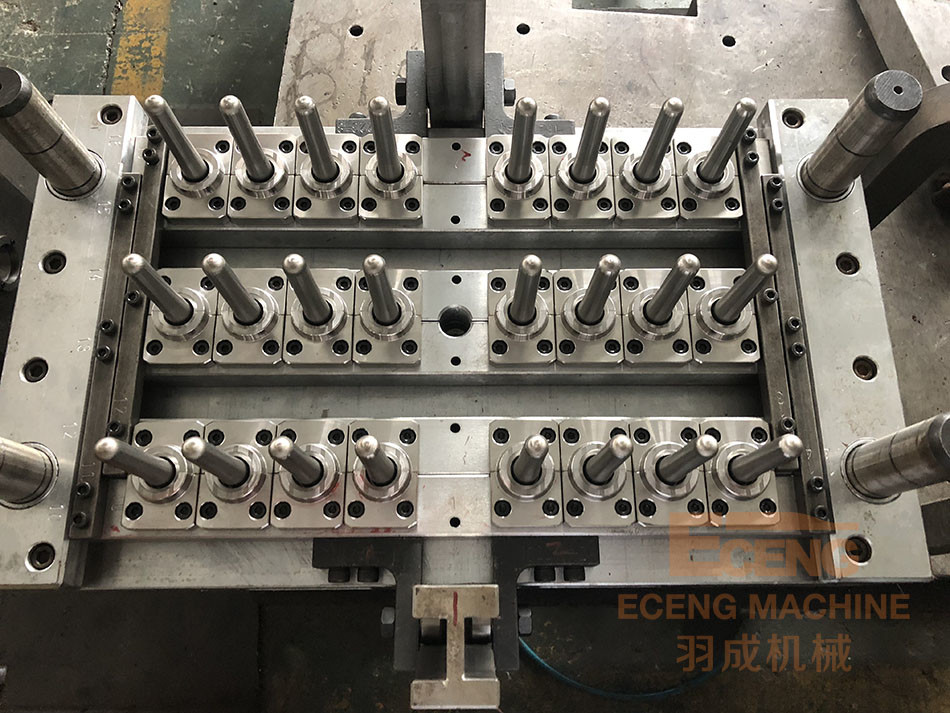

Core material
|
S136
|
|
cavity material
|
S136
|
|
Valve Pin Brand
|
SKD61 (Japan)
|
|
Heat insulation tip Brand
|
DuPont(America)
|
|
Heater ring brand
|
Hotest(Germany)
|
|
Runner structure
|
|
|
enter runner
|
one gate
|
|
base runner
|
3 points
|
|
Sub channel
|
24 points
|
|
Mould information
|
|
|
Mold outline size
|
730x450x480mm
|
|
Mould weight
|
1300KGS
|
|
The mould features
|
Self-lock,air seal, valve gate
|
|
Cycle times
|
28 seconds
|
|
Mould power
|
9 kw
|
|
After-sales Service
|
|
|
Mould life
|
More than 3 million shot injection times
|
|
Guarantee period
|
One Year
|
|
Payment terms
|
50% deposit in advance
|
|
|
50% balance before shipping
|
|
Packaging requirement
|
standard export packaging
|
|

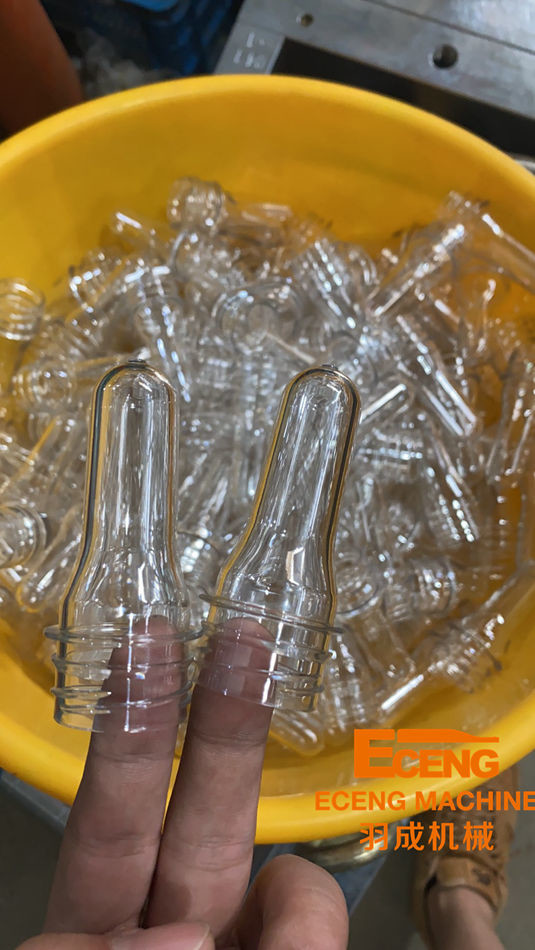

Product information
|
Neck size:30mm
|
|
|
Weight:13grams
|
