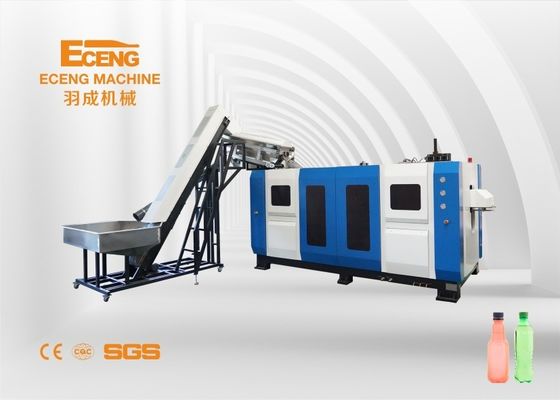

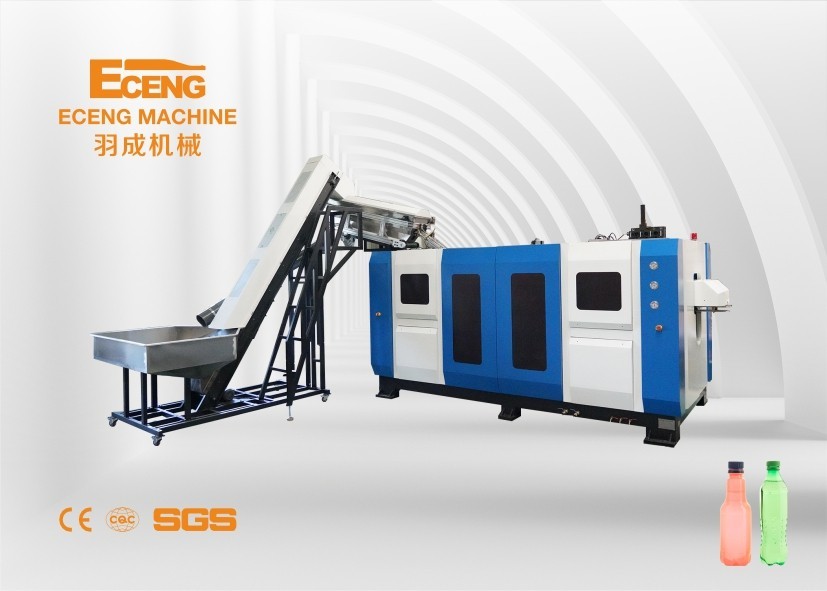

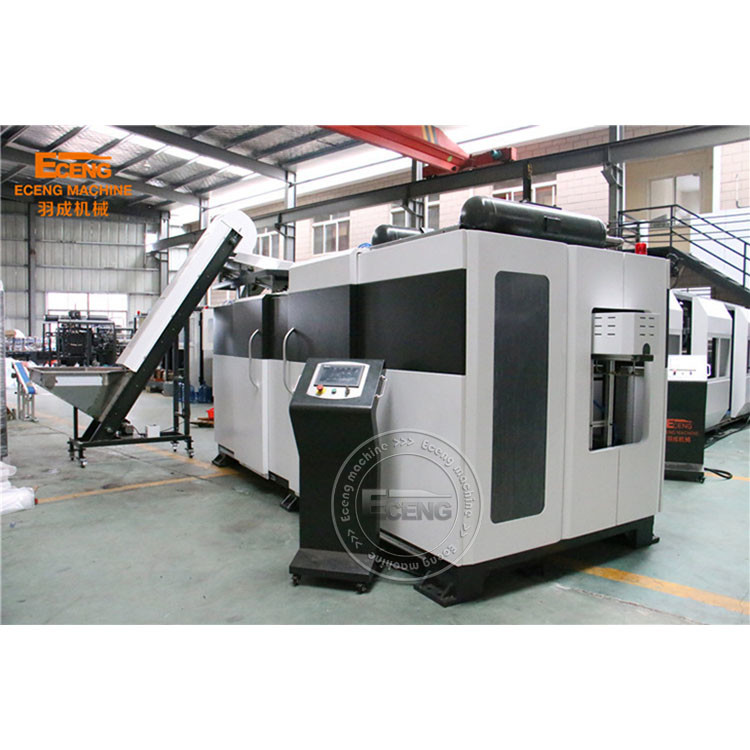

SMC Automatic Blow Molding Machine 4 Cavity Mineral Water Bottle Manufacturing

Name: SMC Automatic Blow Molding Machine 4 Cavity Mineral Water Bottle Manufacturing
Brand: Eceng
SKU: K4
Rating: 4.8 (166 reviews)

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Eceng
Certification:	CE ISO
Model Number:	K4

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	standard export wooden case or according to your requirements
Delivery Time:	45days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	500 Set/Sets per Year

Contact Now

Detailed Product Description

Blow Moulding Type:	Stretch Blow Moulding	Voltage:	380V,50HZ
Dimension(LWH):	3.31.61.9m	Hollow Part Volume:	2L
PLC Brand:	DELTA	Weight (KG):	3400 KG
Automation:	Automatic	Warranty:	1 Year
Key Selling Points:	Automatic	Applicable Industries:	Manufacturing Plant
High Light:	SMC Automatic Blow Molding Machine , SMC mineral water bottle manufacturing machine , 4 cavity mineral water bottle manufacturing machine

Eceng K4 Electronic Components water blowing machine mineral pet Shower gel bottle pasteurization tunnel With Cheap Pri

specification

Model K4
Bottle type specification	Cavity	4
		Max.volume	2L
		Bottle mouth maximum overall diameter	25-29mm
		Bottle biggest diameter	100mm
		Bottle maximum height	330mm
Capacity specification	Theory output	6000BPH
		Bottle type volume	600ML
		Bottle type weight	13.5g
		Bottle type	Round

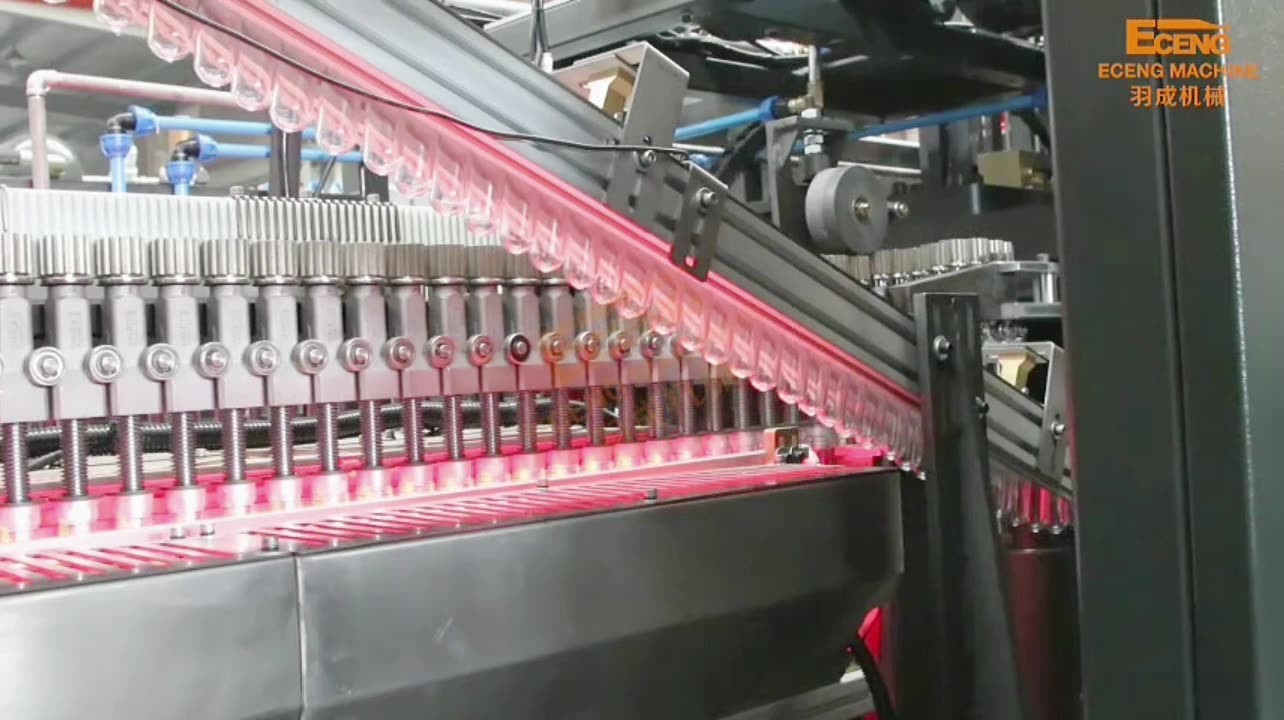

Power specification	Light tube quantity	16pcs
		Light tube power	1.25KW
		Maximum heating power	20KW
		All electric machine installation	29KW
		Actual consumption	30%--60%
Air pressure specification	Work pressure	5-6kg/cm2
		Blow bottle pressure	25-45kg/cm2
		Higher -pressure gas consumption	6000Ltr/min
Air pressure specification	Work pressure	5-6 kg/cm2
		Temperature range	10℃
		Consumption	6000kcal/hr
		Forzen water flow	120L/min
Machine specification	Machine size	3.6x1.6x1.9
Machine specification		Machine weight	4.3ton

Eceng K4 Electronic Components water blowing machine mineral pet Shower gel bottle pasteurization tunnel With Cheap Prices

K series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 4 cavity to 12 cavity with a speed of 1500 bottles per hour (750 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

Automatic 4 cavity plastic alcohol bottle stretch blow molding moulding machine

Kseries linear bottle blowing machine features:

1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.

2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.

3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.

4. manual and automatic methods of operation, human-machine interface control, simple operation.

5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.

6. less than 0.2% scrap rate for finished bottle .

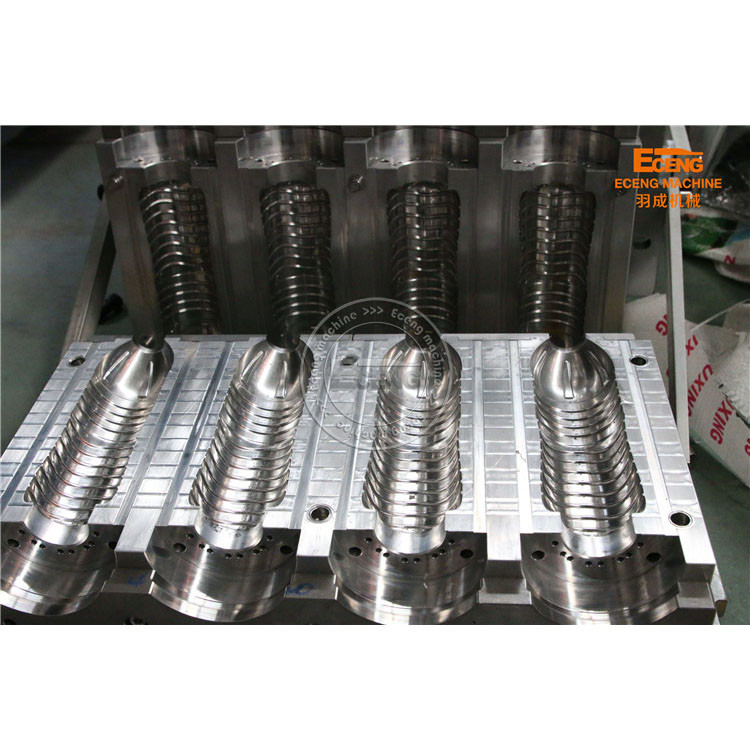

blowing mould

our advantage

1. Resonable price

2. Good after service

3. experienced skilled workers and professional engineers

4. Good quality ,excellent service ,long life mould

5. on time delivery time

6.our engineers can be online for 24 hours to serve you

Company Introduction

Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,located in Zhangjiagang city,only 120km away from Shanghai.We are professional manufacturer of PET bottle blowing machines and plastic molds. We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 20,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging. Our products has covered all over China and exported to more than 100 countries,including Southest Asia,Middle East,South America,Africa etc.We’d like to provide high quality solution to clients with our enthusiasm and rich experience.We sincerely hope to establish business relationship with friends all over the world.

Packing&Shipping

Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.

After Sales Service

1.Installation, debug

We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.

2. Training

Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. the sample service

1' We can send you the video of the running machine.

2' You are welcome to come to visit our factory,and see the machine running.

4. We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.

5. well-trained & experienced staff are to answer all your inquiries in English and Chinese

6 .12 Months guarantee and life-long technical support.

7. Your business relationship with us will be confidential to any third party.

8. Good after-sale service offered, please get back to us if you got any questions.
