2. Good after service
3. experienced skilled workers and professional engineers
4. Good quality ,excellent service ,long life mould
5. on time delivery time
6.our engineers can be online for 24 hours to serve you
Place of Origin: | China |
Brand Name: | eceng |
Certification: | CE/ISO |
Model Number: | k6 |
Minimum Order Quantity: | 1set |
---|---|
Price: | $35,900.00/Sets 1-1 Sets |
Packaging Details: | packed by wooden pallet or as customer request |
Delivery Time: | 60days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 15 Set/Sets per Month |
Plastic Processed: | PET | Max.Bottle Height(mm): | 330 Mm |
---|---|---|---|
Neck Diameter(mm): | 28 Mm | Max.Bottle Diameter(mm): | 100 Mm |
Bottle Volume(ml): | 2000 Ml | Application: | Bottle |
Automation: | Automatic | Step: | 2 |
Heating Method: | Electric Cycle Heating | Service: | Full Technical Training |
High Light: | eceng k6 pet preform blowing machine,pet preform blowing machine 9000BPH,2l blow molding machine 9000BPH |

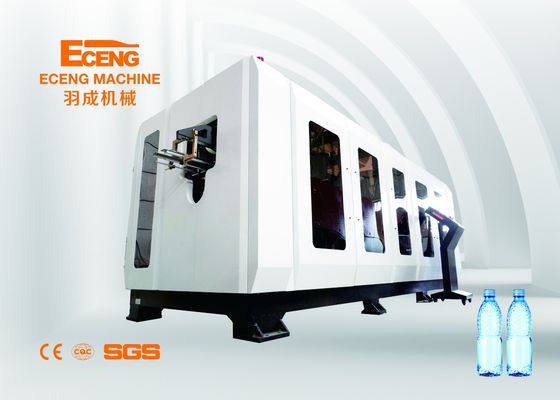

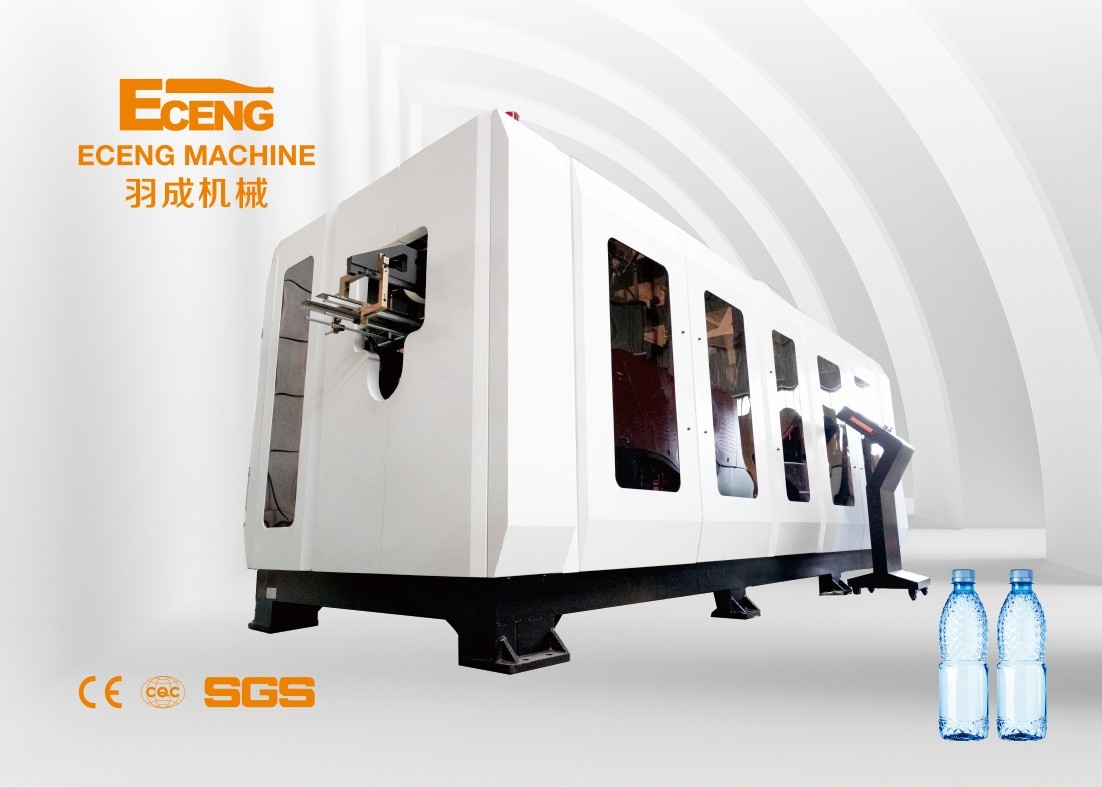

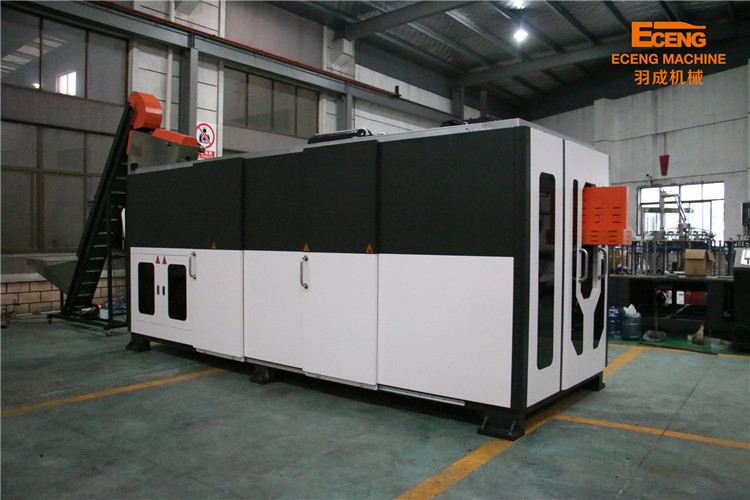

Model K6
|
|
|
||
Bottle type specification
|
Cavity
|
6
|
||
|
Max.volume
|
2L
|
||
|
Bottle mouth maximum overall diameter
|
28-30mm
|
||
|
Bottle biggest diameter
|
100mm
|
||
|
Bottle maximum height
|
330mm
|
||
Capacity specification
|
Theory output
|
9000~12000BPH
|
||
|
Bottle type volume
|
500ML
|
||
|
Bottle type weight
|
17g
|
||
|
Bottle type
|
Round
|
||
Power specification
|
Light tube quantity
|
32pcs
|
||
|
Light tube power
|
1.25KW
|
||
|
Maximum heating power
|
40KW
|
||
|
All electric machine installation
|
49KW
|
||
|
Actual consumption
|
30%--60%
|
||
Air pressure specification
|
Work pressure
|
5-6kg/cm2
|
||
|
Blow bottle pressure
|
25-45kg/cm2
|
||
|
Higher -pressure gas consumption
|
8000Ltr/min
|
||
Air pressure specification
|
Work pressure
|
5-6 kg/cm2
|
||
|
Temperature range
|
10℃
|
||
|
Consumption
|
8000kcal/hr
|
||
|
Forzen water flow
|
120L/min
|
||
Machine specification
|
Machine size
|
5.5x1.8x1.9
|
||
|
Machine weight
|
6.1ton
|
