1500BPH Water Bottle Blowing Machine 3 Phase 380V PET Bottle Manufacturing

1500BPH Water Bottle Blowing Machine 3 Phase 380V PET Bottle Manufacturing

  • High Light

    1500BPH Water Bottle Blowing Machine

    ,

    3 phase 380V pet bottle manufacturing machine

    ,

    1500BPH pet bottle manufacturing machine

  • Plastic Processed
    PET
  • Max.Bottle Height(mm)
    400 Mm
  • Neck Diameter(mm)
    150 Mm
  • Max.Bottle Diameter(mm)
    180 Mm
  • Bottle Volume(ml)
    5000 Ml
  • Condition
    New
  • Application
    Bottle, Plastic Bottle
  • Blow Moulding Type
    Stretch Blow Moulding
  • Year
    2019
  • Voltage
    3phase 380V/220V
  • Dimension(L*W*H)
    4.7x1.6x1.9(m)
  • Hollow Part Volume
    5L
  • Power (kW)
    48
  • Weight (KG)
    3000 KG
  • Automation
    Automatic
  • Warranty
    1 Year
  • Key Selling Points
    Automatic
  • Applicable Industries
    Food & Beverage Shops
  • Marketing Type
    Hot Product 2019
  • Machinery Test Report
    Provided
  • Video Outgoing-inspection
    Provided
  • Warranty Of Core Components
    1 Year
  • Automatic
    Yes
  • Color
    Orange
  • Cavity
    2
  • Output
    1500BPH
  • Factory Location
    Zhangjiagang,nearby Shanghai
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Eceng
  • Certification
    CE&ISO
  • Model Number
    YCQ-5L-2
  • Minimum Order Quantity
    1set
  • Price
    $40,000.00/Sets 1-1 Sets
  • Packaging Details
    Wooden package
  • Delivery Time
    30days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    10 Set/Sets per Month

1500BPH Water Bottle Blowing Machine 3 Phase 380V PET Bottle Manufacturing

bottle making machine / bottle stretch blowing machine YCQ-5L-2

Eceng Professional Manufacture Plastic Bottle Blowing Molding Machine water bottle making machine

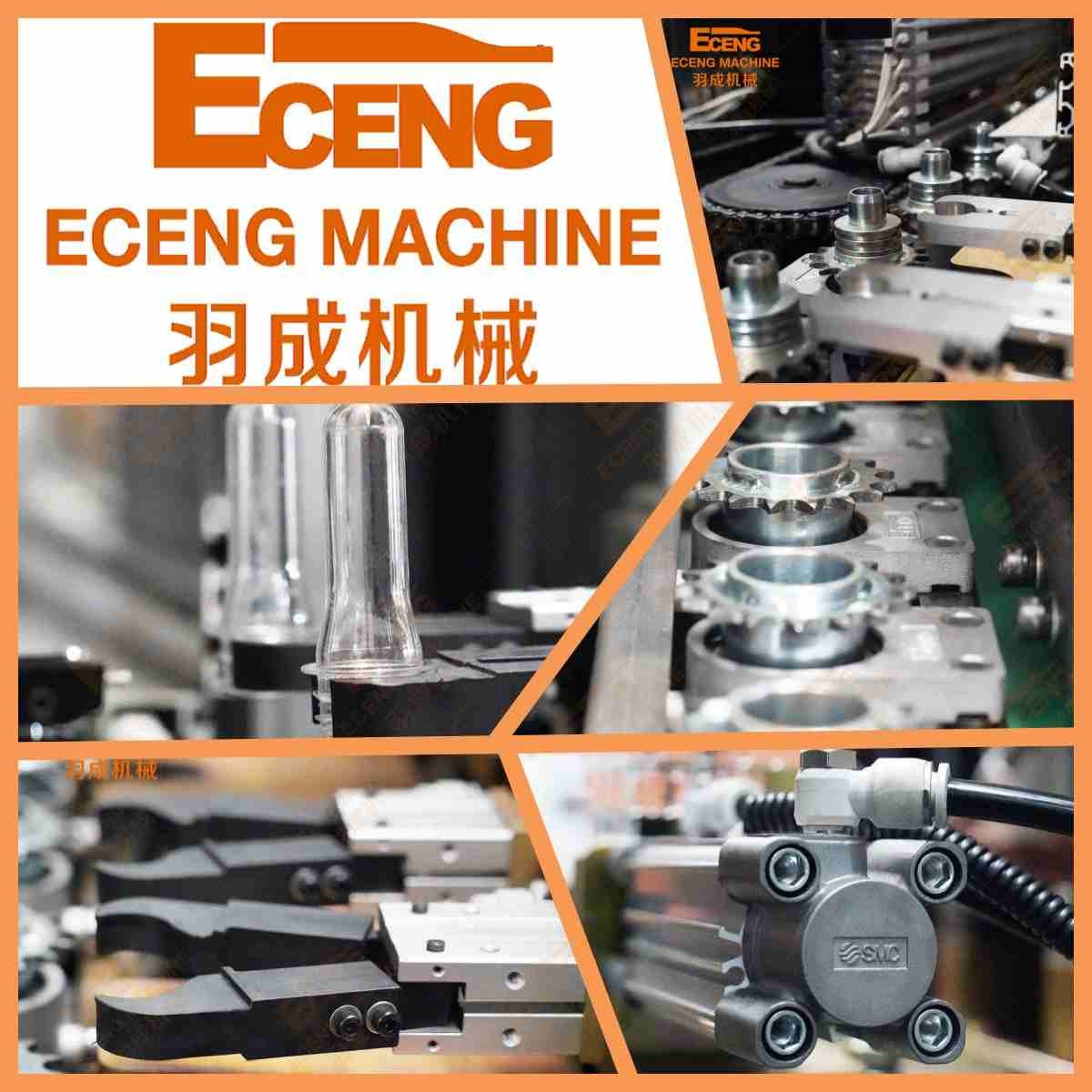

1500BPH Water Bottle Blowing Machine 3 Phase 380V PET Bottle Manufacturing 0

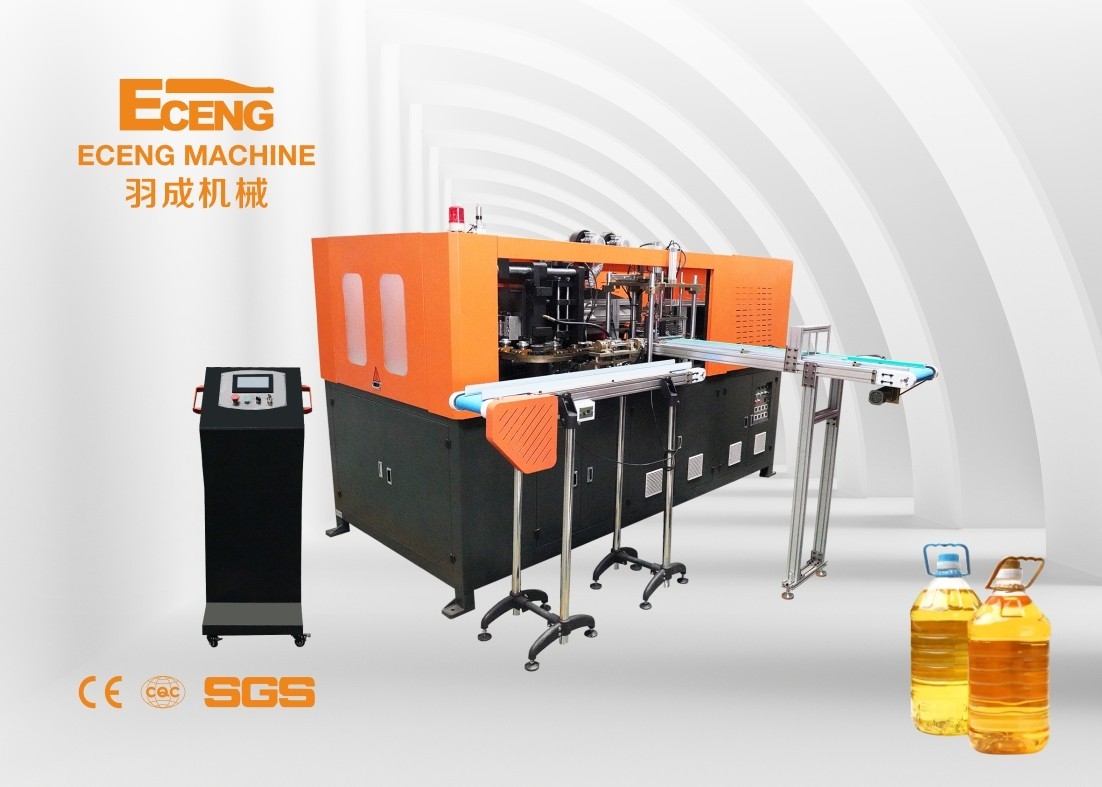

 1500BPH Water Bottle Blowing Machine 3 Phase 380V PET Bottle Manufacturing 2

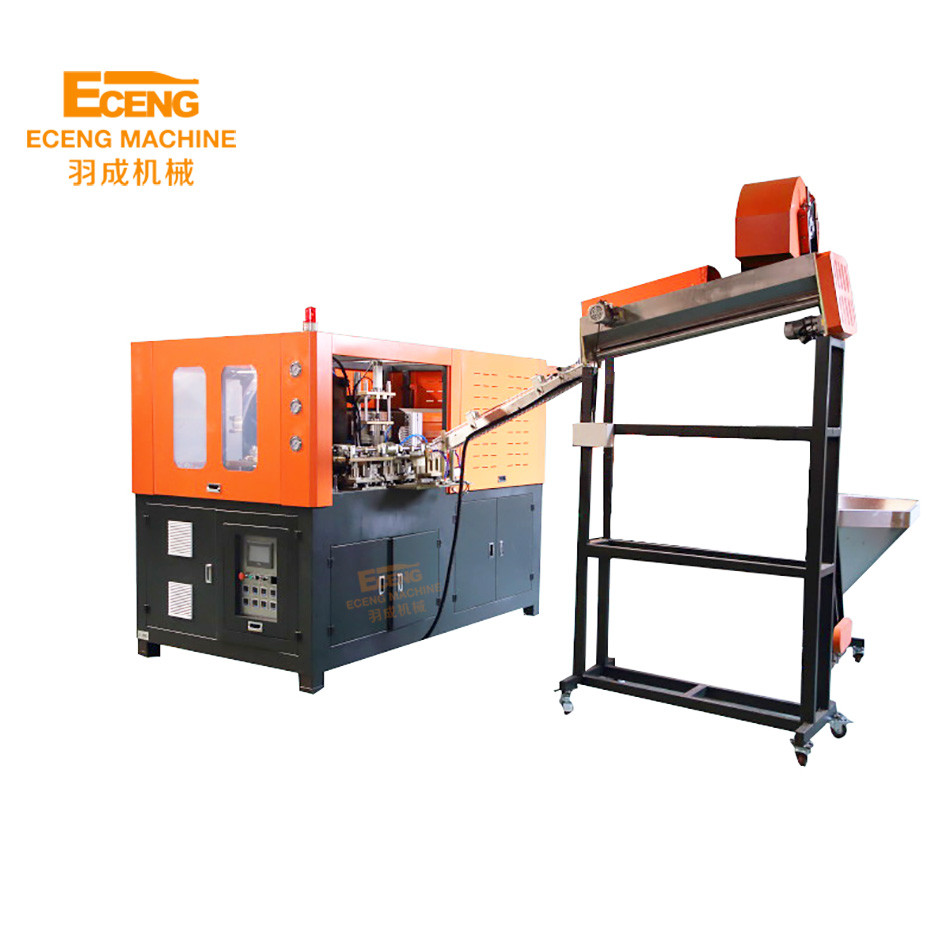

1500BPH Water Bottle Blowing Machine 3 Phase 380V PET Bottle Manufacturing 4

technical parametre-- 5L pet bottle machine



Eceng Professional Manufacture Plastic Bottle Blowing Molding Machine water bottle making machine



Item

YCQ-5L-2E

Bottle type specification

Cavity

2

Theory output

1500

Max.volume

5L

Bottle mouth maximum overall DIdiameter

150mm

Bottle biggest diameter

180mm

Bottle maximum height

400mm

Power specifications

Light tube quantity

32pcs

Light tube power

1.5KW

Maximum heating power

48KW

All electric machine installation

51KW

Actual consumption

35.7KW

Air pressure specification

Work pressure

7-9kg/cm2

Low-pressure gas consumption

1600L/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

3400Ltr/min

Forzen water specification

Work pressure

5-6 kg/cm2

Temperature range

10℃

Consumption

6000kcal/hr

Forzen water flow

50L/min

Machine specification

Size of the machine

4.7x1.6x1.9

Weight of the machine

3ton







related introduction-- 5L pet bottle machine



1). Stable performance with advanced PLC.



2). Automatic preform conveyer to save human cost.



3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.



4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.



5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.



6). Introduce the FESTO air cylinder to avoid contamination and noise.



7). Satisfaction with different atmosphShirley pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.



8). Strong clamping force with high pressure and double crank links to lock the mould.



9). Two ways of operating: automatic and manual.



10). Safe,reliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.



11). Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process.



12). Ideal cooling system make the finished bottles without any flaws.



13). Easy for you to install,test and start up.



14). Low rejection rate: less than 0.2 percent.



photo show--  5L pet bottla machine







1500BPH Water Bottle Blowing Machine 3 Phase 380V PET Bottle Manufacturing 6

company introduction



Our company, Zhangjiagang Eceng Machinery Co., Ltd. we are a special manufacturer of PET bottle blowing machine,blow molding machine and mould, We have been engaged in moulds for years, and have gained a well-known reputation from our customers who spread all over the world.
