300 500 750ml Plastic PET Bottle Making Machine Output 26000BPH

300 500 750ml Plastic PET Bottle Making Machine Output 26000BPH

300 500 750ml Plastic PET Bottle Making Machine Output 26000BPH
300 500 750ml Plastic PET Bottle Making Machine Output 26000BPH
300 500 750ml Plastic PET Bottle Making Machine Output 26000BPH
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO
Model Number: K12
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $25,000.00 - $40,000.00/Sets
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Contact Now
Detailed Product Description
Plastic Processed: PET Application: Bottle
Blow Moulding Type: Stretch Blow Moulding Automation: Automatic
Warranty: 1 Year Machinery Test Report: Provided
Output: 10000 Port: Shanghai
High Light:

300 500 750ml plastic pet bottle making machine

,

plastic pet bottle making machine output 10000

,

water bottle making machine output 10000

300 500 750ml Plastic PET Bottle Making Machine Output 26000BPH
300 500 750ml Plastic PET Bottle Making Machine Output 26000BPH 0
300 500 750ml Plastic PET Bottle Making Machine Output 26000BPH 1

Model Eceng K12

Bottle type specification



Cavity 12
Max.volume 200ml-750ml
Bottle mouth maximum overall diameter 25-30mm NECK
Bottle biggest diameter 75mm
Bottle maximum height 180mm

Capacity specification



Theory output 22000~26000BPH
Bottle type volume 600ML
Bottle type weight 13.5g
Bottle type Round
Power specification Light tube quantity 32pcs
Light tube power 1.75KW
Maximum heating power 56KW
All electric machine installation 71KW
Actual consumption 30%--60%

Air pressure specification



Work pressure 5-6kg/cm2
Blow bottle pressure 25-45kg/cm2
Higher -pressure gas consumption 24000Ltr/min
Forzen water specification Work pressure 5-6 kg/cm2
Temperature range 10℃
Consumption 12000kcal/hr
Temperature range 10℃
Forzen water flow 180L/min
Machine specification Machine size 9.0x2.0x2.3
Machine weight 10.0ton


300 500 750ml Plastic PET Bottle Making Machine Output 26000BPH 2
1, Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.
2, New clamping system,upgraded on the basis of the original ones,increase mould clamping speed and output,greatly reduce mold clamping noise.

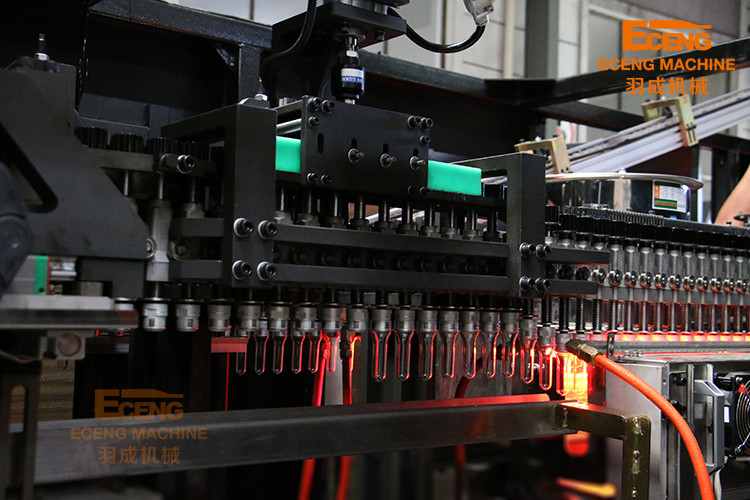

3, Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.
4, k series bottle blowing machine adopts advanced microcomputer PLC control system, stable performance; servo transmission system, high positioning accuracy, fast speed, stable and reliable.

300 500 750ml Plastic PET Bottle Making Machine Output 26000BPH 3
k series linear bottle blowing machines are used in the production of PET water bottles, carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.





300 500 750ml Plastic PET Bottle Making Machine Output 26000BPH 4

300 500 750ml Plastic PET Bottle Making Machine Output 26000BPH 5

300 500 750ml Plastic PET Bottle Making Machine Output 26000BPH 6

300 500 750ml Plastic PET Bottle Making Machine Output 26000BPH 7
300 500 750ml Plastic PET Bottle Making Machine Output 26000BPH 8
300 500 750ml Plastic PET Bottle Making Machine Output 26000BPH 9
Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 36,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging.
So far Eceng machinery have provided more than 2050 sets machines for more than 170 countries in the world.Our equipments are highly estimated by the clients, and are well known at home and abroad.We sincerely hope to establish business relationship with friends all over the world.
300 500 750ml Plastic PET Bottle Making Machine Output 26000BPH 10
300 500 750ml Plastic PET Bottle Making Machine Output 26000BPH 11

Our Services

1.Installation,debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2.Training
Eceng offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, thetechnician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.Quality guarantee
We promise that our goods quality, specification and function all meet the demand of contract. One year warranty,during warranty period,All parts and components exceptthose damaged by non-human factors are quaranteed free of charge (vulnerable parts are not included). In addition, the seller provides free spare parts and accessories for shipment with the machine.
During warranty period ,the equipment is damaged due to incorrect operation by thebuyer,we provide maintenance solutions,the buyer will cover the loss and cost.during warranty period we provide technical service,which is usually solved by telephone,etc.if not,provide door-to-door service.


300 500 750ml Plastic PET Bottle Making Machine Output 26000BPH 12
300 500 750ml Plastic PET Bottle Making Machine Output 26000BPH 13
300 500 750ml Plastic PET Bottle Making Machine Output 26000BPH 14
300 500 750ml Plastic PET Bottle Making Machine Output 26000BPH 15
300 500 750ml Plastic PET Bottle Making Machine Output 26000BPH 16
